Overview

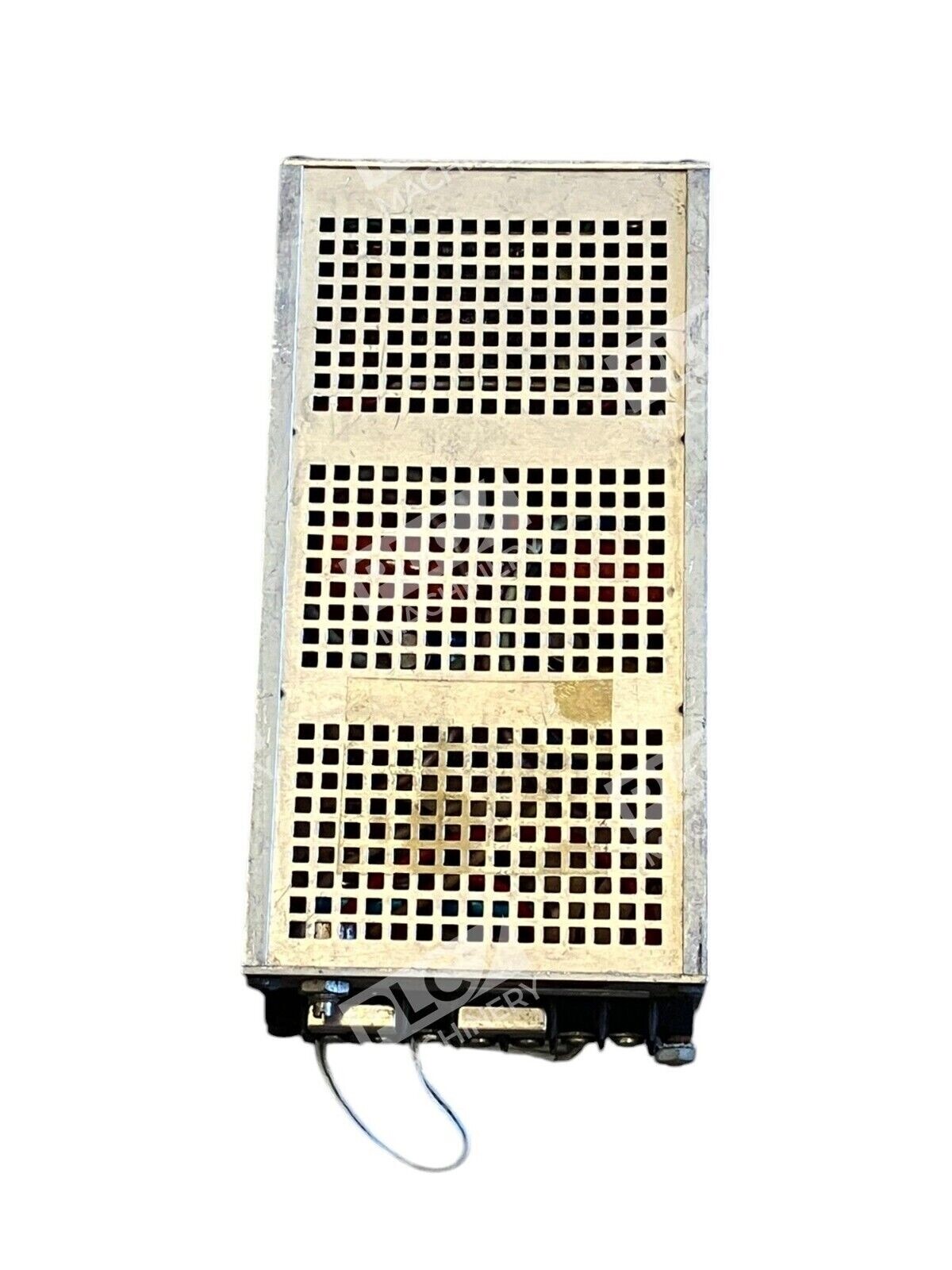

The Acopian FD15-50A is a narrow-profile, linear regulated AC-DC power supply engineered for demanding industrial and laboratory applications. This dual-output model provides stable ±15V regulation with integrated overvoltage protection, making it suitable for servo amplifiers, control circuits, and sensitive electronic equipment requiring clean, regulated DC power.
Key Features
- Dual-output AC-DC design with tracking outputs (12V and 15V)
- Stable ±15V nominal output at 0.5A continuous current
- Internal preset overvoltage protection with crowbar-style failsafe
- Moisture and fungus-resistant varnish on interior surfaces for long-term reliability
- Compact narrow-profile enclosure (TN6T case) for space-constrained installations
- Linear regulation for low-noise, clean DC output suitable for analog circuits
Technical Specifications
- Manufacturer: Acopian Technical Co.
- Model: FD15-50A
- Input Voltage: 105–125 VAC, 47–63 Hz
- Output Voltage: ±15 VDC (nominal)
- Output Current: 0.5 A
- Case Size: TN6T (narrow profile)
- Weight: 3.0 lbs
- Protection: Internal overvoltage protection (crowbar)
- Coating: Moisture and fungus-resistant varnish
- Line Voltage Options: 210–250 VAC available on request
Typical Applications
The Acopian FD15-50A is widely used in:
- Servo amplifier and motor controller power supplies
- Industrial process control systems and PLCs
- Laboratory instrumentation and test equipment
- Security system power distribution
- Precision analog circuit modules requiring regulated DC
- Backup and standby power for critical automation systems
Compatibility & Replacements
Compatible With
- Industrial servo drives and amplifiers requiring ±15V input
- Allen-Bradley, Siemens, Mitsubishi, and Omron control systems
- AC input 105–125 VAC, 47–63 Hz mains power

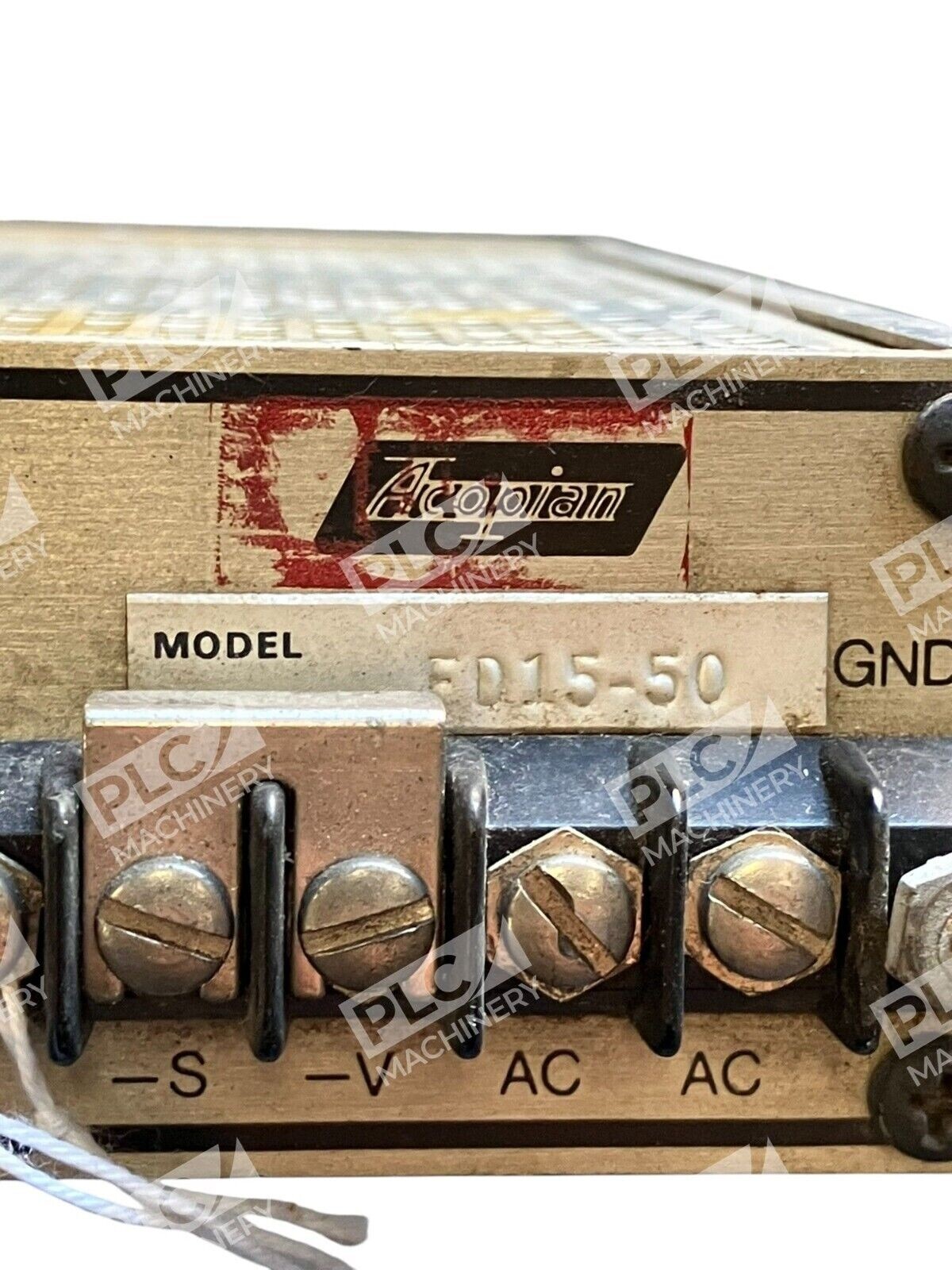

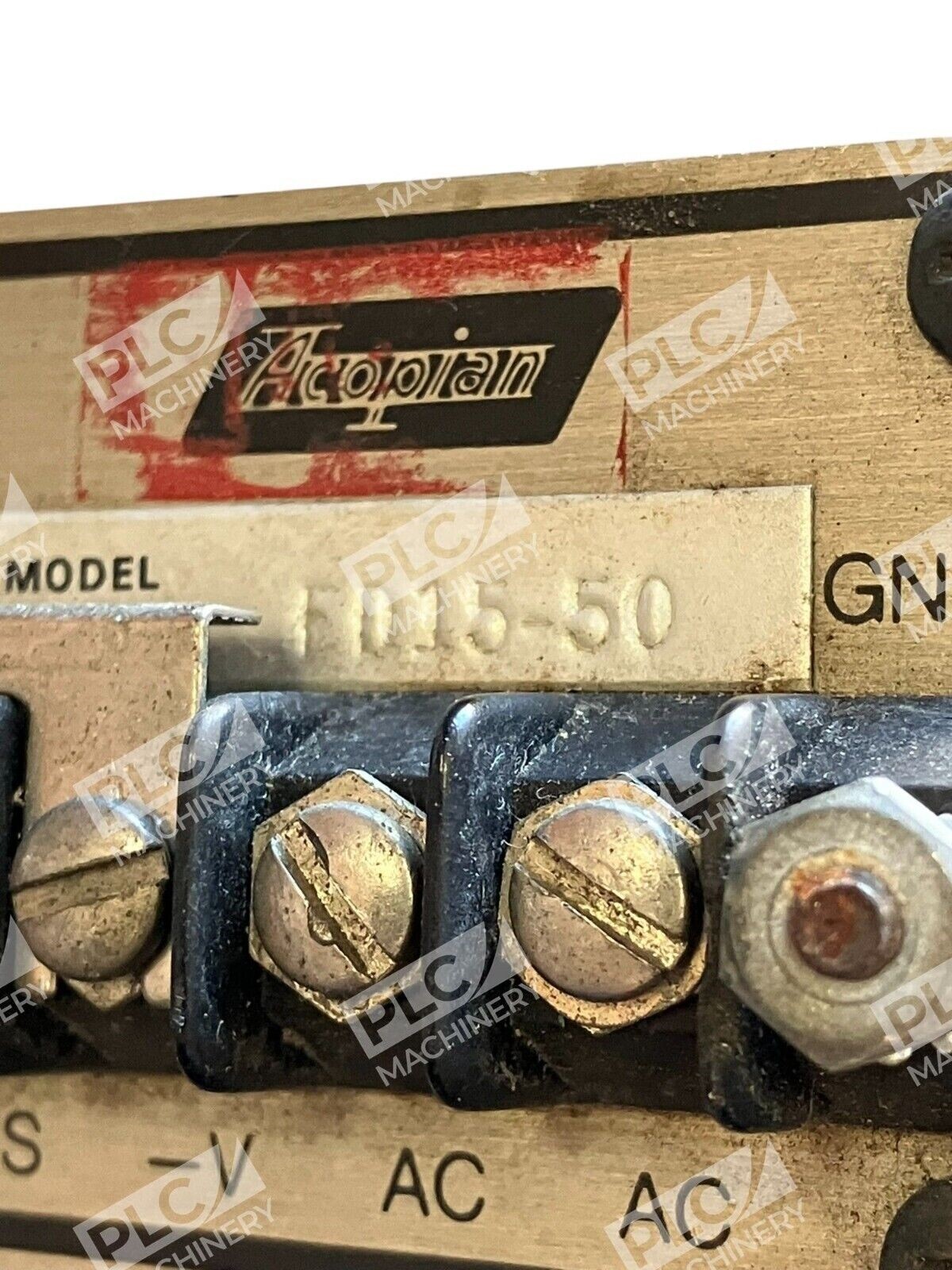

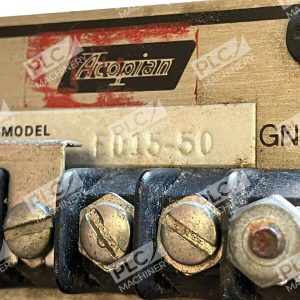

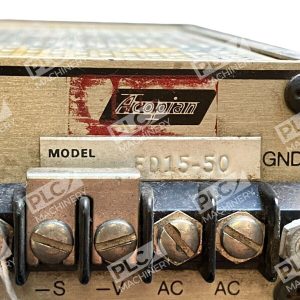

- Barrier-strip terminal strip with 6-32 screws (standard industrial connector)
Replaces / Drop-In Replacement For
- Direct replacement for Acopian FD15-50 and similar 15V/0.5A linear supplies
- Compatible with legacy Acopian narrow-profile designs (TN6T case)
- Verify mounting and connector compatibility with your system before ordering
Works With
- Dual tracking output architecture for split-supply analog circuits
- Standard industrial barrier-strip termination (6-32 machine screws)
- Wall-mounting and rack-mounting options with optional NP6 mounting kit
- 230 VAC input available as custom configuration
