Overview

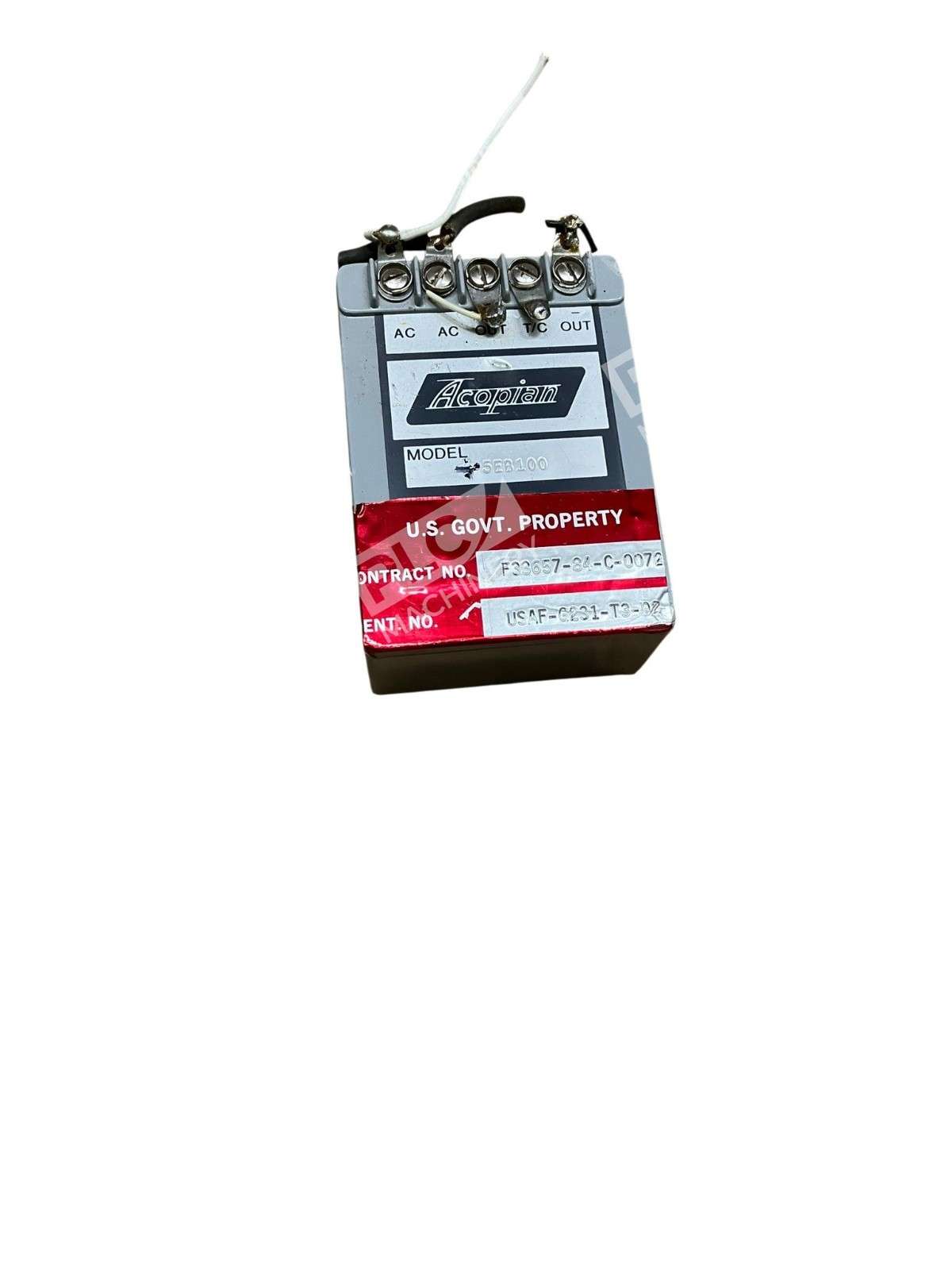

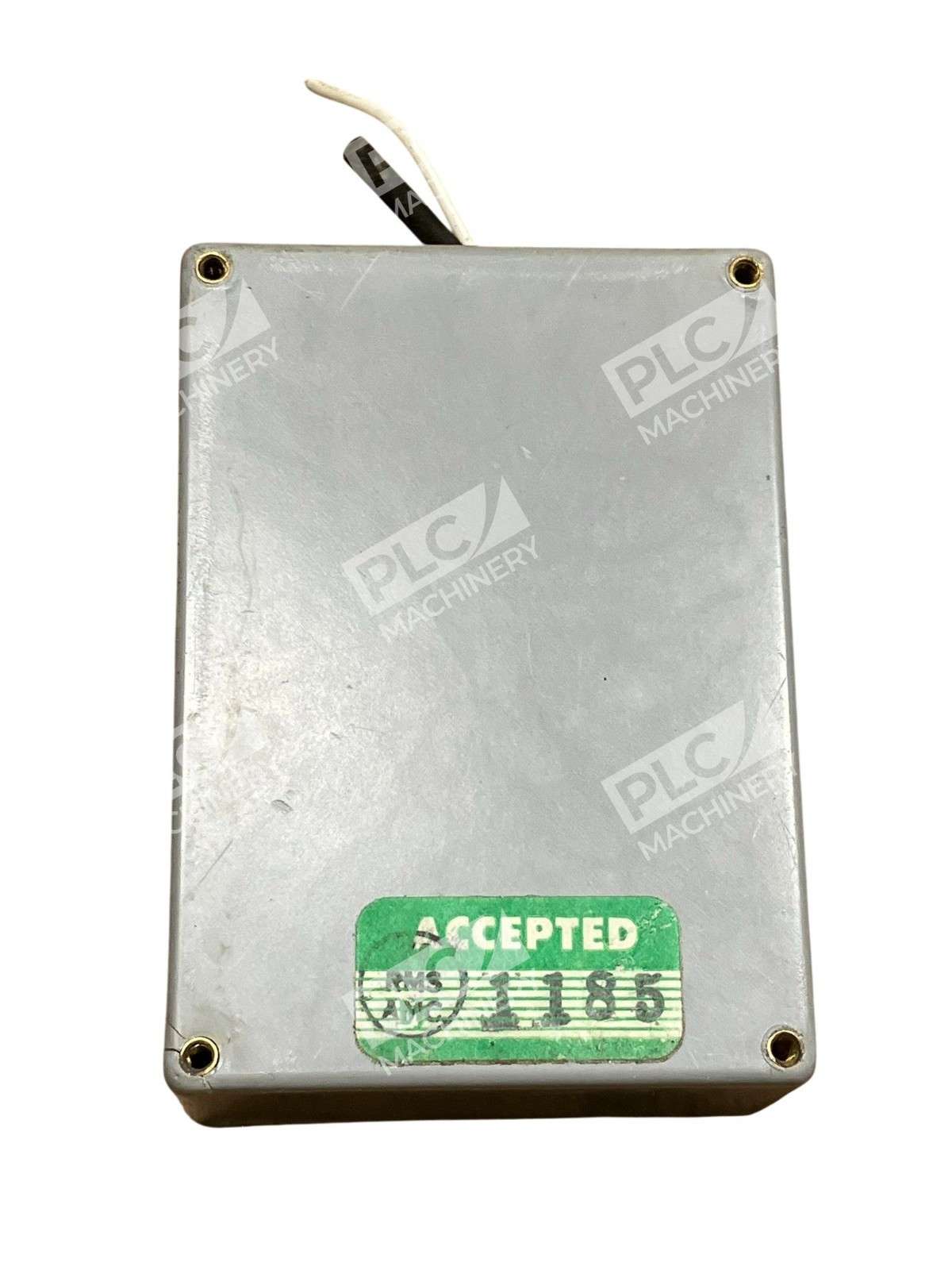

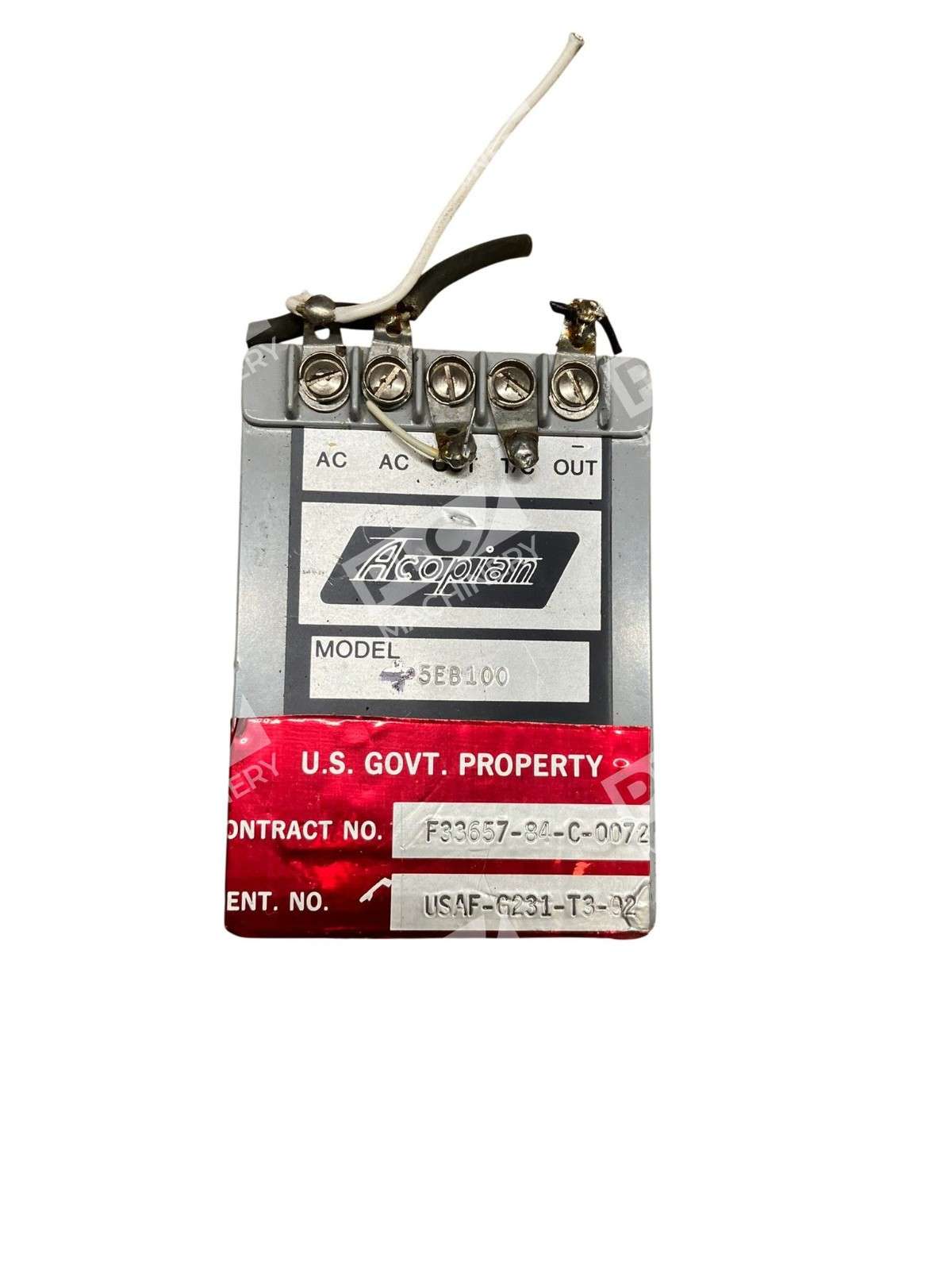

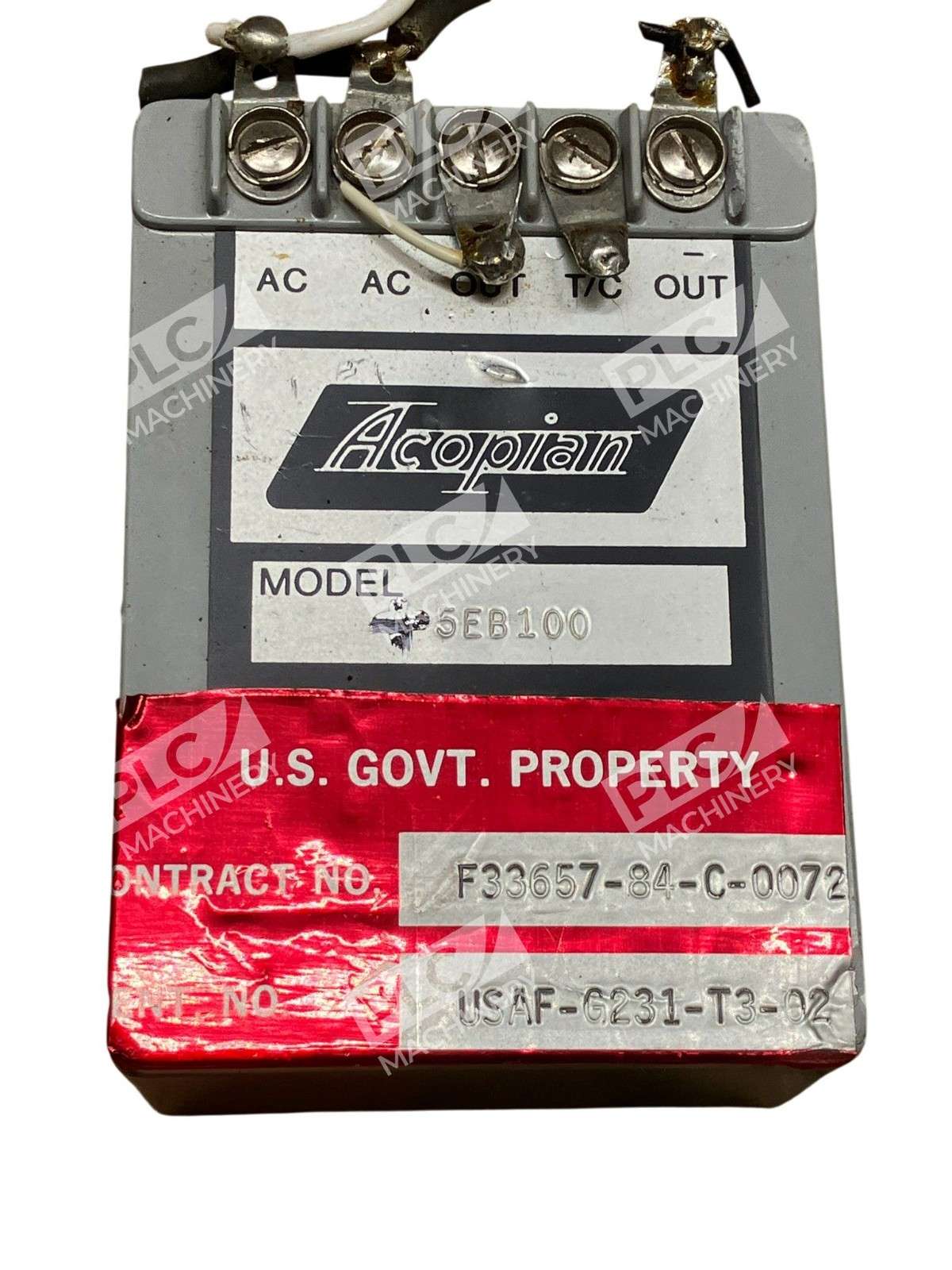

The Acopian 5EB100 is a mini-encapsulated linear power supply designed for reliable AC-to-DC conversion in control systems, instrumentation, and industrial equipment. Built with proven linear regulation technology, this module delivers clean, consistent 5VDC output at 1A with excellent voltage stability and minimal ripple. The floating output allows either terminal to be grounded or operated at elevated potential, offering flexibility in system integration.
Key Features
- 5VDC regulated output at 1A nominal current
- Linear regulation for clean, low-ripple DC output
- Mini-encapsulated design (EB-13 case) with screw terminals
- Input voltage options: 105–125 VAC standard (210–250 VAC with -230 suffix)
- Floating output allows flexible grounding configurations
- Short circuit and overload protection
- Compact form factor ideal for panel mounting and embedded applications
Technical Specifications
Electrical Characteristics:
- Nominal Output Voltage: 5VDC
- Output Current: 1A
- Input Voltage: 105–125 VAC (50/60 Hz)
- Optional Input: 210–250 VAC with -230 suffix
- Output Regulation: ±0.5% (typical)
- Temperature Coefficient: ±0.02%/°C (typical)
- Holdup Time: 20 mS minimum
- Transient Response: 300 μS to ±1% of output
Physical Specifications:
- Case Size: EB-13
- Dimensions: Approximately 3.5 × 2.5 × 1.75 inches
- Weight: Approximately 1.25 lbs
- Mounting: Screw terminals; optional DIN rail kit (EB35DIN) and wall-mount kit (EB4A) available
Typical Applications
- Industrial automation and control systems
- TTL and logic circuit power
- Precision instrumentation and measurement equipment
- Research and laboratory systems
- Telecommunications and signal processing equipment
- Embedded control modules requiring stable, regulated 5V power
Compatibility & Replacements
Compatible With
- Standard 50/60 Hz AC mains (105–125 VAC, or 210–250 VAC with -230 option)
- DIN rail mounting systems (with optional EB35DIN kit)
- Wall-mount installation (with optional EB4A kit)
- PC board and enclosure-based power distribution systems
- Floating output configurations allowing flexible ground reference
Replaces / Drop-In Replacement For
- Earlier Acopian 5EB100 units in the same EB-13 enclosure
- Custom or obsolete 5V 1A linear supplies requiring industrial-grade stability and minimal ripple
Works With
- Acopian accessory mounting kits (EB35DIN for DIN rail, EB4A for wall mount)
- Standard industrial 105–125 VAC power distribution
- Laboratory instrumentation and data acquisition systems requiring clean DC reference
- Control panels and embedded systems using 5VDC logic and sensor supplies
