Overview

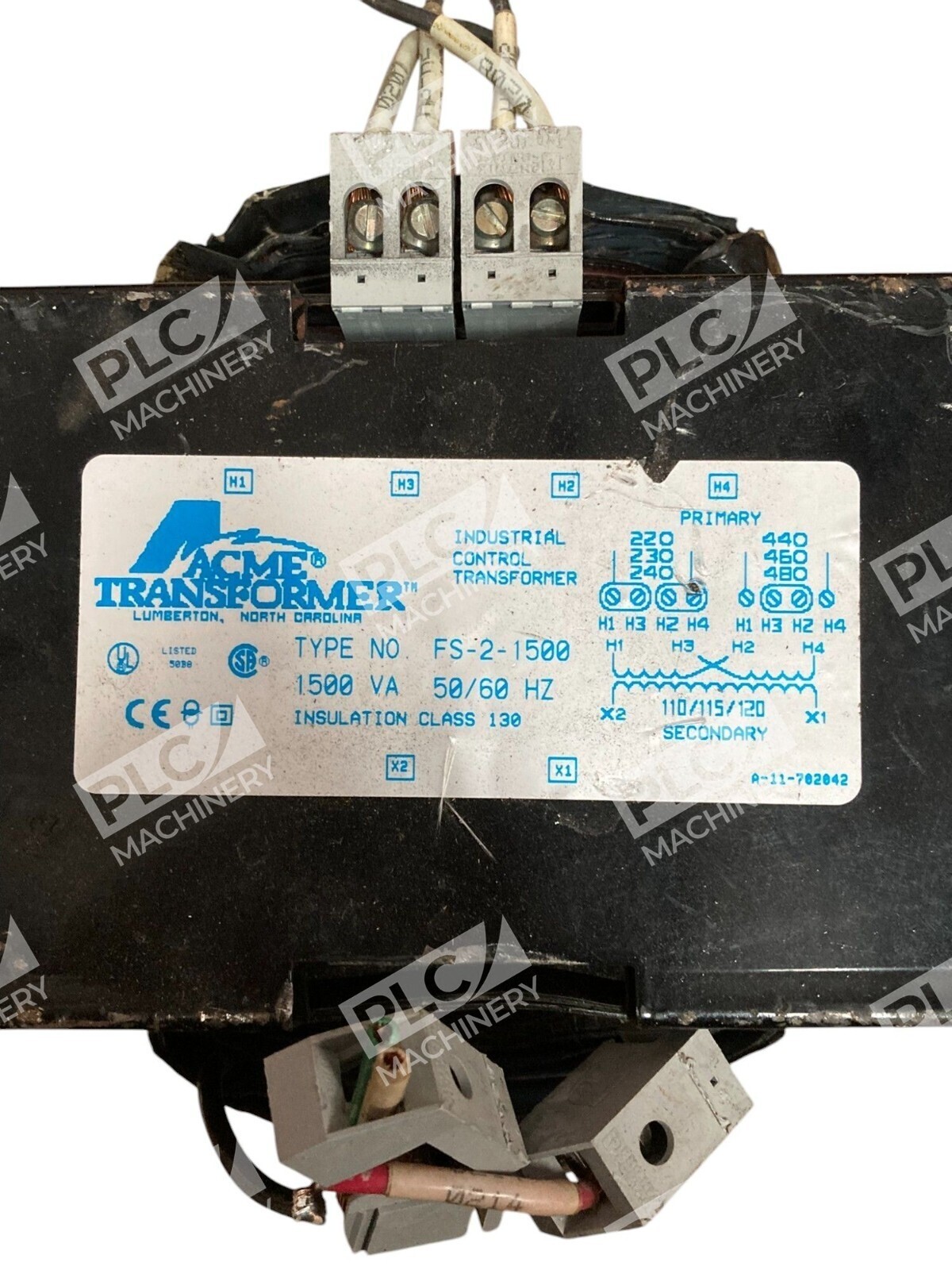

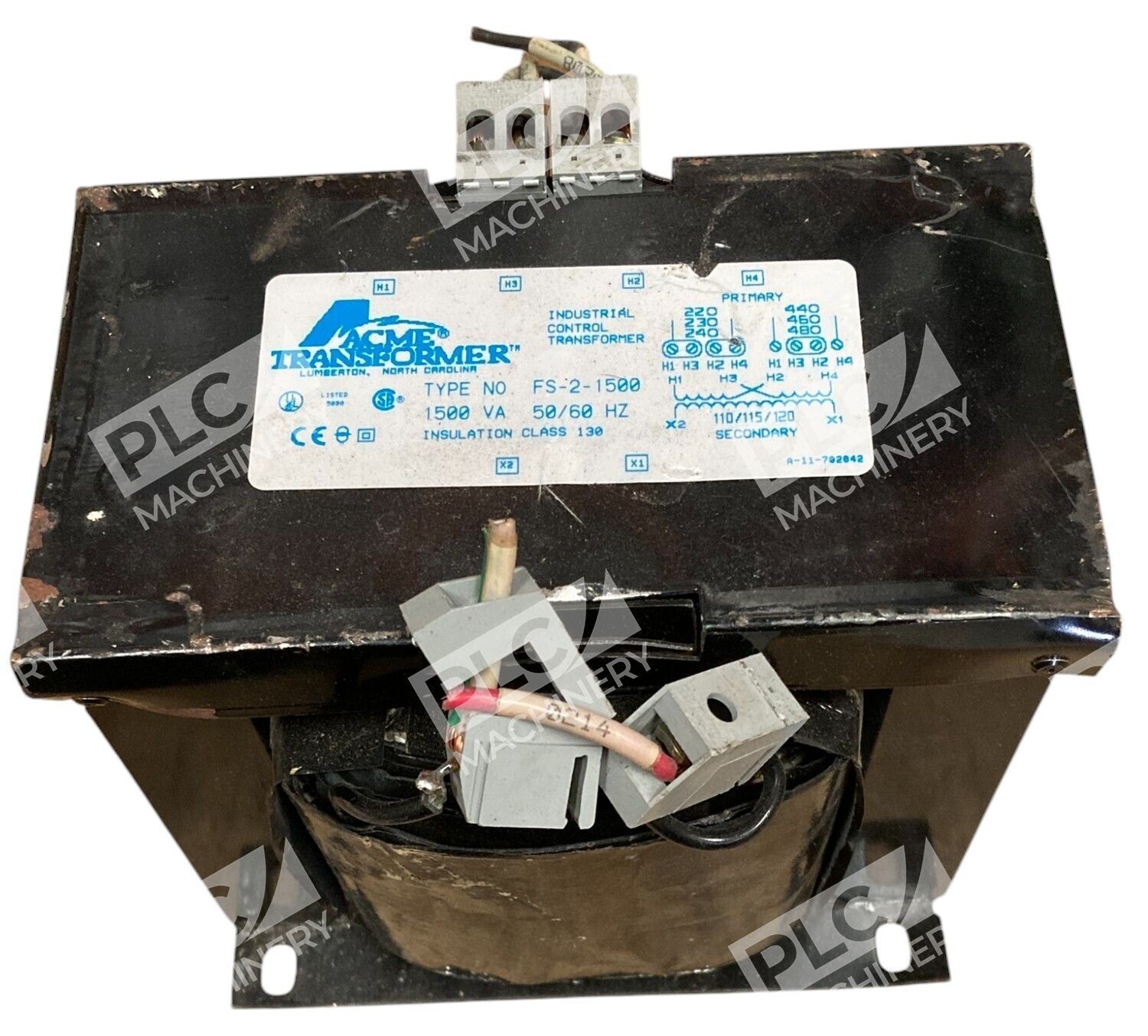

The ACME FS-2-1500 is a proven 1500VA industrial control transformer engineered for reliable performance in HVAC, refrigeration, and general industrial control applications. Rated for both 50 and 60Hz operation, this transformer is built to handle the demanding inrush currents common in electromagnetic control circuits while maintaining stable secondary voltage. The FS-2 series is designed to meet NEMA, ANSI, and industrial standards for durability and consistency across a wide range of power and control scenarios.
Key Features
- 1500VA power rating with dual frequency capability (50/60Hz)
- Open core and coil construction for standard industrial control applications
- Stable secondary voltage under high inrush currents typical of contactors and solenoids
- Multiple primary and secondary voltage combinations available
- UL and CSA listed for compliance with electrical standards
- Standard mounting provisions for control cabinets and external enclosures
Technical Specifications
The FS-2-1500 is a single-phase transformer with a compact footprint suited to space-constrained installations:
- Power Rating: 1500 VA at rated voltage and frequency
- Frequency: 50/60 Hz (dual frequency rated)
- Insulation Class: Standard industrial-grade
- Core and Coil: Open construction, copper magnet wire
- Standards: UL listed, CSA certified, NEMA compliant
- Temperature Rise: Designed for continuous duty in ambient environments
Typical Applications
The ACME FS-2-1500 is well-suited for:
- HVAC Systems: Control circuits for compressors, fans, and damper motors
- Refrigeration Equipment: Secondary voltage supply for control solenoids and relays
- Industrial Control Panels: Step-down voltage supply for PLC, HMI, and contactor circuits
- Motor Starter Circuits: Stable secondary voltage for electromagnetic control of three-phase motors
- General Manufacturing: Machine tool and production equipment control circuits
Compatibility & Replacements
Compatible With
- Standard industrial control cabinet installations (open mounting)
- Electromagnetic contactors, solenoids, and control relays
- PLC and automation system control circuits
- HVAC and refrigeration control systems
- General-purpose power distribution in manufacturing environments
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The FS-2-1500 may serve as a replacement for similar ACME 1500VA industrial control transformers and competing brands rated for the same primary and secondary voltage combinations, such as Sola, Square D, or GE control transformers in the 1500VA class. Consult the transformer nameplate and electrical specifications before substitution.
Works With
- Electrical power systems operating at 50 Hz or 60 Hz
- Multiple primary voltage inputs: 120V, 208V, 220V, 230V, 240V, 380V, 400V, 416V, 440V, 460V, 480V, 500V, 550V, 575V, 600V (consult datasheet for specific model configuration)
- Standard secondary voltage outputs for control circuits: 24V, 48V, 110V, 120V (configuration-dependent)
- Open-type mounting in control cabinets and wall-mounted enclosures
- Industrial control systems built to NEMA, IEC, and ANSI standards
