Overview

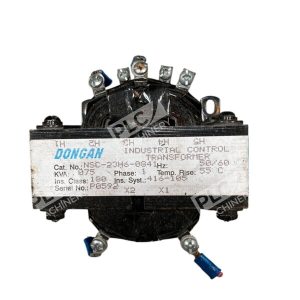

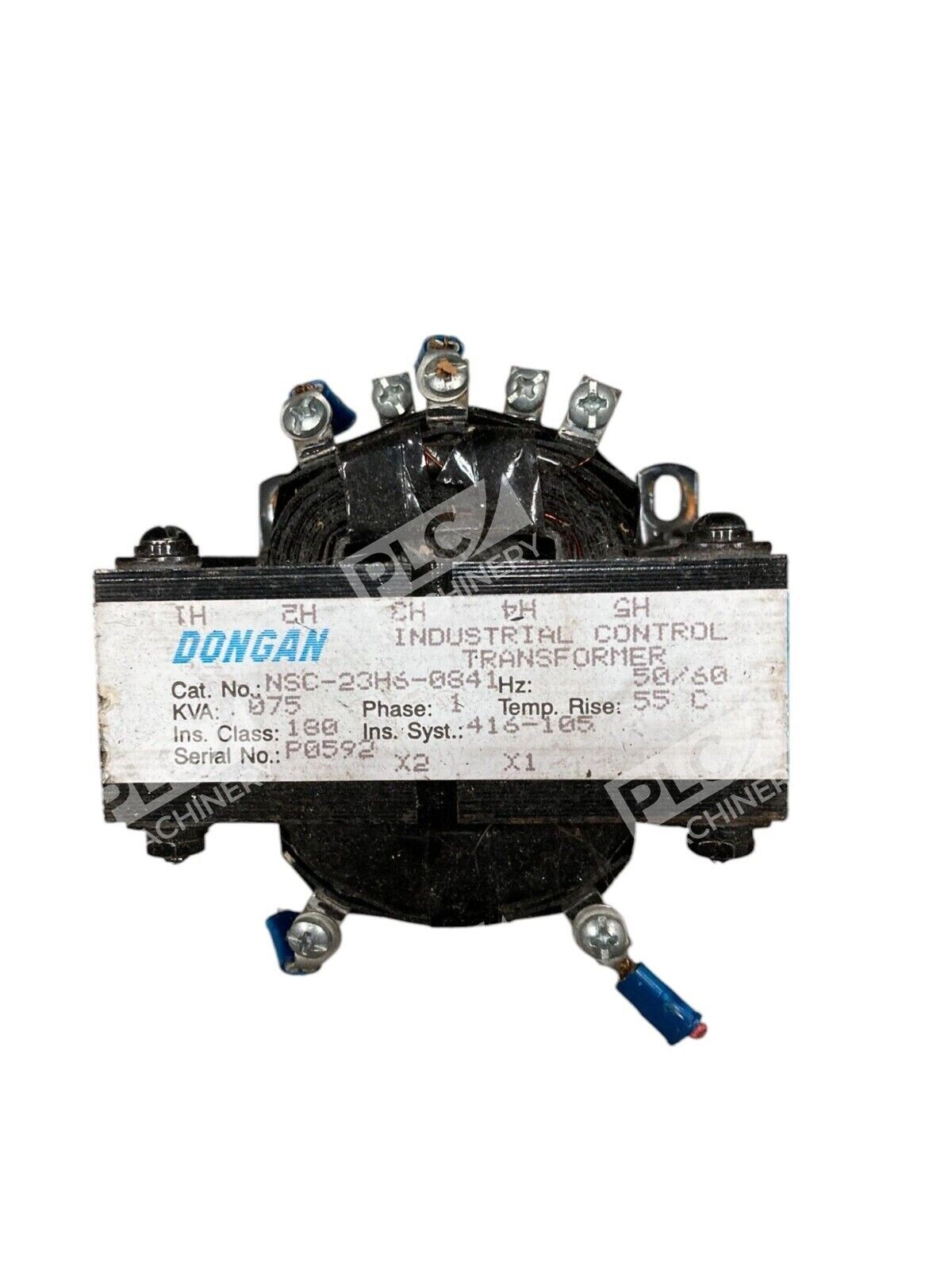

The Dongan NSC-23H6-0841 is a 0.75 KVA single-phase industrial control transformer built for reliable performance in machine tool, process automation, and control circuit applications. This transformer provides clean, regulated voltage conversion essential for precision control equipment. Manufactured by Dongan Electric Manufacturing Company—a heritage transformer builder serving industrial automation since 1909—the NSC-23H6-0841 meets industry certification standards and delivers consistent performance across standard North American and European power systems.
Key Features
- Single-phase design optimized for industrial control circuits
- 0.75 KVA power rating supports machinery and automation control loads
- 50/60Hz dual-frequency operation for global deployment flexibility
- Compact dry-type construction requiring no cooling oil or maintenance
- Industry certifications: UL, CUL, CE, IEEE, ANSI, RoHS, TUV, and ISO
- Proven reliability in control transformer applications
Technical Specifications
Voltage transformation and operational parameters for the NSC-23H6-0841:
- Power Rating: 0.75 KVA
- Phase Configuration: Single-phase
- Frequency: 50/60 Hz
- Construction Type: Dry-type (ventilated enclosure)
- Standards & Certifications: UL, CUL, CE, IEEE, ANSI, RoHS, TUV, ISO
Typical Applications
- Machine tool control circuits and automation equipment
- PLC and control system power conditioning
- Process automation and machinery control interfaces
- Industrial control panel voltage conversion
- Electrical distribution to control relays, contactors, and sensors
Compatibility & Replacements
Compatible With
- Standard industrial control circuits rated for 50/60Hz single-phase input
- Legacy and modern automation machinery control systems
- Direct mounting in control cabinets and enclosures
- Compatible with standard DIN rail or bolt-down mounting configurations
Replaces / Drop-In Replacement For
The NSC-23H6-0841 is suitable as a replacement for legacy control transformers in the NSC-23H6 series. Verify compatibility with your system integrator before ordering to ensure voltage ratings and mounting configurations match your control panel design.
Works With
- AC power distribution systems (120V, 240V, 277V, 480V primary inputs typical)
- Control circuit relay and contactor networks
- Industrial PLC and automation controllers
- Standard industrial electrical enclosures and cabinets
- Conventional and modern control wiring practices
