Overview

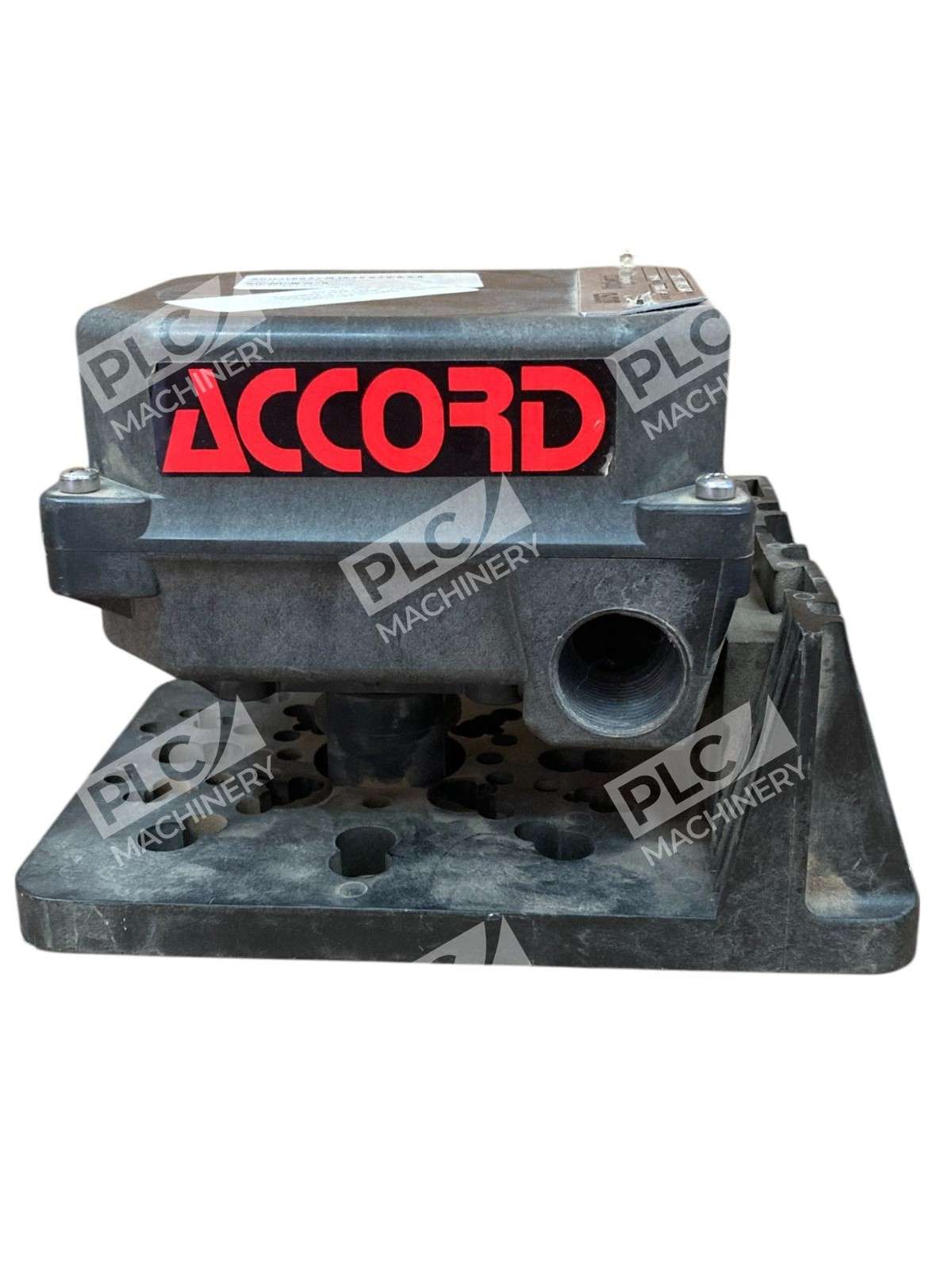

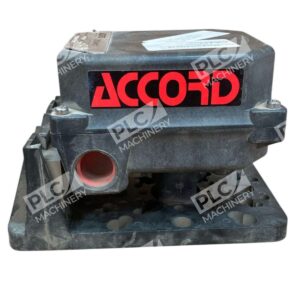

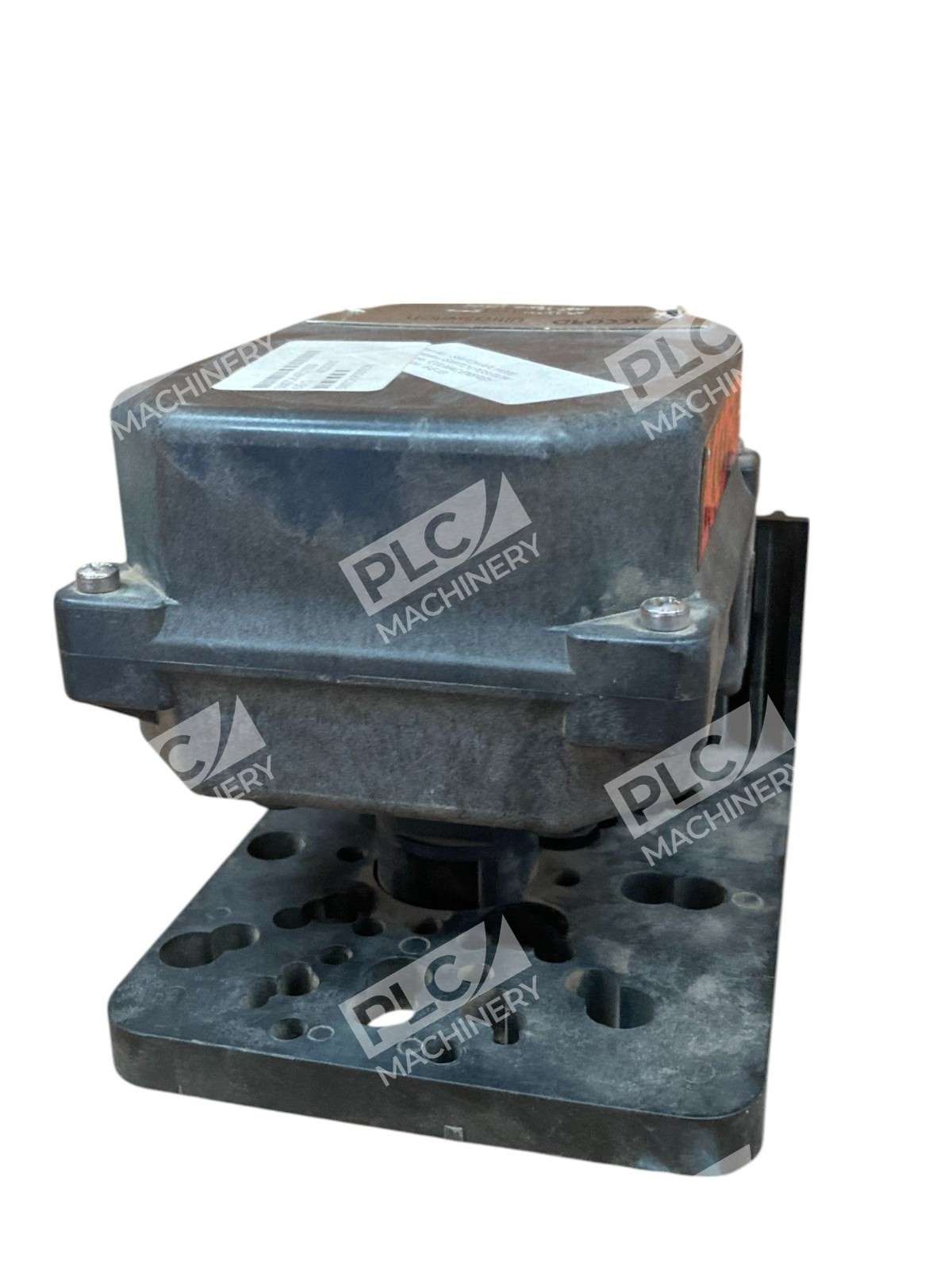

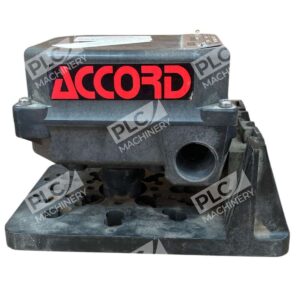

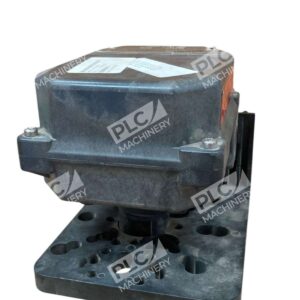

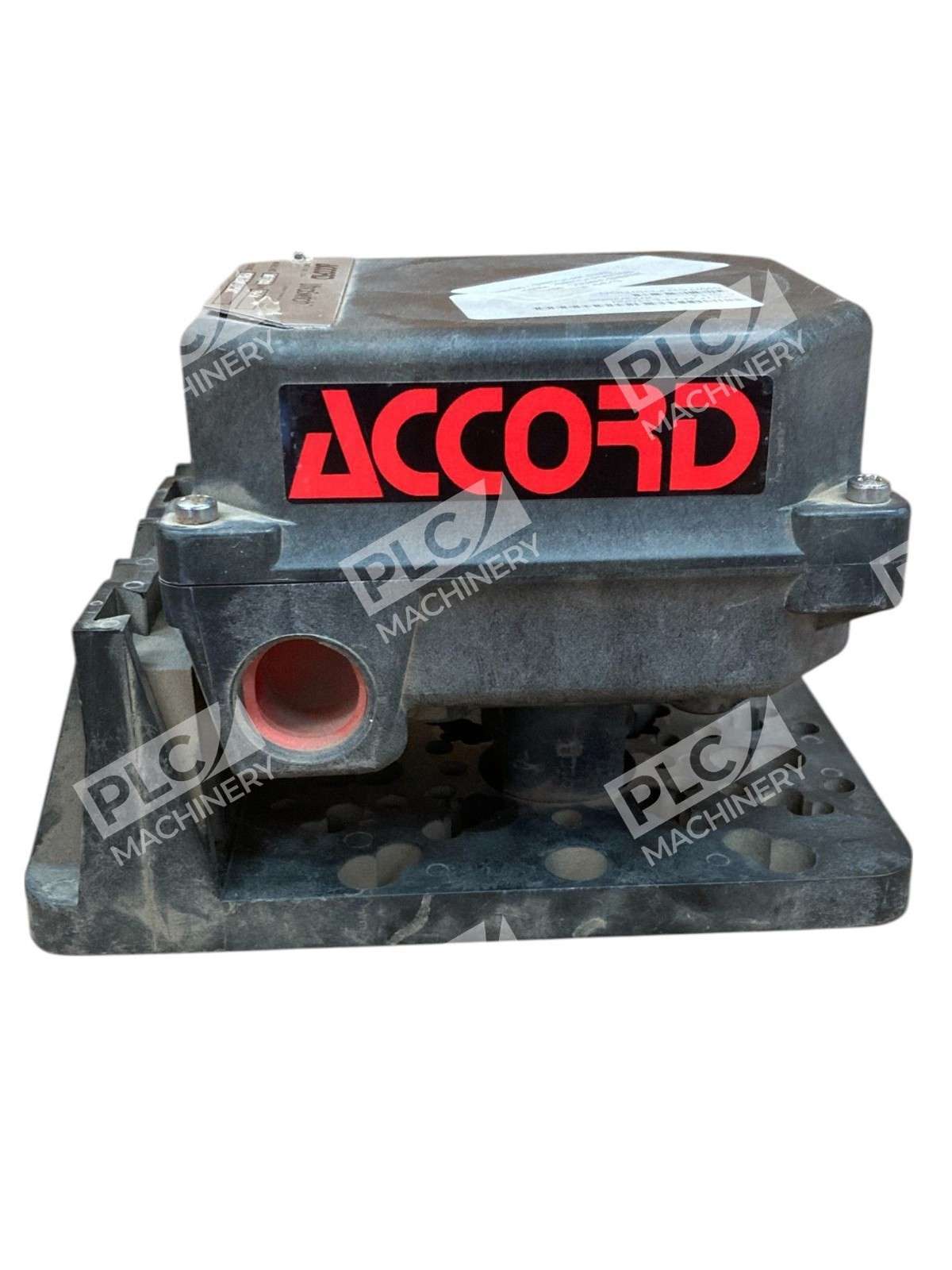

The Accord UltraSwitch APL11000 is a mechanical SPDT (single-pole double-throw) position switch designed for remote valve position indication in industrial automation systems. Rated for 15 amperes at 125VAC, this switch provides reliable electrical feedback for automated valve actuators and control systems. The APL11000 delivers local and remote position sensing with proven durability in demanding plant environments.
Key Features
- SPDT (Form C) contact configuration for flexible switching logic
- 15A capacity at 125VAC for standard industrial control circuits
- Mechanical switch design with low moving friction for extended cycle life
- Compatible with standard valve actuator mounting
- Integrated visual position indicator for local status confirmation
- Robust enclosure suitable for shop floor and field installation
Technical Specifications
- Manufacturer: Accord Controls (INDUSTRIAL MRO brand)

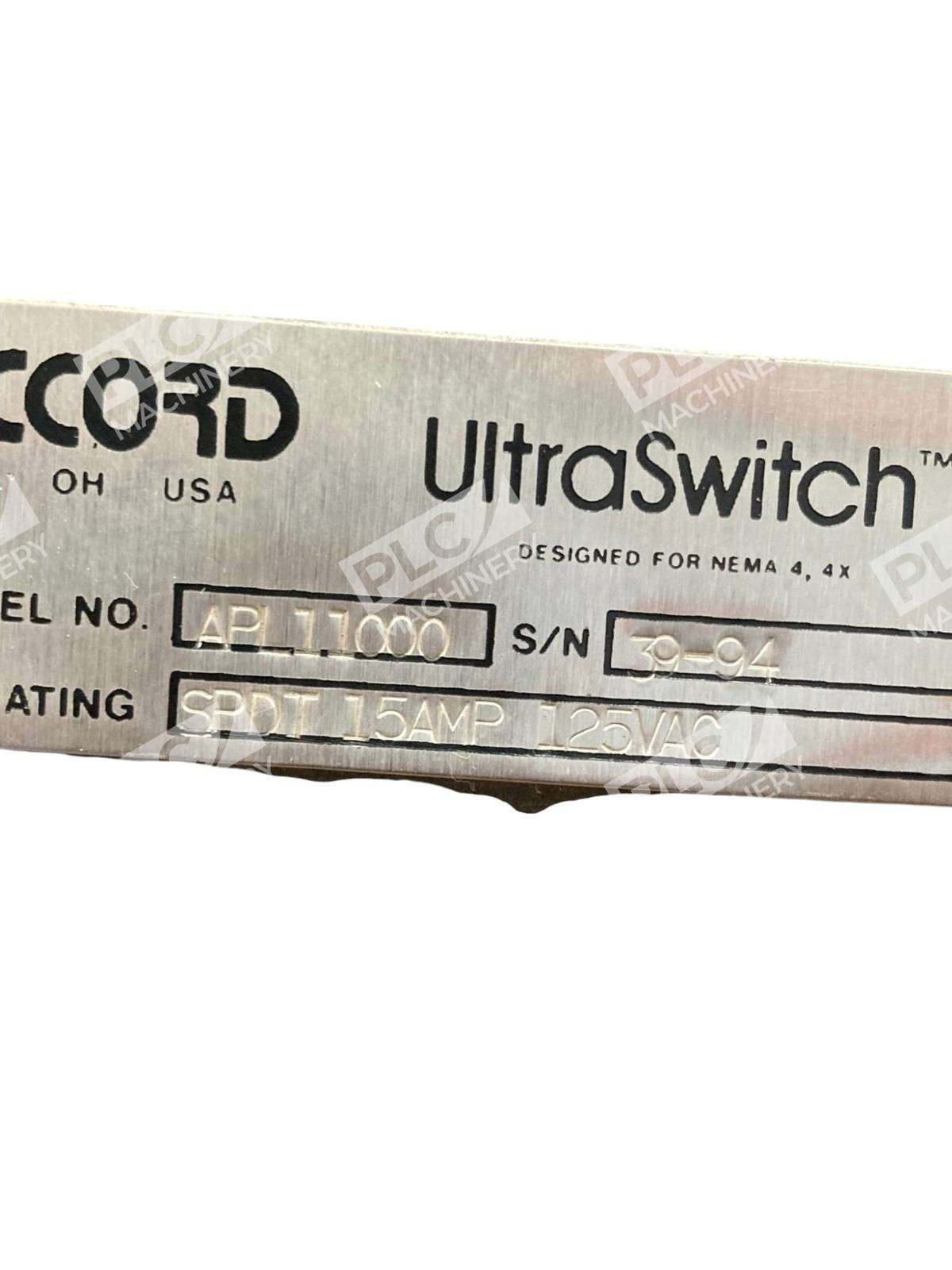

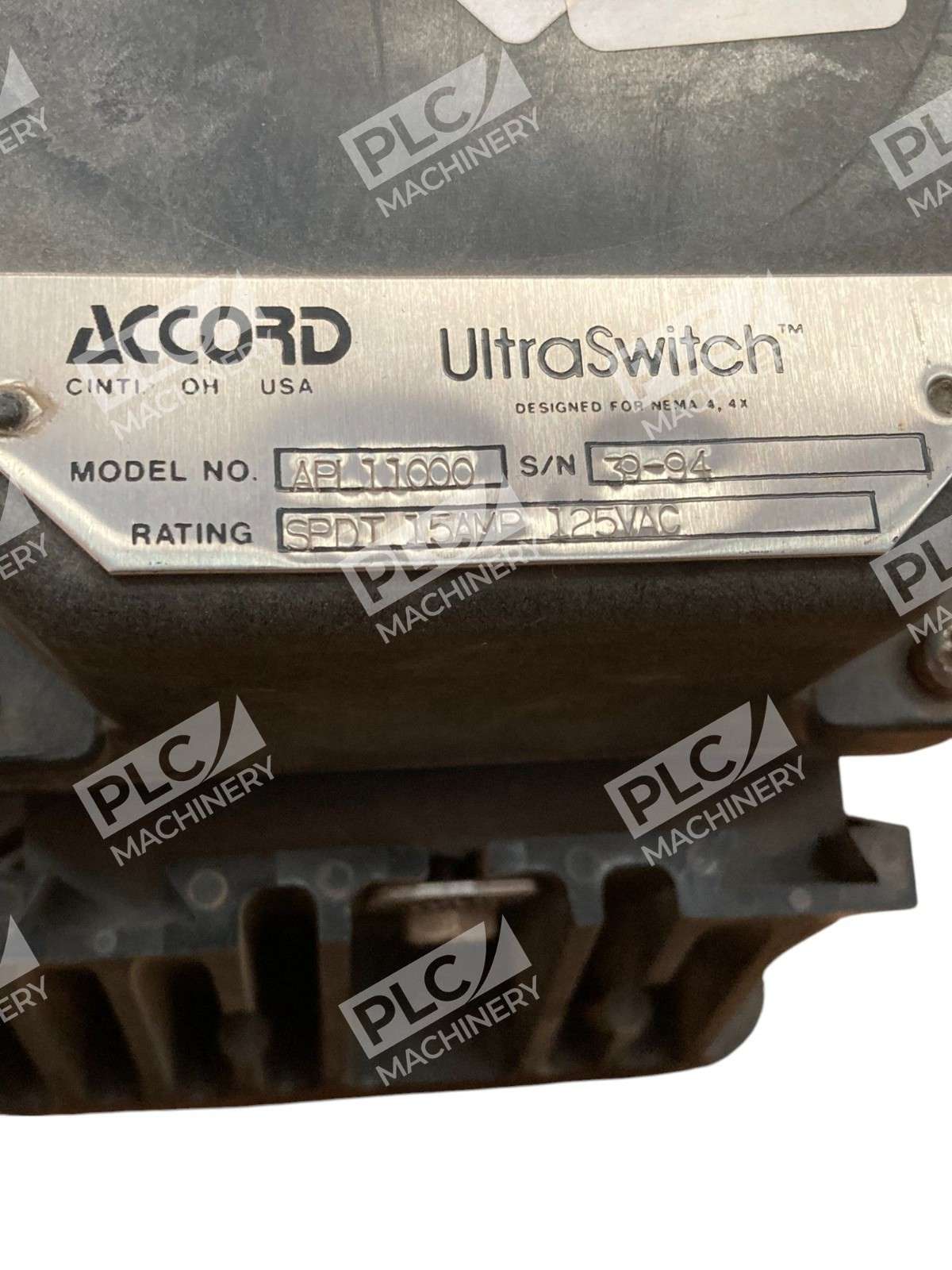

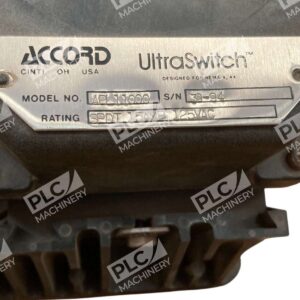

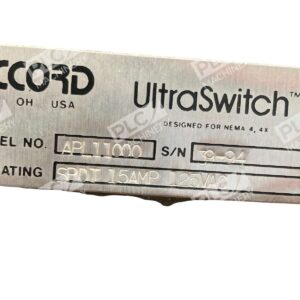

- Model: APL11000
- Contact Type: SPDT (Single-Pole Double-Throw)
- Voltage Rating: 125VAC
- Current Rating: 15A maximum
- Switch Type: Mechanical limit switch
- Position Indication: Visual indicator (red/green standard)
- Mounting: Valve actuator mount compatible
- Condition: Used, fully functional
Typical Applications
- Automated ball valve and butterfly valve position feedback
- Industrial process control system valve status signals
- HVAC and process piping position indication
- Pneumatic and electric actuator position confirmation
- Plant machinery valve state monitoring
Compatibility & Replacements
Compatible With
- Standard valve actuators with mounting provisions
- Industrial control panels and PLC systems accepting 125VAC input signals
- HVAC and building automation systems
- Generic industrial electrical control circuits (125VAC, 15A max)
Replaces / Drop-In Replacement For
- Other Accord APL series position switches with identical pin configuration
- Verify compatibility with your existing valve actuator and control circuit before ordering
Works With
- Standard industrial PLC input modules (24VDC to 125VAC logic)
- Relay-based control circuits and contactors
- Building management systems with hardwired I/O
- HVAC pneumatic and electric control systems
