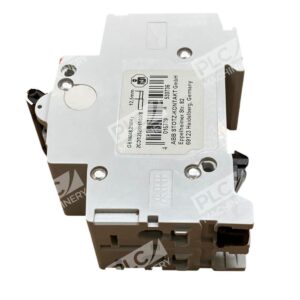

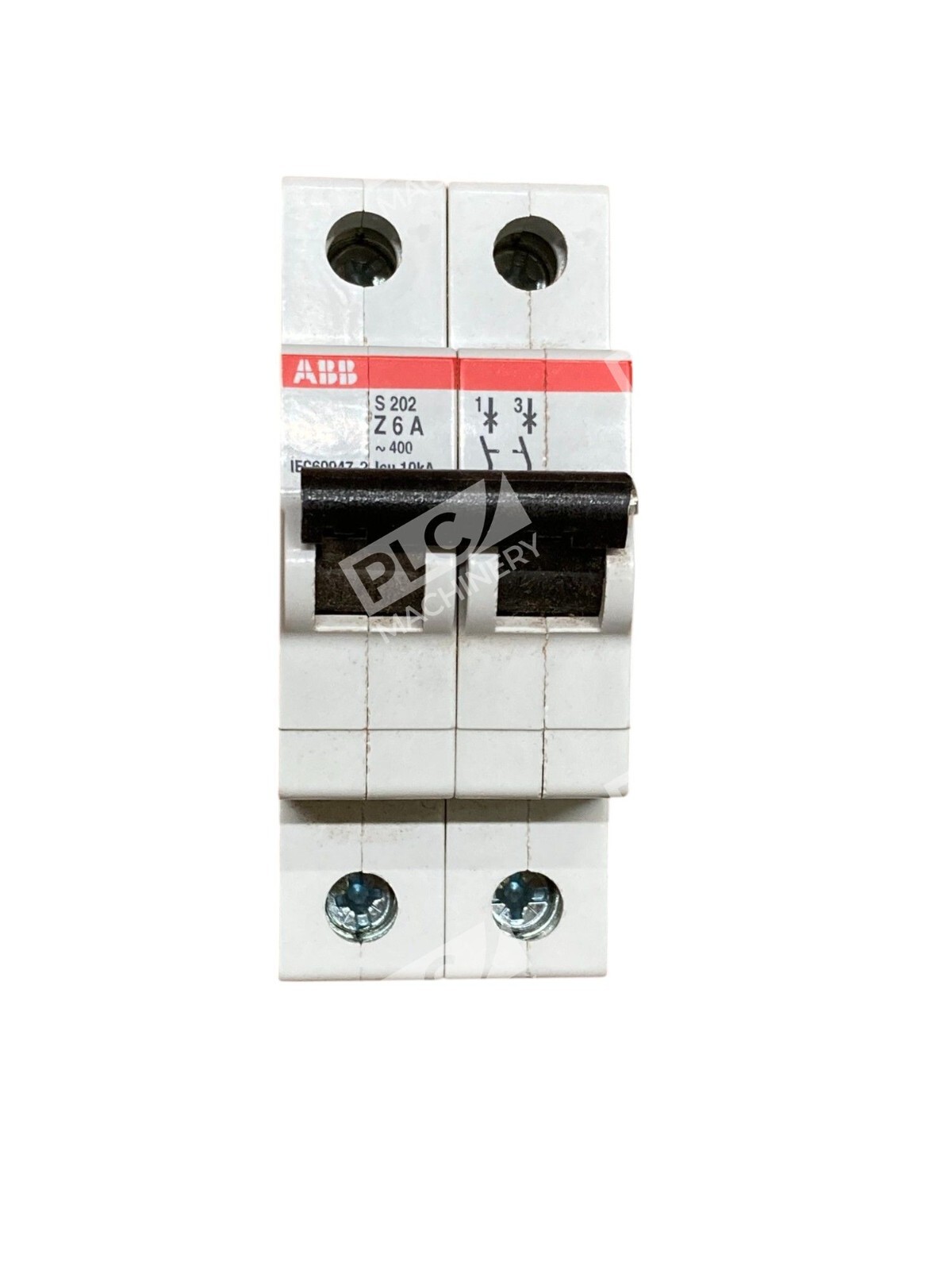

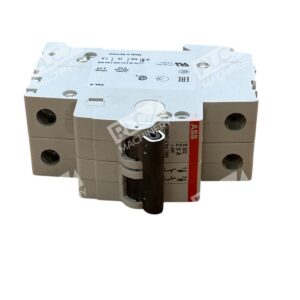

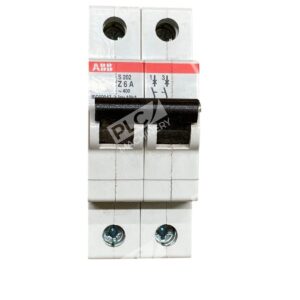

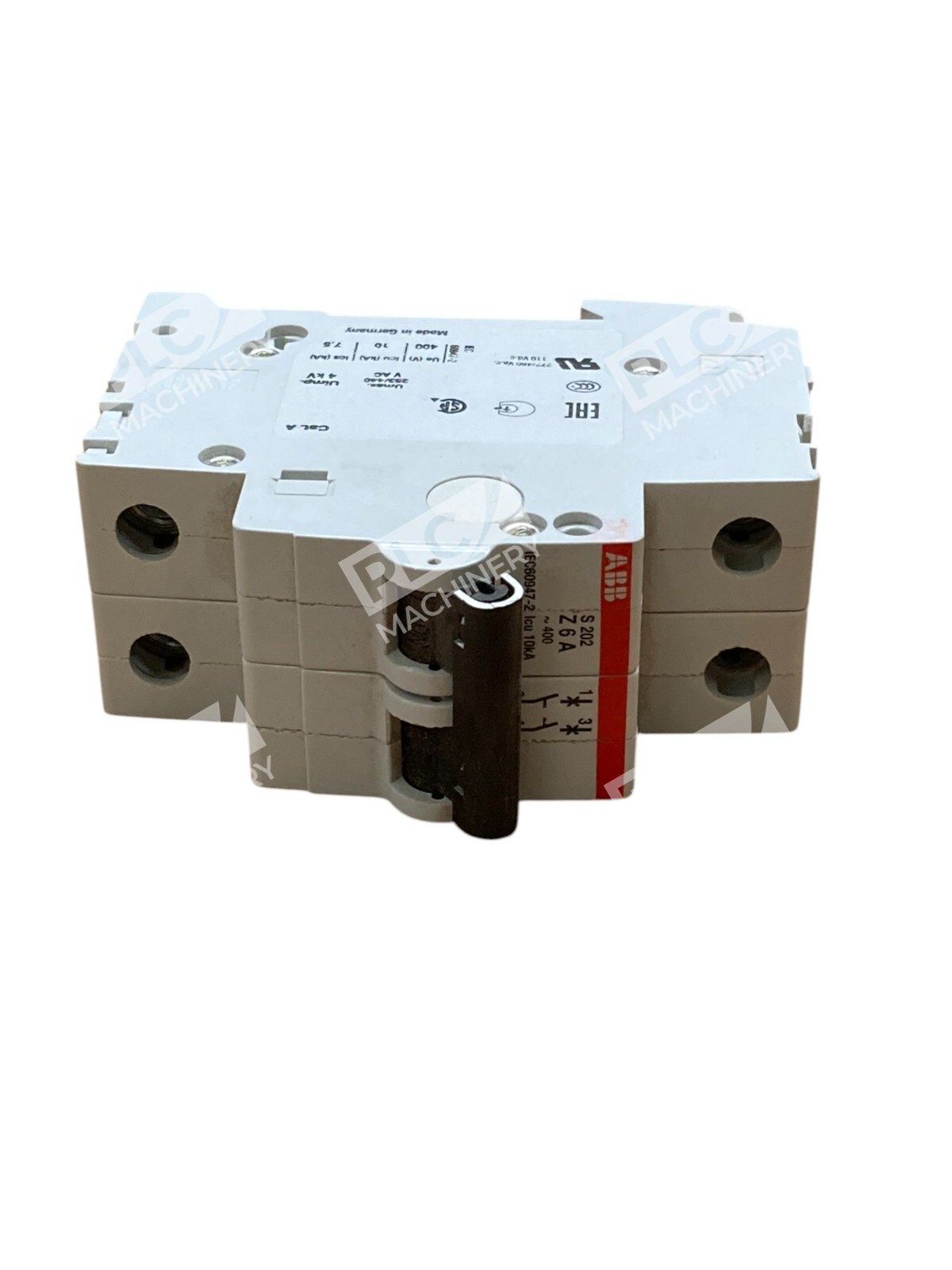

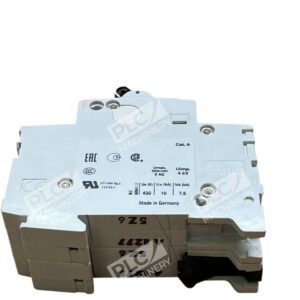

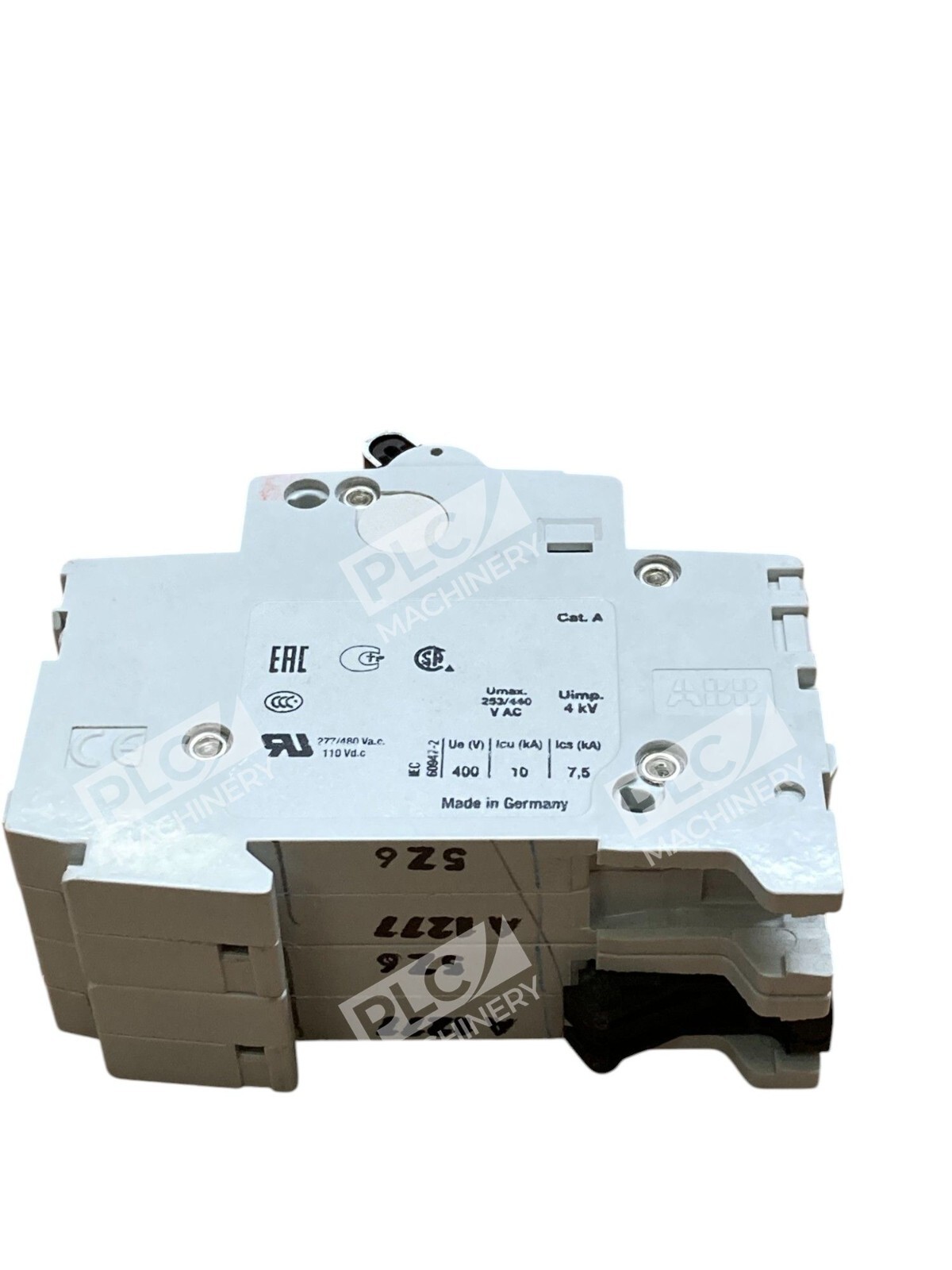

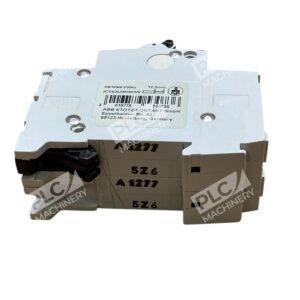

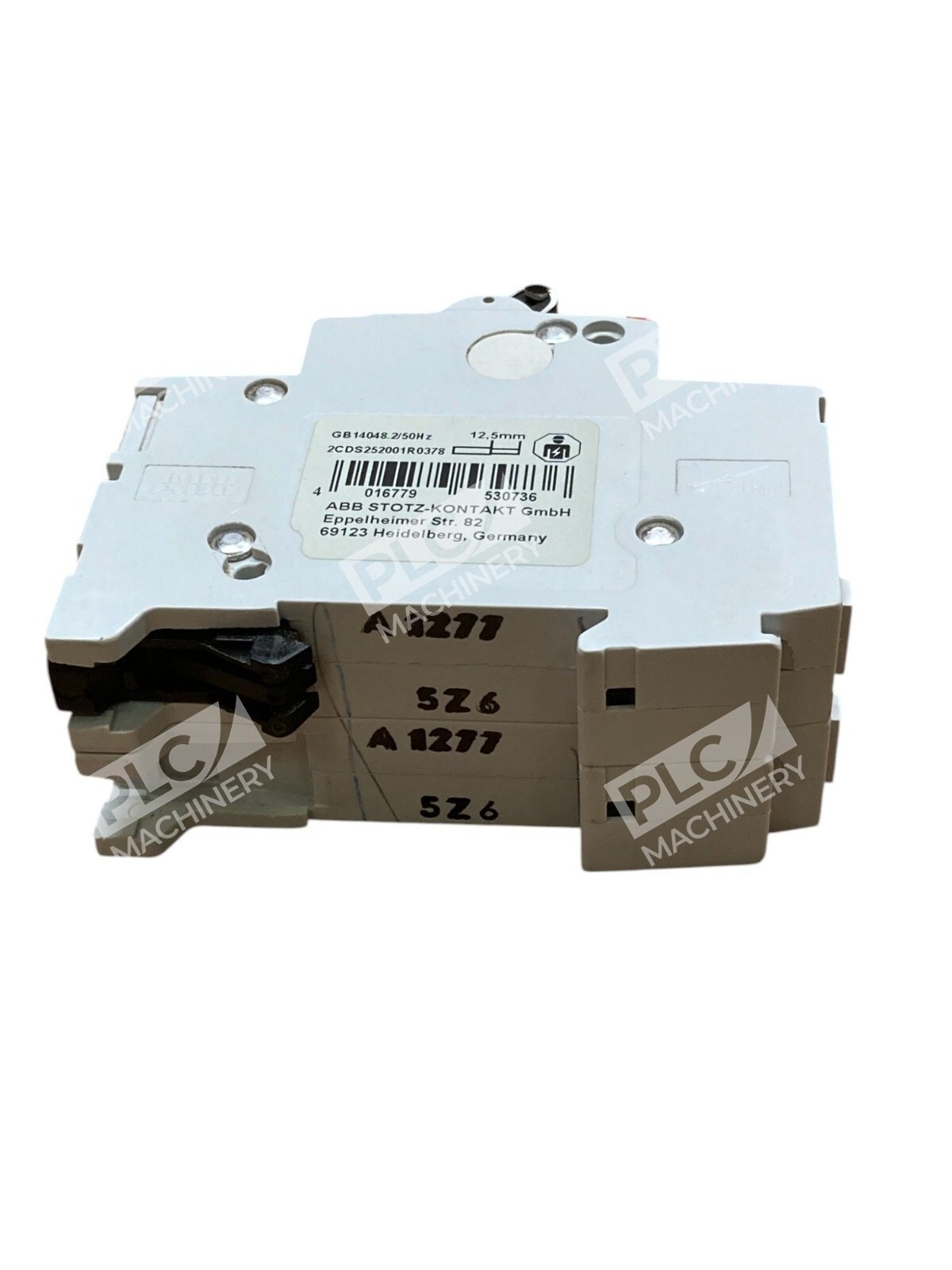

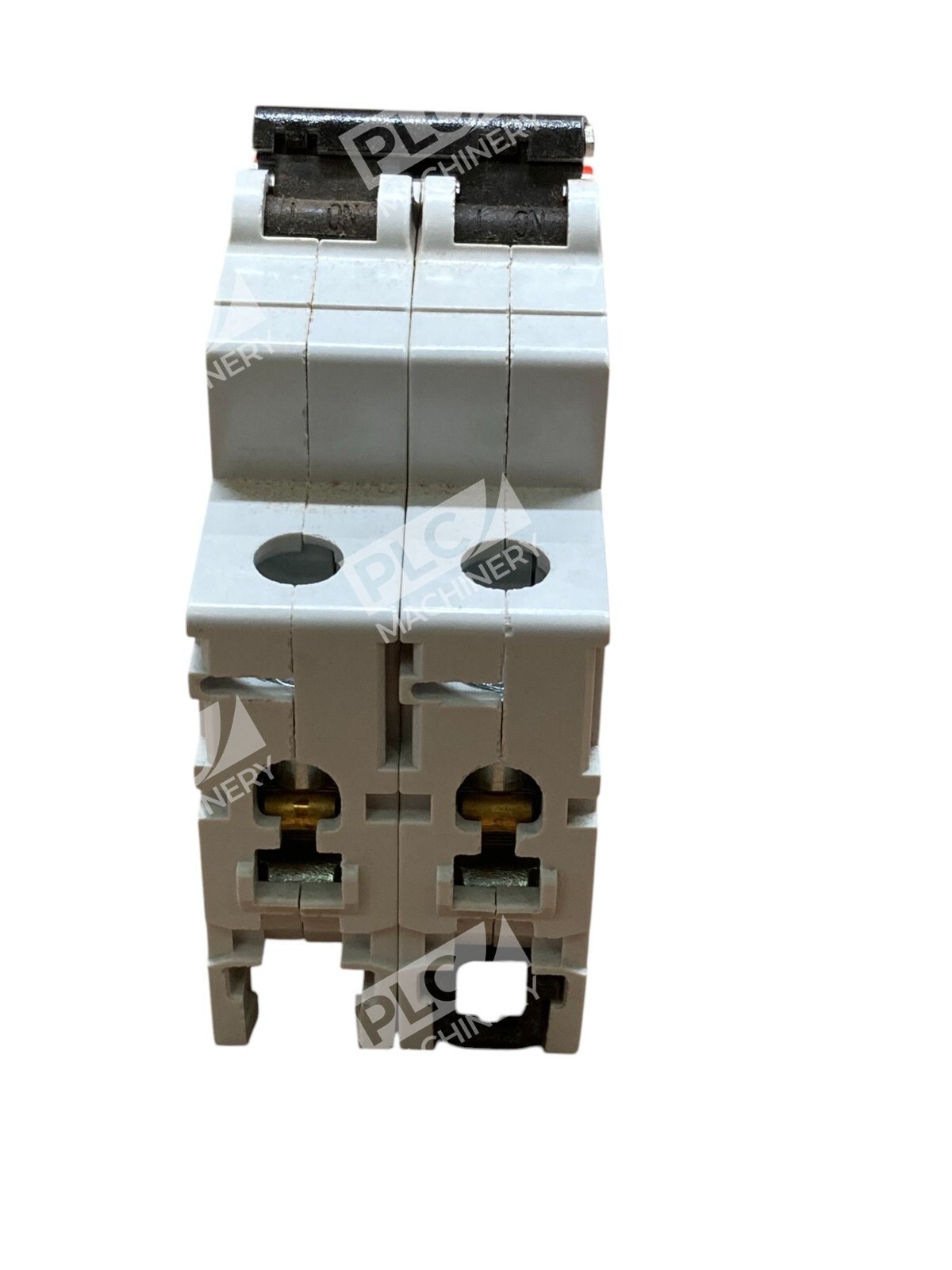

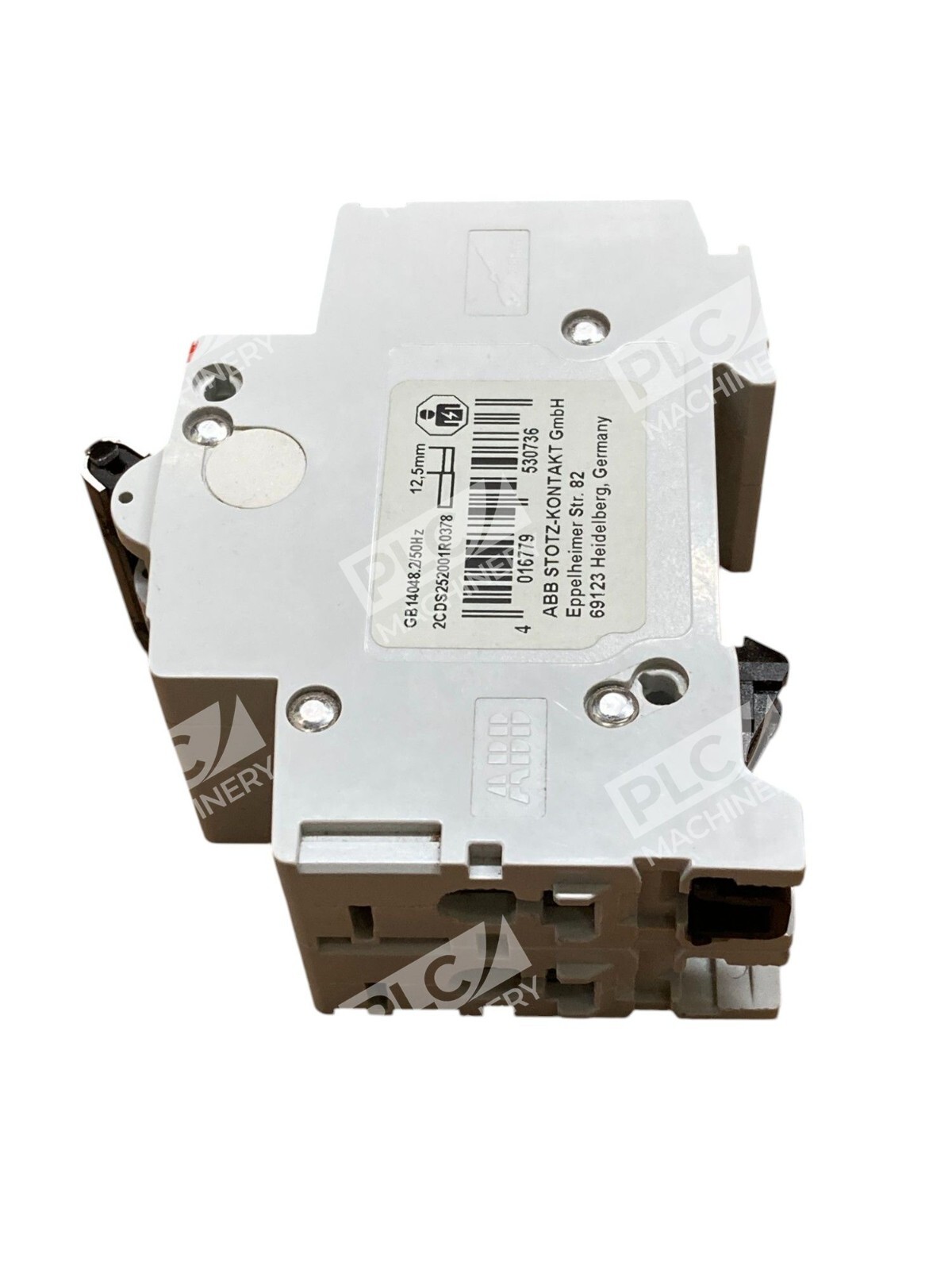

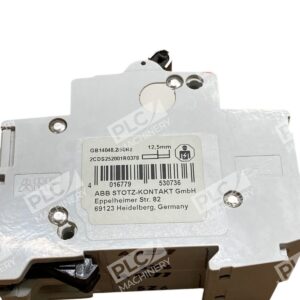

Overview

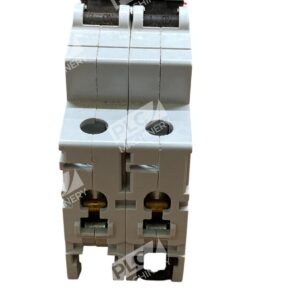

The ABB S202-Z6 circuit breaker is part of ABB’s proven S 200 series miniature circuit breakers (MCBs). The model 2CDS252001R0378 delivers dependable protection in two-pole, single-phase, or split-phase AC circuits. With a 6A rated current and Z-type trip characteristic, this breaker is engineered for applications requiring selective protection against overloads and short circuits.
Key Features
- 2-pole configuration for single-phase or split-phase distribution
- Z characteristic trip curve optimized for inductive loads and motor circuits
- DIN 46277 rail mounting (35 mm standard) for quick installation and removal
- Up to 6 kA breaking capacity at 230/400V AC per S 200 series design
- Compact form factor suitable for space-constrained enclosures
- Field-proven reliability in industrial, commercial, and institutional settings
Technical Specifications

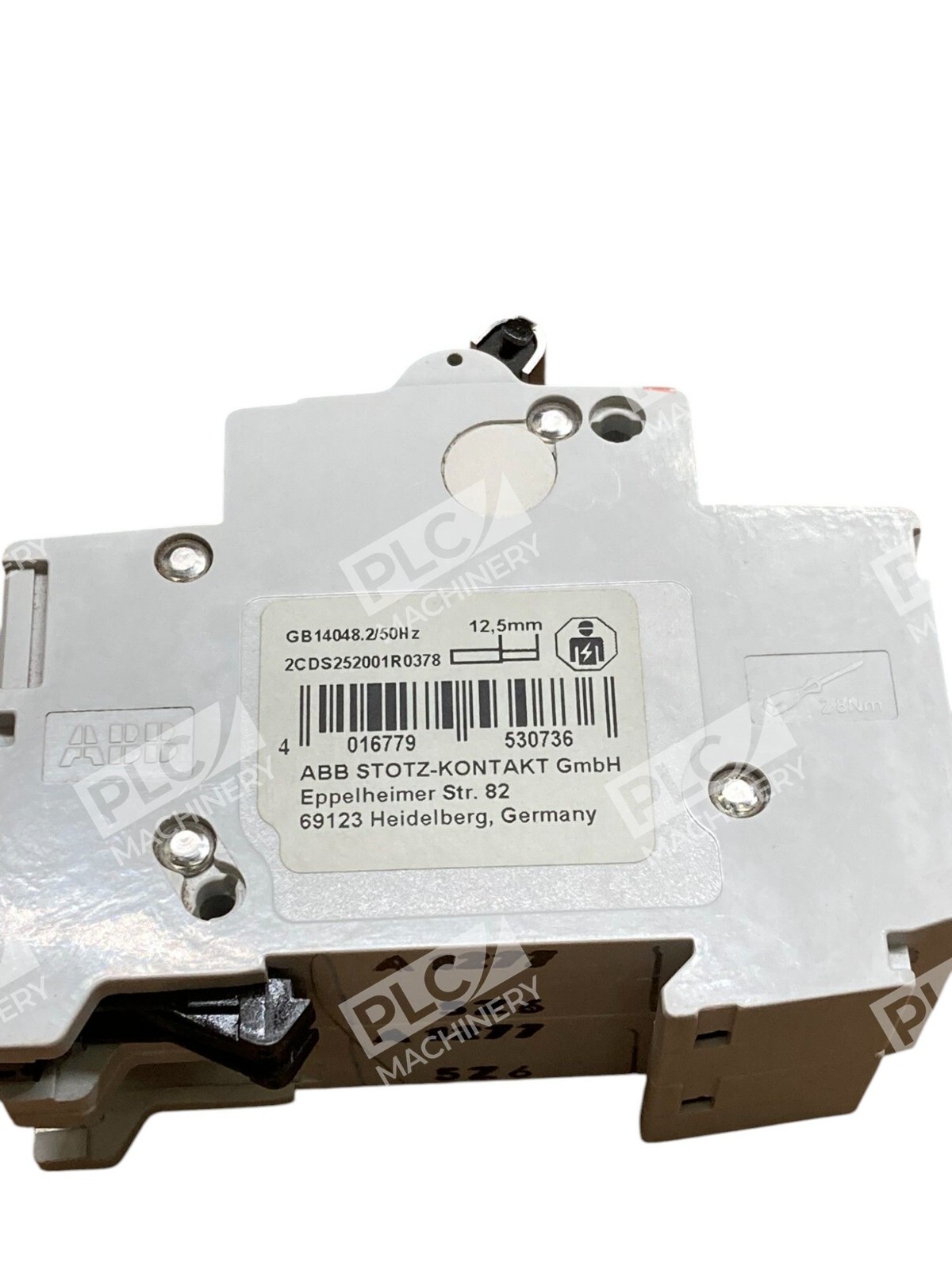

- Model: S202-Z6 / 2CDS252001R0378
- Poles: 2
- Rated Current: 6 A
- Rated Voltage: 230/400V AC (50/60 Hz)
- Trip Characteristic: Z (high inrush tolerance)
- Breaking Capacity: 6 kA at 230/400V AC
- Contact Configuration: CO (changeover) / switch disconnector
- Mounting: DIN 46277 standard rail (35 mm)
- Operating Temperature: –20°C to +70°C
- Certifications: CE, UL, CSA, IEC 60898-1
Typical Applications
The S202-Z6 is suited for branch circuit protection in:
- Industrial control panels and automation cabinets
- Motor control centers and inductive load circuits
- Building electrical distribution systems
- Commercial lighting and HVAC branch circuits
- Factory automation and machinery electrical supplies
Compatibility & Replacements

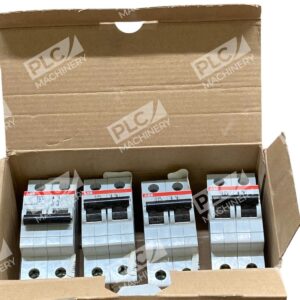

The ABB S202-Z6 is interchangeable with other 2-pole, 6A, Z-characteristic MCBs of equivalent breaking capacity from the S 200 series. When sourcing spares or replacements, verify matching voltage ratings (230/400V), trip curve (Z), and pole configuration. This part is sold in a box of 4 units, making it economical for panel builders and system integrators maintaining spare inventory.
