Overview

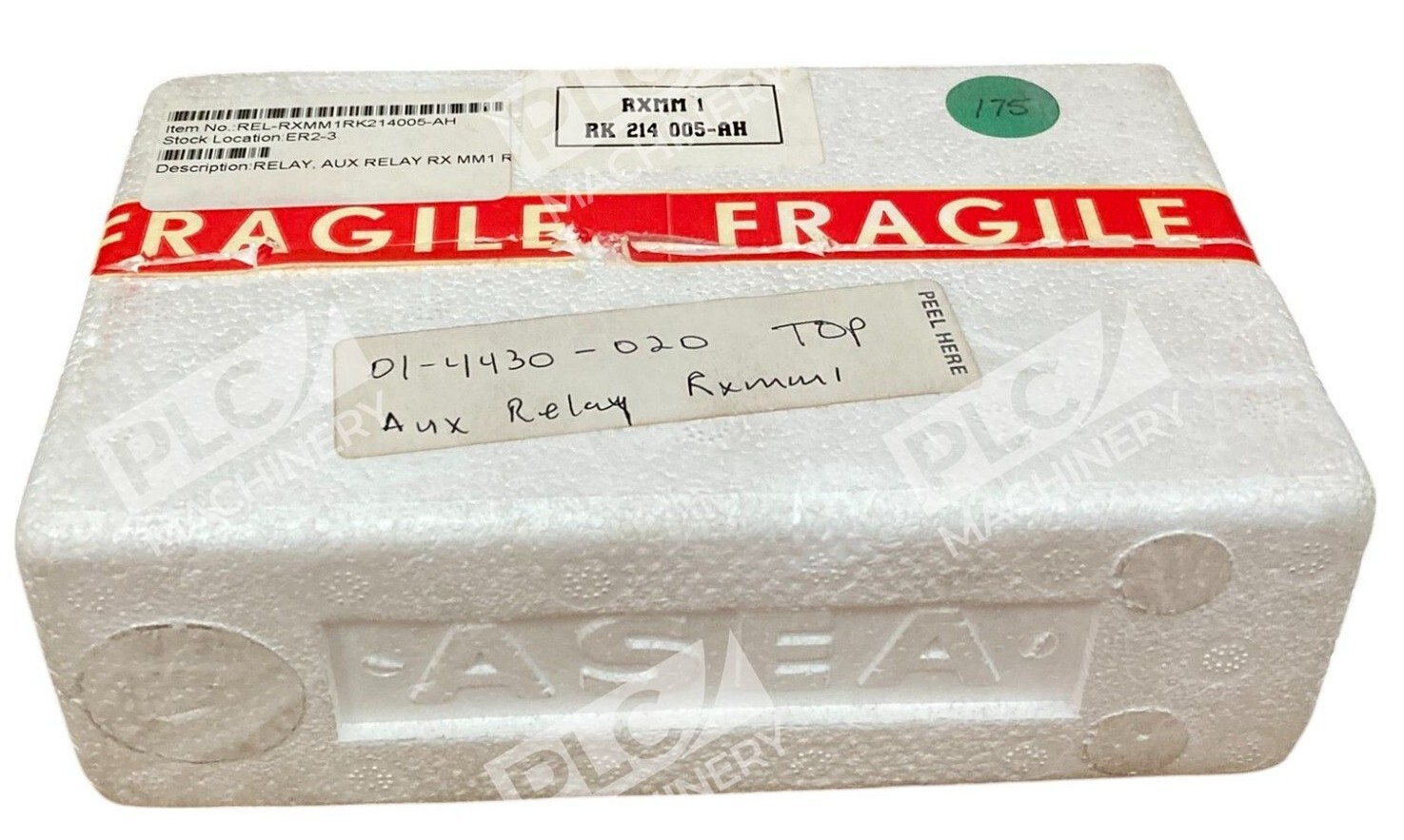

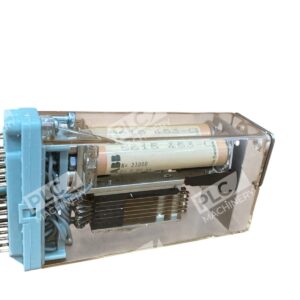

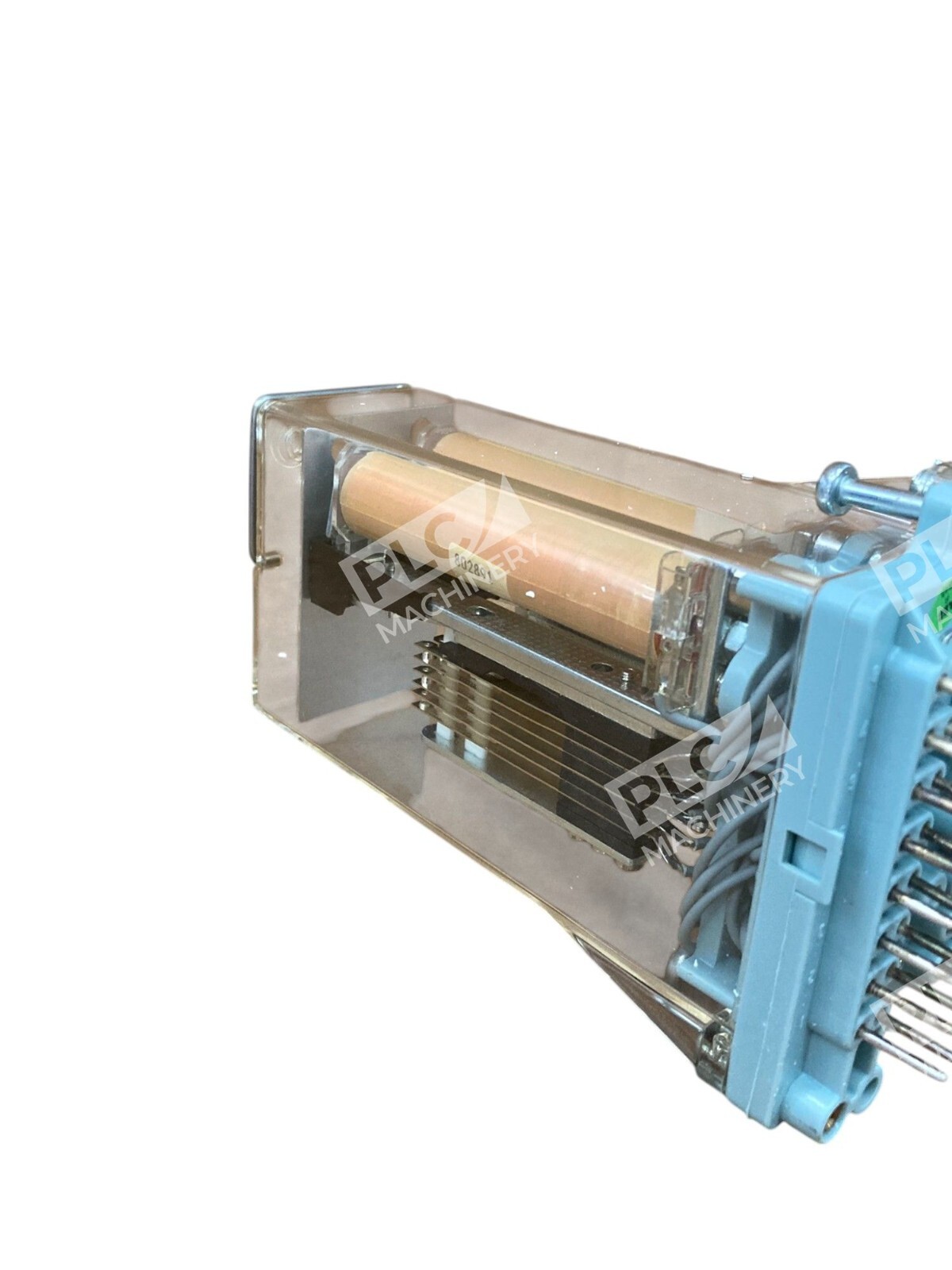

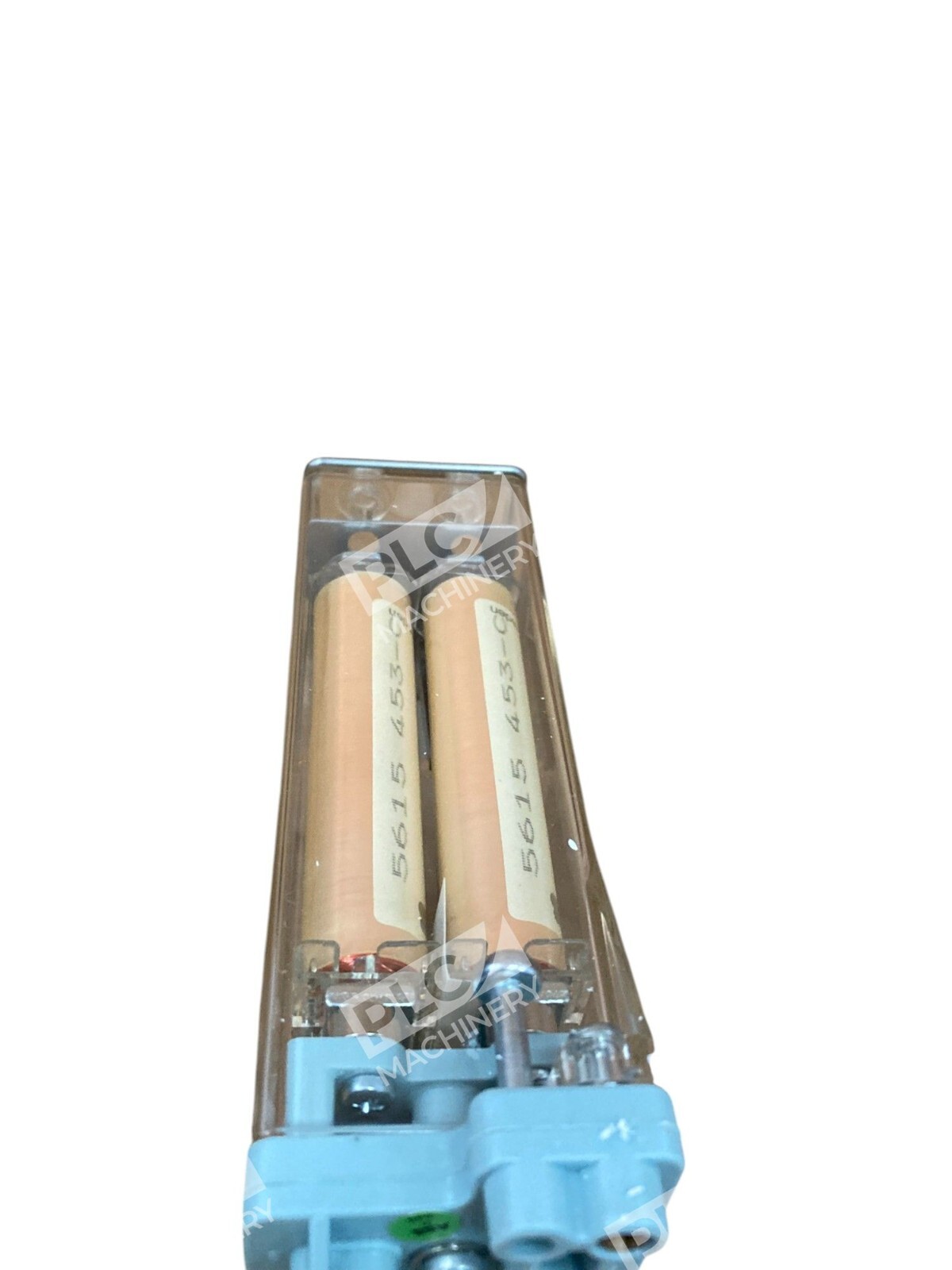

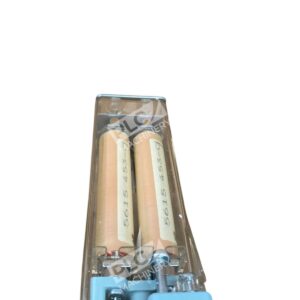

The ABB RXMM1 RK214005-AH is a proven auxiliary relay from ABB’s RXMM series, originally engineered by ASEA and manufactured to stringent industrial standards. This relay is designed for use in control circuits, signalling applications, and protective equipment where reliable contact switching and repeatable performance are essential. The RXMM1 series is widely deployed in power distribution, motor control, and switchgear protection systems worldwide.
Key Features
- All-or-nothing relay operation for dependable control logic
- Rated for demanding industrial duty cycles and load breaking requirements

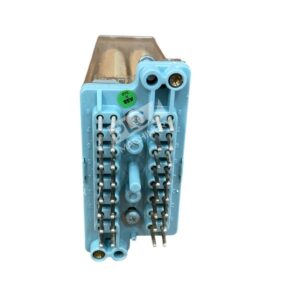

- Compact plug-in design facilitating easy board integration and field replacement
- Multiple contact configurations available across the RXMM1 range
- Proven legacy design with extensive documentation and spare parts availability
Technical Specifications
The RXMM1 series supports multiple coil voltage options (AC and DC) and contact current ratings suitable for 24V, 110V, and 220V control circuits commonly found in industrial applications. Contact configuration variants are available to accommodate different signalling and auxiliary switching requirements.
Typical Applications
- Motor starter control and interlocking circuits
- Protective relay signalling and annunciation systems
- Switchgear and circuit breaker trip logic
- Industrial process control and automation systems
- Backup power and standby generator control panels
Compatibility & Replacements
The RXMM1 RK214005-AH maintains compatibility within the RXMM1 family of ABB auxiliary relays. Contact configurations and coil voltage ratings should be verified against your control system schematic before installation. Equivalent modern solid-state relays may be considered for new designs, though the RXMM1 remains a standard replacement for legacy systems operating on proven electromechanical relay technology.
