Overview

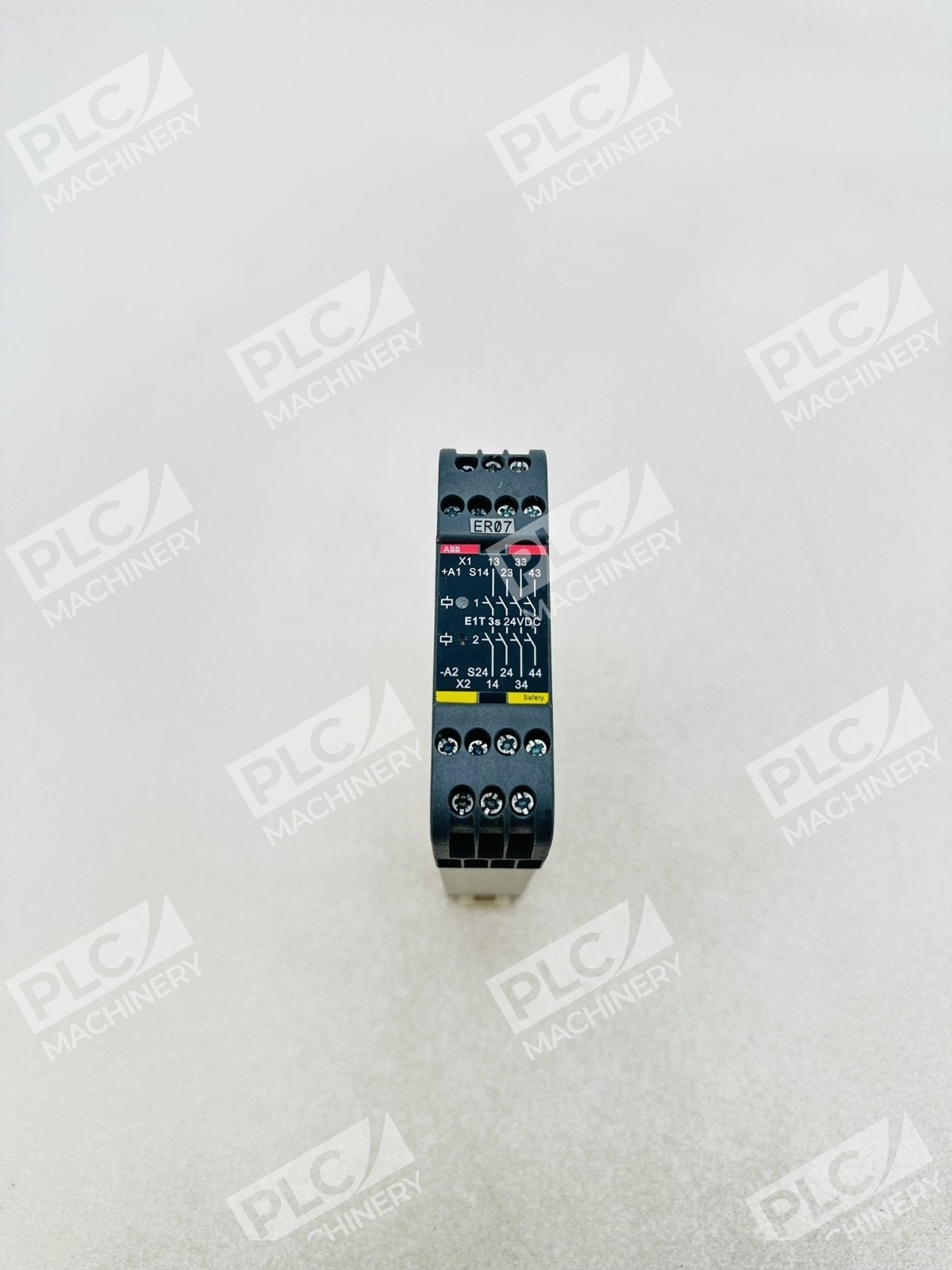

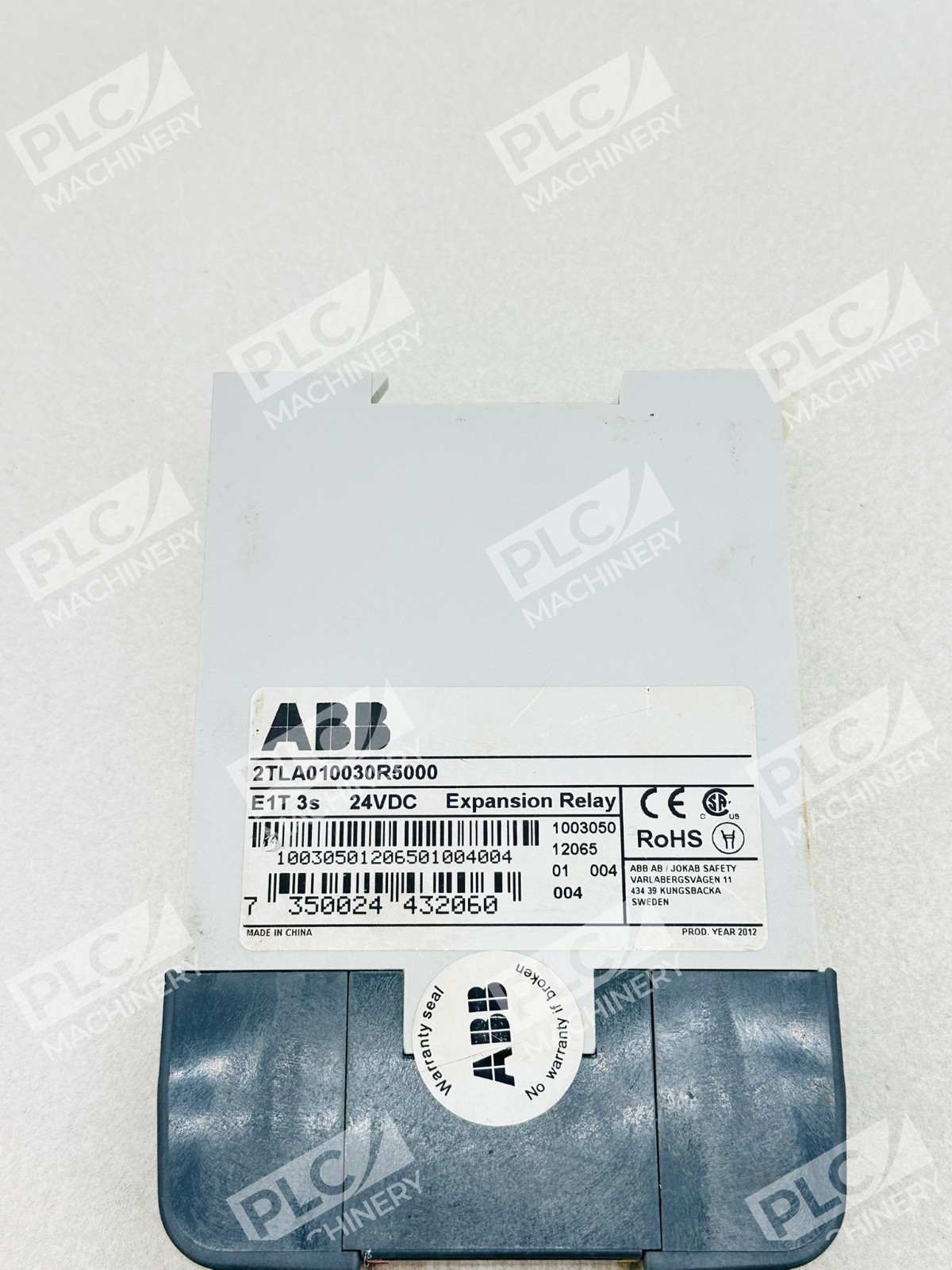

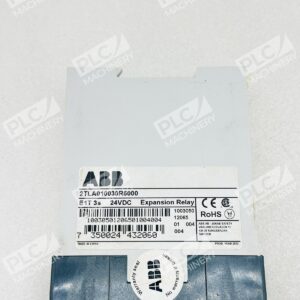

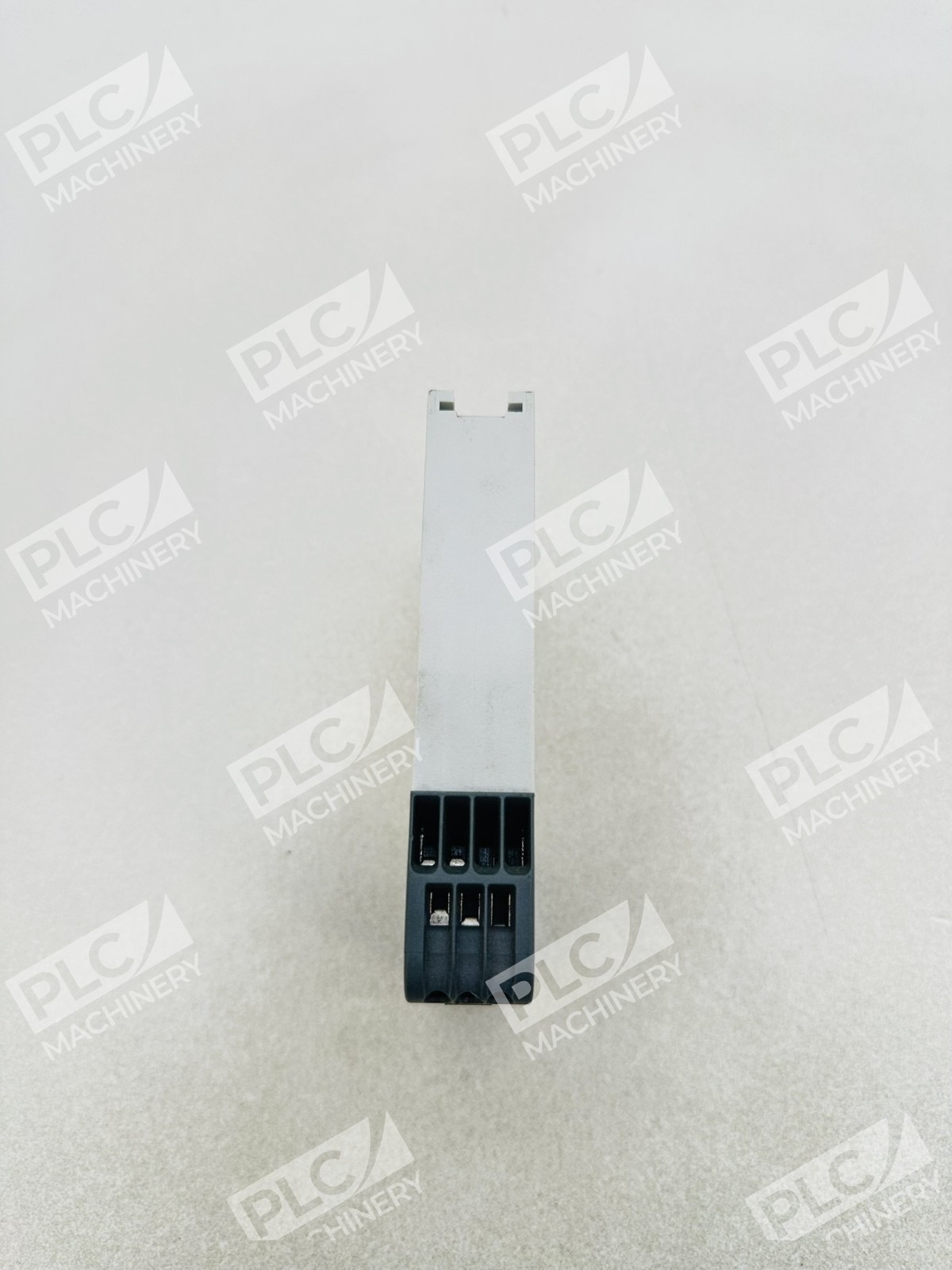

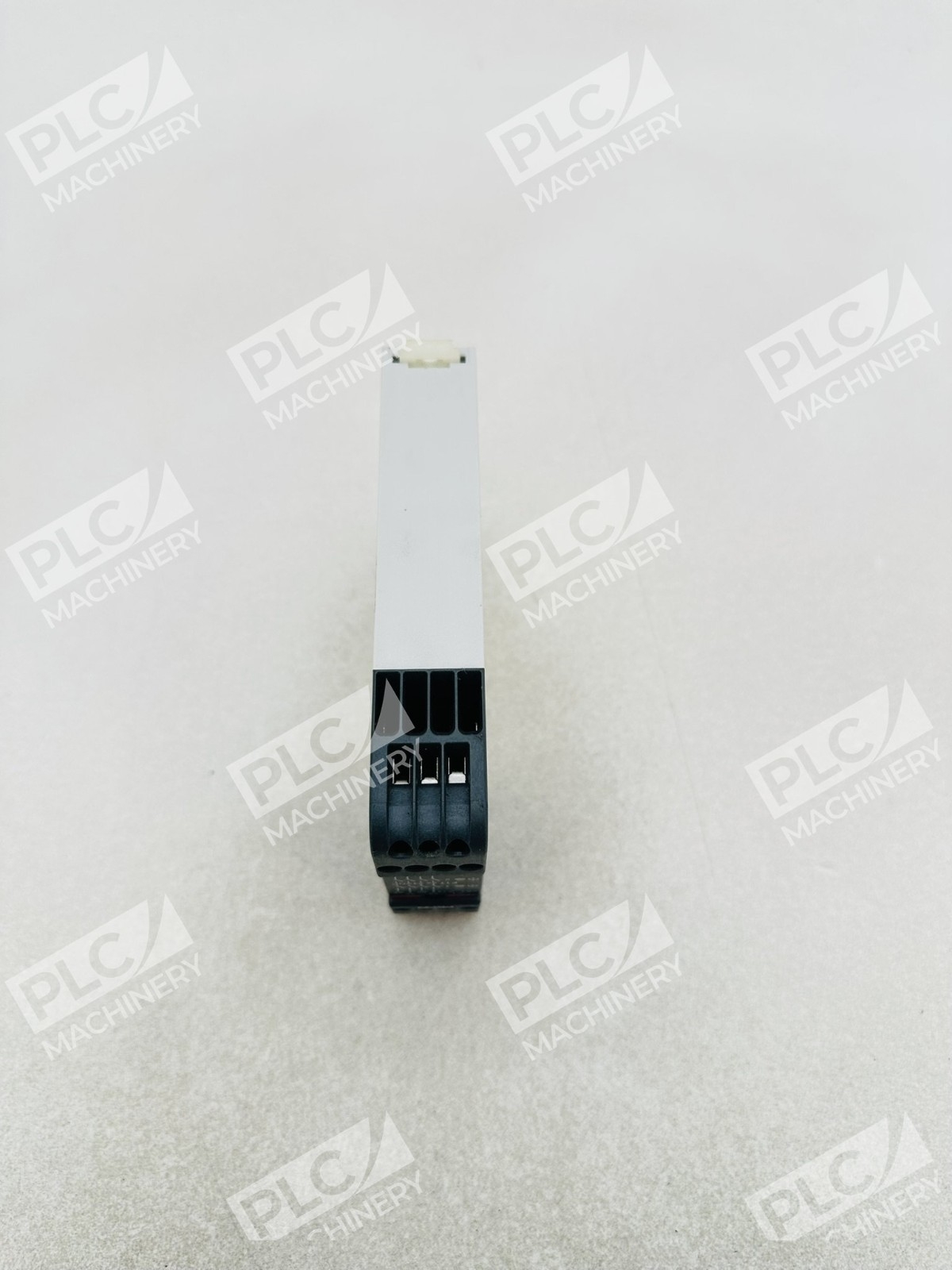

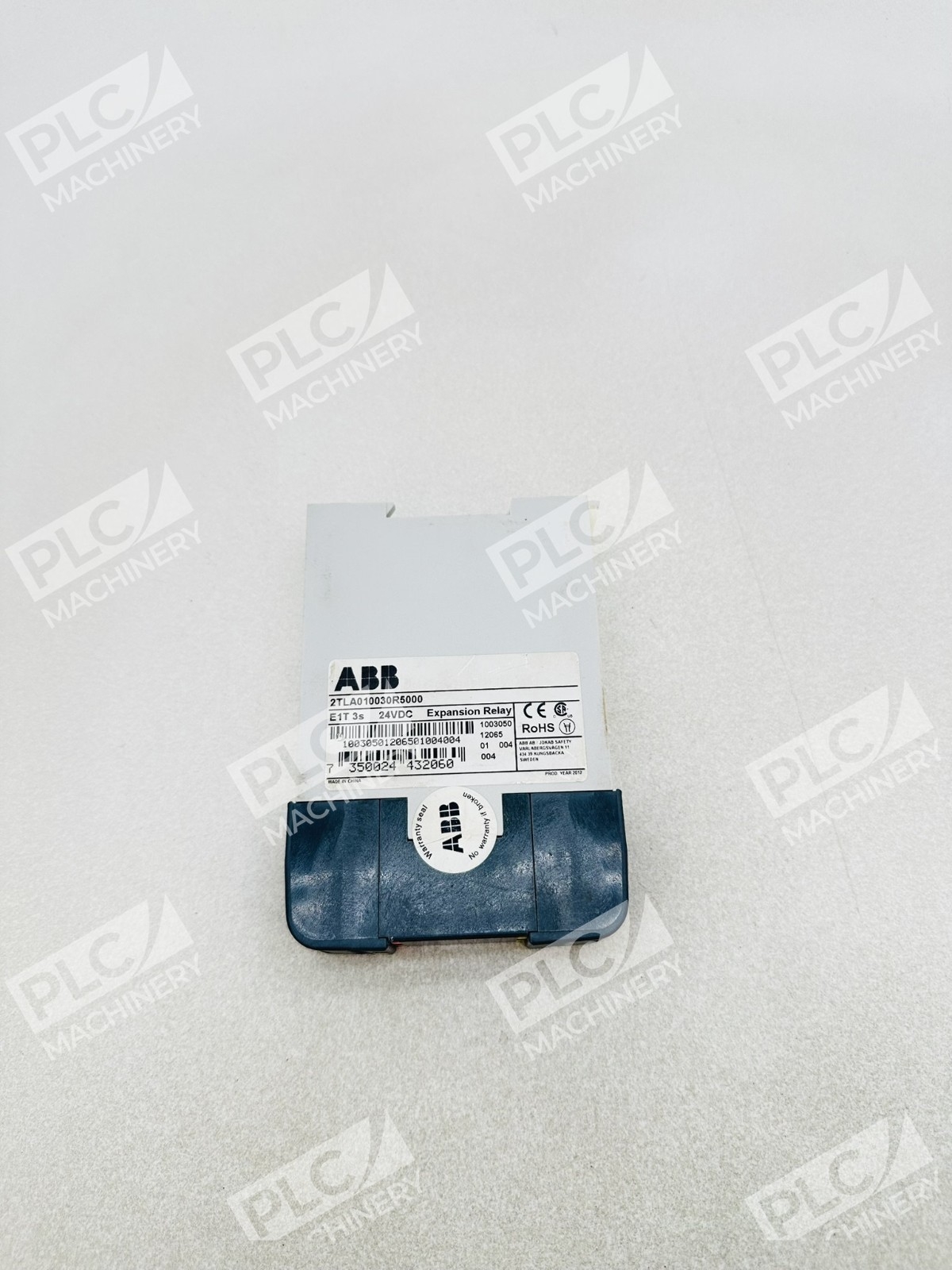

The ABB 2TLA010030R5000 is a safety-rated expansion relay from the E1T series, engineered to expand the output capacity of ABB safety control relays. This unit provides a 3-second off-delay function and four normally open (4NO) relay outputs with dual-channel redundancy for safe operation. Rated for 24VDC supply voltage, the relay is designed to meet safety category 4 standards and is suitable for industrial automation applications requiring monitored or delayed shutdown sequences.
Key Features
- 4 Normally Open (NO) relay outputs with 2NO contacts in series per channel
- 3-second off-delay (time-delayed output)
- Twin stop function with mechanically operated contacts for redundancy

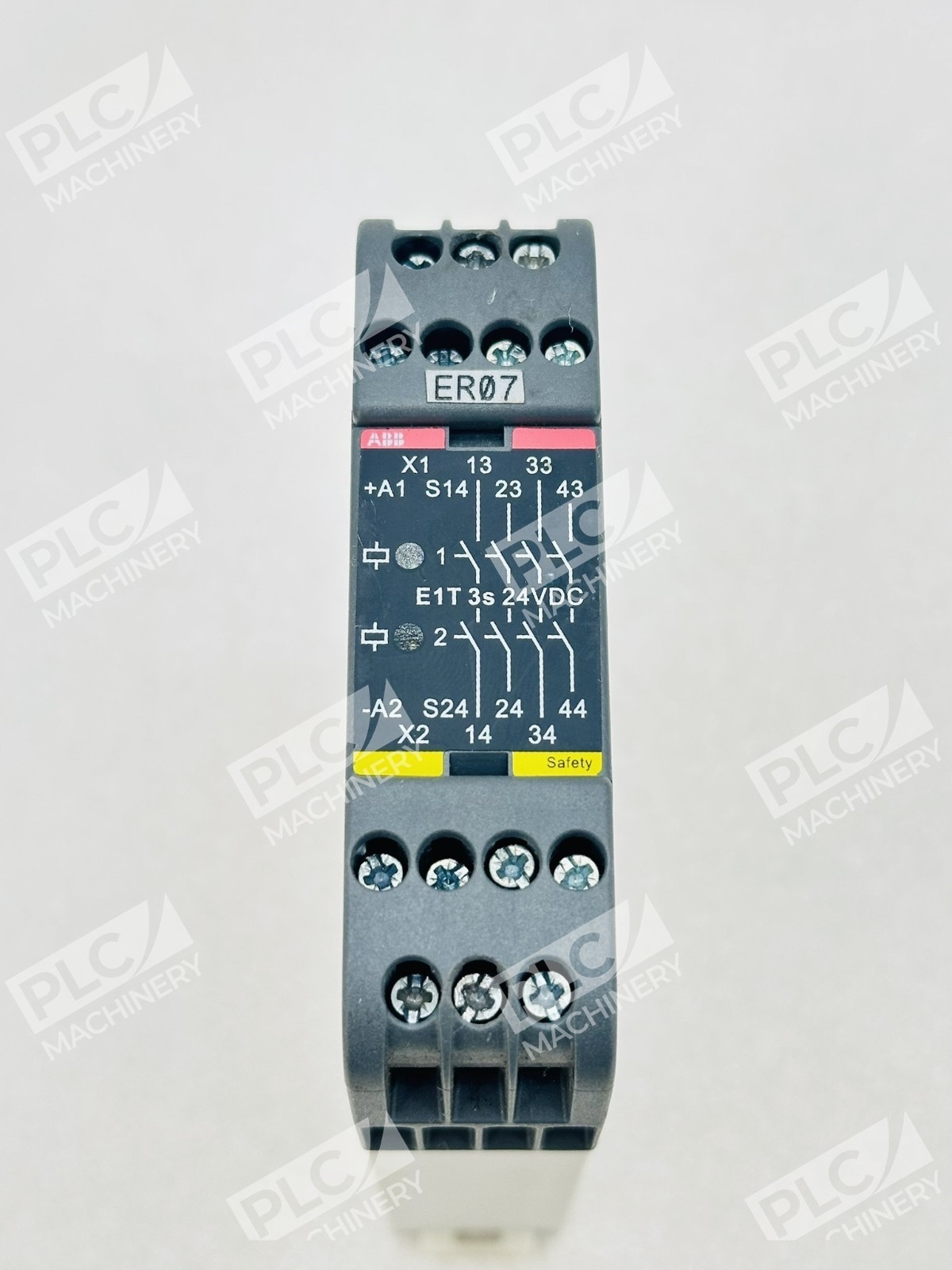

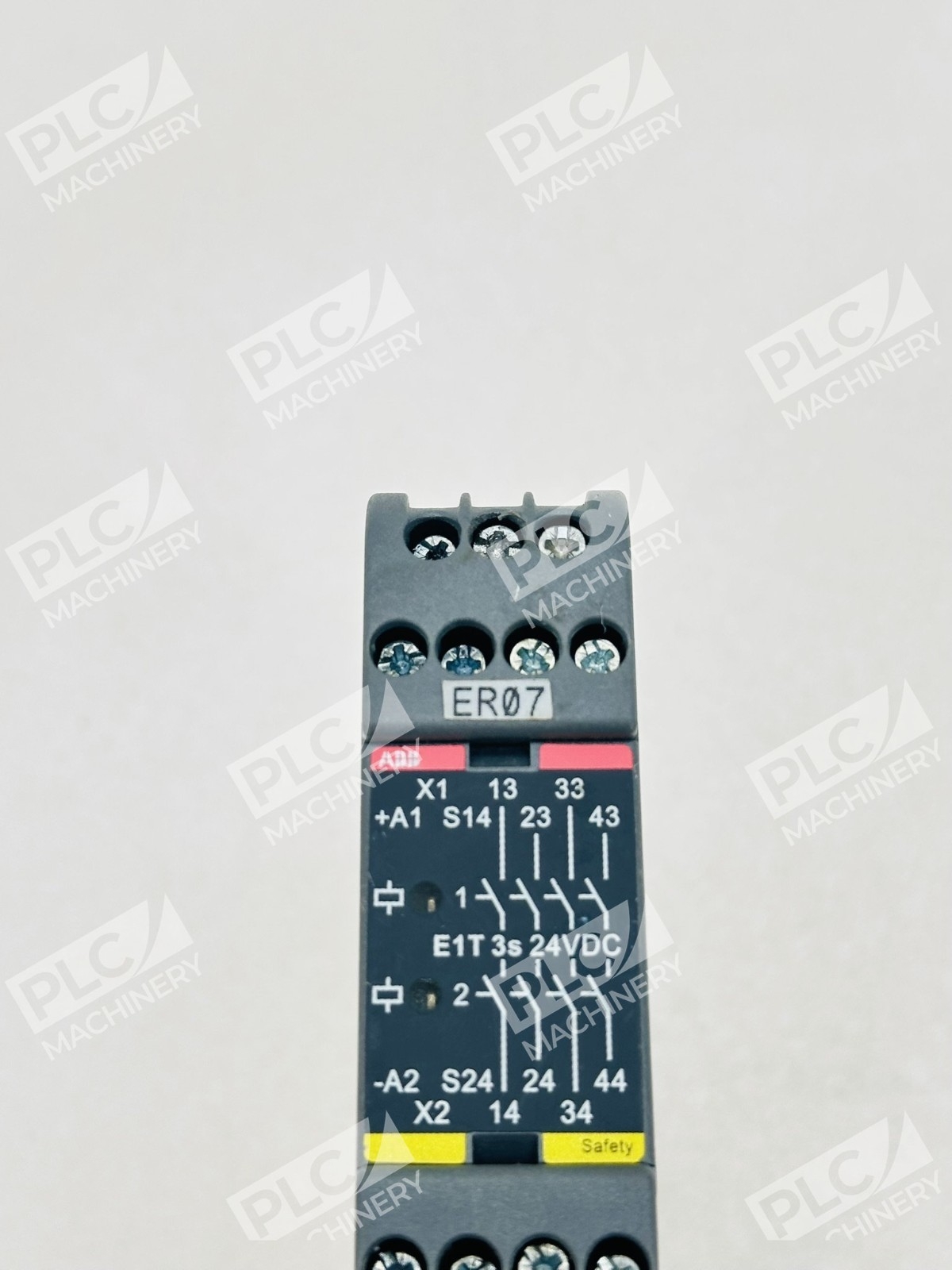

- Test output (terminals X1–X2) with 2 NC contacts for monitored operation
- LED indication of output status for quick diagnostics

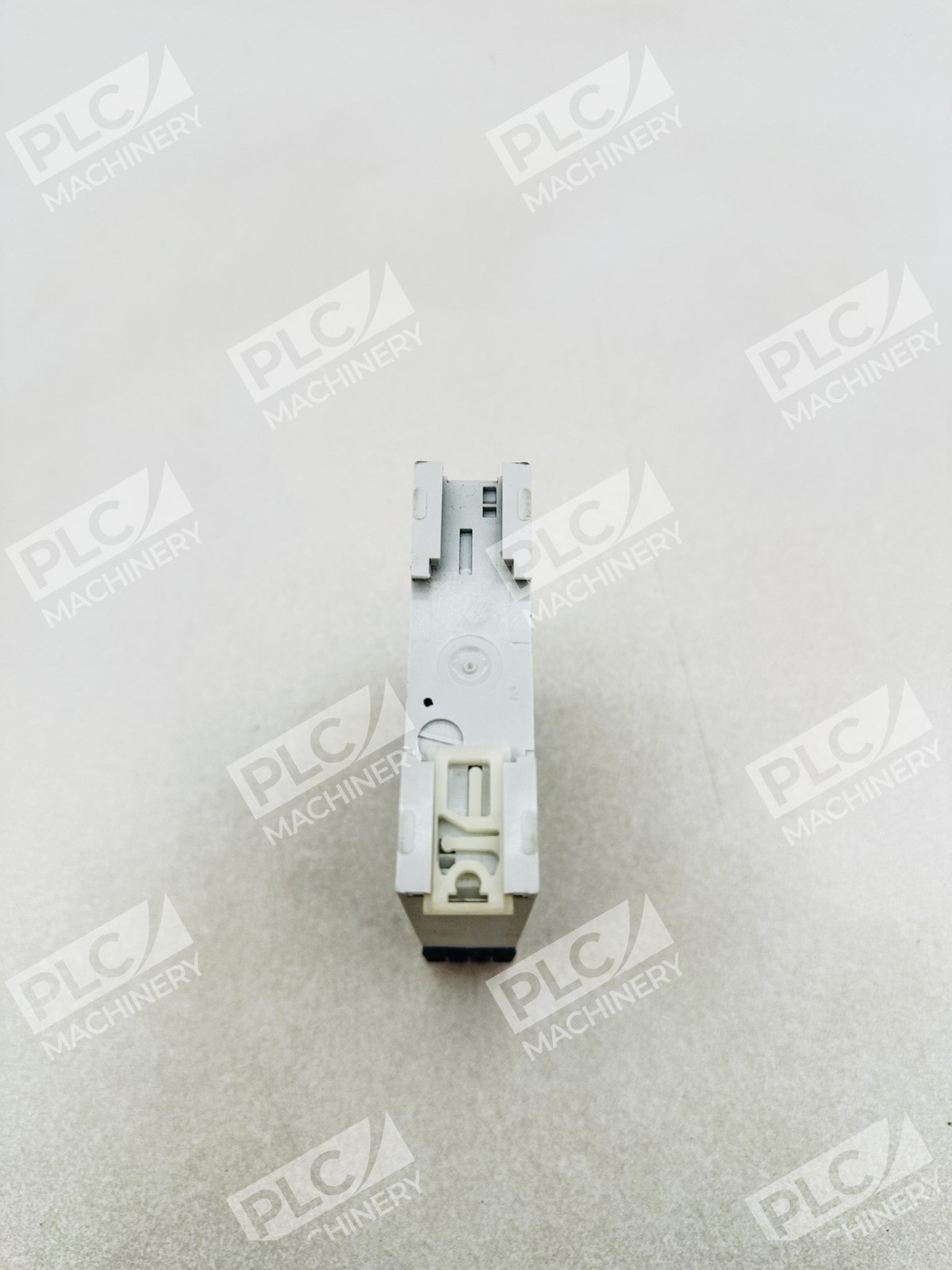

- DIN rail mounting with quick-release connector blocks for fast installation
- Silver/gold flash contact material for reliability
- Compact 22.5 mm width for space-efficient panel layouts
- Operating temperature range: –10 to +55°C
- IP20/IP40 enclosure rating
Technical Specifications

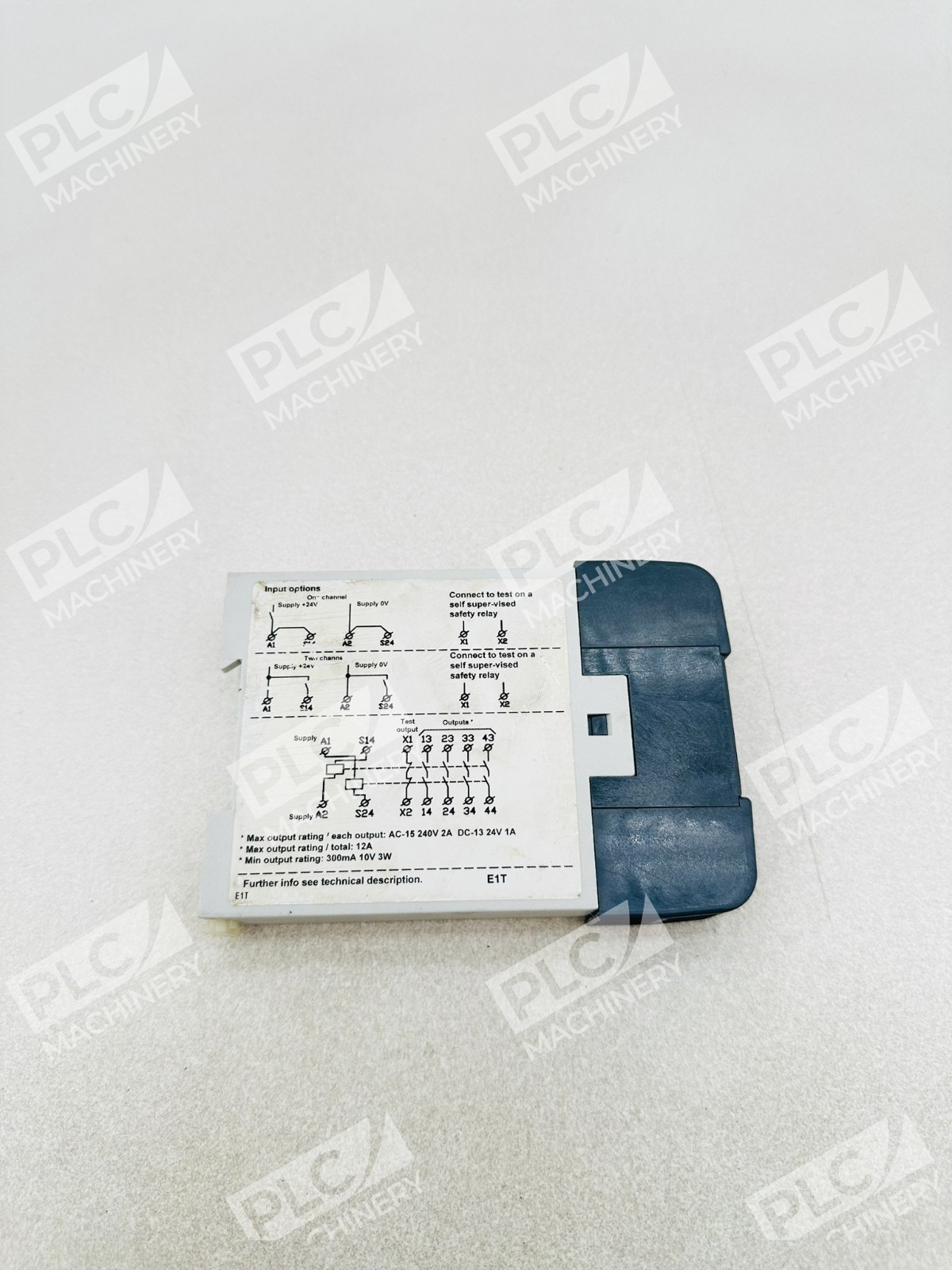

- Contact Rating: 2A @ 240VAC (AC-15) / 1A @ 24VDC (DC-13)
- Power Consumption: 1.5 W
- Output Short-Circuit Rating: 6A gG conditional
- Fuse Rating: 5A gL/gG
- Impulse Withstand Voltage: 2.5 kV
- Maximum Input Wire Resistance: 100 Ω @ nominal voltage
- Safety Category: 4 (per ISO 13849-1)
- Mounting: DIN rail (35 mm)
- Terminal Type: Screw terminals
- Dimensions: 84 mm H × 225 mm W × 120 mm D
- Net Weight: 0.220 kg
Typical Applications
The ABB 2TLA010030R5000 expansion relay is used in:
- Industrial machinery control with monitored stop functions
- Safety gate interlocks and emergency stop systems
- Output expansion for safety-rated control systems
- Delayed shutdown and ramp-down sequences in production equipment
- Hazardous-area automation requiring redundant control paths
- Machine tools, packaging equipment, and conveyor systems
Compatibility & Replacements
Compatible With
- ABB Jokab Safety relay systems (E1T series expansion-compatible controllers)
- Safety-rated control architectures requiring output expansion
- DIN rail-mounted 24VDC automation panels
- Industrial control systems compliant with ISO 13849-1 Category 4
- Monitored stop function applications (safety-critical shutdown)
Replaces / Drop-In Replacement For
- ABB 2TLA010030R0000 (E1T 0S — no delay variant)
- ABB 2TLA010030R1000 (E1T 0.5S delay)
- ABB 2TLA010030R2000 (E1T 1S delay)
- ABB 2TLA010030R3000 (E1T 1.5S delay)
- ABB 2TLA010030R4000 (E1T 2S delay)
Works With
- ABB safety relay product families requiring output expansion
- Test/reset input interfaces on safety relays for feedback verification
- DIN rail automation enclosures and control panels
- 24VDC industrial control power supplies
- Dual-channel safety-critical control loops
