Overview

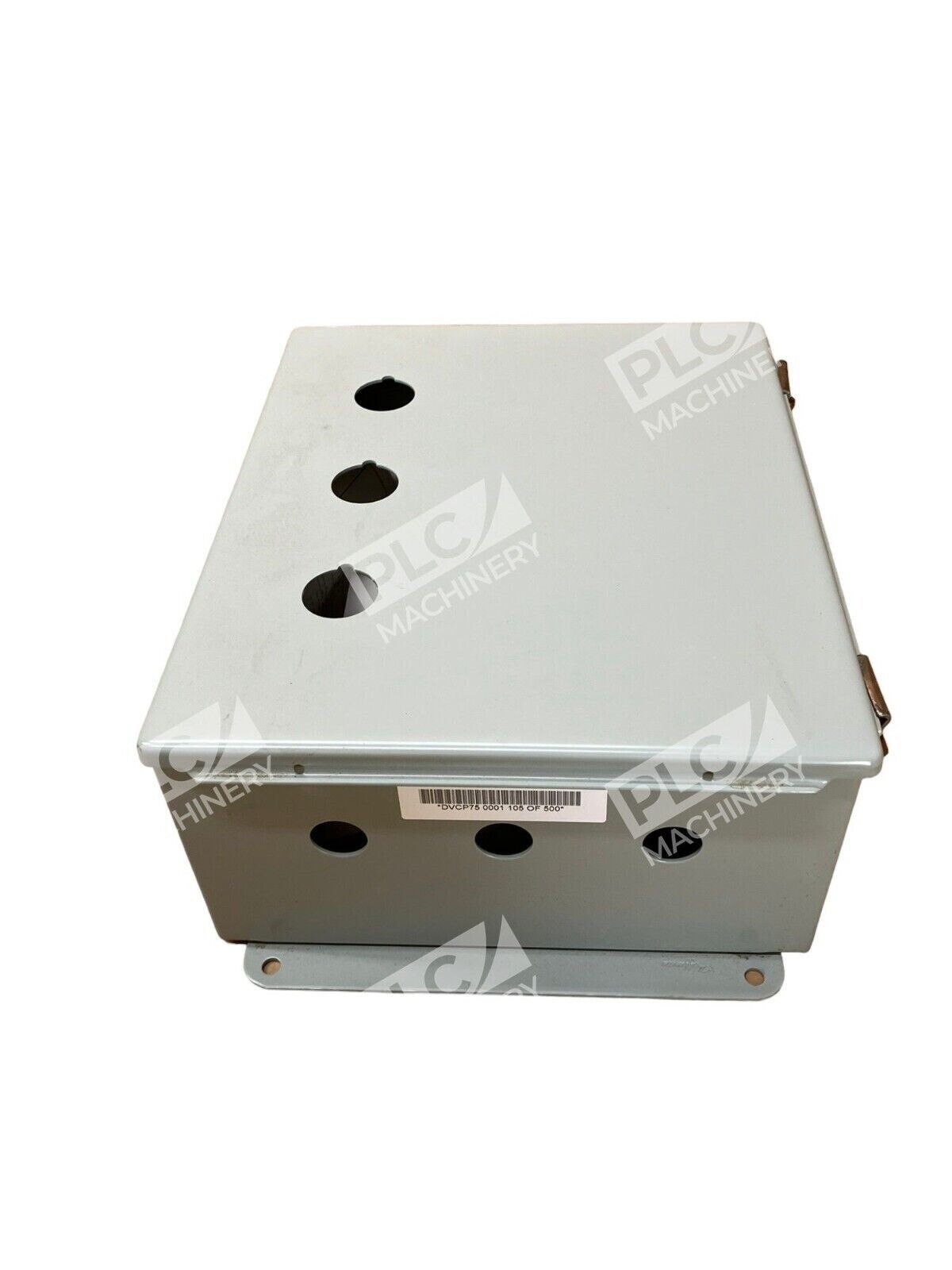

The Hoffman A1210CH/SPL is a NEMA 12/13 rated junction box designed for indoor wall-mounted electrical control and panel applications. The A1210CH is a gray (ANSI 61) type-12 Enclosure/Junction Box made of 14-gauge steel with polyester powder painted finish. The /SPL variant includes a special panel cutout configuration for integration with control systems and automation equipment.
Key Features
- Gray (ANSI 61) type-12 Enclosure made of 14-gauge steel with polyester powder painted finish
- Easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure
- Seams continuously welded and ground smooth with bonding provision on door
- External wall-mounting brackets and oil-resistant gasket included

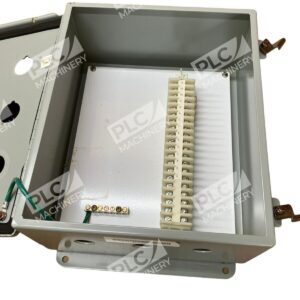

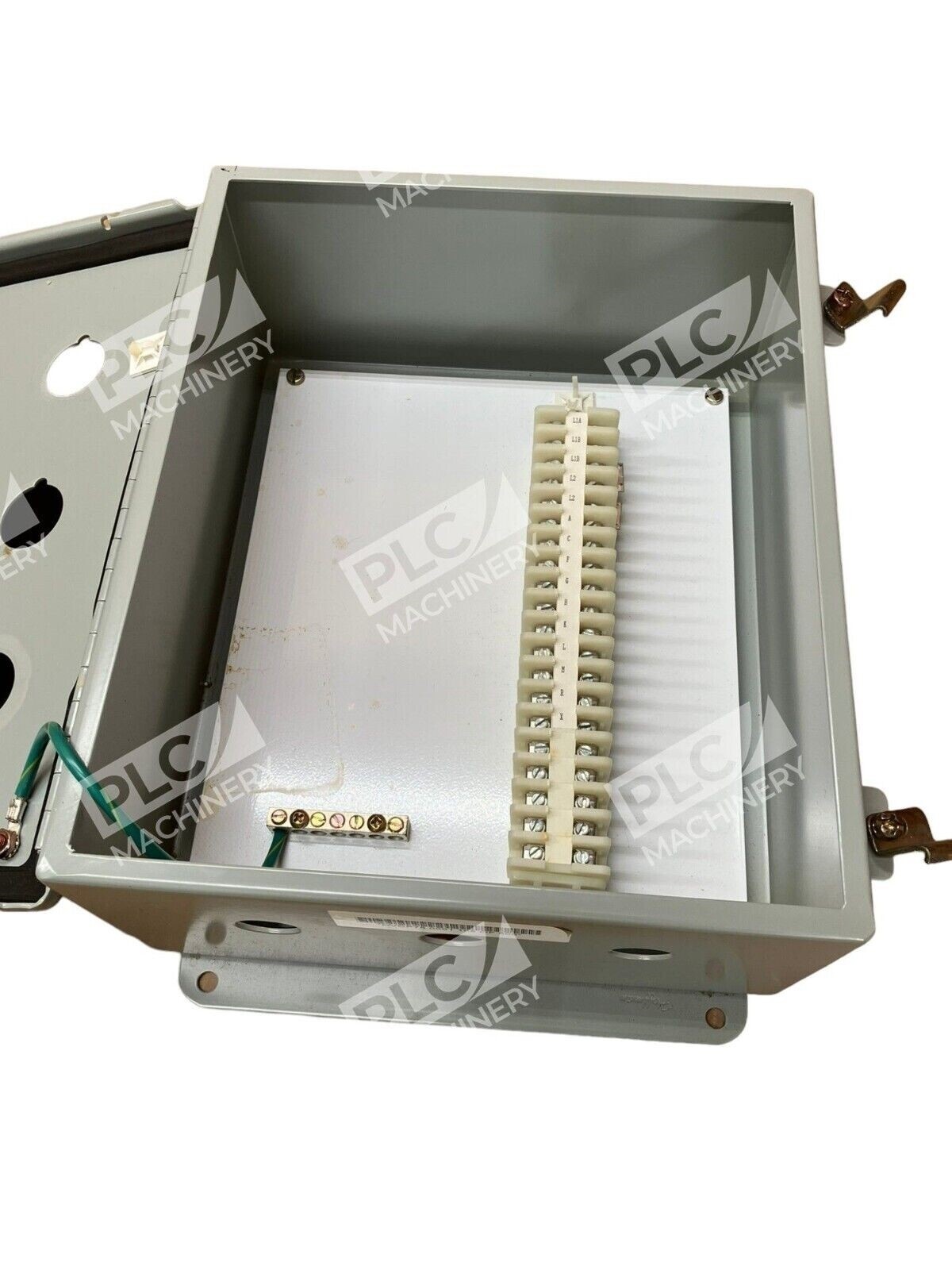

- Accepts optional terminal block kits and weldnuts for panel integration
Technical Specifications
- Dimensions: 10 W x 12 H x 5 inch D
- Material: 14-gauge steel
- Finish: Polyester powder coated gray (ANSI 61)
- Door Type: Continuous hinge with clamps

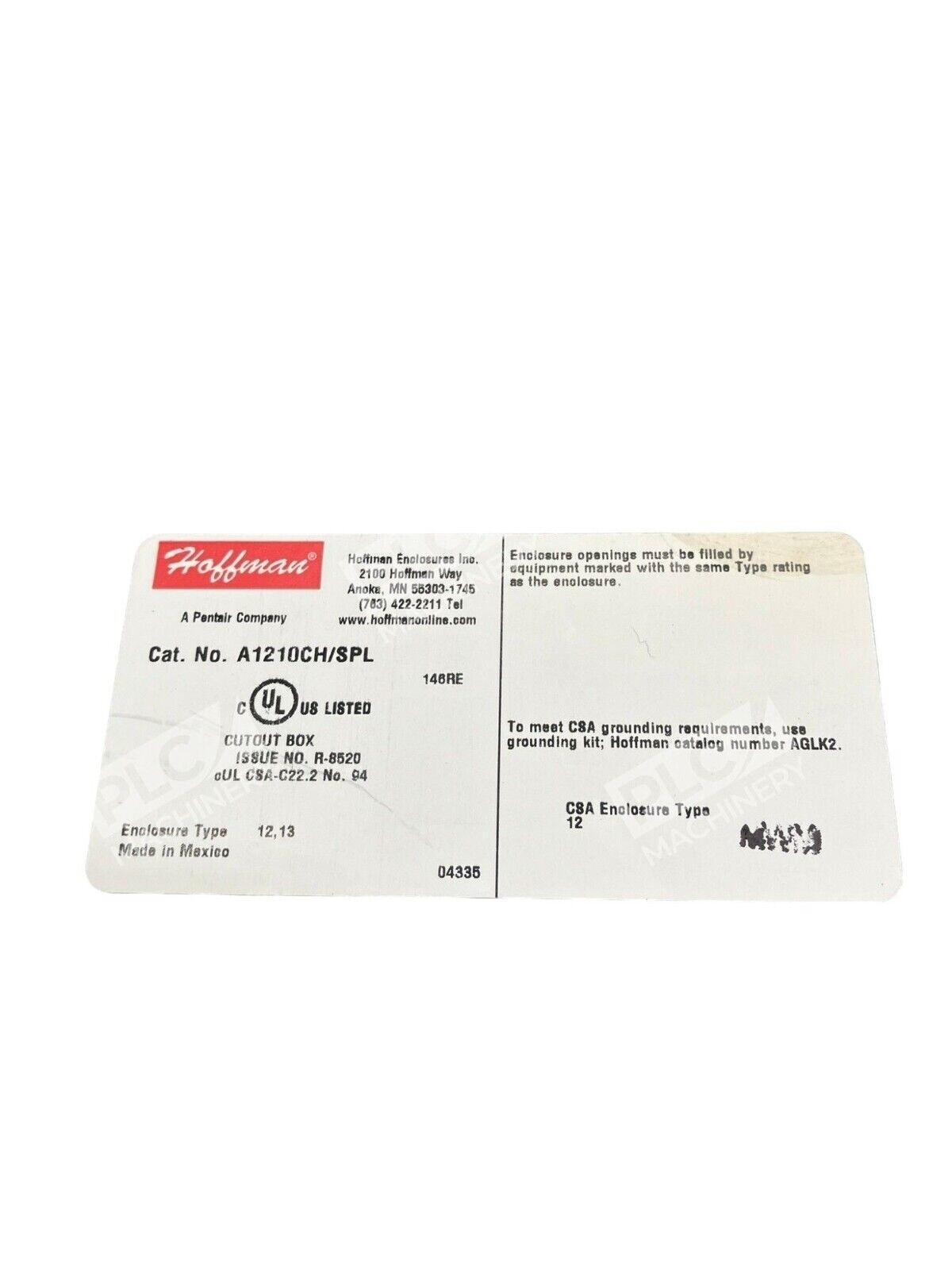

- NEMA Rating: NEMA 12/13/IP65
- Panel Size: 10.75 x 8.88 inches
- Mounting: Wall mount with external brackets
- Gasket: Oil-resistant
- Series: A51CH
- UPC: 78351055420
Typical Applications
The Hoffman A1210CH/SPL junction box is suitable for a wide variety of industrial and commercial control environments, including:
- Electrical control panels and switchboards
- PLC and automation system enclosures
- Process control installations in manufacturing facilities
- HVAC system controls
- Machine tool control cabinets
- Indoor industrial environments requiring NEMA 12/13 rated protection
Compatibility & Replacements
Compatible With
- Standard industrial control systems and automation equipment
- Terminal block kits (6 x 4 inch and larger sizes)
- Standard DIN rail mounting accessories
- Wall-mounted control panel installations
Replaces / Drop-In Replacement For
The Hoffman A1210CH/SPL is the standard variant in the A51CH series. Verify with your system integrator if replacing an existing enclosure model.
Works With
- Optional Hoffman panel and terminal block accessories
- Standard industrial electrical components and wiring
- Continuous hinge door system compatible with standard enclosure latches and clamps
- Weldnuts for secure mounting of optional panels and component kits
