Overview

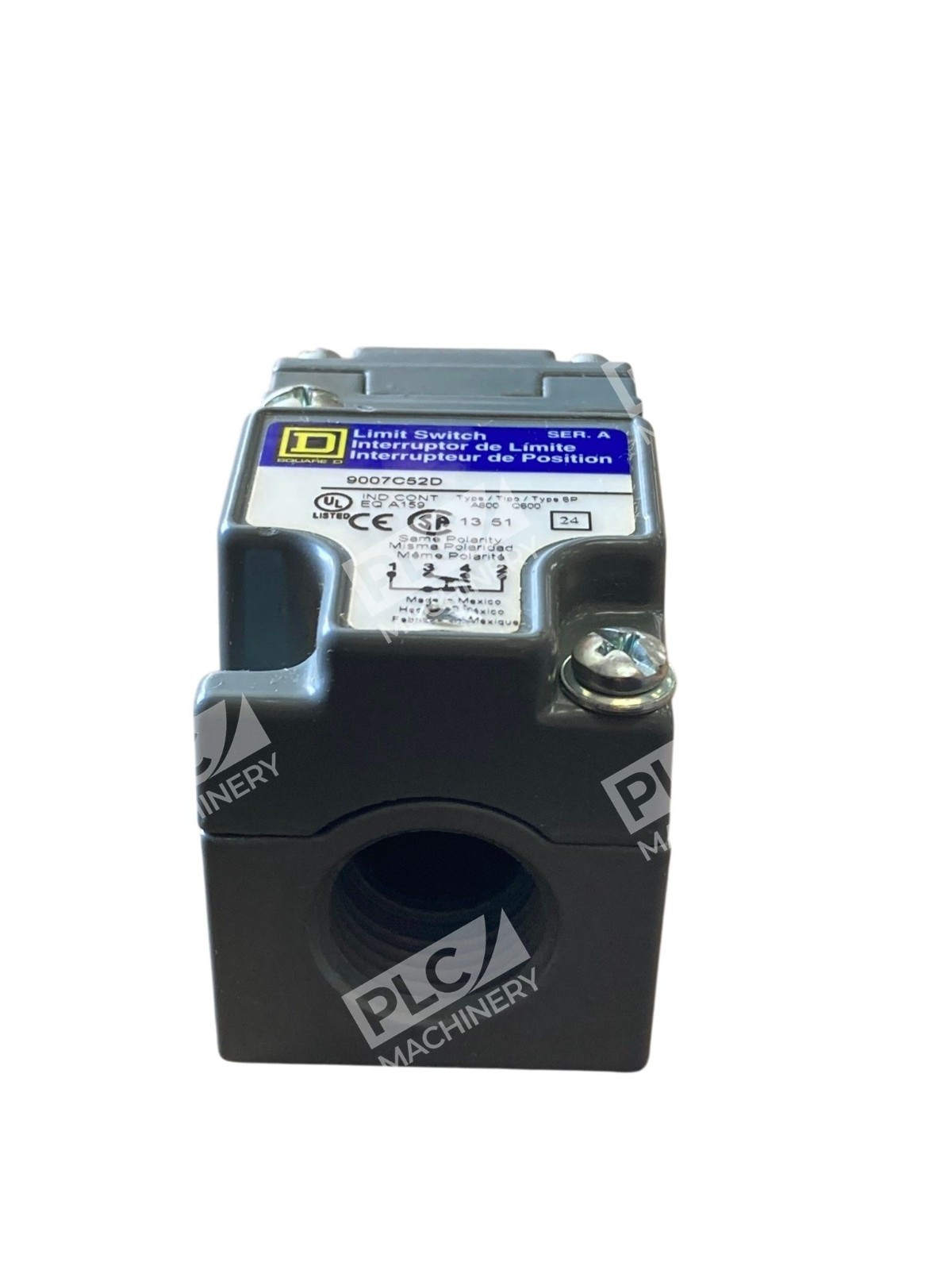

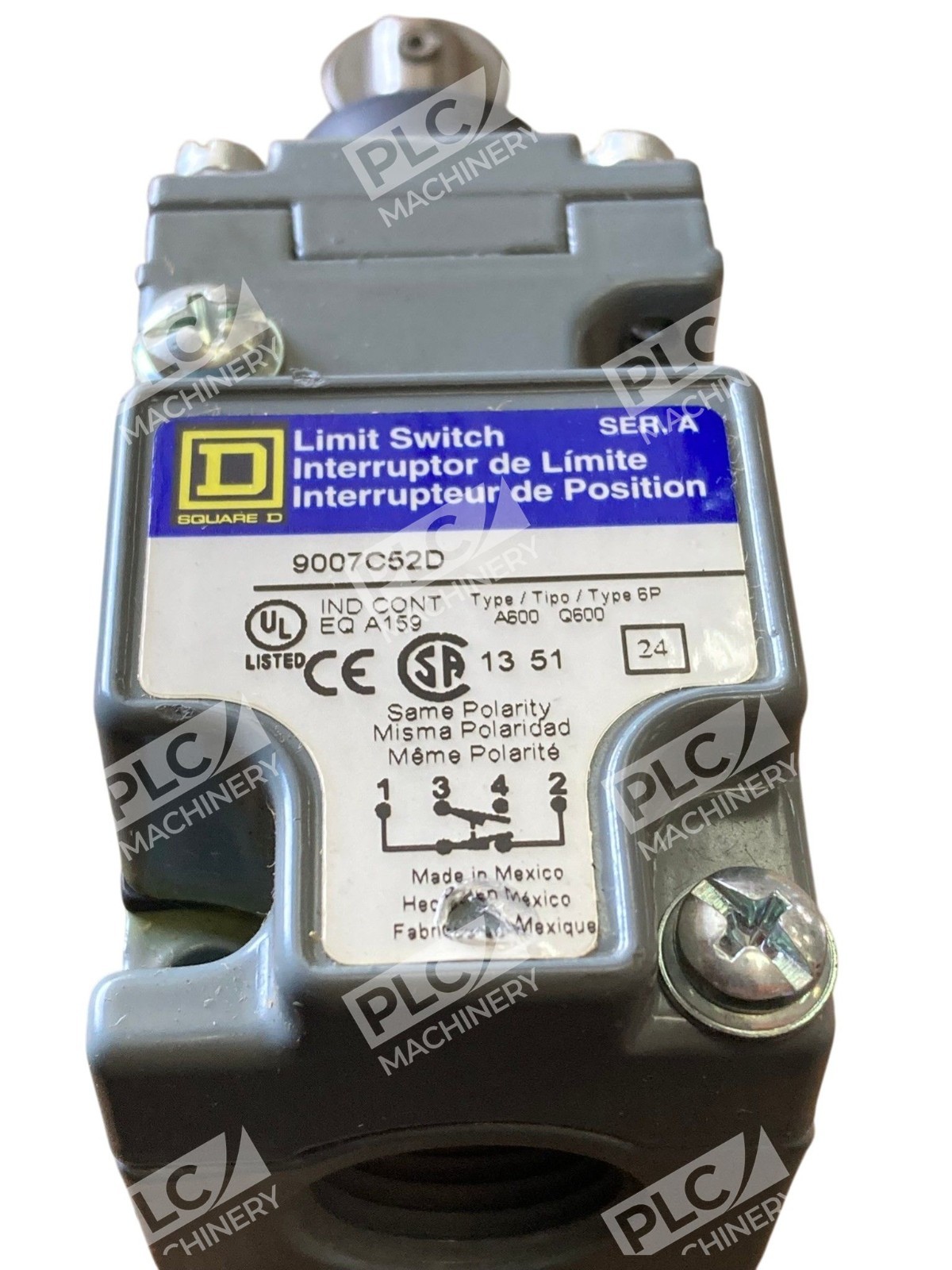

The Square D 9007C52D is a heavy-duty compact limit switch designed for demanding industrial automation and control applications. This SPDT (single-pole, double-throw) configuration provides 1NO/1NC contacts with snap-action operation for positive switching in machine tool, conveyor, and material handling systems. The switch is manufactured by Schneider Electric and carries UL, CSA, and CE certifications.
Key Features

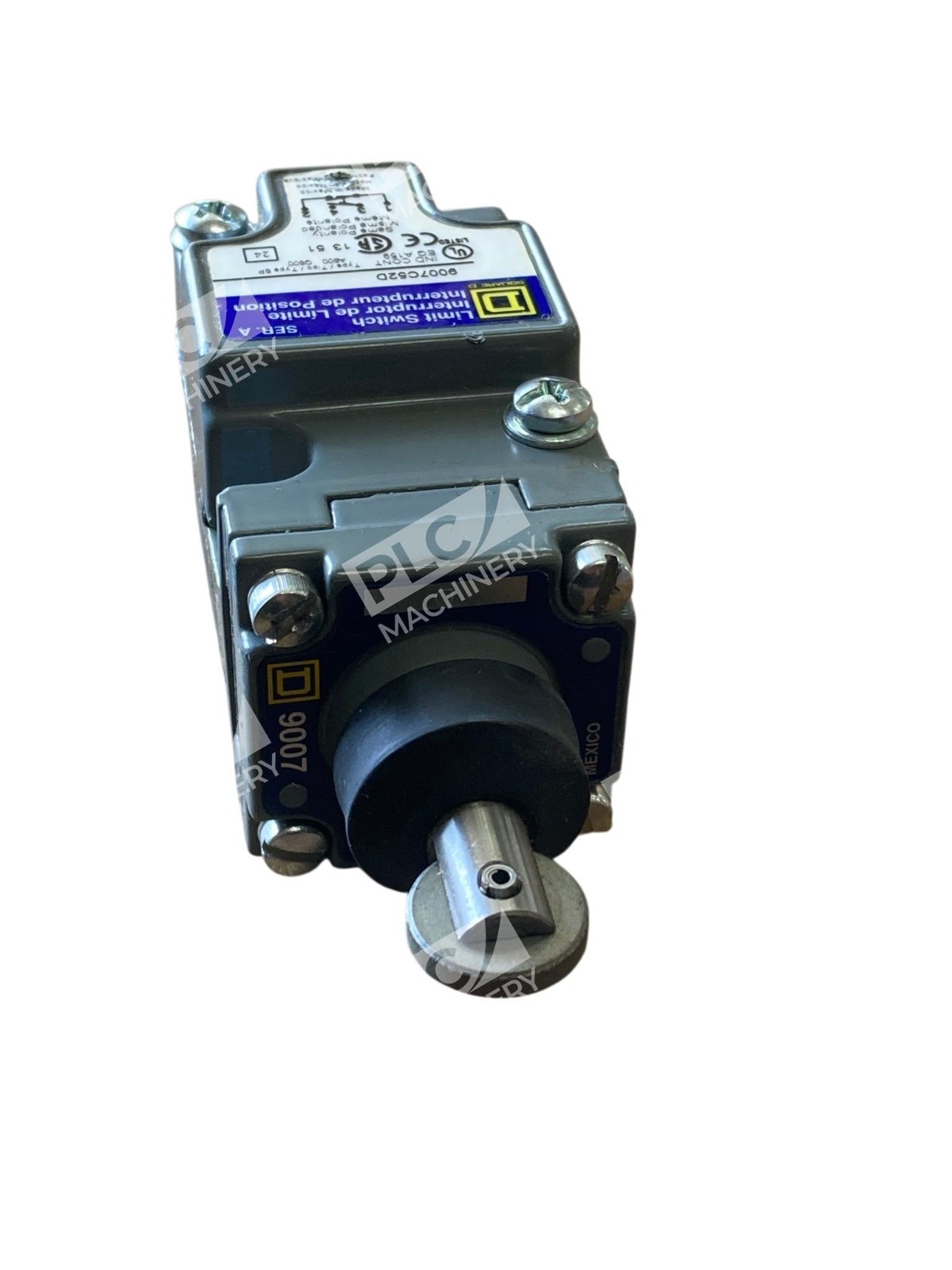

- Top Roller Plunger Actuator: Smooth rolling contact reduces mechanical wear and extends service life.
- Snap-Action Contacts: Momentary spring return operation with positive circuit transition.
- NEMA-Rated Enclosure: Meets NEMA 1/2/4/6/6P/12/13 standards for diverse mounting environments.
- IP67 Protection: Sealed against dust and temporary water immersion, suitable for washdown areas.
- Silver Alloy Contacts: Enhanced electrical conductivity and corrosion resistance.
- Compact Design: Space-efficient form factor for tight panel and equipment installations.
Technical Specifications
This limit switch is engineered with robust electrical and mechanical performance standards:
- Contact Configuration: SPDT, 1NO/1NC contacts
- Contact Current (AC): 10A maximum
- Contact Voltage (AC): 600V maximum
- Operating Force: 3 lbf maximum
- Actuator Type: Top Roller Plunger, linear motion
- Termination: Screw clamp terminals for field wiring
- Enclosure Rating: NEMA 1, 2, 4, 6, 6P, 12, 13
- Ingress Protection: IP67
- Weight: Approximately 0.85 lbs
- Certifications: UL Listed, CSA Certified, CE Marked
- RoHS Compliant: Yes
- Operating Temperature Range: -17.8°C to +85°C
Typical Applications
The 9007C52D is widely used in:
- Machine tool positioning and end-of-travel detection
- Conveyor system speed and position sensing
- Material handling equipment (hoists, gates, ramps)
- Press brake and punch machine controls
- Lathe and milling machine automation
- Packaging and filling line automation
- Safety interlocks in industrial enclosures
Compatibility & Replacements
Compatible With
- Schneider Electric / Square D industrial control systems
- General-purpose industrial machinery control circuits
- Machine tool builders using standard 600V control logic
- Conveyor and material handling systems rated 600VAC
- NEMA and IEC-compliant control panels
Replaces / Drop-In Replacement For
The 9007C52D is a direct replacement for earlier production units of the same model number. For cross-references or compatibility with other 9007C series variants (such as 9007C51D, 9007C54D), verify mounting and terminal orientation with your system integrator or consult the manufacturer’s compatibility matrix.
Works With
- Industrial PLC and relay logic control systems
- NEMA-rated control enclosures and terminal blocks
- Standard 600VAC/600VDC industrial circuits
- Spring return momentary action control schemes
- System integrators and OEM equipment builders
