Overview

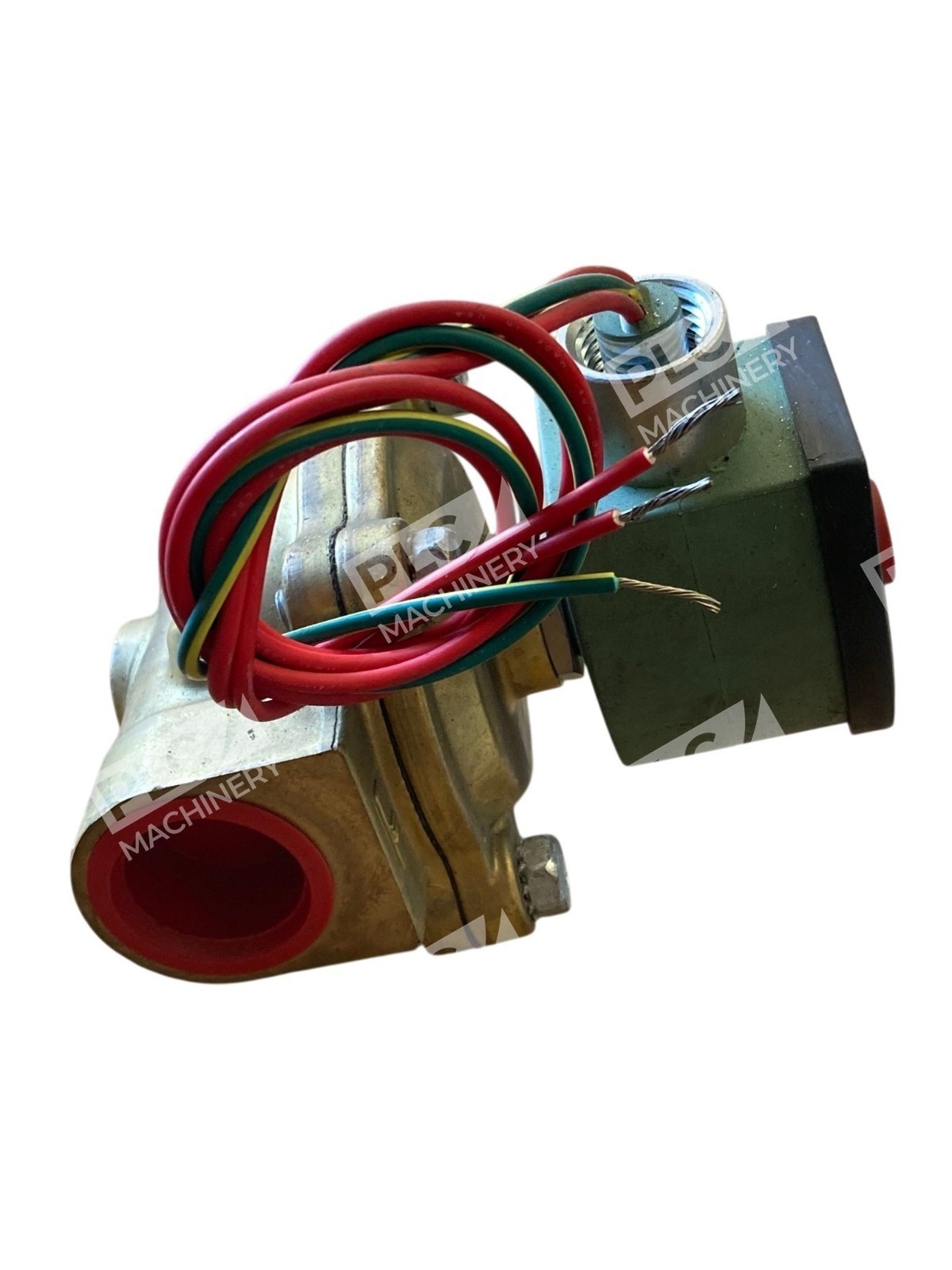

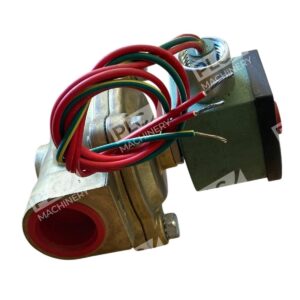

The Asco 8210G054 Red-Hat II solenoid valve is a 2-way normally closed general-purpose valve engineered for industrial fluid control. 1″ NPT brass construction with a 13 CV orifice delivers high flow rates while maintaining minimal internal leakage. This valve is rated for liquid, corrosive, and air/inert gas service across a wide range of industrial applications including car wash systems, laundry equipment, air compressors, and industrial water control.
Key Features
- 2-Way Normally Closed (Energize to Open) design for fail-safe operation
- Brass body construction with NBR (Buna-N) seals for corrosion resistance
- High-flow design (13 CV) rated for 0–145 GPM (water) and 0–1,281 SCFM (air)
- Red-Hat II watertight enclosure (Type 1, 2, 3, 3S, 4, 4X ratings) with dust-tight housing
- No minimum operating pressure required; may be mounted in any direction
- Resilient seals reduce internal leakage across service life
Technical Specifications
- Pipe Size: 1″ NPT
- Orifice Size: 1″
- Flow Coefficient (Cv): 13
- Body Material: Brass
- Seals: NBR (Buna-N)
- Valve Type: 2-Way Normally Closed
- Coil Type: General Purpose/Watertight, Dust Tight, Corrosion Resistant
- Operating Pressure (Air/Inert Gas): 0–150 PSI
- Operating Pressure (Water): 0–125 PSI
- Operating Pressure (Light Oil): 0–125 PSI
- Flow Rate (Water): 0–145 GPM
- Flow Rate (Air): 0–1,281 SCFM
- Maximum Temperature: 180°F
- Ambient Temperature Range: 32–125°F (nominal)
- Coil Rating: 240/60 VAC, 16.1 Watts, Class F Continuous Duty
- Enclosure Rating: NEMA Type 1, 2, 3, 3S, 4, and 4X (Watertight)
- Certifications: UL Listed, CSA Certified, CE Certified
- Coil Termination: 1/2″ Conduit Hub with 18″ Lead Wires
Typical Applications
The Asco 8210G054 is ideal for industrial automation and control systems requiring fail-safe solenoid valve operation:
- Industrial water control and distribution systems
- Car wash and laundry equipment
- Air compressor controls and pneumatic circuits
- Pump discharge or inlet protection
- Corrosive liquid handling with mineral or saline solutions
Compatibility & Replacements
Compatible With
- Standard industrial pneumatic and hydraulic control systems
- 24 VAC, 120 VAC, and 240 VAC control circuits (check coil specifications)
- 1″ NPT female threaded manifold and piping systems
- Explosion-proof enclosure optional upgrades (prefix “EF” to catalog number)
Replaces / Drop-In Replacement For
- Asco 8210G54 (earlier variant designation)
- Direct replacement for other Red-Hat II 1″ normally closed 2-way valves with matching NPT connections
Works With
- NEMA-rated industrial control enclosures
- 24 VAC, 120 VAC, and 240 VAC solenoid coil supply systems
- Pneumatic and hydraulic manifold platforms
- PLC-based on/off control logic for fluid management
