Overview

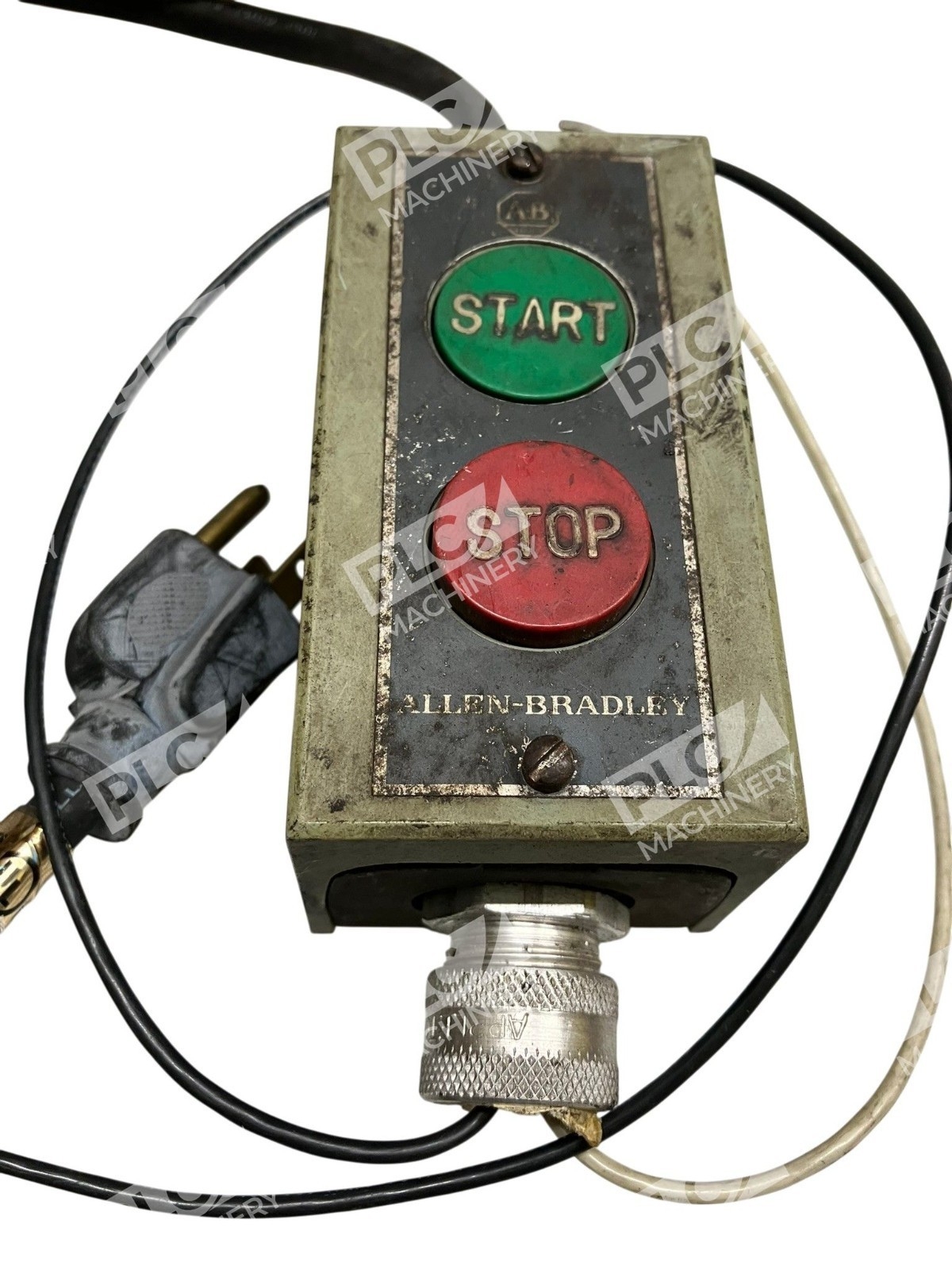

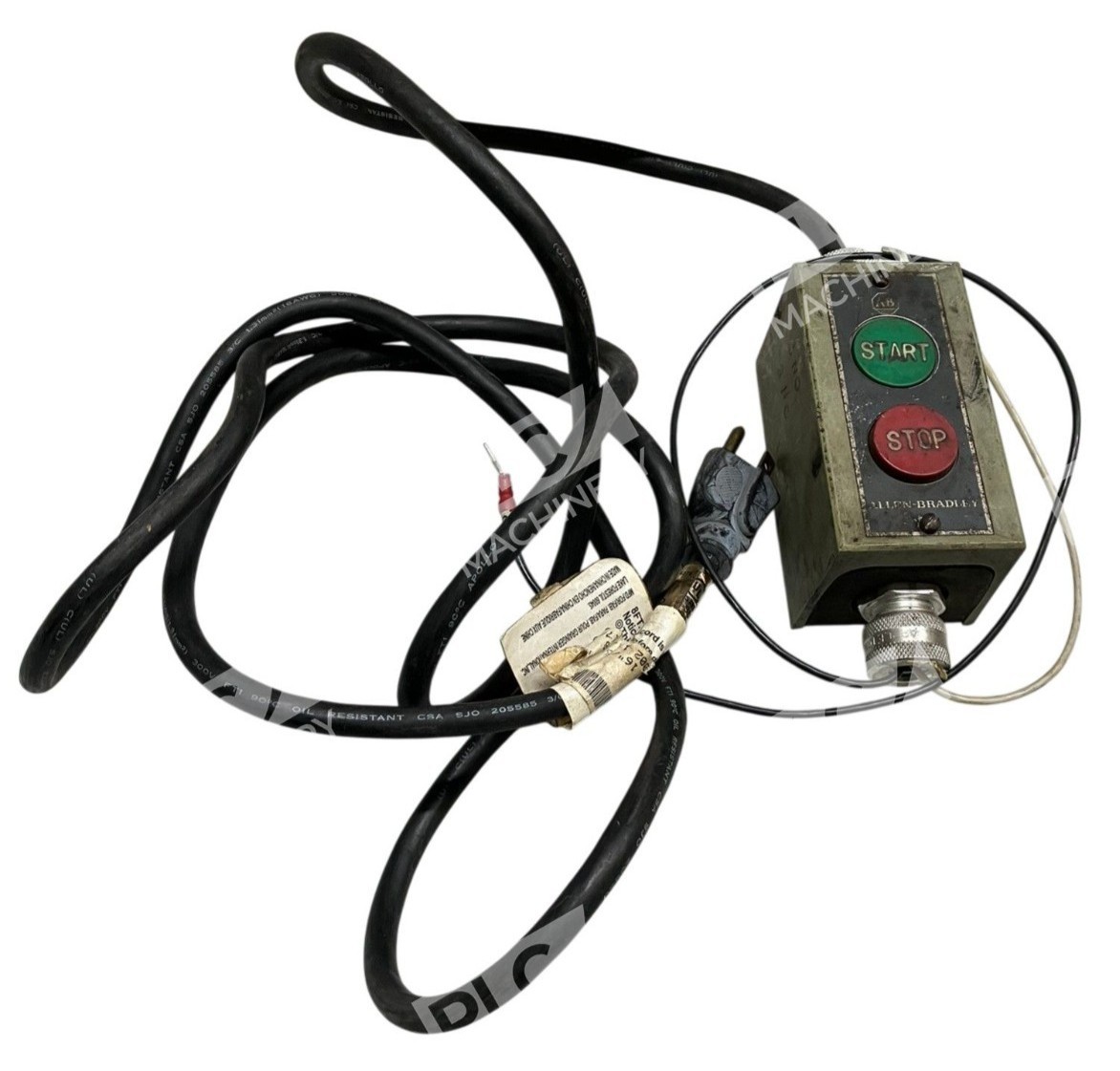

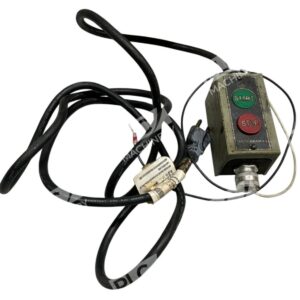

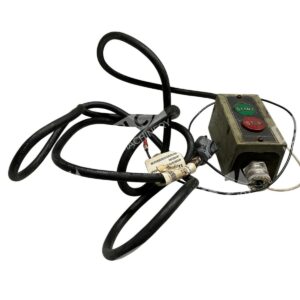

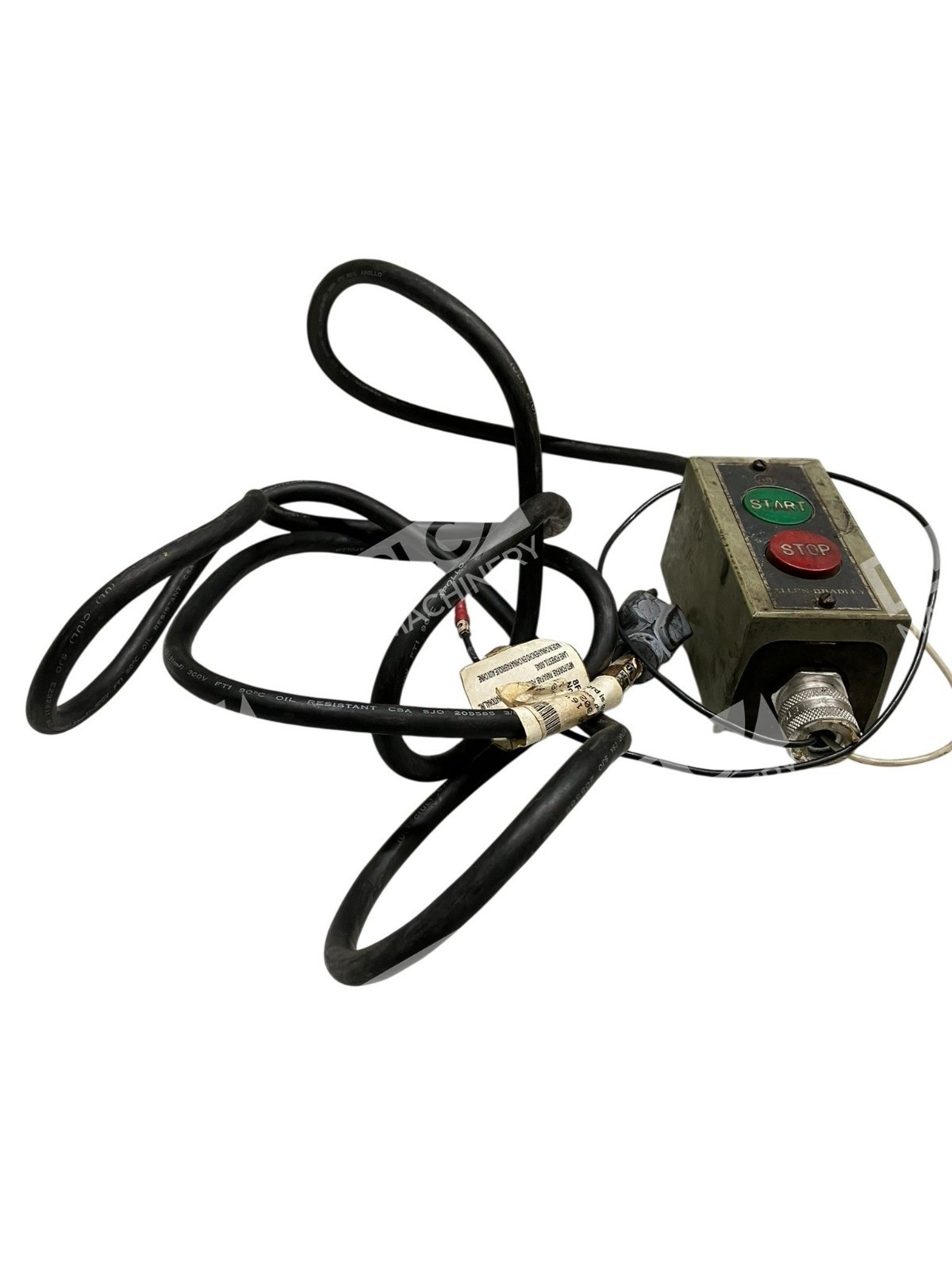

The Allen-Bradley 800S-2SA is a standard-duty push button station designed for use in industrial control circuits. Offering compact size and dependable performance, Bulletin 800S standard-duty push-button stations are for use in control circuits. NEMA type 1 stations are designed for operating flexibility and easy wiring. The Series M configuration provides a two-position momentary contact design suitable for start/stop motor and process control applications across manufacturing, automation, and industrial facilities.
Key Features
- 1 NO, 1 NC contact configuration for flexible circuit logic
- Contact rating of 5 A at 600 VAC for standard industrial duty
- NEMA Type 1 enclosure rated for general indoor use
- Metal construction for durability and corrosion resistance

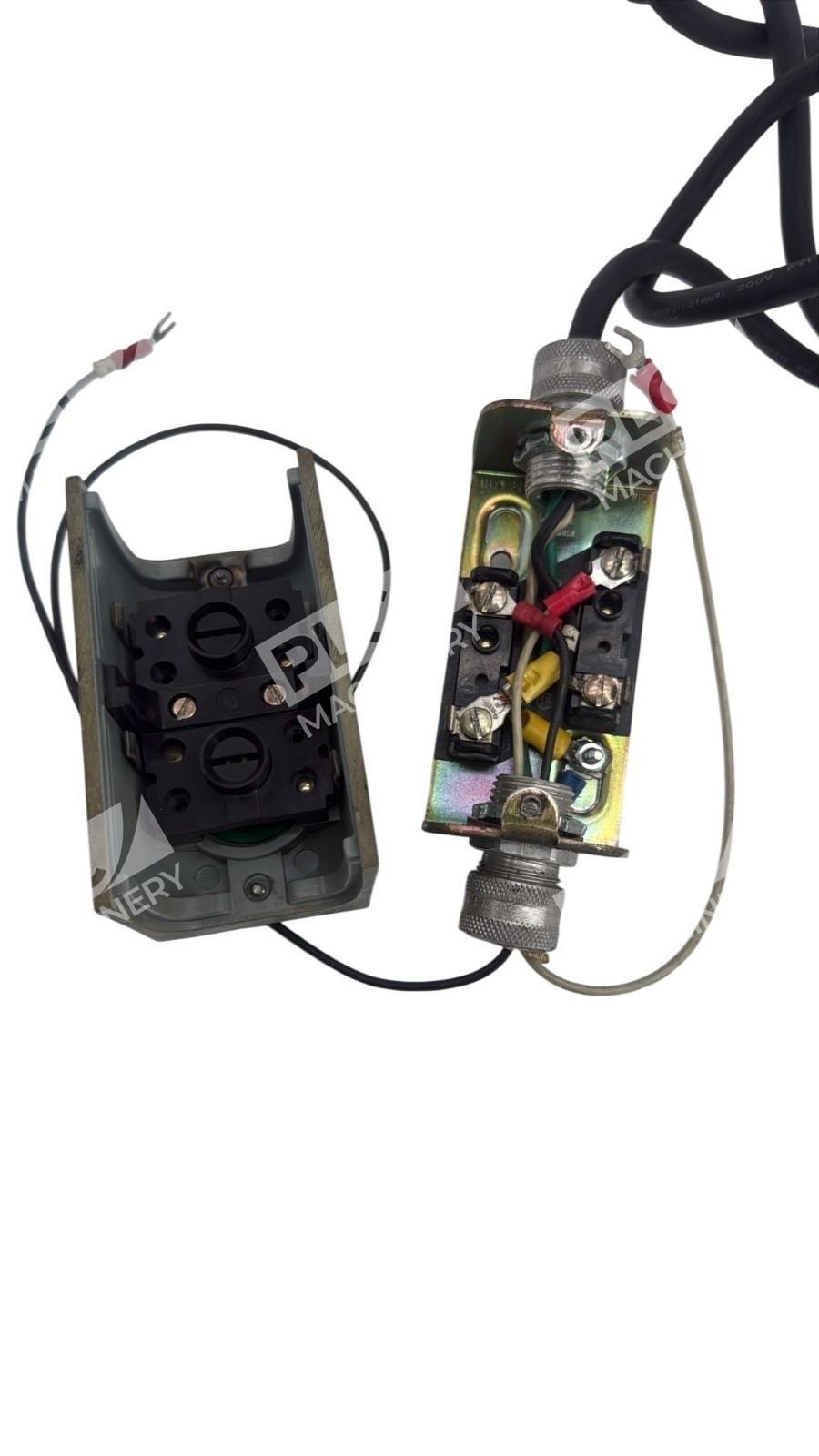

- Unique construction speeds up both installation and maintenance
- Momentary-operated buttons for momentary contact action
Technical Specifications
- Series: 800S
- Model Number: 800S-2SA

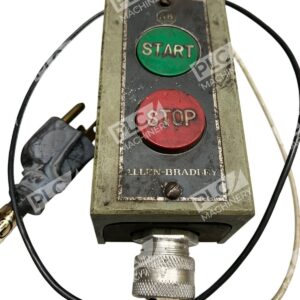

- Configuration: 2-Position START/STOP
- Contact Type: Momentary contact buttons

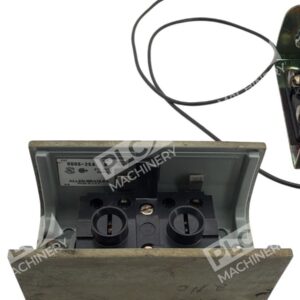

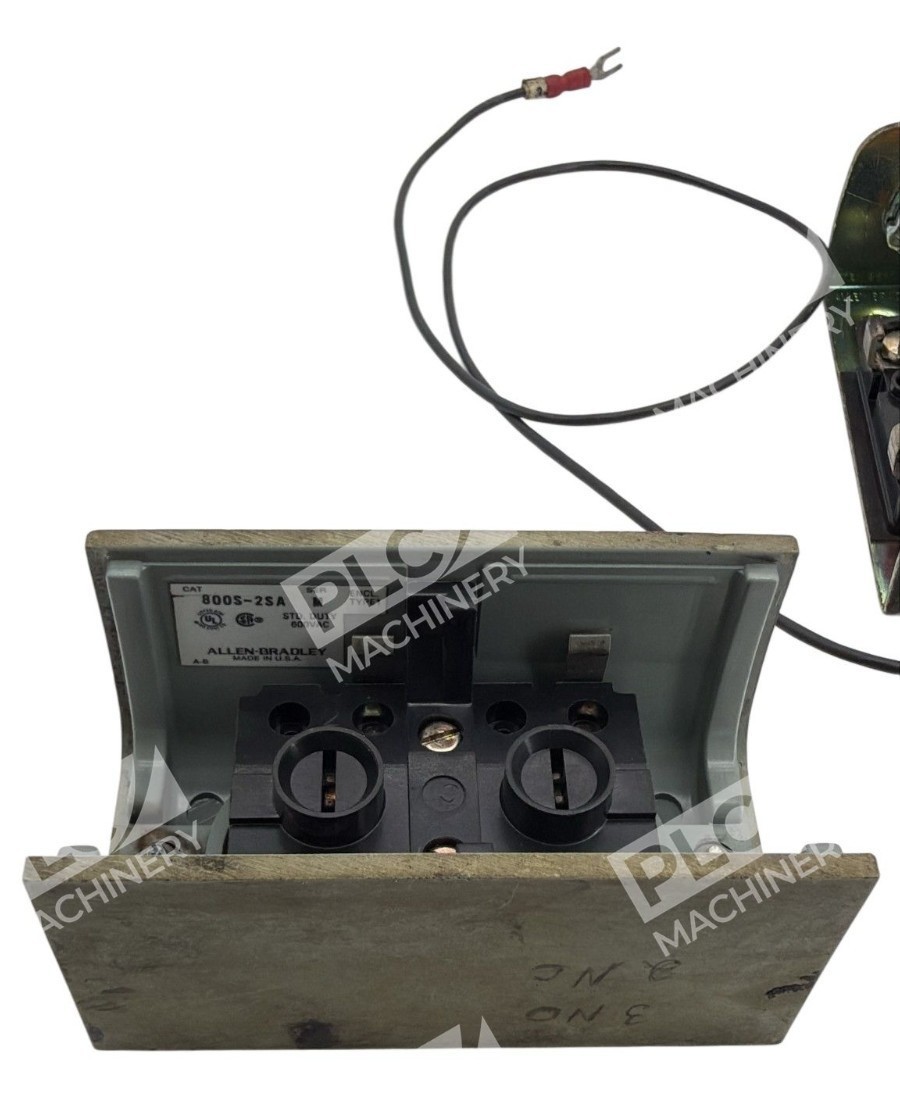

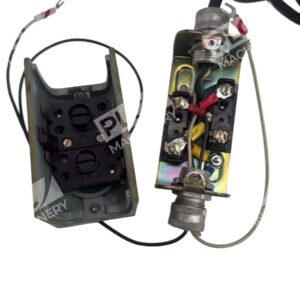

- Contact Configuration: 1 NO (normally open), 1 NC (normally closed)
- Contact Rating: 5 A at 600 VAC
- Enclosure Type: NEMA Type 1
- Enclosure Rating: 1
- Material: Metal
- Mounting Type: Surface mount
- Number of Mounting Holes: 2
- Certifications: CSA, KC, UL
- Manufacturer: Rockwell Automation / Allen-Bradley
Typical Applications
The Allen-Bradley 800S-2SA is commonly deployed in:
- Motor start/stop control circuits in manufacturing equipment
- Process automation control stations requiring manual operator input
- Industrial machinery with simple two-position control logic
- Pump and compressor control systems
- Conveyor and material handling equipment
- Machine tool and metalworking equipment control
- General-purpose industrial electrical control panels
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix PLC systems
- Rockwell Automation control platforms with 24 VDC or 120 VAC pilot circuits
- Standard industrial control relay logic and hardwired circuits
- Any motor control center (MCC) or control panel accepting 5 A at 600 VAC input
- NEMA Type 1 industrial electrical enclosures
Replaces / Drop-In Replacement For
The 800S-2SA replaces earlier versions and similar two-position momentary push button stations. Verify exact interchangeability with your system integrator before ordering, as contact configurations and voltage ratings must match your specific application.
Works With
- Studio 5000 (RSLogix 5000) for PLC input wiring diagrams and I/O allocation
- Any discrete input module accepting 24 VDC or 120 VAC signals
- Hardwired relay logic and electromechanical control circuits
- Standard industrial wiring practices per NFPA 70 (NEC)
