Overview

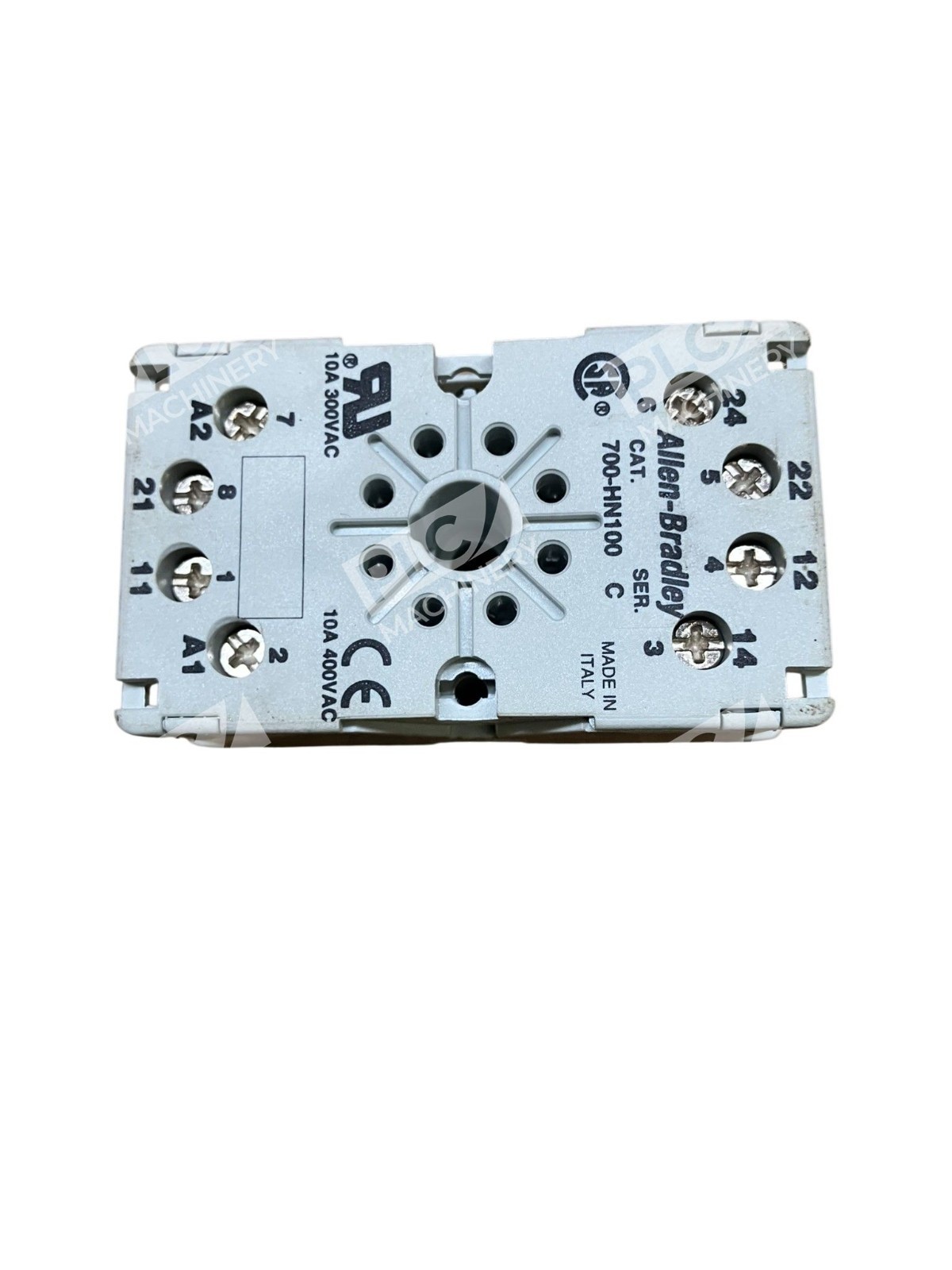

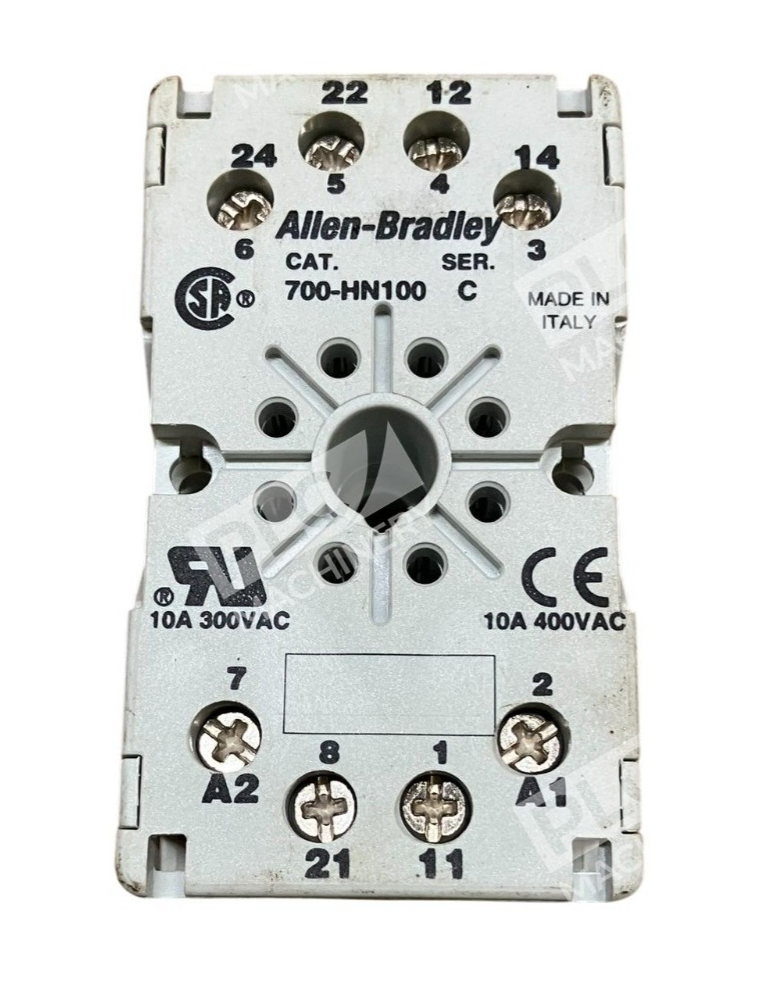

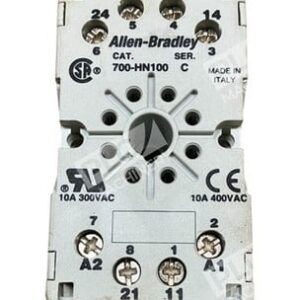

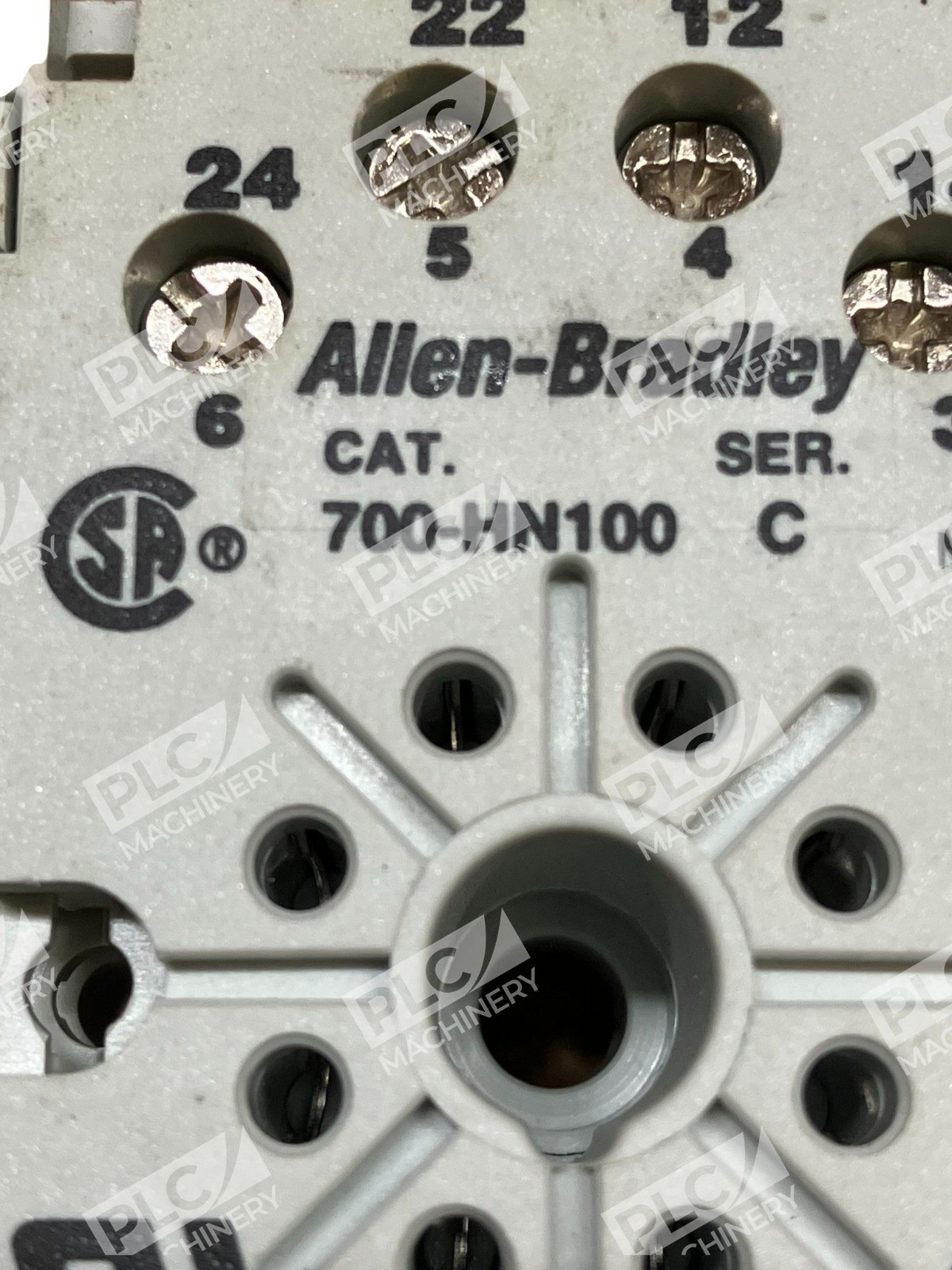

The Allen-Bradley 700-HN100 is a compact, guarded tube base relay socket engineered for general-purpose industrial automation and control systems. This 8-pin socket accommodates standard tube base relays and offers both DIN rail and panel mounting flexibility, making it suitable for OEM equipment and field retrofit applications in power distribution, machine automation, and process control.
Key Features
- 8-pin tube base configuration with guarded terminal design for operator safety
- Screw terminal connections for secure, tool-assisted wiring

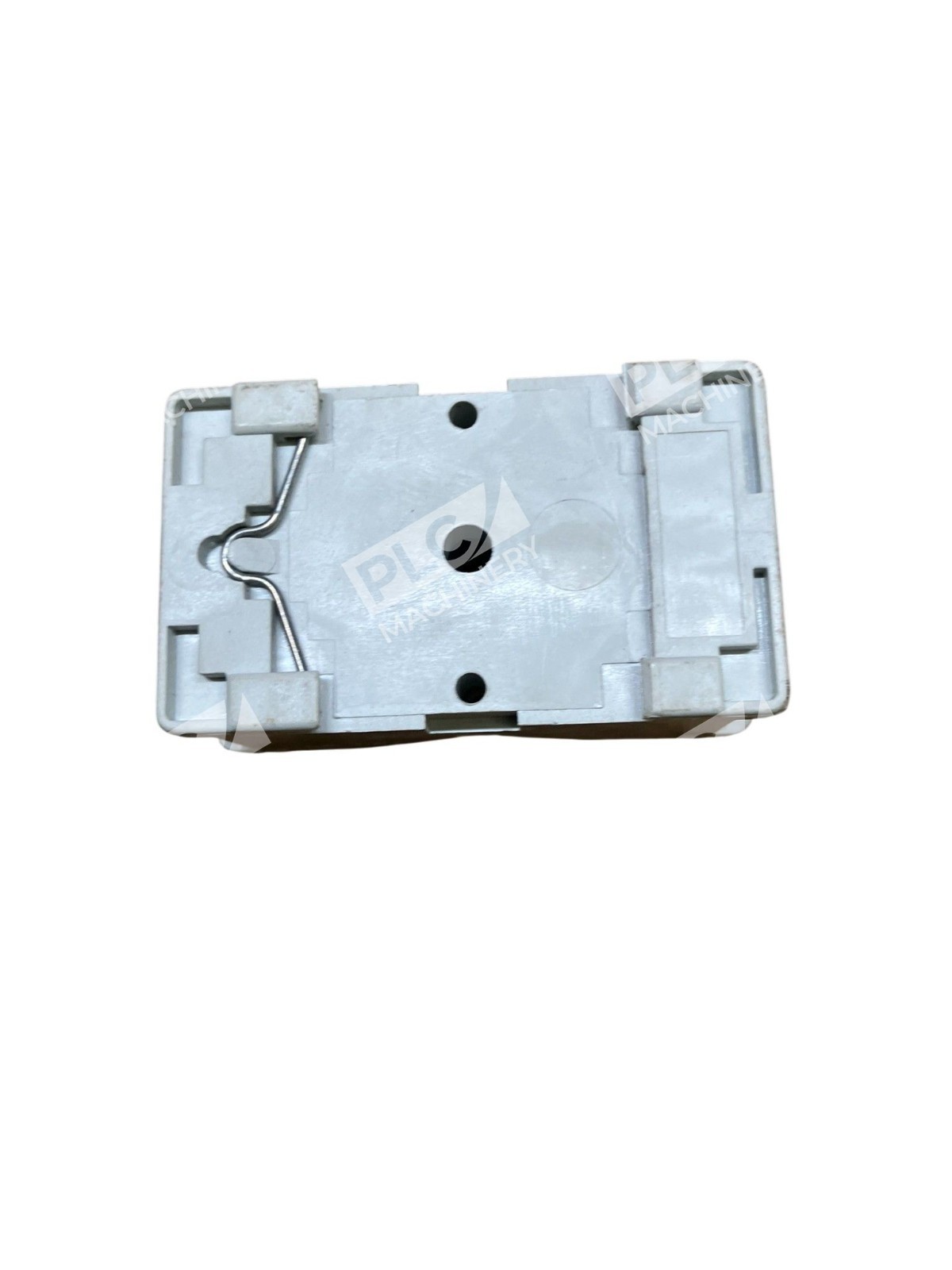

- Dual mounting options: DIN rail or panel surface mounting
- Compact footprint (38 mm W × 26 mm D × 65 mm H) fits tight enclosures
- Meets international safety standards: UL, CSA, CE, CCC, KC
Technical Specifications
- Rated Voltage: 300 V
- Rated Current: 10 A
- Number of Pins: 8
- Terminal Type: Screw
- Socket Type: Guarded Tube Base
- Mounting Style: DIN Rail / Panel Mount
- Dimensions: 38 mm W × 26 mm D × 65 mm H
- Weight: 0.11 lb (50 g)
- Certifications: UL, CSA, CE, CCC, KC
- Operating Temp Range: –20 °C to +60 °C (typical)
Typical Applications
The 700-HN100 relay socket is commonly used in:
- Industrial motor control centers and starter cabinets
- Programmable logic controller (PLC) applications requiring auxiliary relay logic
- Process automation and HVAC systems
- Machine tool and conveyor controls
- OEM equipment requiring modular, replaceable relay bases
Compatibility & Replacements
Compatible With
- Allen-Bradley 700-HA DPDT bulletin relays
- 700-HX timing relays
- 700-HT on-delay timing relays
- 700-HRM repeat cycle timing relays
- 700-HRC repeat cycle relays
- 700-HV repeat cycle timing relays
Replaces / Drop-In Replacement For
The 700-HN100 /C is the current production variant. Verify compatibility with your system integrator before ordering if replacing legacy relay bases.
Works With
- Rockwell Automation control systems
- Any industrial automation platform using Allen-Bradley 8-pin tube base relays
- Standard EIA/IEC relay mounting standards
