Overview

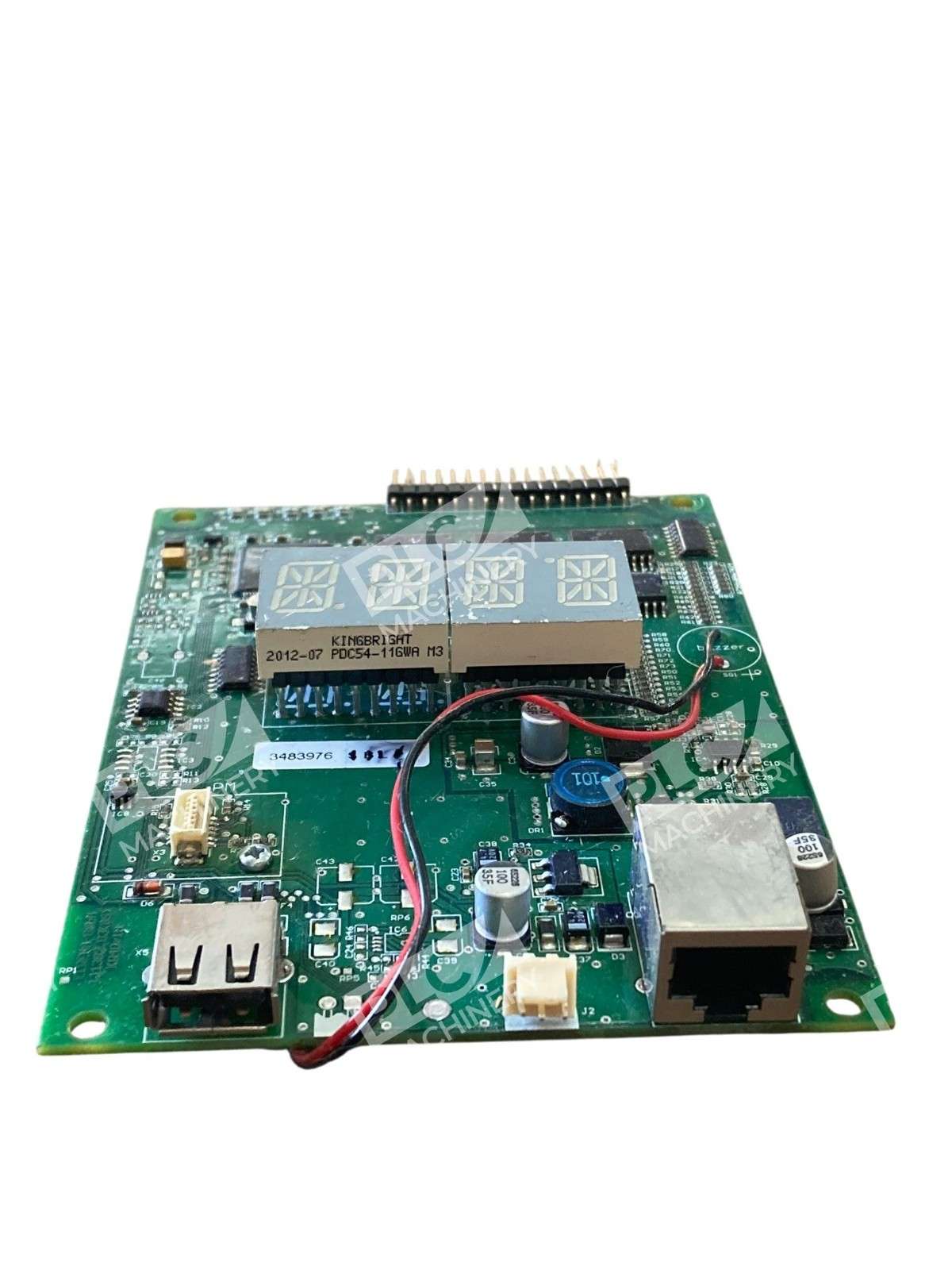

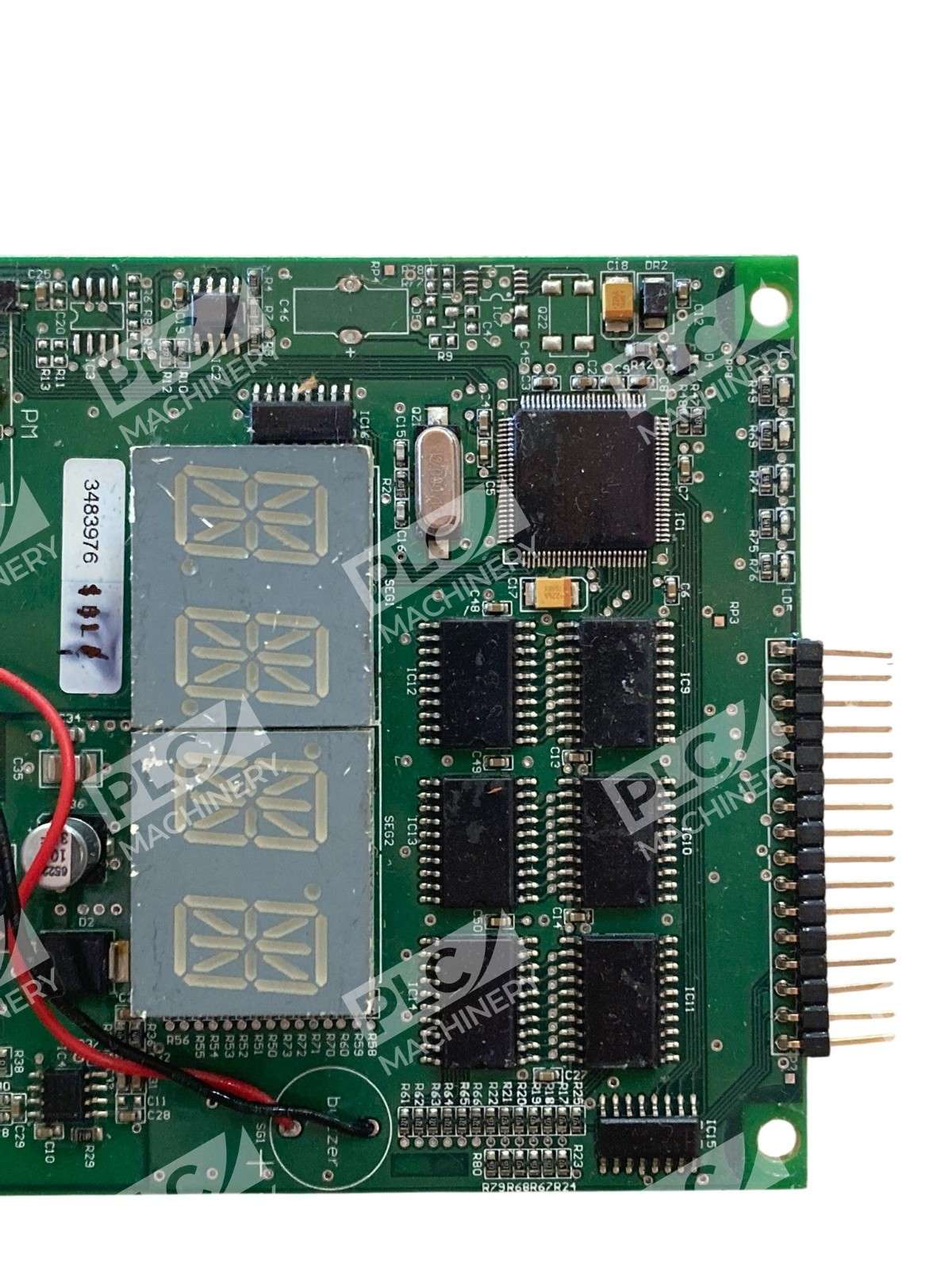

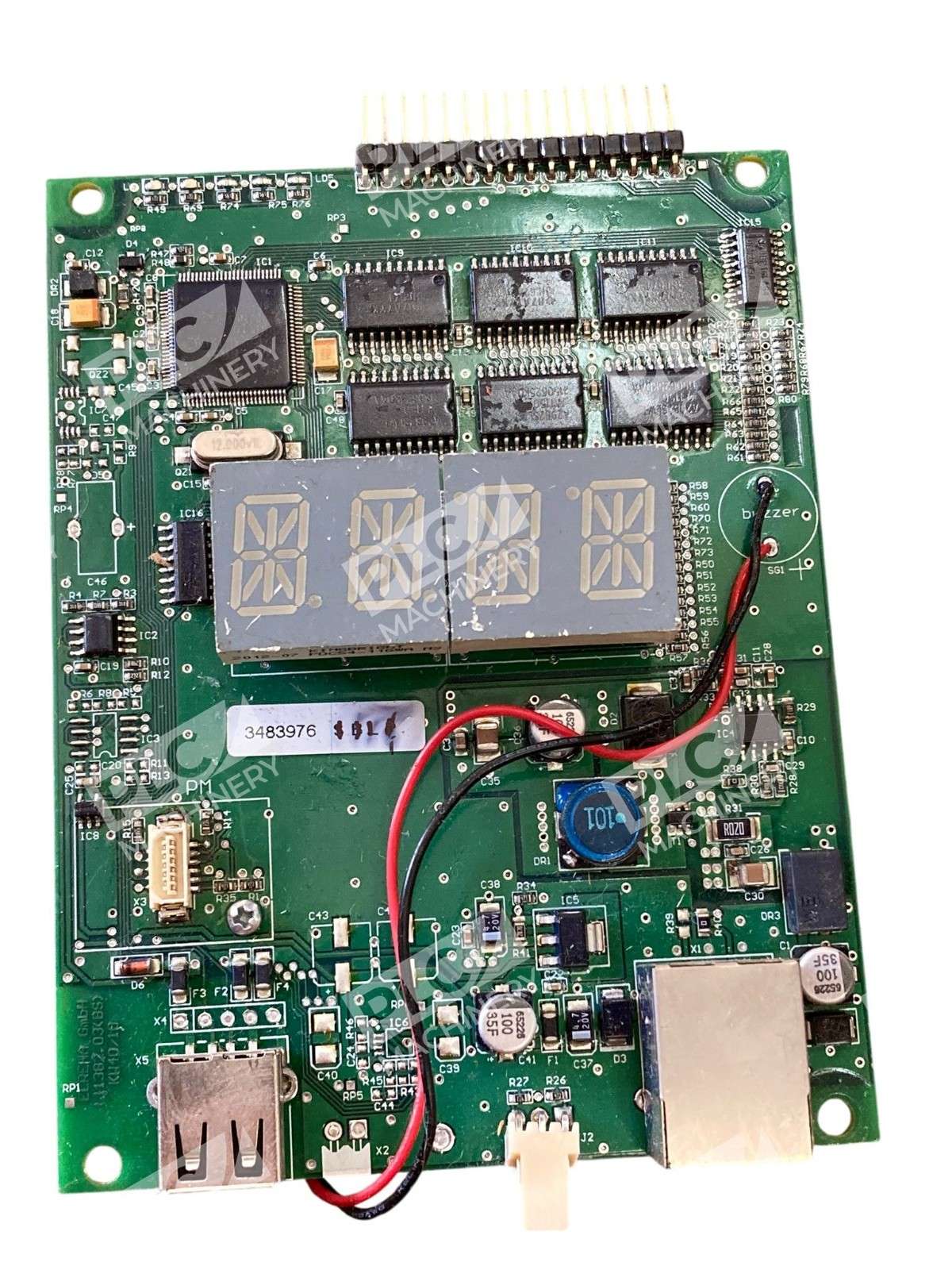

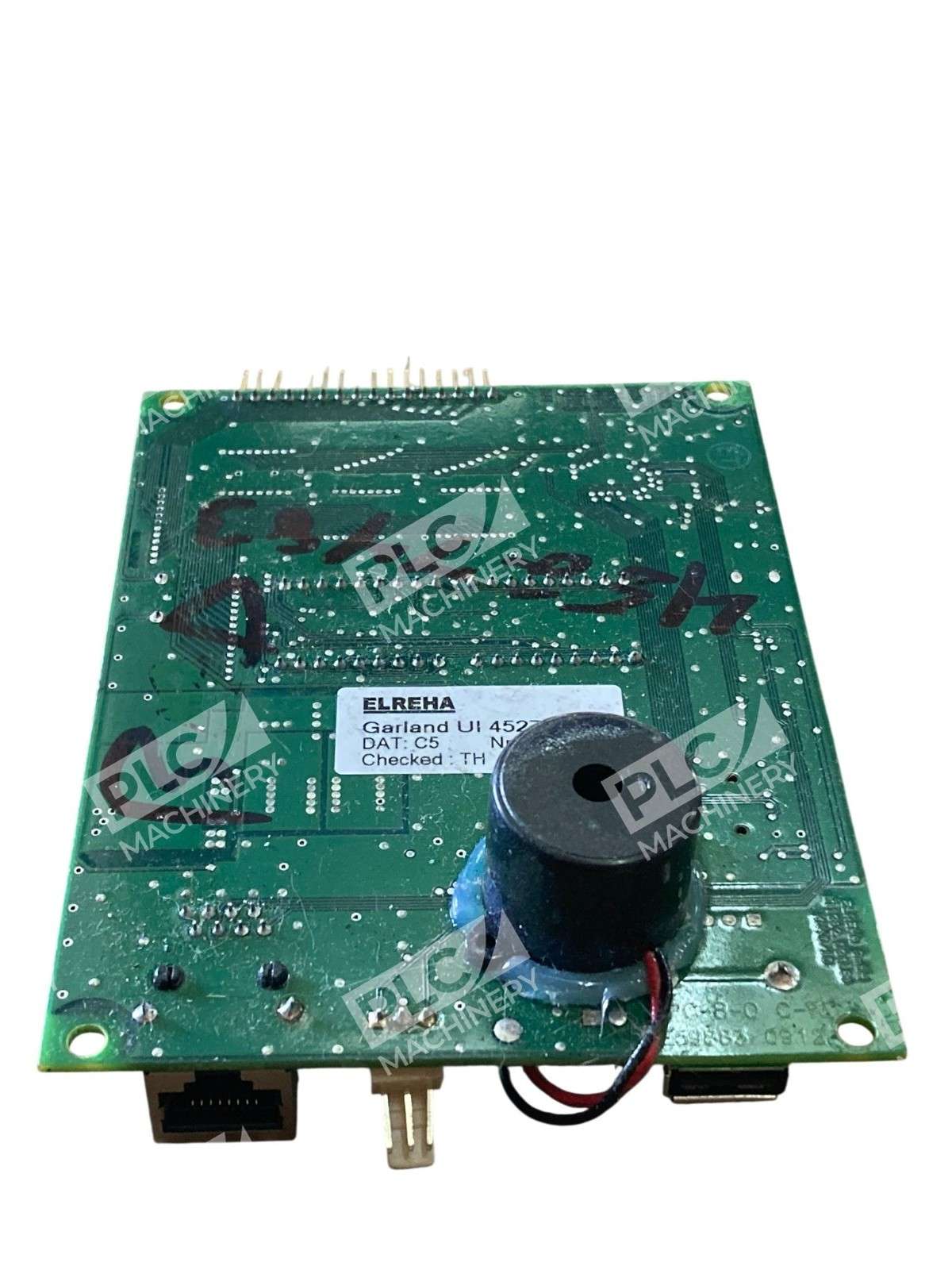

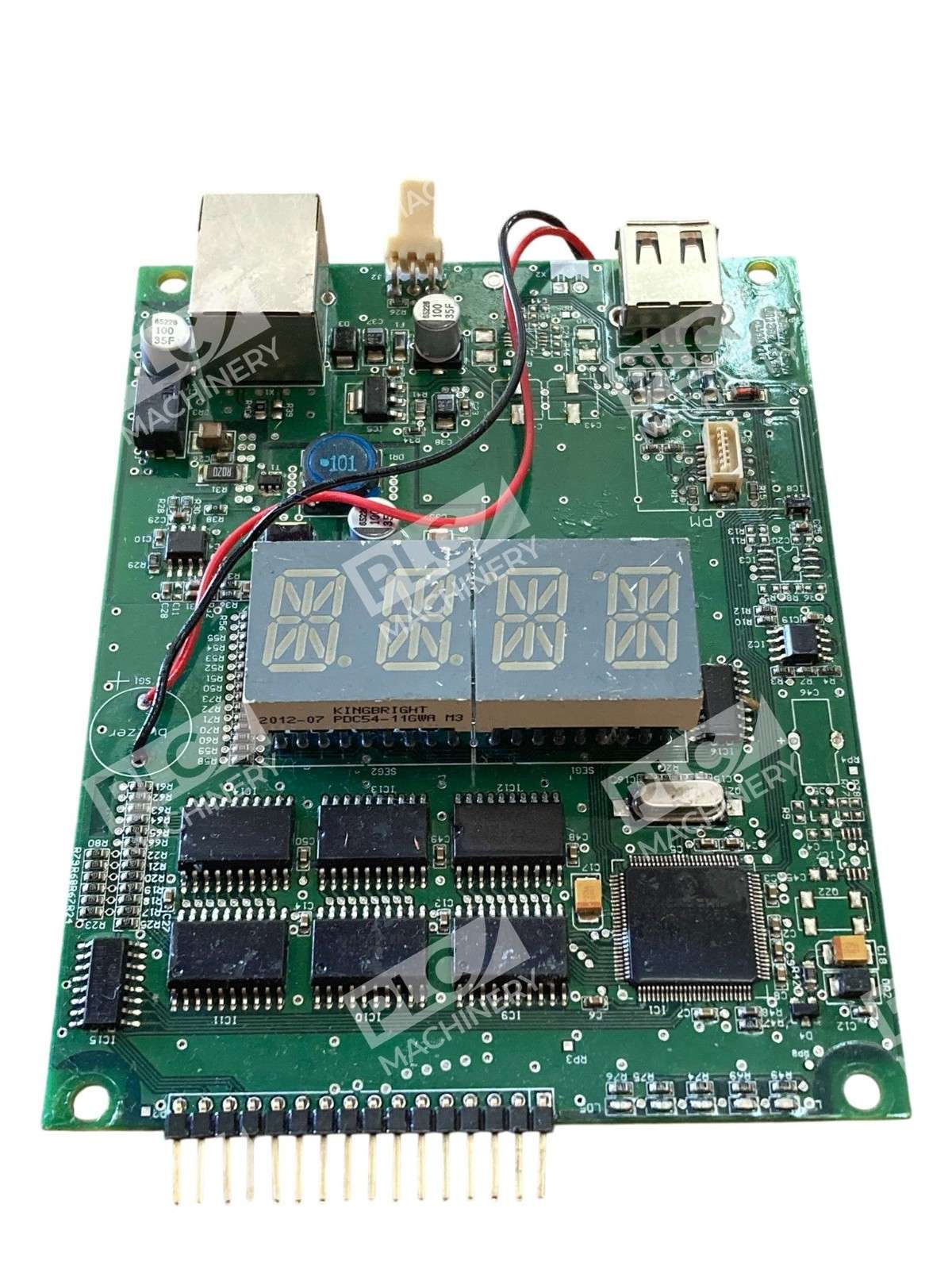

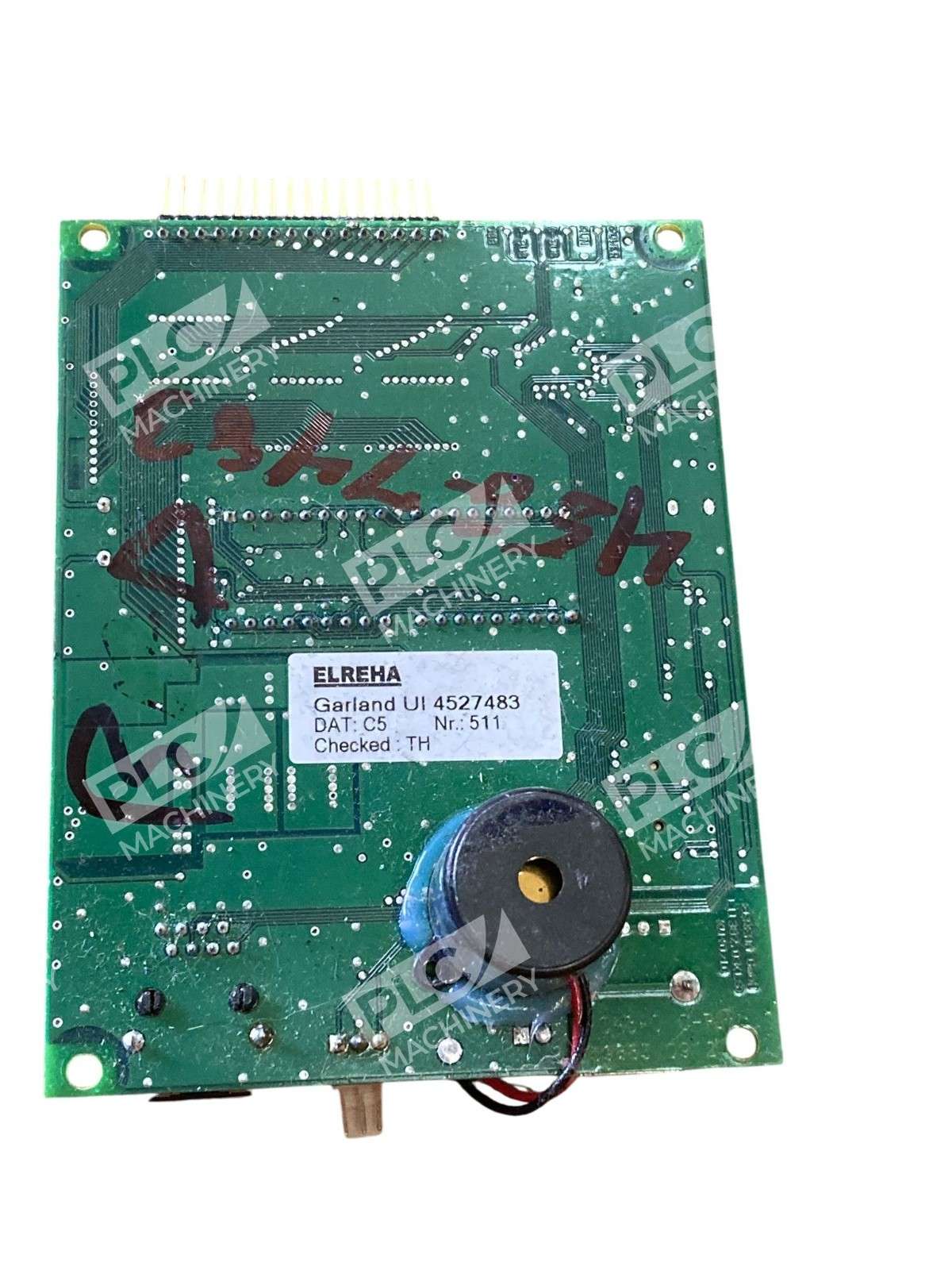

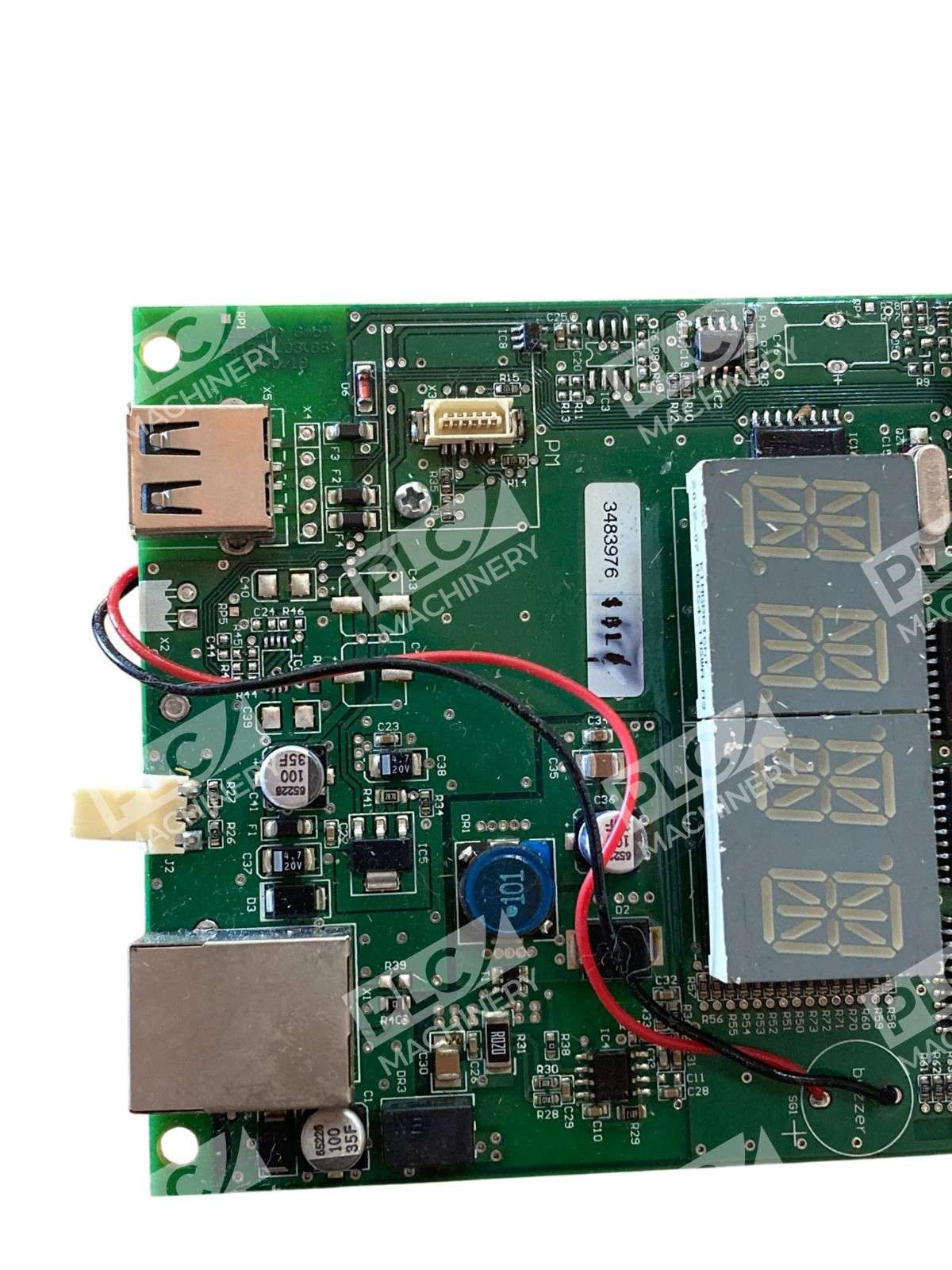

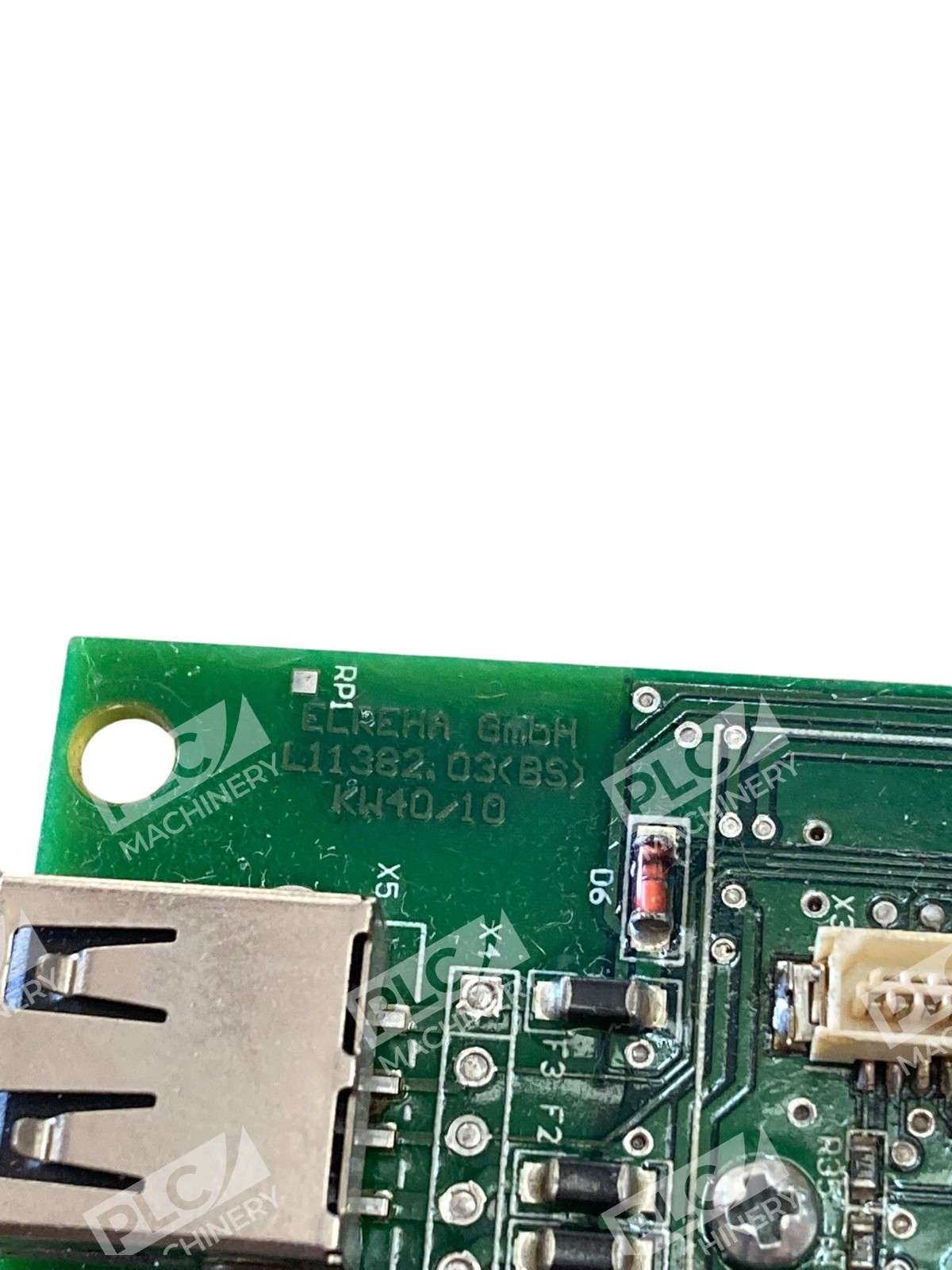

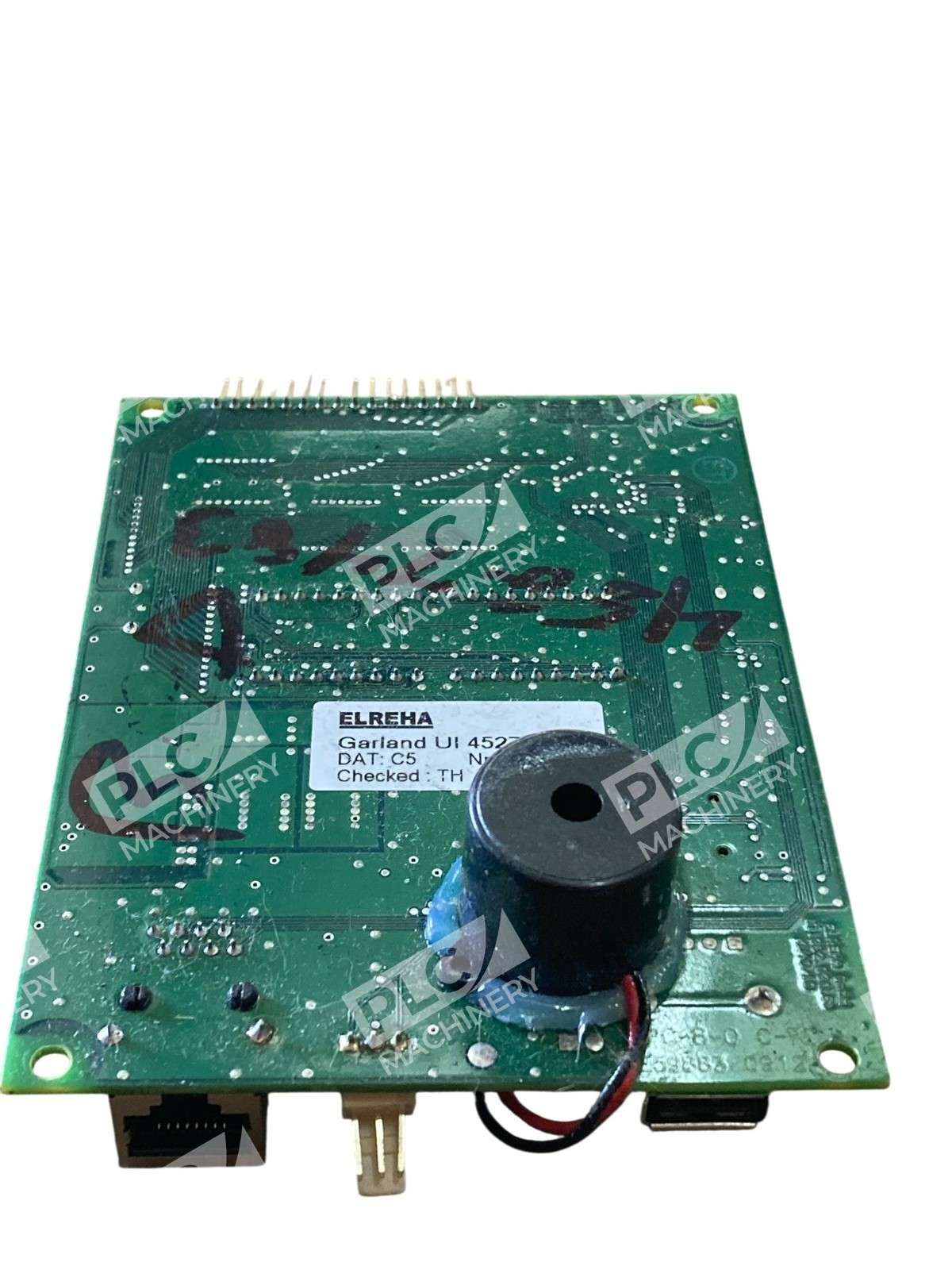

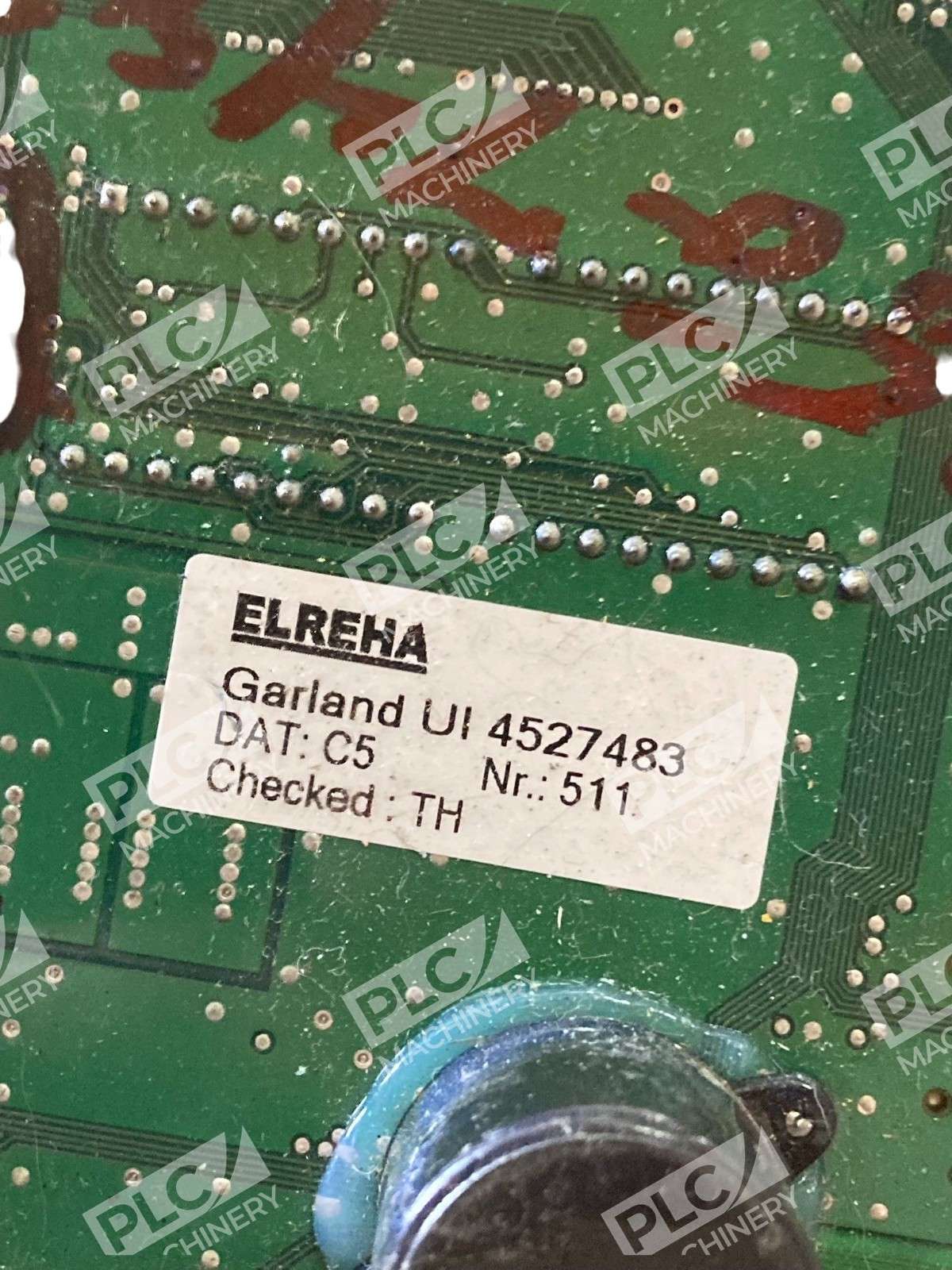

The Garland 4527483 is an original equipment manufacturer (OEM) user interface board designed for Garland/US Range convection and range ovens equipped with Elreha control systems. This circuit board receives input commands on the keypad and integrates the temperature and timing operation of the cooking chamber, serving as the main channel of communication between the operator and heating relays and fan motors of the oven. The board is positioned on the back of the covering on the front control column of the oven.
Key Features
- Processes sensor data to control the desired amount of thermal setting needed to the chosen baking or roasting program
- Direct keypad input integration for operator control
- Manages heating relays and fan motor circuits
- Genuine OEM (Original Equipment Manufacturer) part
- Mounted behind oven front control panel for secure installation
Technical Specifications
The Garland 4527483 is designed for integration with Garland commercial convection and range oven models. This control board functions as the interface between the operator control panel and internal oven heating and circulation systems. Installation requires verification with specific oven serial number and production date to ensure compatibility with voltage, fuel type, and control system configuration.
Typical Applications
- Commercial convection oven control for restaurants and food service facilities
- Temperature and timing management in professional baking operations
- Heating and circulation fan control for consistent cooking performance
- Replacement part for existing Garland Elreha-equipped ovens
Compatibility & Replacements
Compatible With
- Garland/US Range electric convection ovens with Elreha control system
- Garland single and double-deck convection oven models
- Garland gas convection ovens equipped with Elreha interface
- Ovens using keypad control with integrated temperature and timing sensors
Replaces / Drop-In Replacement For
The Garland 4527483 is a direct OEM replacement for original control boards in Garland and US Range convection and range ovens equipped with Elreha control systems. Verify compatibility with your specific oven model, serial number, and production date before ordering.
Works With
- Garland Elreha control system ecosystem
- Internal oven relay and sensor networks
- Keypad and display control panels
- Heating element and fan motor circuits
- Temperature and timer sensor integration
