Overview

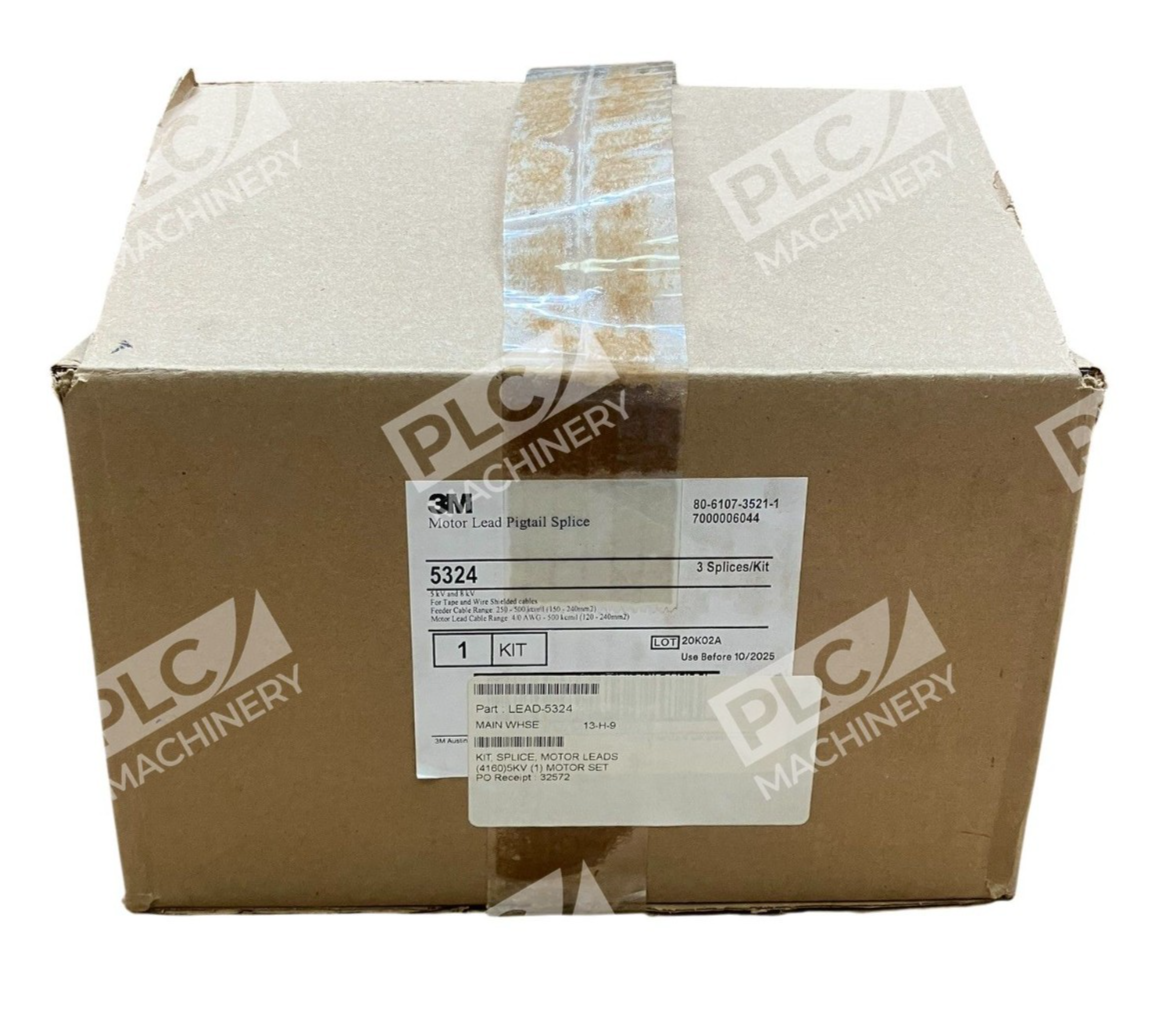

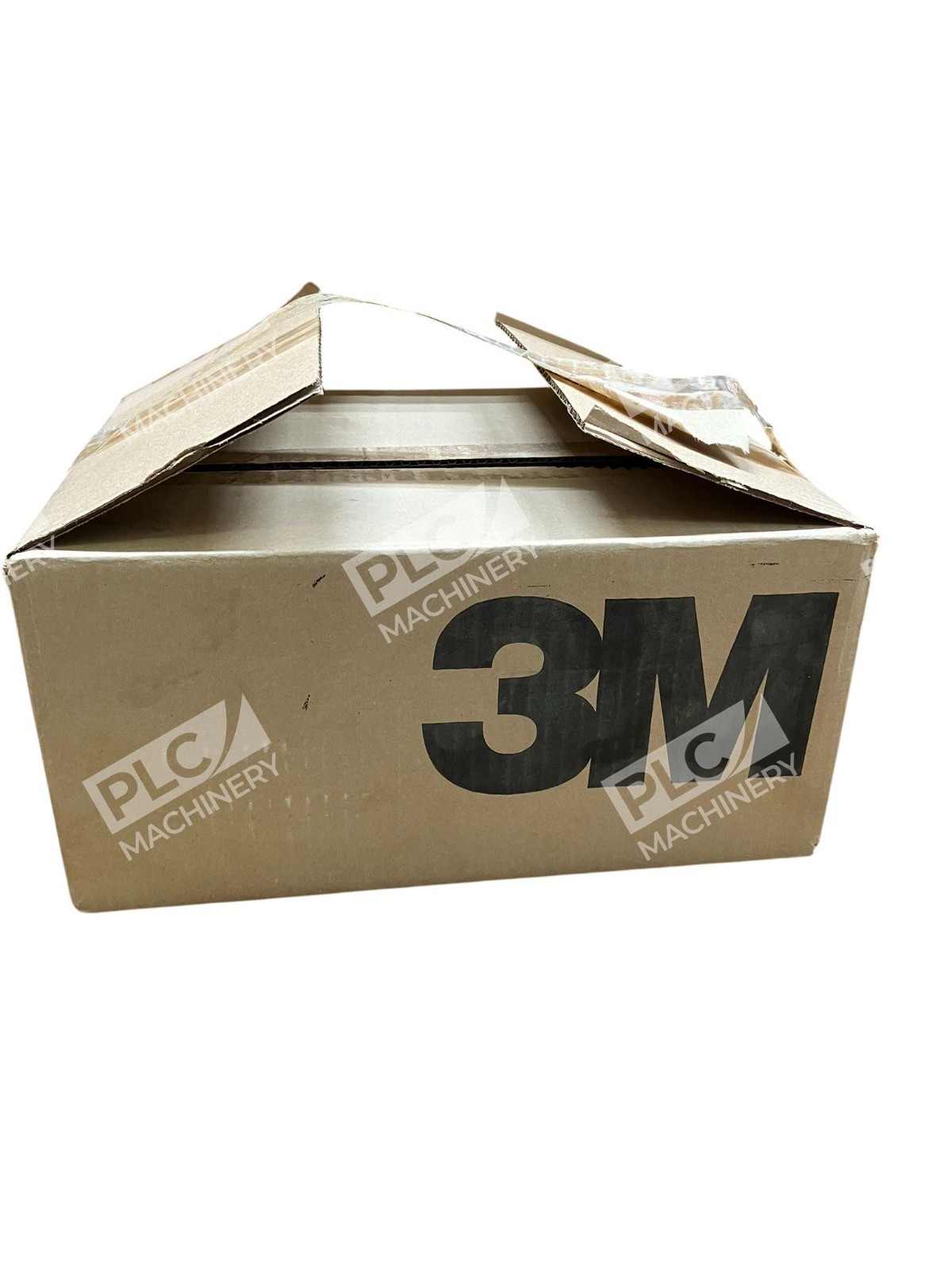

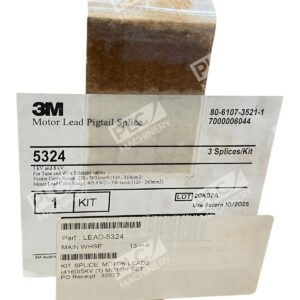

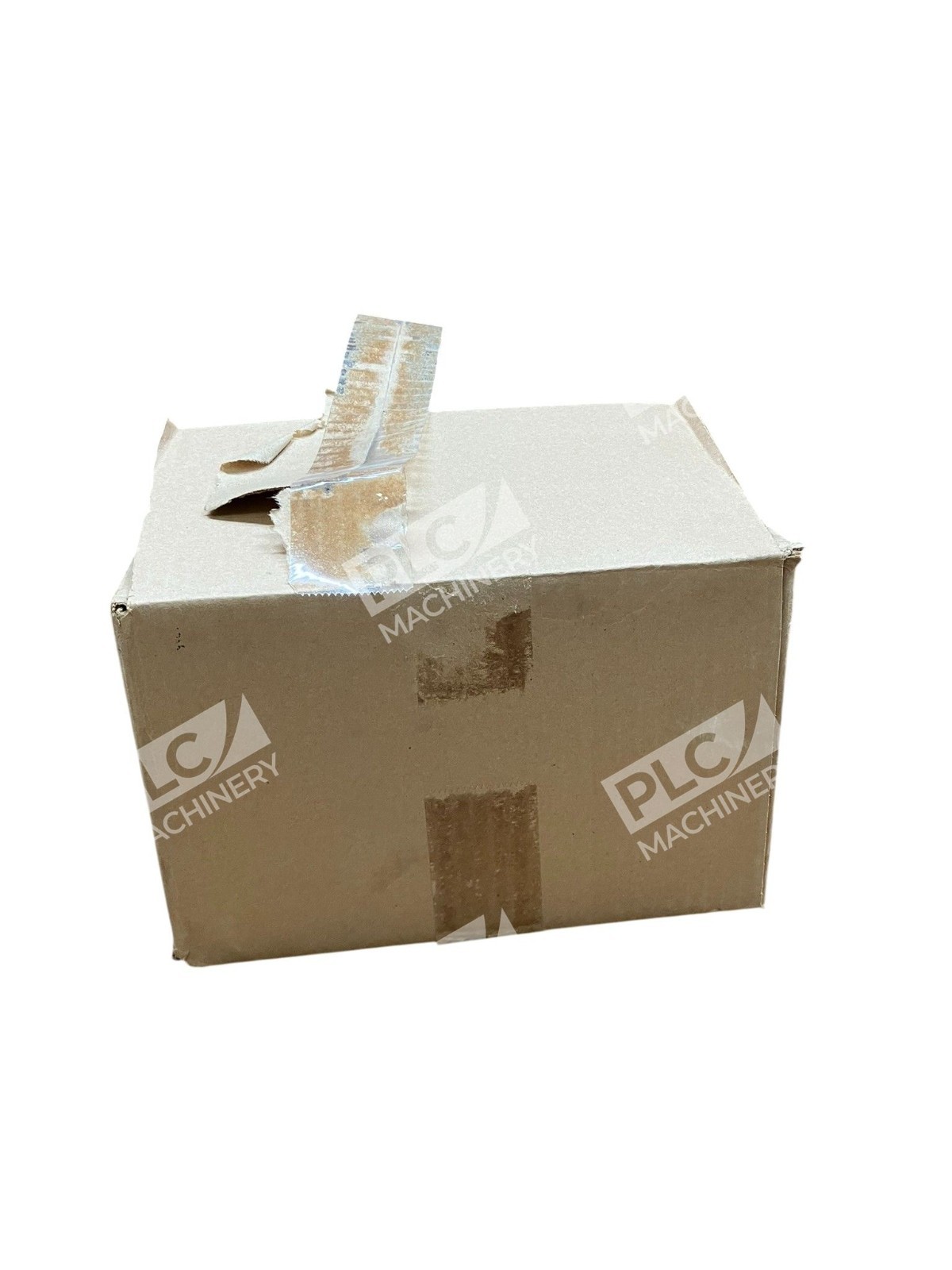

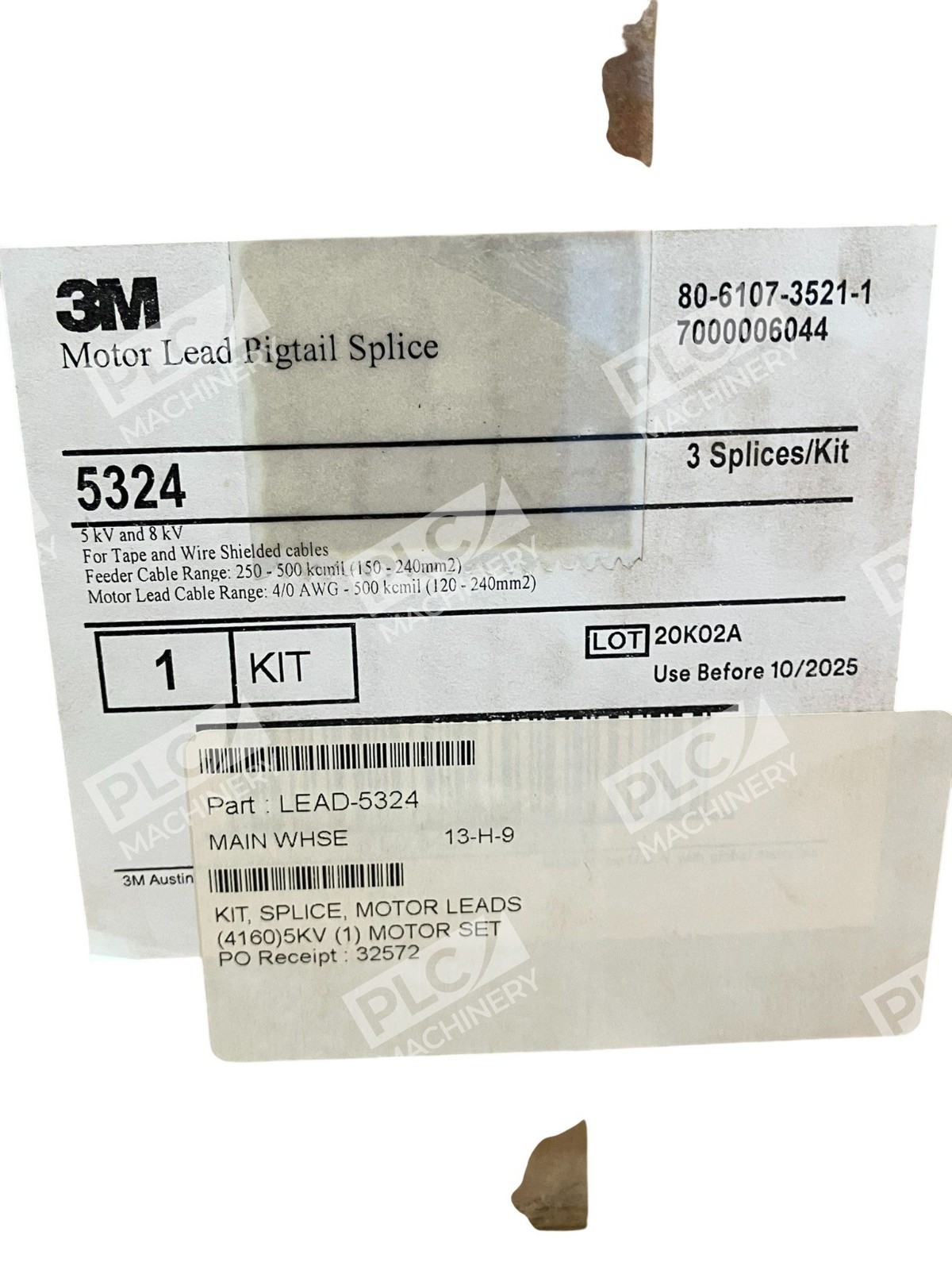

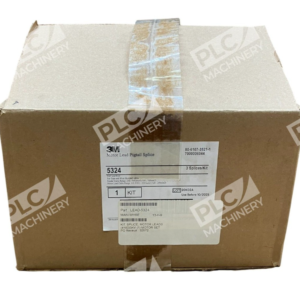

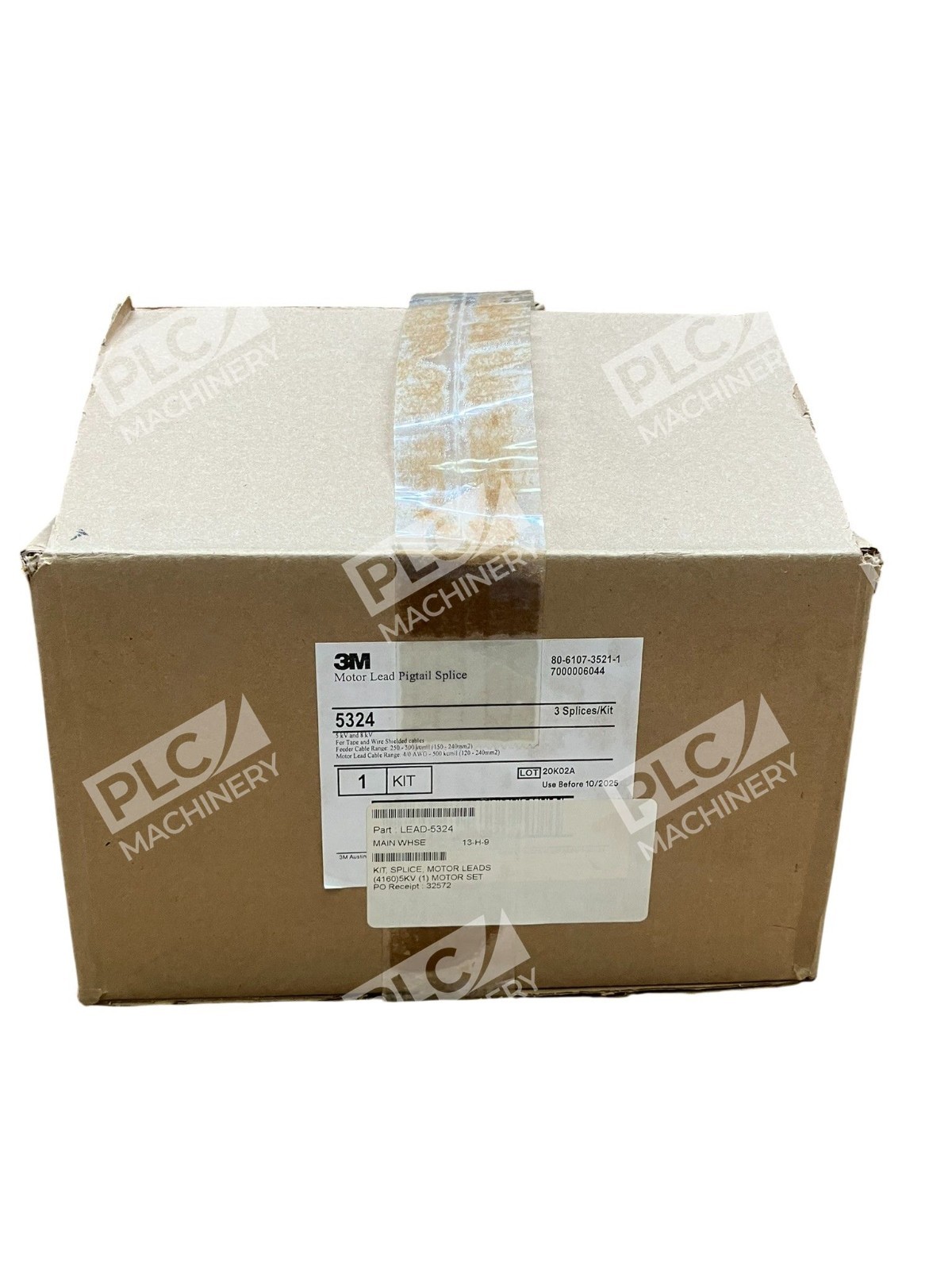

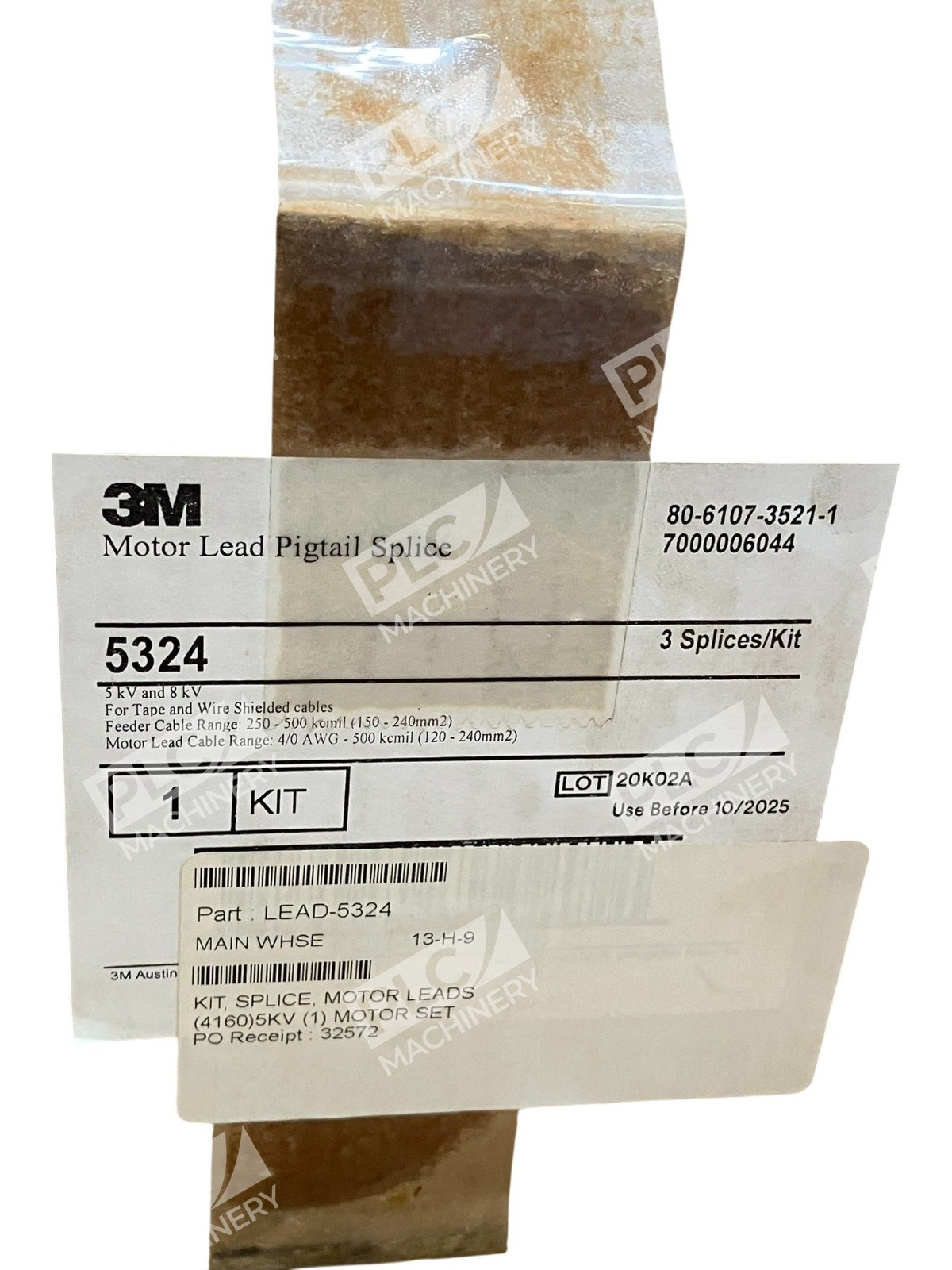

3M Motor Lead Pigtail Splice Kit 5324 is designed for pigtail (stub) splicing of motor lead cables to incoming feeder cables in industrial applications. The splice kit is designed for polymeric insulated cables and is suitable for indoor use with a maximum voltage of 5/8 kV. Manufactured in the USA, this kit supports both shielded and non-shielded cable configurations. Each box contains three complete splice kits.
Key Features
- Contains 3 each of pigtail lug covers, cold shrink tubes, silicone grease tubes, solvent cleaning cloths, and splicing tape 130C

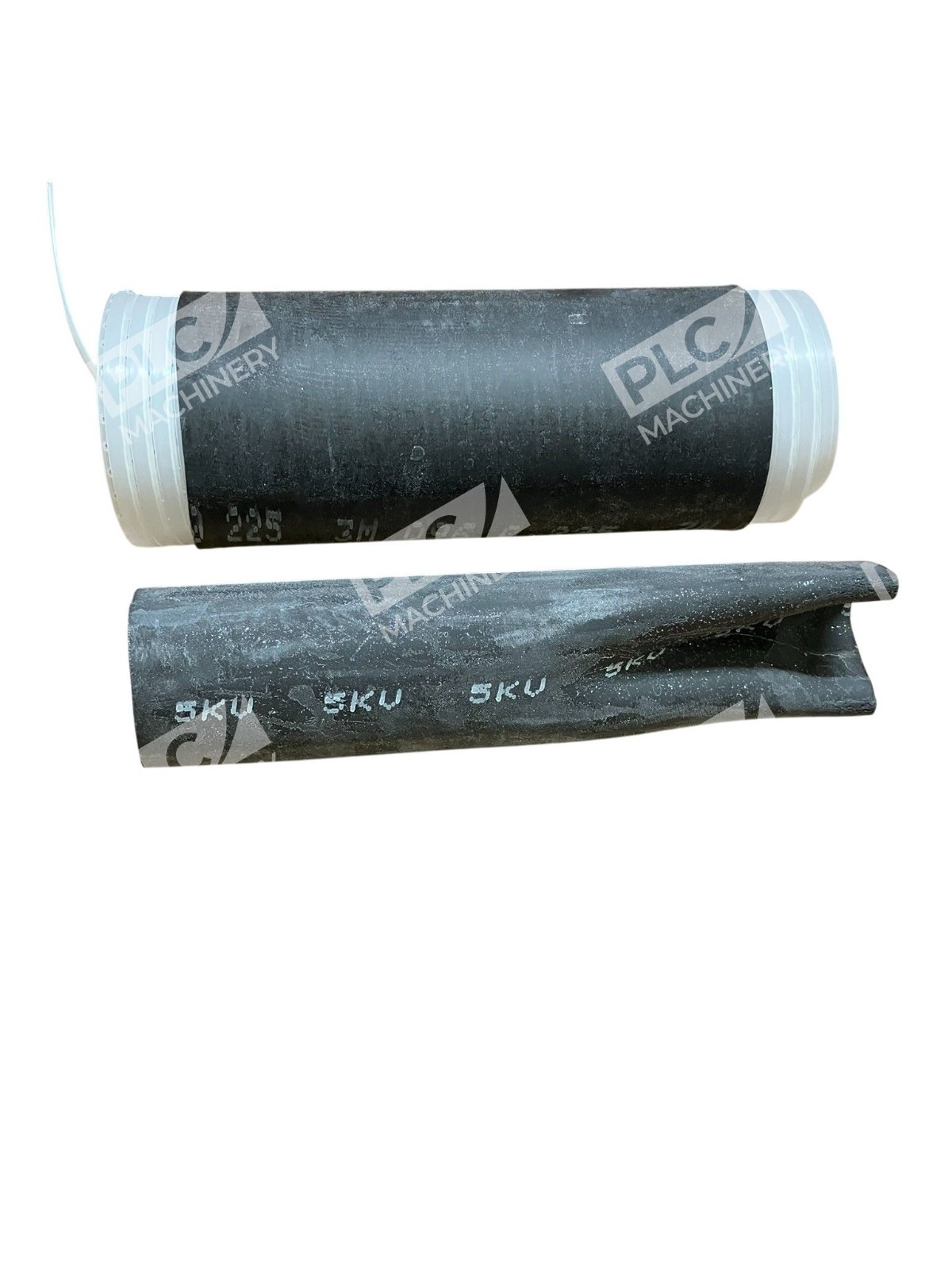

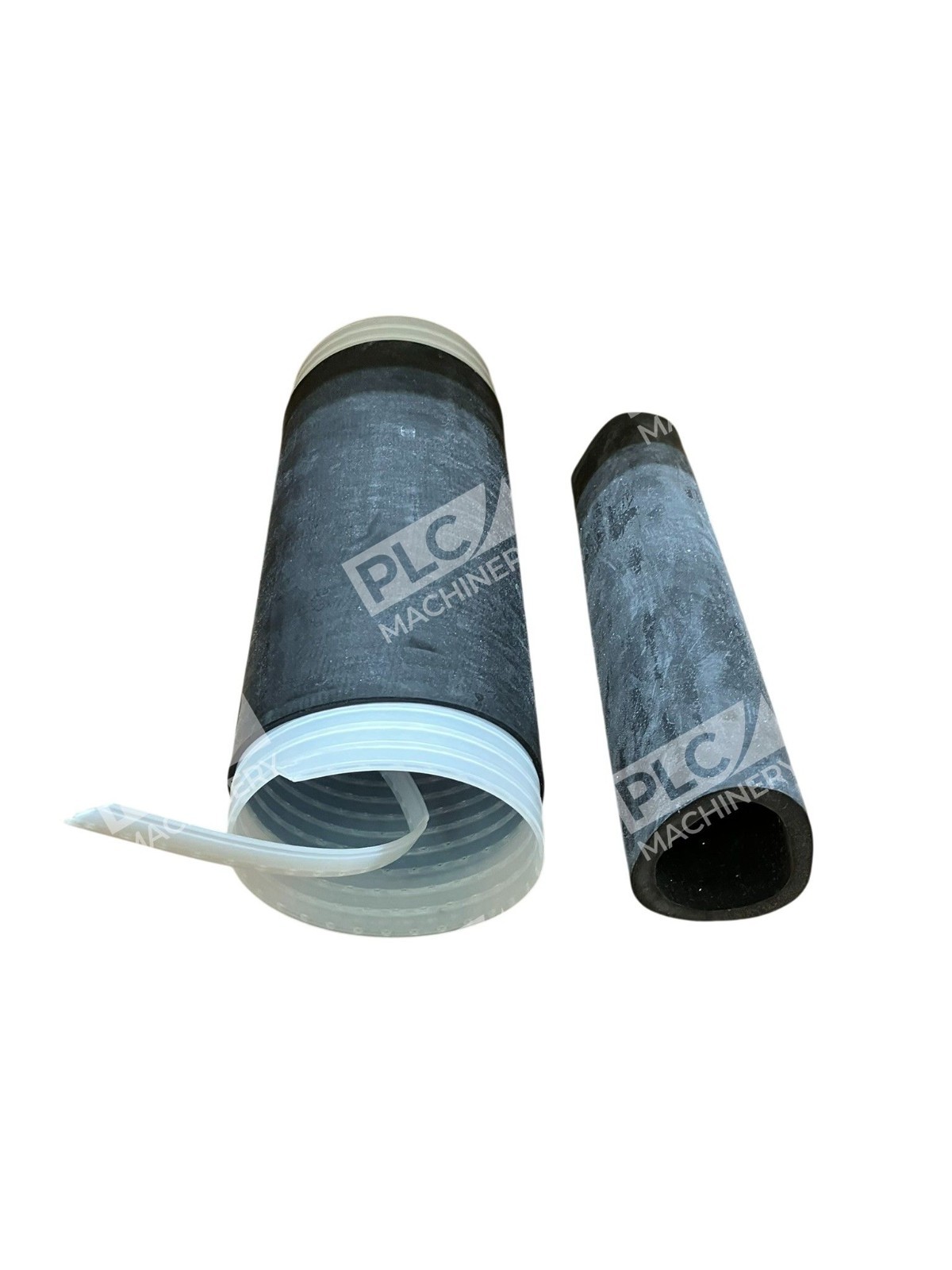

- Features a slip-on splice cover made of durable EPDM rubber with mastic strips for moisture seal applications
- Includes high dielectric constant stress control for reducing electrical stress
- Suitable for polyethylene/cross-linked cable, ethylene propylene rubber cable, and copper conductors
- Accommodates both shielded and non-shielded cable types
Technical Specifications
- Voltage Rating: 5/8 kV maximum

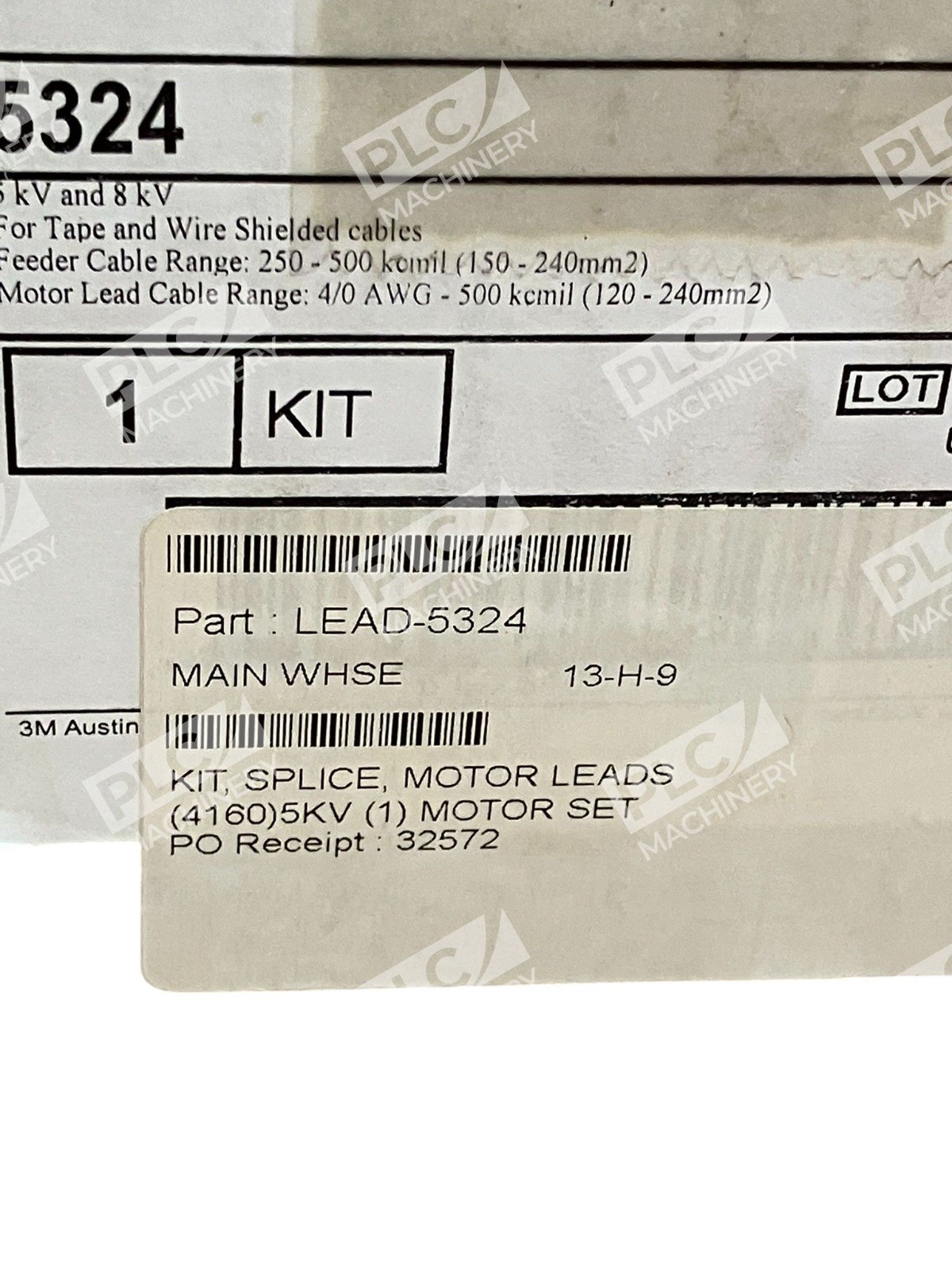

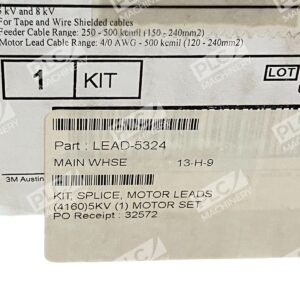

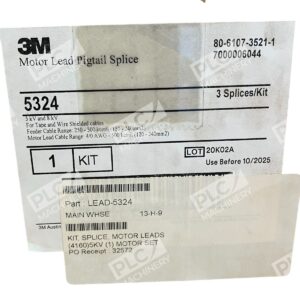

- Feeder Cable Range: 250-500 kcmil
- Motor Lead Range: 4/0 AWG to 500 kcmil
- Conductor Type: Copper
- Configuration: Pigtail (stub) splice

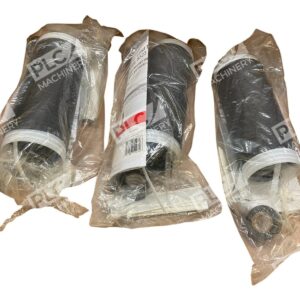

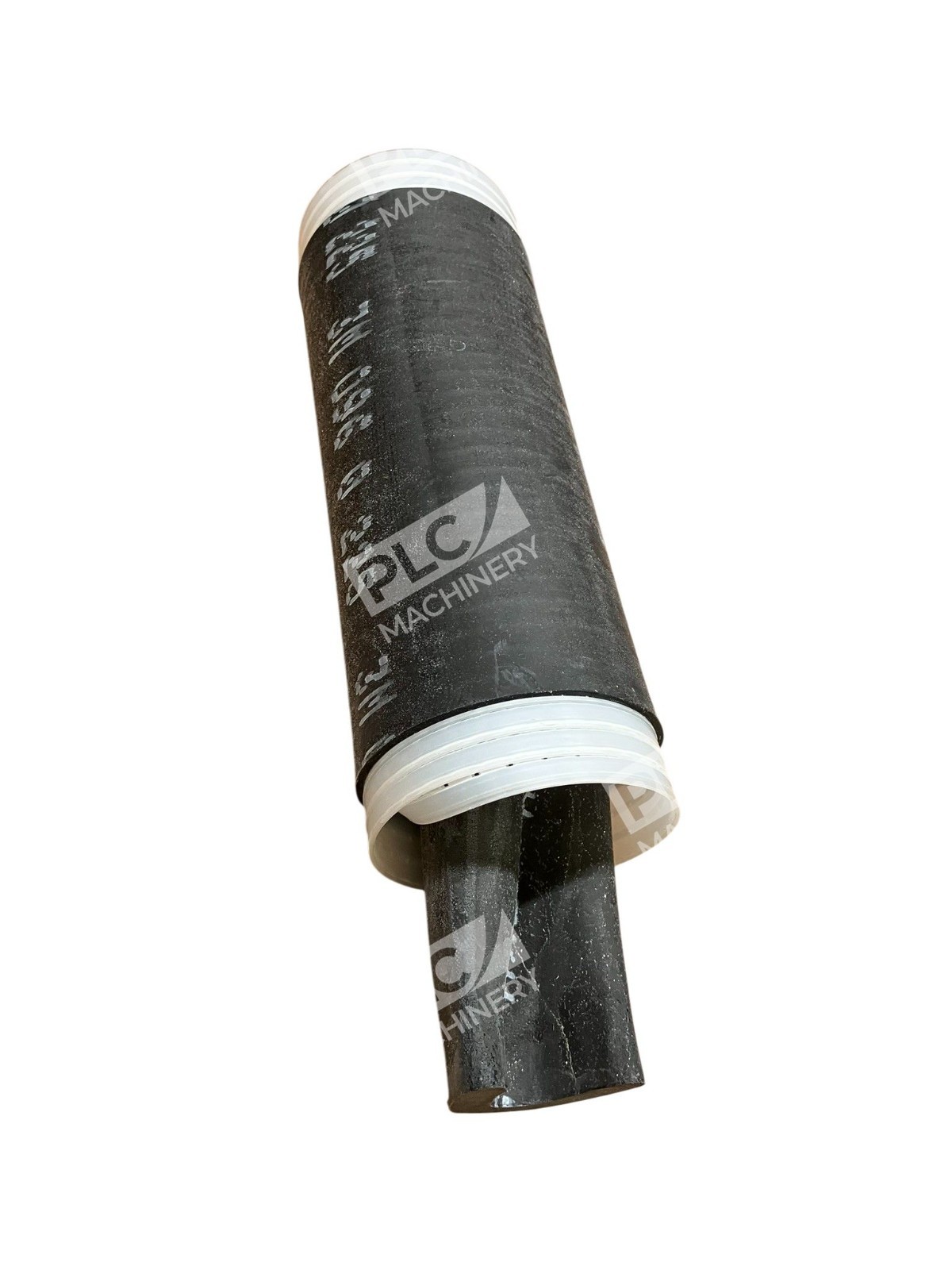

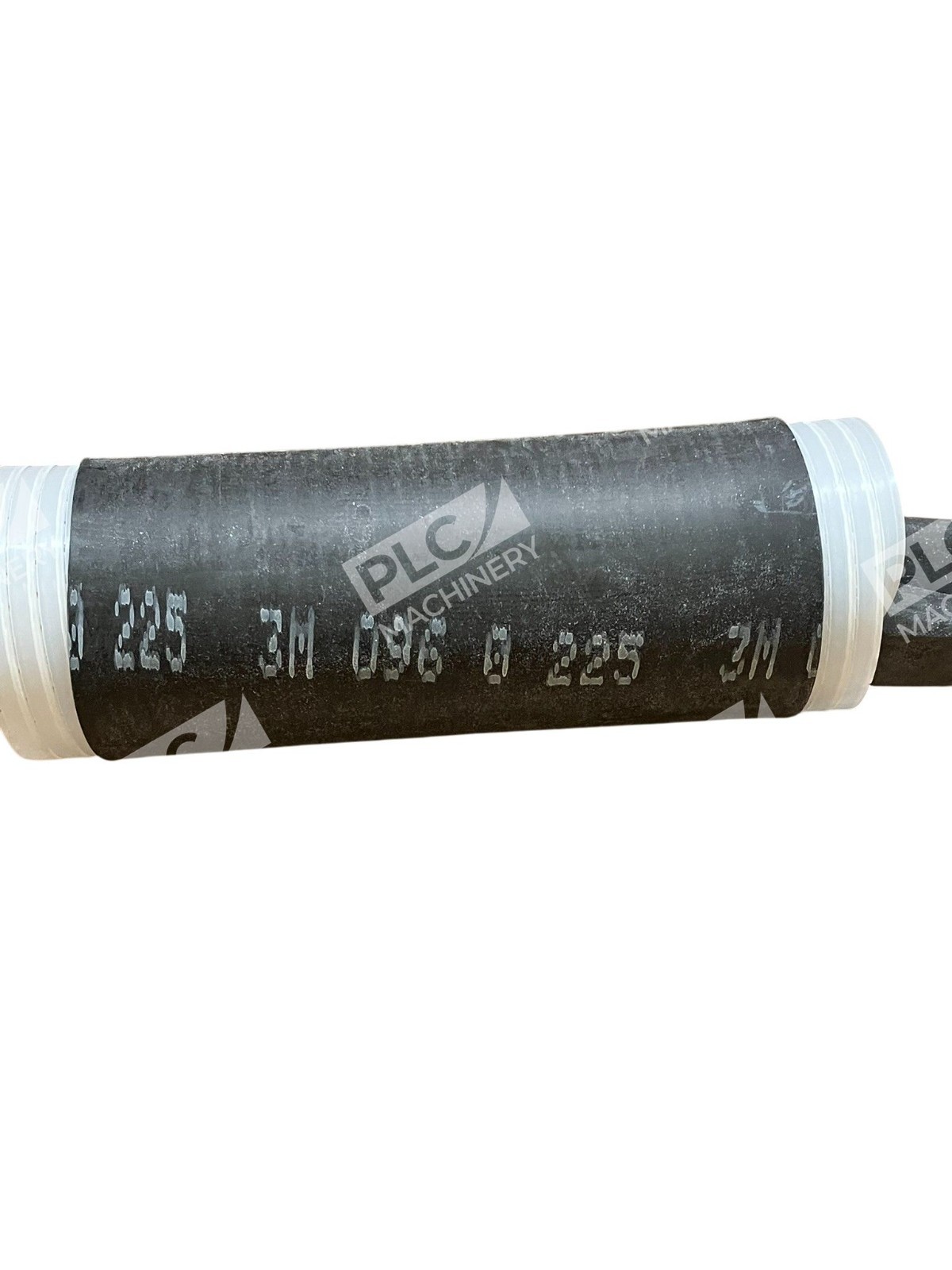

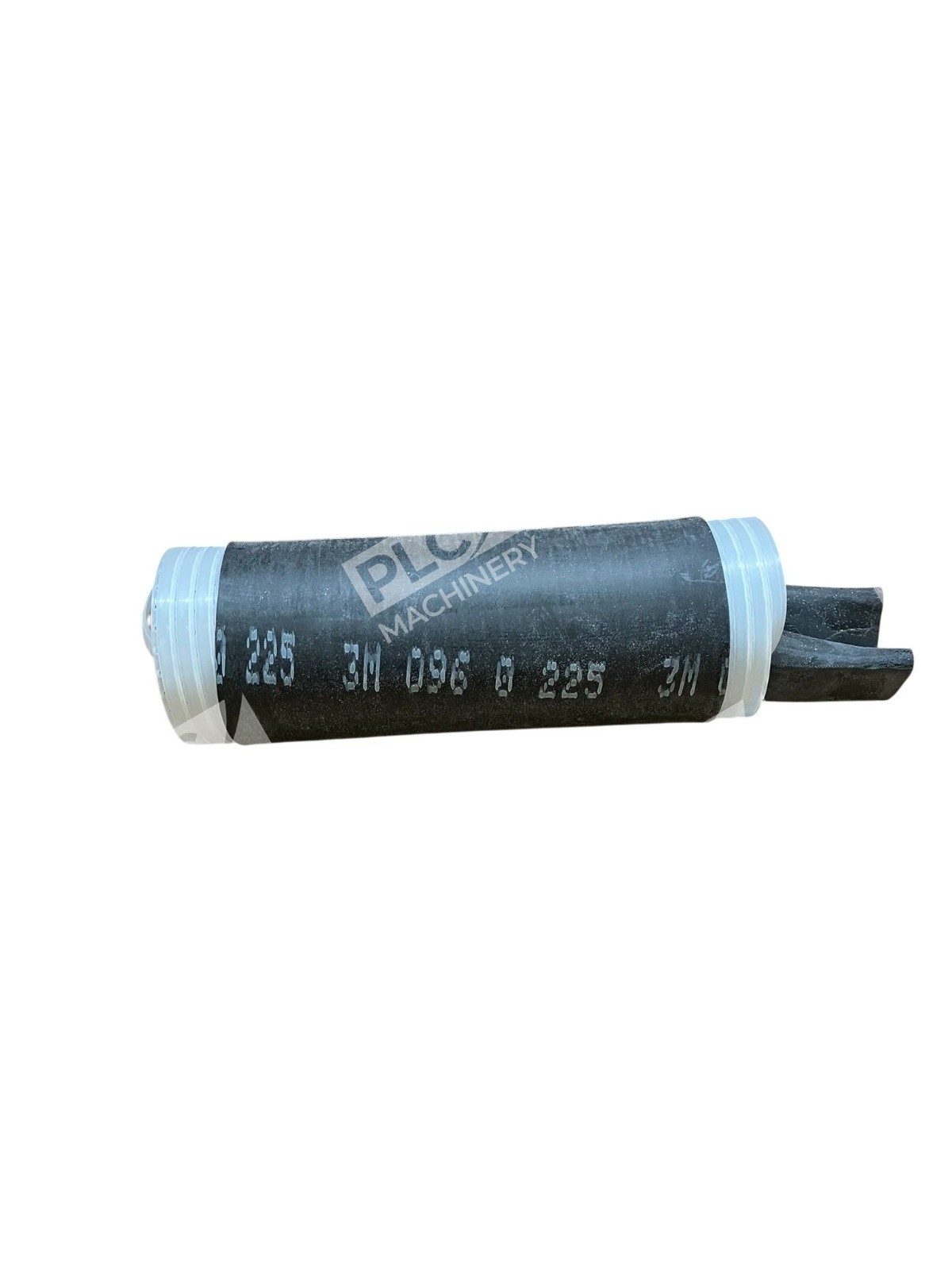

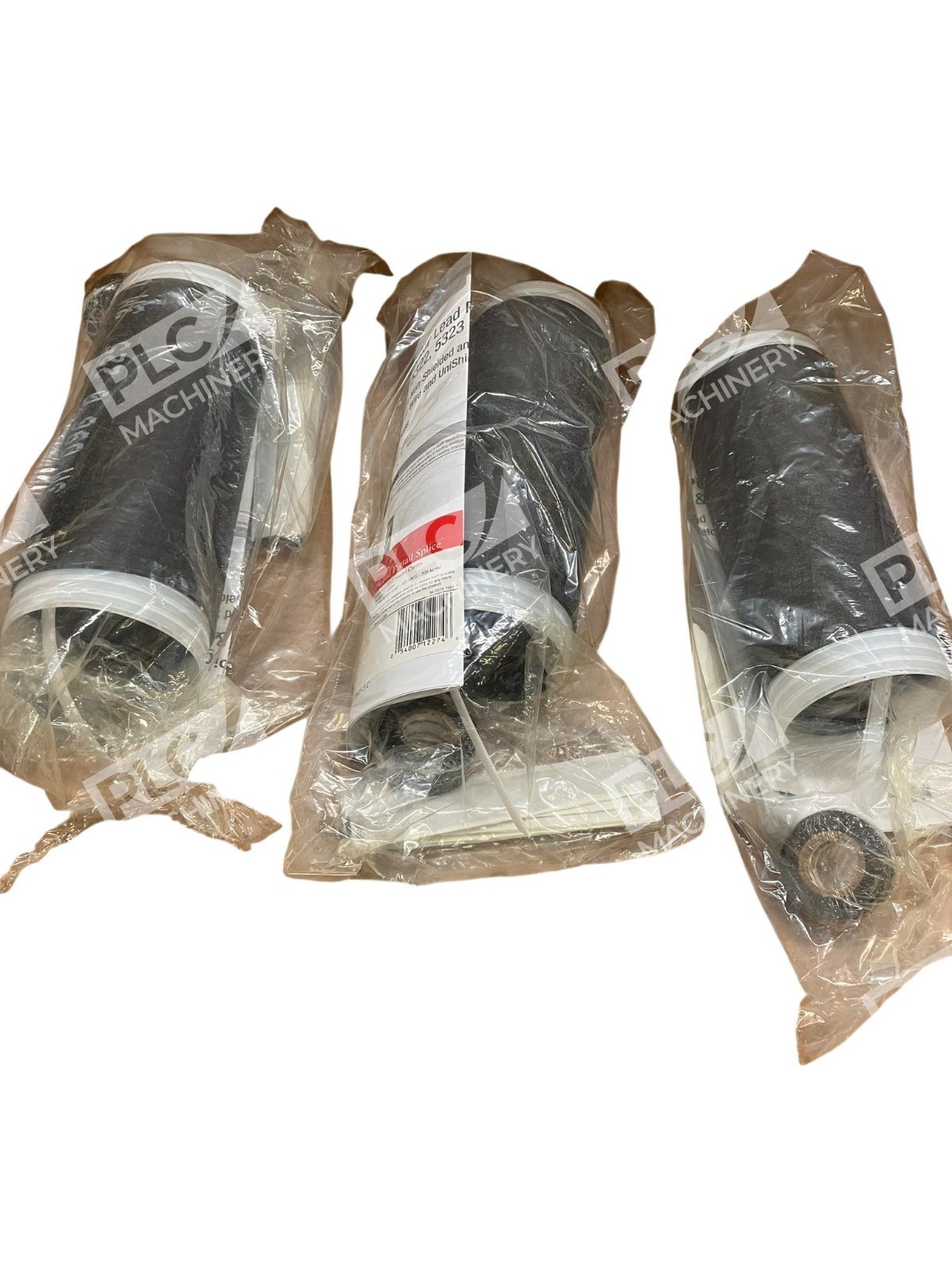

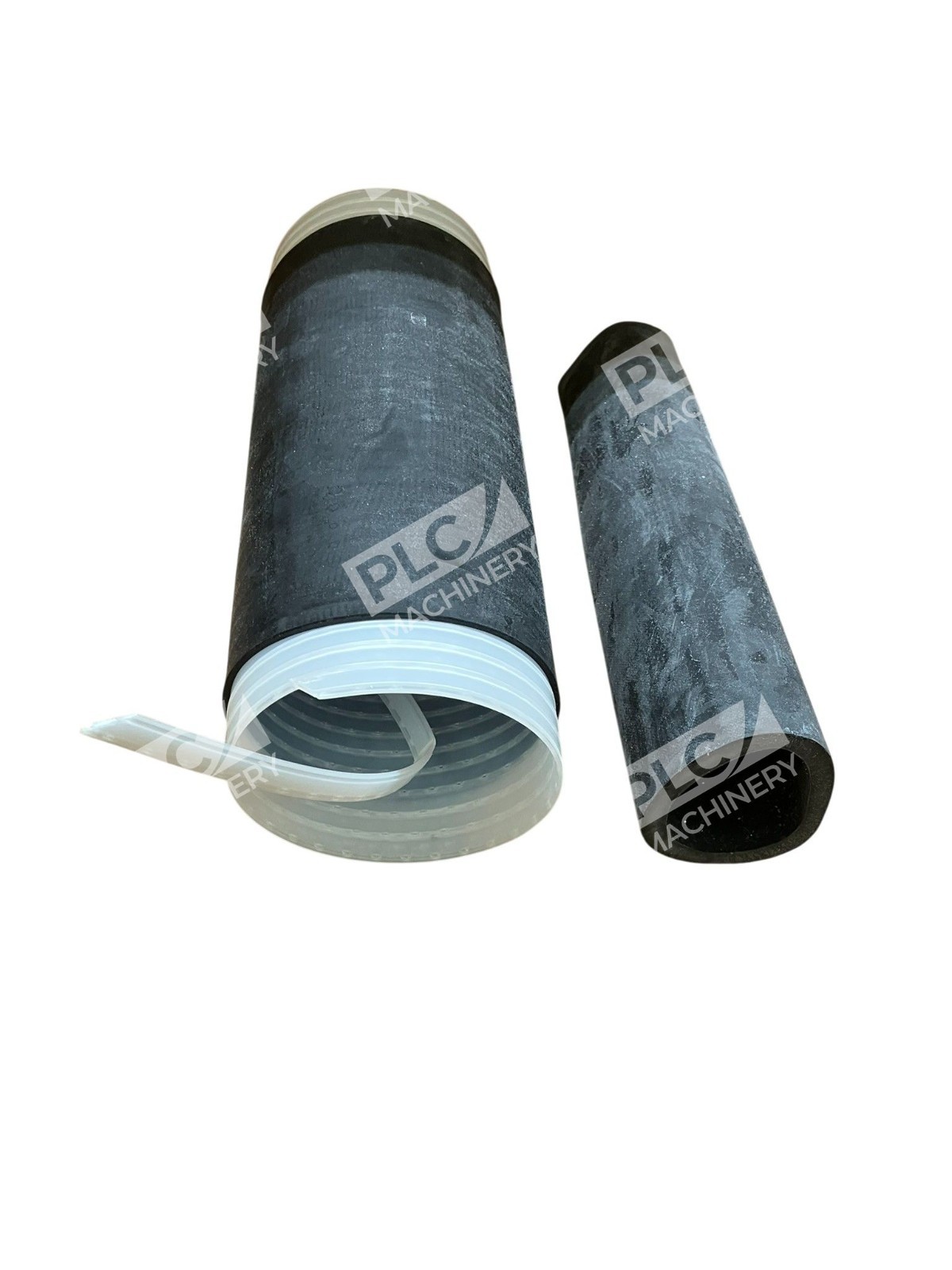

- Kit Contents: 3 lug covers, 3 cold shrink tubes, 9 mastic sealing strips, 3 stress control tape rolls, 3 solvent cleaning cloths, 3 silicone grease tubes, 3 splicing tape rolls, 3 instruction sheets
- Cable Types: Non-shielded and shielded (ribbon, wire, UniShield)
Typical Applications
- Motor lead splicing in industrial electrical systems
- Feeder-to-motor cable connections in manufacturing facilities
- Temporary or permanent motor circuit extensions
- Retrofit applications for polymeric-insulated motor cables
- Outdoor and indoor pigtail splice installations (indoor rated)
Compatibility & Replacements
Compatible With
- Copper compression lugs (terminal lugs per manufacturer specifications)
- Polymeric insulated motor cables (polyethylene, cross-linked, ethylene propylene rubber)
- UniShield cables
- Non-shielded and shielded ribbon or wire cable configurations
- 5/8 kV rated electrical systems
Replaces / Drop-In Replacement For
- 3M Motor Lead Pigtail Splice Kit 5324 (standard replacement, same part number)
- Other 5324 variants and expired stock
Works With
- 3M Scotchlok compression lugs
- Standard copper terminal lugs (crimped installation)
- Scotch stress control tape and splicing tape systems
- EPDM rubber splice covers for moisture protection
- Field assembly tools (bolt, wrench, cable stripper)
