Overview

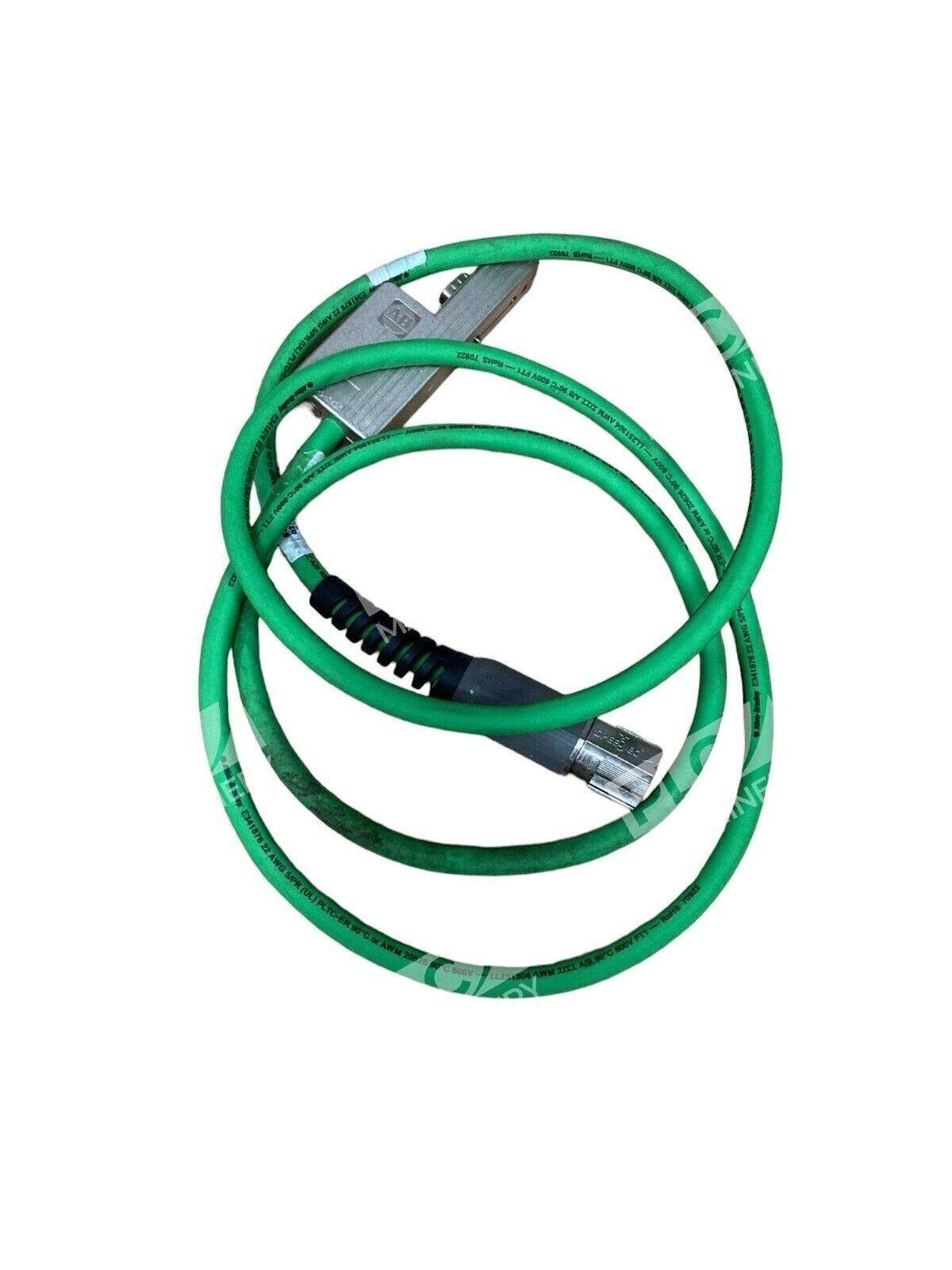

The Allen-Bradley 2090-CFBM7DF-CEAA09 is a standard (non-flex) motor feedback cable from the MP-Series lineup, engineered for precision servo drive applications. This 9-meter cable integrates feedback and power transmission through a single Digital Servo Link (DSL) connection, eliminating the need for separate power and encoder signal runs. It is a drop-in component for Kinetix 5500, 5700, and compatible servo motion control systems across Rockwell Automation architectures.
Key Features
- 9-meter (29.5 ft) length — Extended reach for distributed motor layouts and longer cable runs
- SpeedTec DIN (M7) connector — Motor-end straight connector supporting high-resolution SIN/COS encoders or resolvers
- Drive-end flying leads — Right-angle orientation for compact panel-mount integration and simplified wiring
- Double-shielded construction — Protects against electromagnetic interference in harsh industrial environments
- Single-cable DSL technology — Reduces wiring complexity and labor while maintaining signal integrity across servo feedback and power channels
- CE and KC marked — Certified for global deployment and international compliance
Technical Specifications
- Cable Type: Standard (non-flex), motor feedback only
- Length: 9 meters (29.5 feet)
- Motor-End Connector: SpeedTec DIN, straight orientation
- Drive-End Connector: Flying leads, right-angle orientation
- Encoder Type: SIN/COS high-resolution or resolver
- Shielding: Double-shielded for EMI protection
- Weight: 2.67 lbs (1.21 kg)
- Cable Function: Motor feedback + DSL communication
- Compliance: C-TICK, KC certified
- Series: 2090 Kinetix Motion
- UPC: 884951211209
Typical Applications
This feedback cable is ideal for:
- Kinetix 5500 and 5700 servo drive systems
- Multi-axis motion control requiring precise encoder feedback
- Robotic arms, gantry systems, and indexing machinery
- Packaging equipment and material handling conveyors
- CNC and precision positioning applications where 9-meter cable runs are required
Compatibility & Replacements
Compatible With
- Rockwell Automation Kinetix 5500 servo drives
- Kinetix 5700 servo motion controllers
- Allen-Bradley MPL servo motors with SpeedTec DIN connectors
- VPL servo motors (DSL-capable models)
- Studio 5000 Logix Designer software environments
- EtherNet/IP and PROFINET industrial networks
Replaces / Drop-In Replacement For
The 2090-CFBM7DF-CEAA09 is a direct replacement for existing Kinetix 2090-series feedback cables in 9-meter configurations. Alternative lengths in the 2090-CFBM7 series are available (3m, 5m, 10m, and 15m variants) for different application distances. Always verify catalog number and drive compatibility with your system integrator or Rockwell Automation technical support before replacement to ensure correct motor connector type (SpeedTec DIN M7 straight) and drive-end lead configuration.
Works With
- Studio 5000 Logix Designer motion modules and programming
- Kinetix 5500/5700 servo drive firmware (all recent versions)
- EtherNet/IP communication protocol
- HIPERFACE DSL (Digital Servo Link) encoder feedback standard
- Allen-Bradley Integrated Architecture control platforms
