Overview

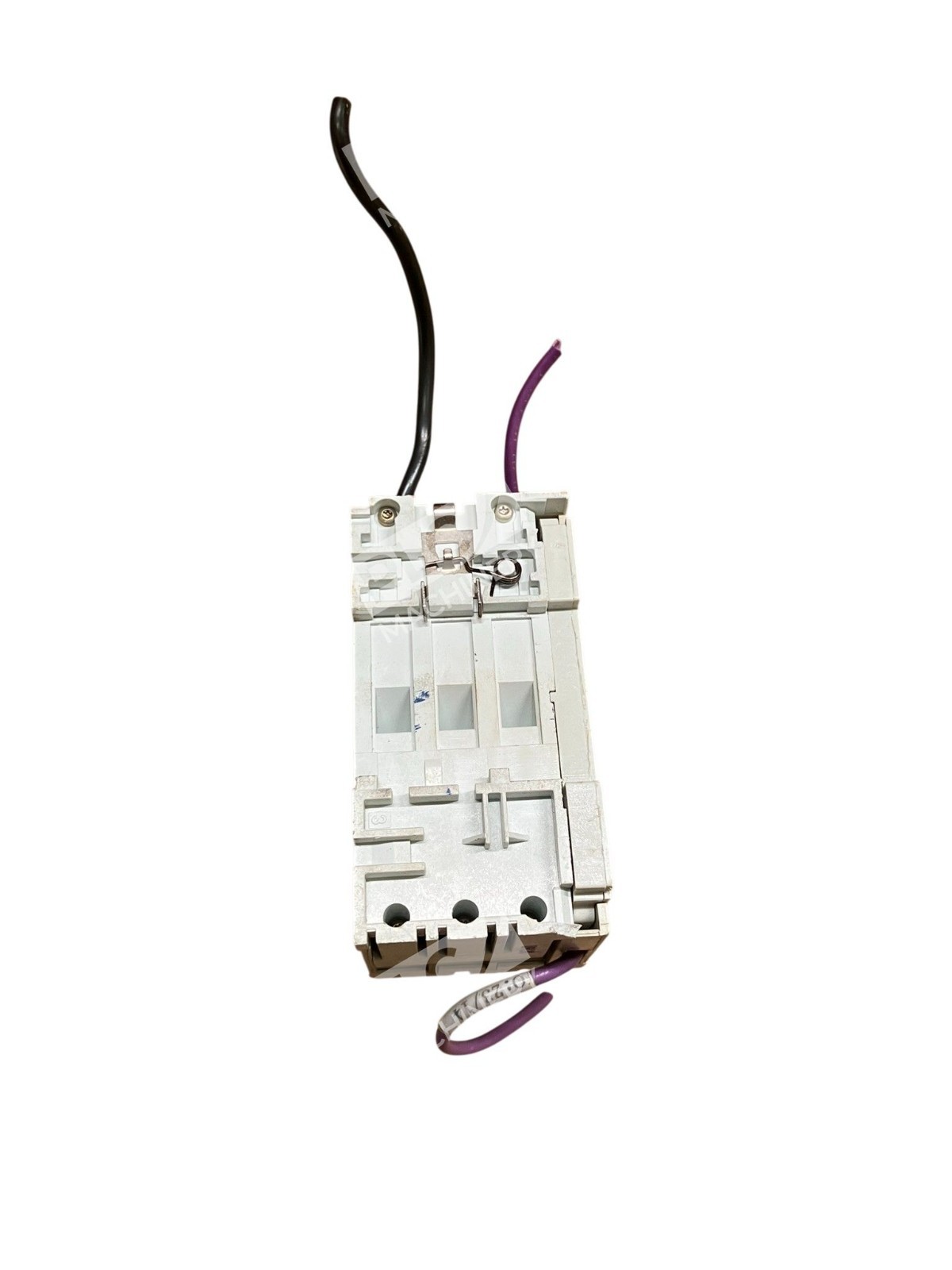

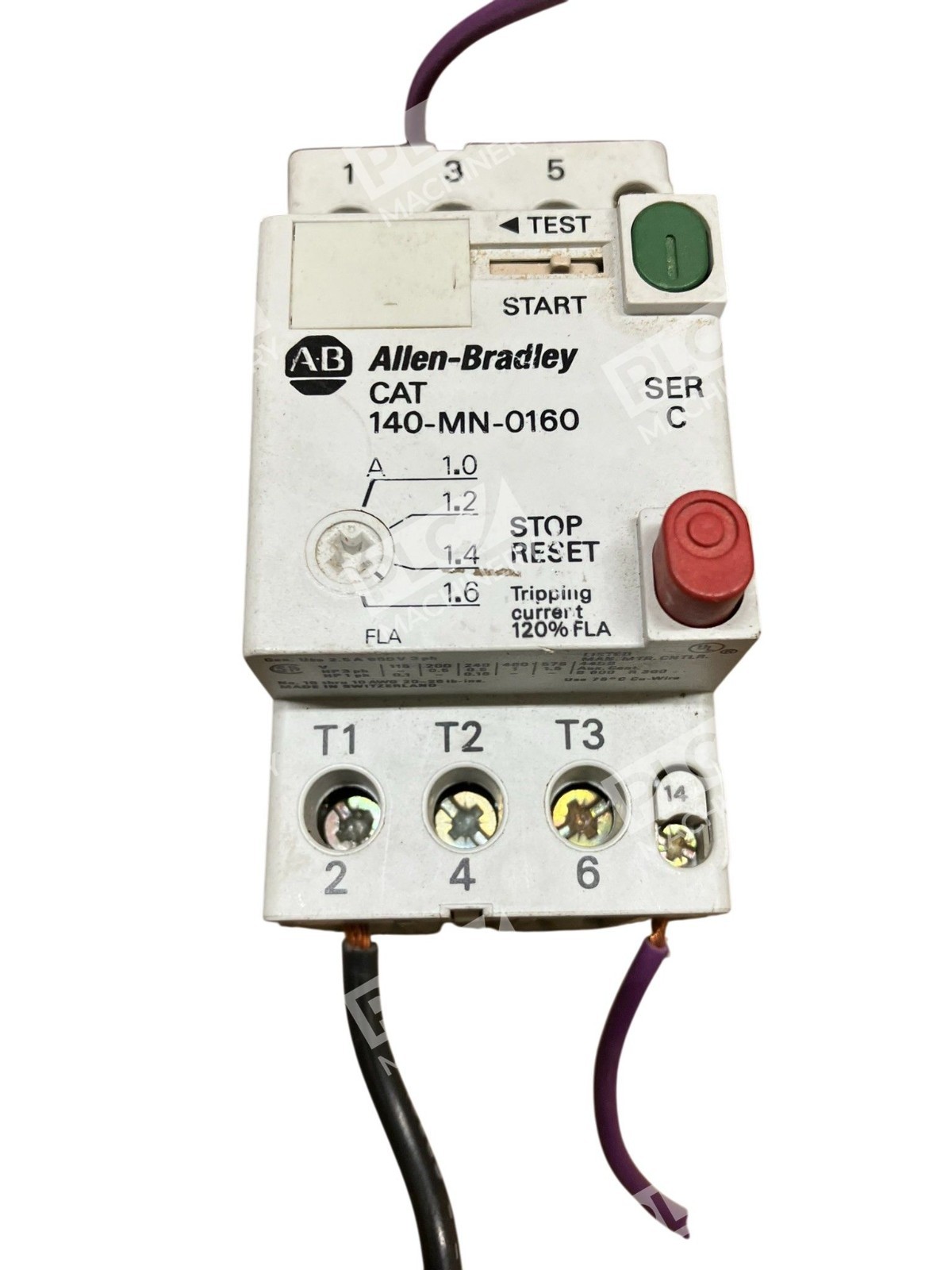

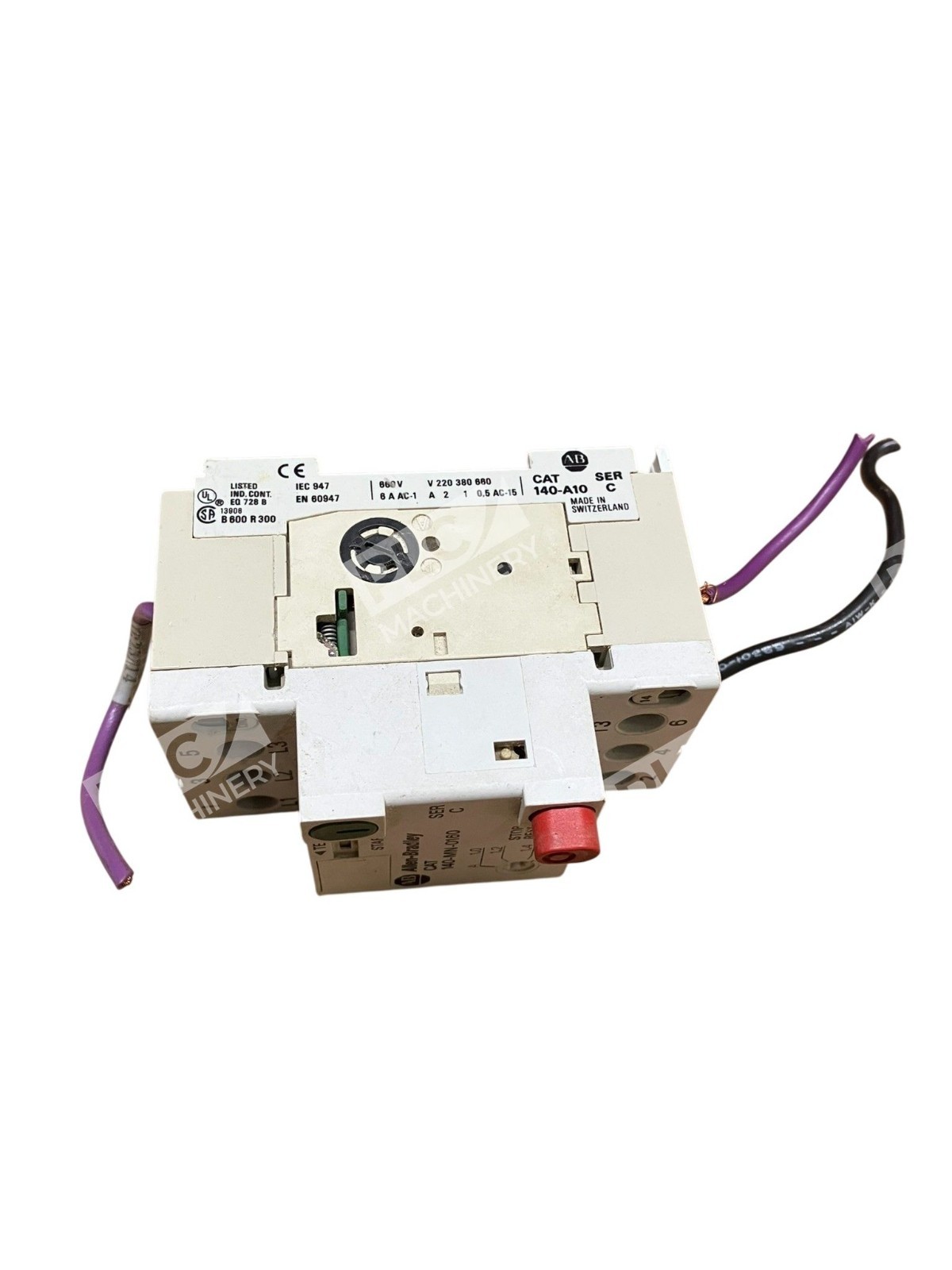

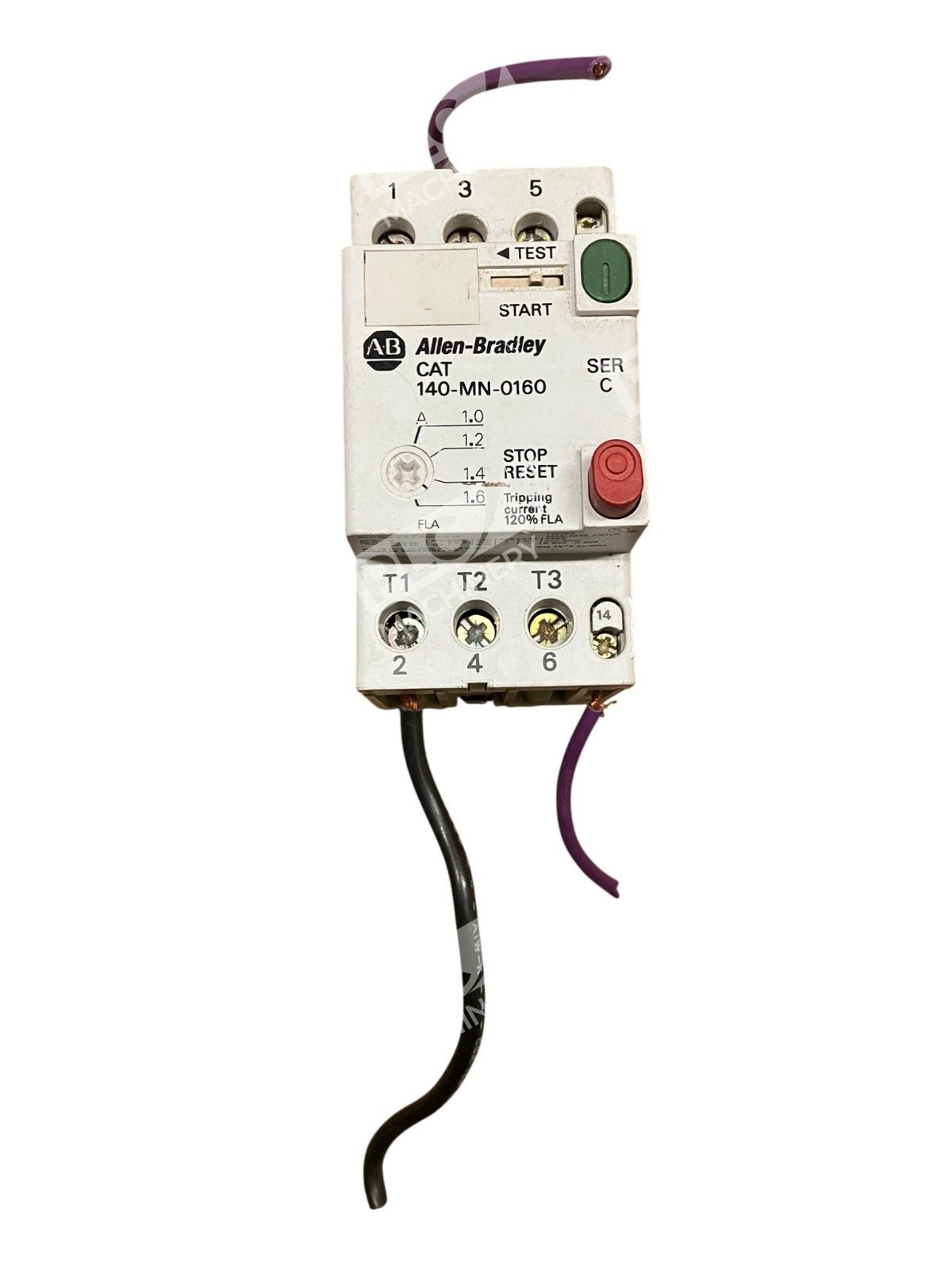

The Allen-Bradley 140-MN-0160 is a robust manual motor starter protector designed for reliable thermal and magnetic protection of general-purpose motors in industrial automation systems. Operating at 1.0–1.6 amps with trip current set at 120% FLA (Full Load Amps), this three-pole device provides instantaneous magnetic trip protection at 18 amps, ensuring rapid disconnection under fault conditions.
Key Features
- Thermal and Magnetic Protection: Combines thermal overload with instantaneous magnetic tripping to protect motors from overload and short-circuit conditions.
- 3-Pole Configuration: Suitable for three-phase motor control applications.
- Trip Current 120% FLA: Standardized trip setting minimizes nuisance tripping while maintaining motor protection.
- Manual Reset: Operator-controlled reset after overload event for quick recovery and diagnostics.
- DIN Rail Mounting: Space-efficient installation in control panels and motor control centers.
- Screw Terminal Connections: Standard 6 screw terminals (16–10 AWG) for reliable field wiring.
Technical Specifications
- Current Rating: 1.0–1.6 amps
- Poles: 3-pole
- Trip Current: 120% FLA
- Instantaneous Trip (Magnetic): 18 amps
- Frequency: 50/60 Hz
- Voltage Ratings: Rated for 115V, 200V, 240V, 460V, 575V operation
- HP Ratings (3-Phase): 0.5 HP @ 200–240V; 1.0 HP @ 575V; 1.5 HP @ 575V
- Mounting: DIN rail
- Terminal Style: Screw terminals, 6-terminal configuration
- Wire Size: 16–10 AWG
- Weight: 0.60 lbs
- Series: Bulletin 140
- Auxiliary Contact: Without (W/O Aux)
Typical Applications
The 140-MN-0160 is widely deployed in:
- Manufacturing equipment and production machinery
- HVAC and refrigeration systems
- Pump and blower motor control
- Conveyor systems
- General industrial motor protection and control panels
- Legacy machine retrofit and upgrade projects
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 140 manual motor starters
- Standard three-phase AC motor circuits
- Industrial motor control enclosures and panels
- 50/60 Hz industrial power systems
Replaces / Drop-In Replacement For
- Allen-Bradley 140-MN-0160 Series A, B, C, D variants
- Direct replacement for legacy Bulletin 140 units of equivalent rating
Works With
- Manual control stations and push-button interfaces
- Hardwired industrial control circuits
- DIN-rail mounted control architectures
