Overview

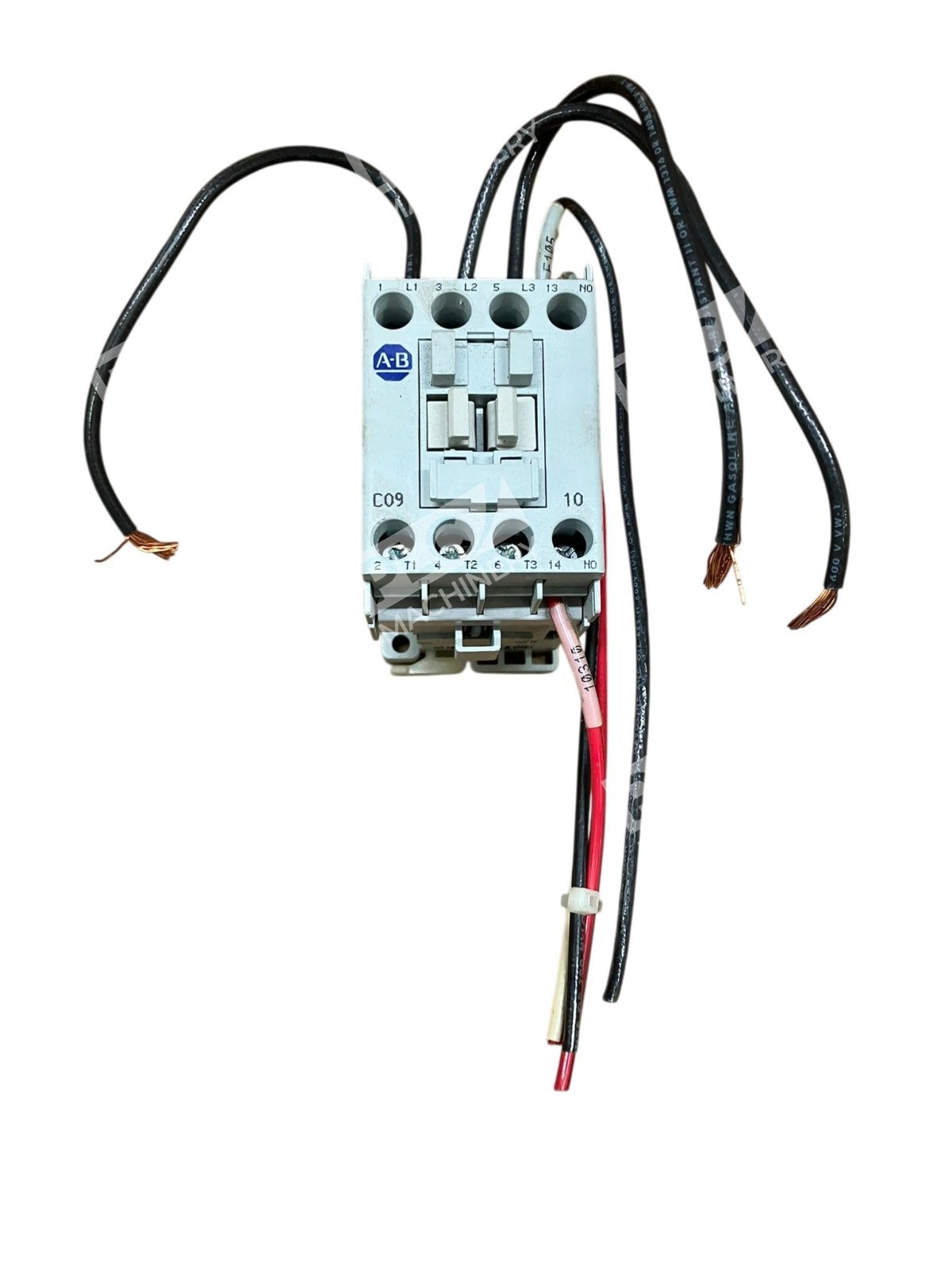

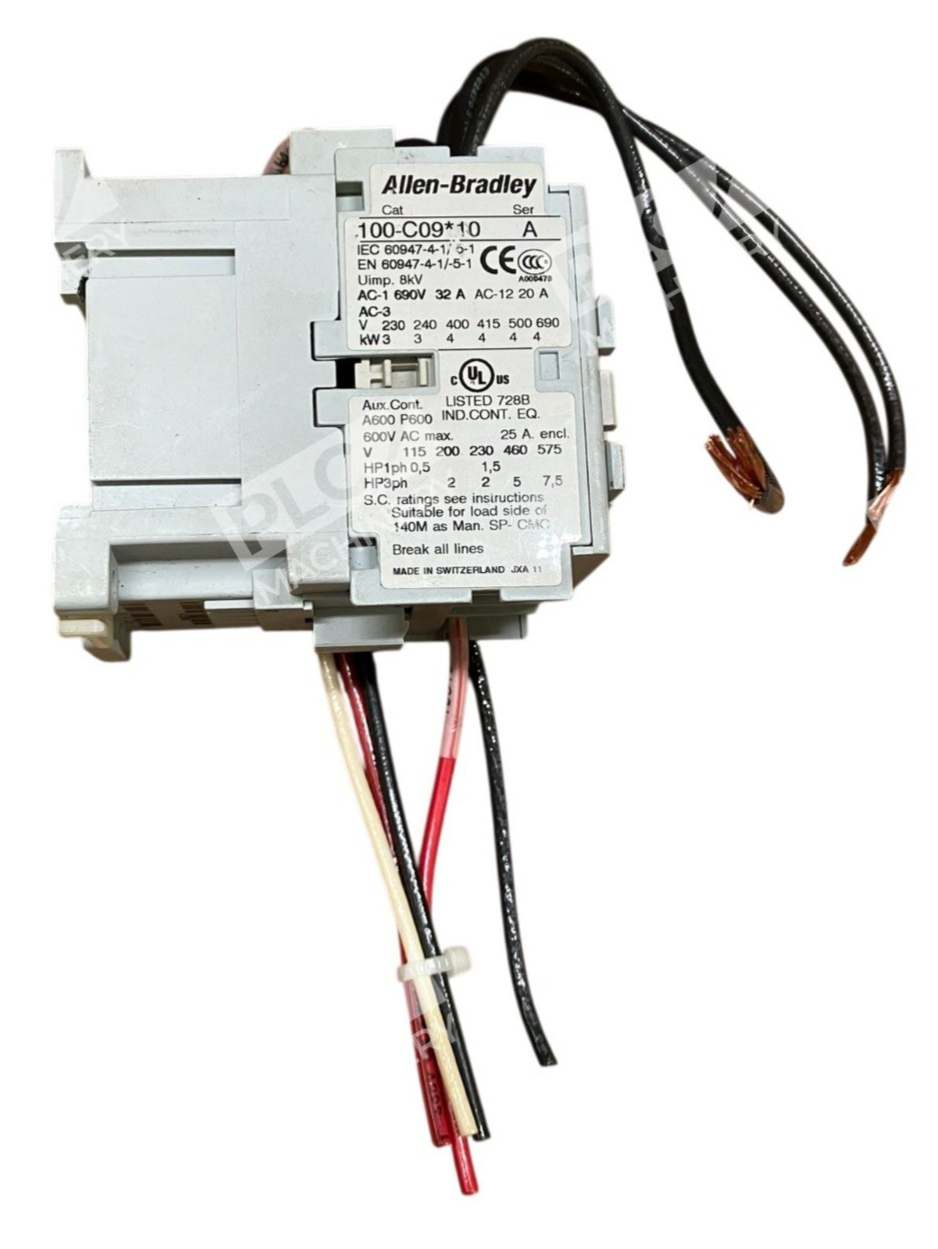

The Allen-Bradley 100-C09*10 is a 3-pole IEC contactor from Rockwell Automation’s Bulletin 100-C series, the smallest frame in the lineup. It is a 3-phase IEC rated contactor used for the control of electric motors, rated 2 HP at 230V and 5 HP at 460V. The “-10” suffix indicates 1 Normally Open (NO) auxiliary contact is included. This compact, space-saving contactor is designed for motor control, HVAC systems, and remote control circuits in industrial automation panels.
Key Features
- AC3 Amp Rating: 9A / AC1 Amp Rating: 32A for flexible load switching
- UL 508 Listed, CSA Certified, IEC/EN 60947-4-1 and 60947-5-1 compliant, RoHS compliant, CE marked
- Direct replacement for older Allen-Bradley 100-A series contactors; offers improved coil efficiency, lower power consumption, and expanded accessory compatibility
- Base-mounted 1 NO auxiliary contact for logic and control circuits
- Left-side auxiliary mounting recommended for double-numbering frame designs
- Screw terminals for DIN rail or panel mount installation

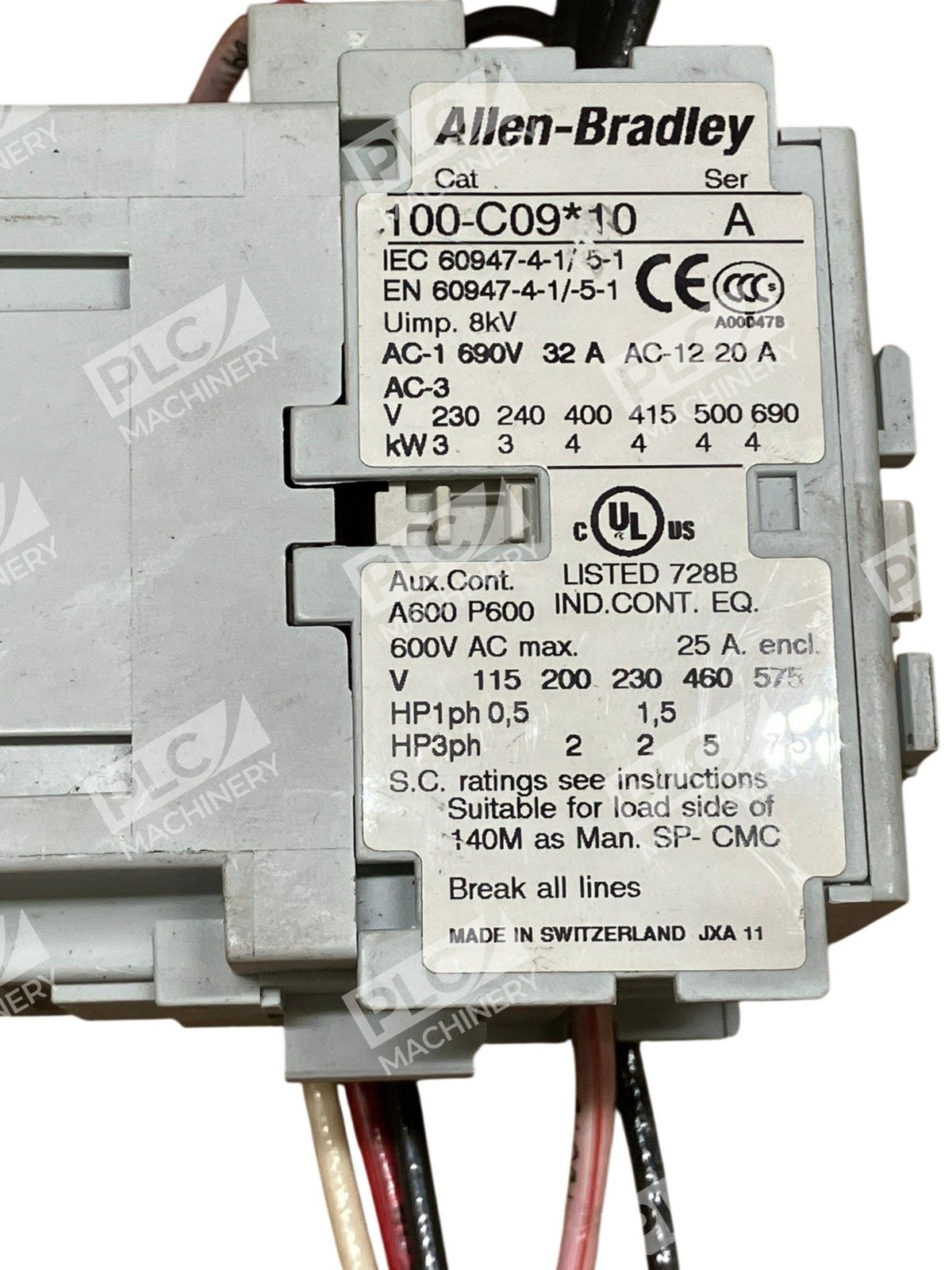

Technical Specifications
600 Volts AC voltage rating and compact form factor enable installation in tight control panel spaces.
- AC-3 Rated Current: 9 A
- AC-1 Rated Current: 32 A
- Three Phase HP Rating at 230V: 2 HP
- Three Phase HP Rating at 460V: 5 HP
- Poles: 3
- Auxiliary Contacts: 1 NO
- Coil Voltages Available: 24V, 120V, 240V AC (coil voltage selected by catalog suffix)
- Termination: Screw Terminals
- Mounting style: 35mm DIN Rail or base screw mounting
- Frequency rating: 50 to 60 Hertz
- Weight: Approximately 4 pounds
Typical Applications
The 100-C09*10 is widely deployed in:
- Motor control centers (MCCs) and soft starters
- HVAC and cooling system controls
- Pump and compressor motor switching
- Remote control circuits with auxiliary signaling
- Industrial automation panels requiring compact contactors
- Legacy equipment upgrades from 100-A series
Compatibility & Replacements
Compatible With
- Allen-Bradley 193-series electronic overload relay (193-E and 193-EE models) and 592-series bimetallic overload relay for direct-mount motor starter assemblies
- DIN rail systems (35mm standard rail)
- Panel mount via screw terminal base
- Rockwell Automation 700-series relay logic and timers
- IEC-standard automation control systems
Replaces / Drop-In Replacement For
- Older Allen-Bradley 100-A series contactors
- 100-A09*10 and equivalent frame-size legacy models
- Prior generation 100-B series small contactors
Works With
- IEC/EN 60947-4-1 / 60947-5-1 compliant systems
- Integrated motor starters (IMS) assemblies
- Hardwired relay logic and PLC discrete I/O
- EtherNet/IP networks via external interface modules
- Devnet, PROFIBUS, PROFINET via gateway modules
