Overview

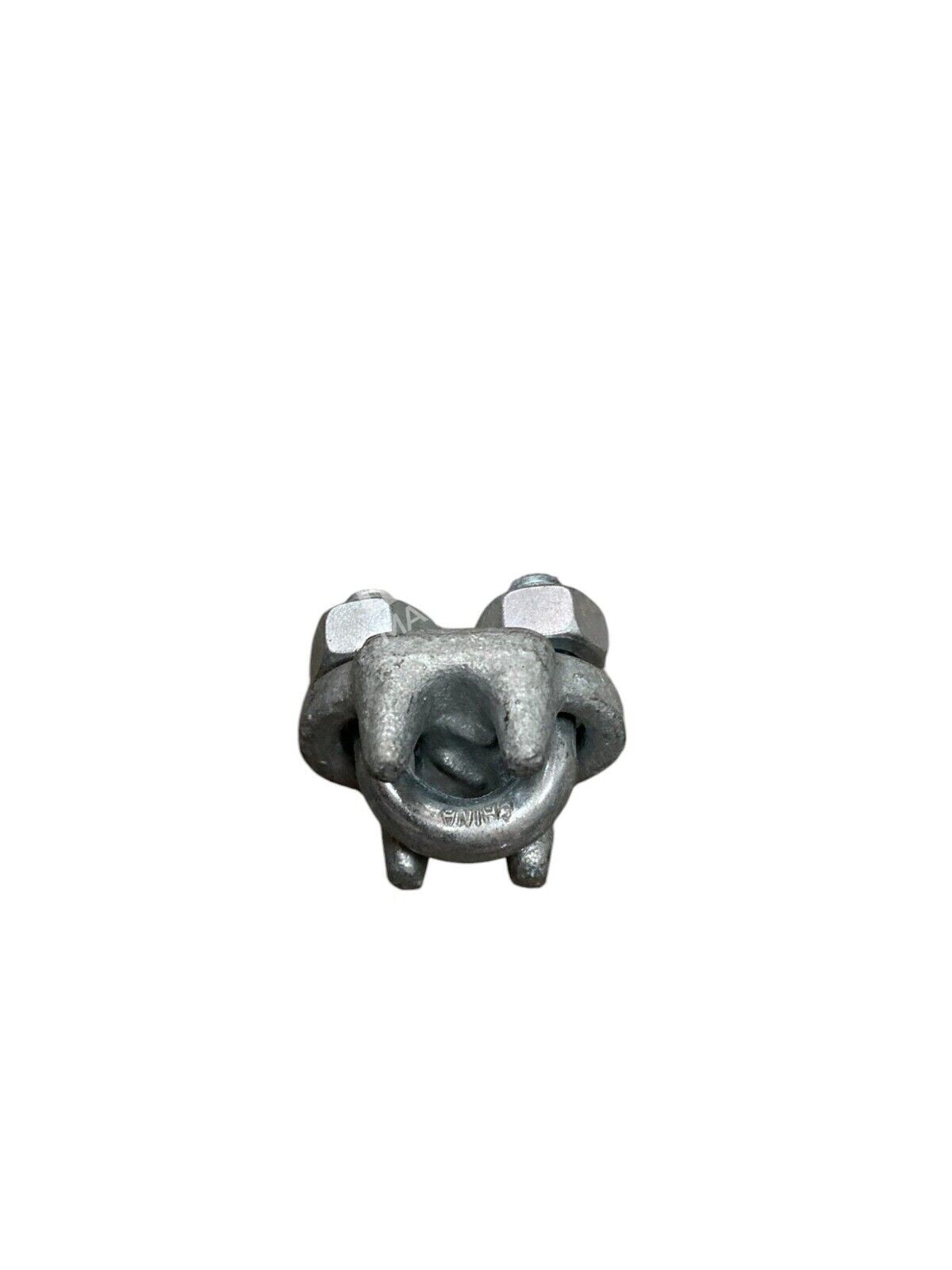

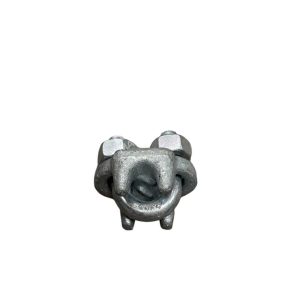

This is a lot of six 1/4″ drop-forged wire rope clips designed for securing and terminating wire rope in rigging, material handling, and industrial cable applications. Wire rope clips are used to terminate the ends of wire rope or to connect 2 wire rope together. Each clip features a U-bolt saddle assembly secured by two nuts, providing a reliable mechanical hold without splice knots.
Key Features
- Drop forged dimensions meet Federal Specification FF-C-450D, Type 1
- U-bolt and saddle secured in place by two nuts
- Minimum of 2 clips required per termination with 4-3/4″ minimum turnback
- Commodity-grade generic construction for cost-effective cable assembly
- Suitable for non-overhead applications in utility, rigging, fencing, and guying service
Technical Specifications
- Wire Rope Size: 1/4″
- Quantity: 6 clips per lot
- Material: Drop-forged steel
- Assembly Type: U-bolt with saddle and nuts
- Clips Per Termination: 2 minimum
- Turnback Required: 4-3/4″ minimum
- Federal Spec Compliance: FF-C-450 Type 1, Class 1
Typical Applications
- Wire rope terminations in guy lines and support cables
- Cable assembly for utility and construction rigging
- Fencing and fence line turnback
- Material handling cable securement
- General non-overhead cable connection
Compatibility & Replacements
Compatible With
- 1/4″ diameter wire rope (6×19, 6×37, and similar constructions)
- Standard wire rope thimbles (eye-loop applications)
- Generic rigging hardware and cable assemblies
- ANSI/ASME rigging standards for non-lifting service
Replaces / Drop-In Replacement For
- Generic 1/4″ drop-forged wire rope clips from other suppliers
- Standard commodity wire rope clip assemblies meeting FF-C-450
Works With
- 1/4″ diameter wire rope assemblies
- Wire rope thimbles and eye loops
- Standard U-bolt nut hardware (included)
- Non-overhead rigging and utility applications
