Overview

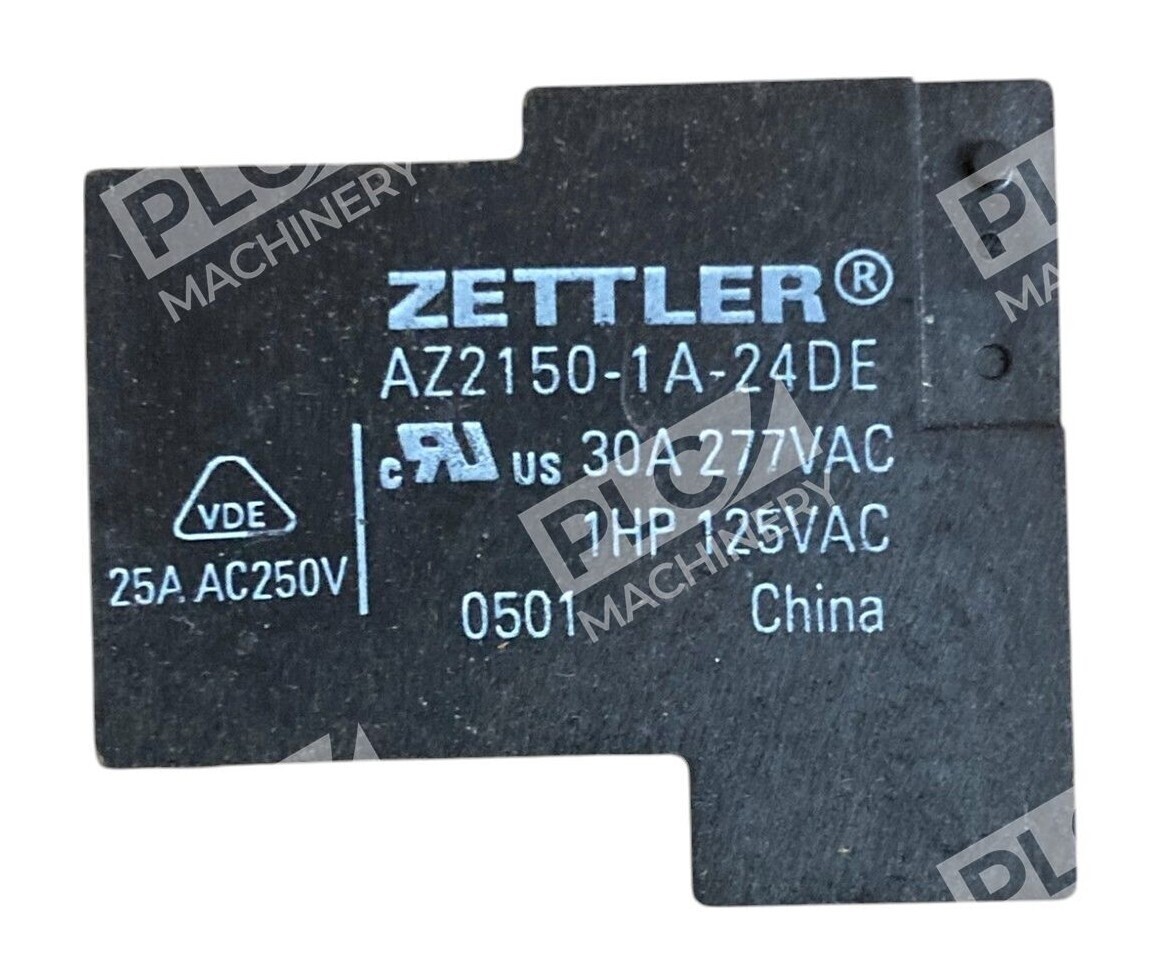

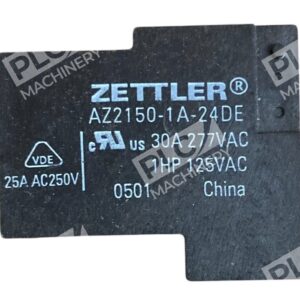

The Zettler AZ2150-1A-24DE is an electromechanical power relay rated at 40A continuous current with a 24VDC control voltage. This miniature relay features SPST-NO (Single Pole, Single Throw – Normally Open) contact form and is designed for robust industrial switching applications. Meeting VDE, UL, and CUR standards, the AZ2150-1A-24DE provides reliable circuit control for panel-mount and PCB-mount designs in machinery control, HVAC, motor control, and power distribution systems.
Key Features
- 40A current rating — handles substantial load switching without derating
- SPST-NO contact form — single switching pole for on/off control
- 24VDC coil voltage — standard control supply voltage with 660Ω coil resistance
- 300VAC maximum voltage — suitable for 208V, 240V, and 277VAC circuits
- Through-hole PCB mount — quick integration into panel and control board layouts
- International certifications — VDE, UL 60730-1A, and CUR approvals
Technical Specifications
Detailed operational and physical parameters:
- Contact Current Rating: 40A continuous
- Contact Voltage (DC): 30VDC maximum
- Contact Voltage (AC): 300VAC maximum
- Coil Voltage: 24VDC
- Coil Resistance: 660Ω
- Coil Power: 872 mW
- Contact Configuration: SPST-NO (Form A)
- Mounting Type: Through-hole, PCB mount
- Pin Count: 4 pins (coil) + additional contact pins
- Operating Temperature Range: −55°C to +100°C
- RoHS Compliance: Yes
- Standards: VDE, UL 60730-1A/CSA 60730-1A, CUR
Typical Applications
The AZ2150-1A-24DE is well-suited for:
- Industrial motor and solenoid control circuits
- HVAC and refrigeration compressor switching
- Lighting and load switching in panel installations
- Power distribution and circuit control boards
- Machinery and production equipment automation
- General-purpose switching where 40A DC or AC loads require reliable contact control
Compatibility & Replacements
Compatible With
- Standard 24VDC industrial control power supplies
- PLC and logic controller relay output modules
- Industrial control panels and enclosures
- PCB-based automation and monitoring systems
- Standard DIN rail and panel-mount relay sockets
Replaces / Drop-In Replacement For
The AZ2150-1A-24DE is the primary manufacturer part number. Verify compatibility with your system integrator before ordering if replacing an equivalent model from another supplier. Related American Zettler series parts (e.g., AZ2150-1C-24DE for SPDT) may share similar mounting and coil specifications but differ in contact configuration.
Works With
- 24VDC logic and control circuits
- Electromechanical relay sockets and bases
- Industrial automation platforms requiring hardwired relay logic
- Schneider Electric, Siemens, ABB, and other major panel builder platforms
- Custom and OEM control systems with 24VDC signal architecture
