Overview

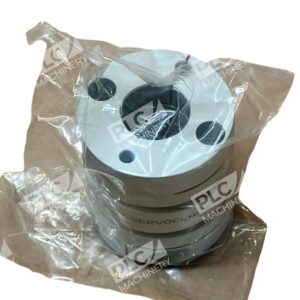

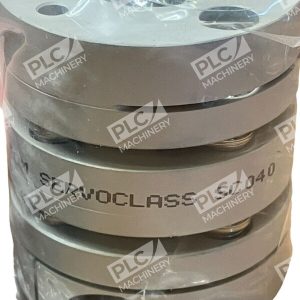

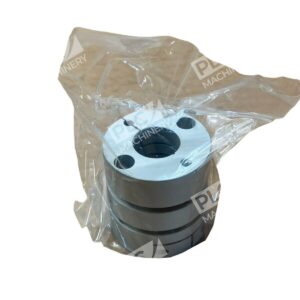

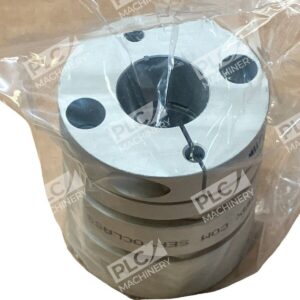

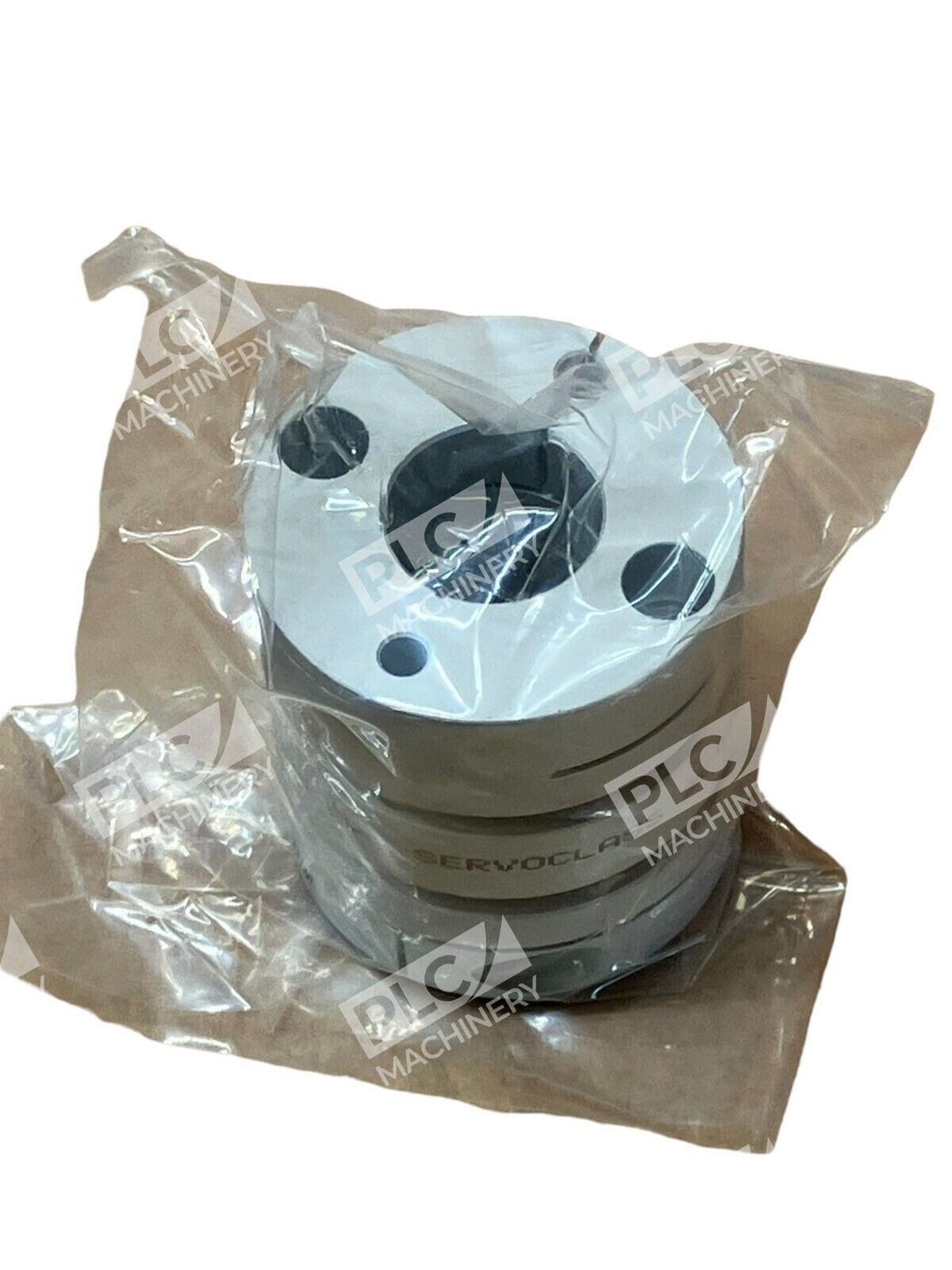

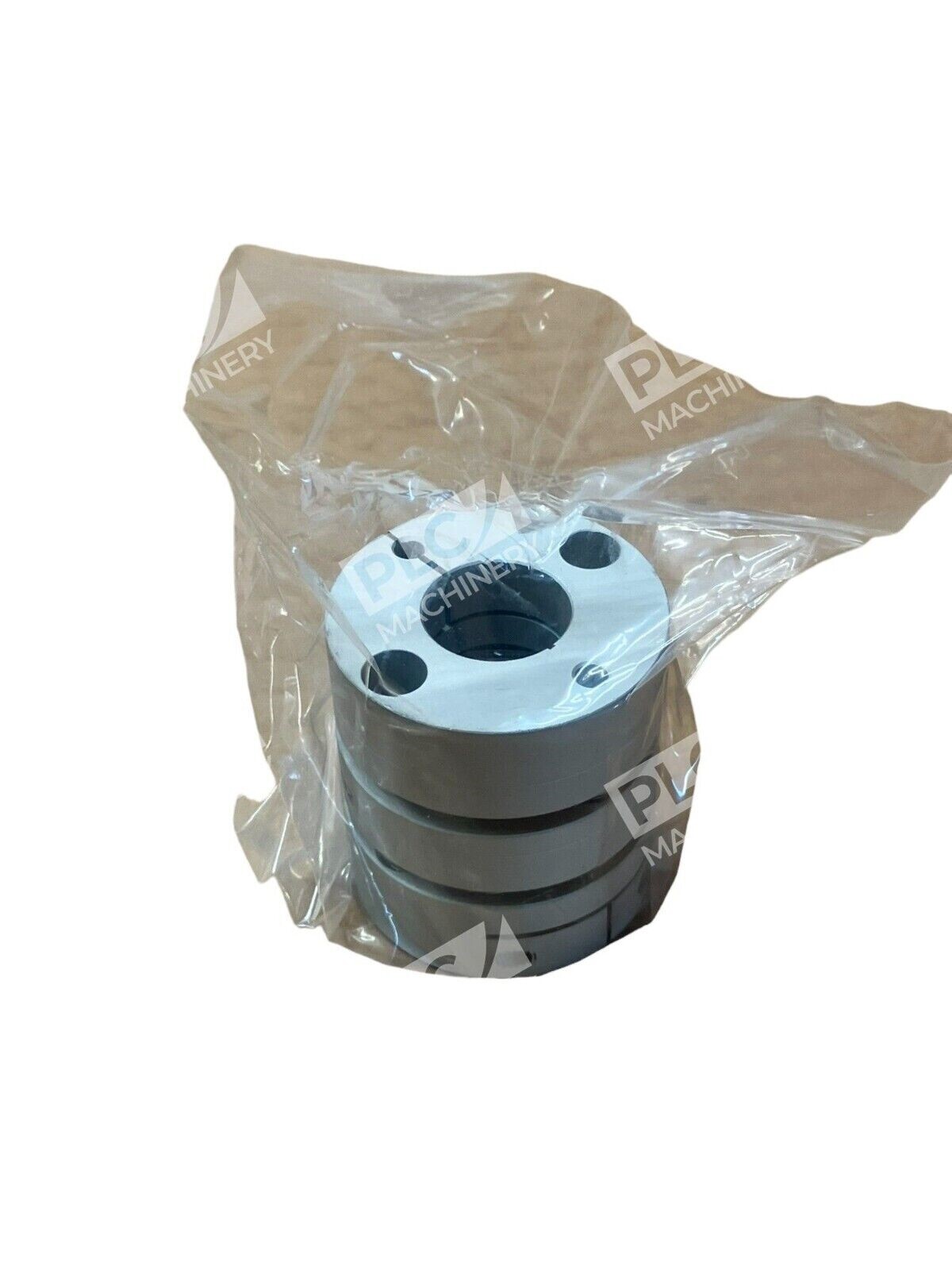

The Zero-Max SC040R-041-019 servo coupling is part of the ServoClass double flex coupling line, designed to deliver smooth torque transmission in precision industrial automation systems. The 041-019 bore configuration accommodates mixed shaft diameters, making it suitable for servo motor retrofit and OEM applications. Built with dual flex elements, this coupling minimizes backlash while absorbing minor misalignment common in servo-driven systems.
Key Features

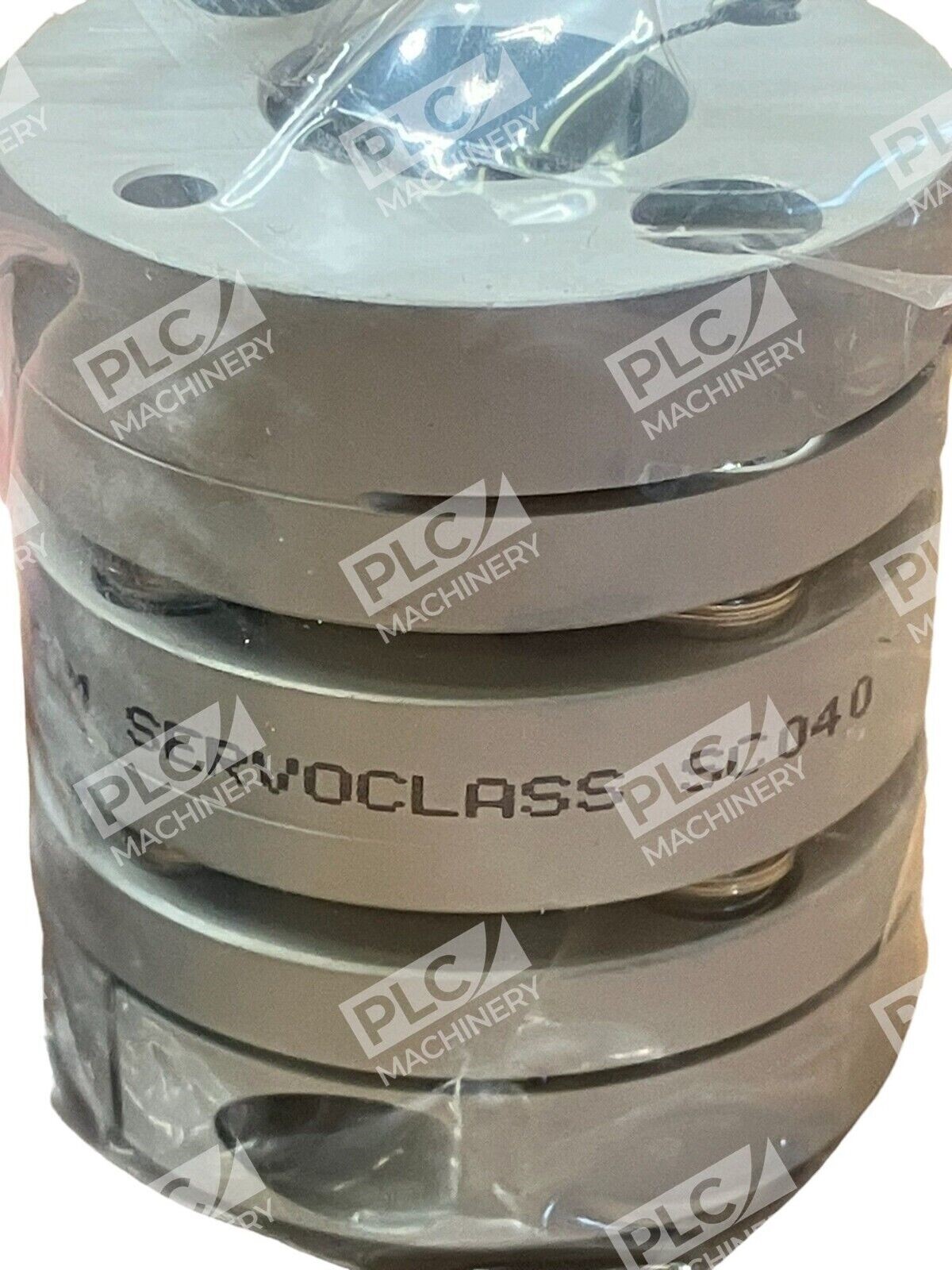

- Double flex design: Stainless steel flex elements for corrosion resistance and consistent performance
- High-speed rated: 10,000 RPM maximum operating speed supports modern servo motors
- Low backlash: Precision-engineered for accurate positioning in motion control applications
- Misalignment tolerance: Accommodates angular, parallel, and axial shaft misalignment

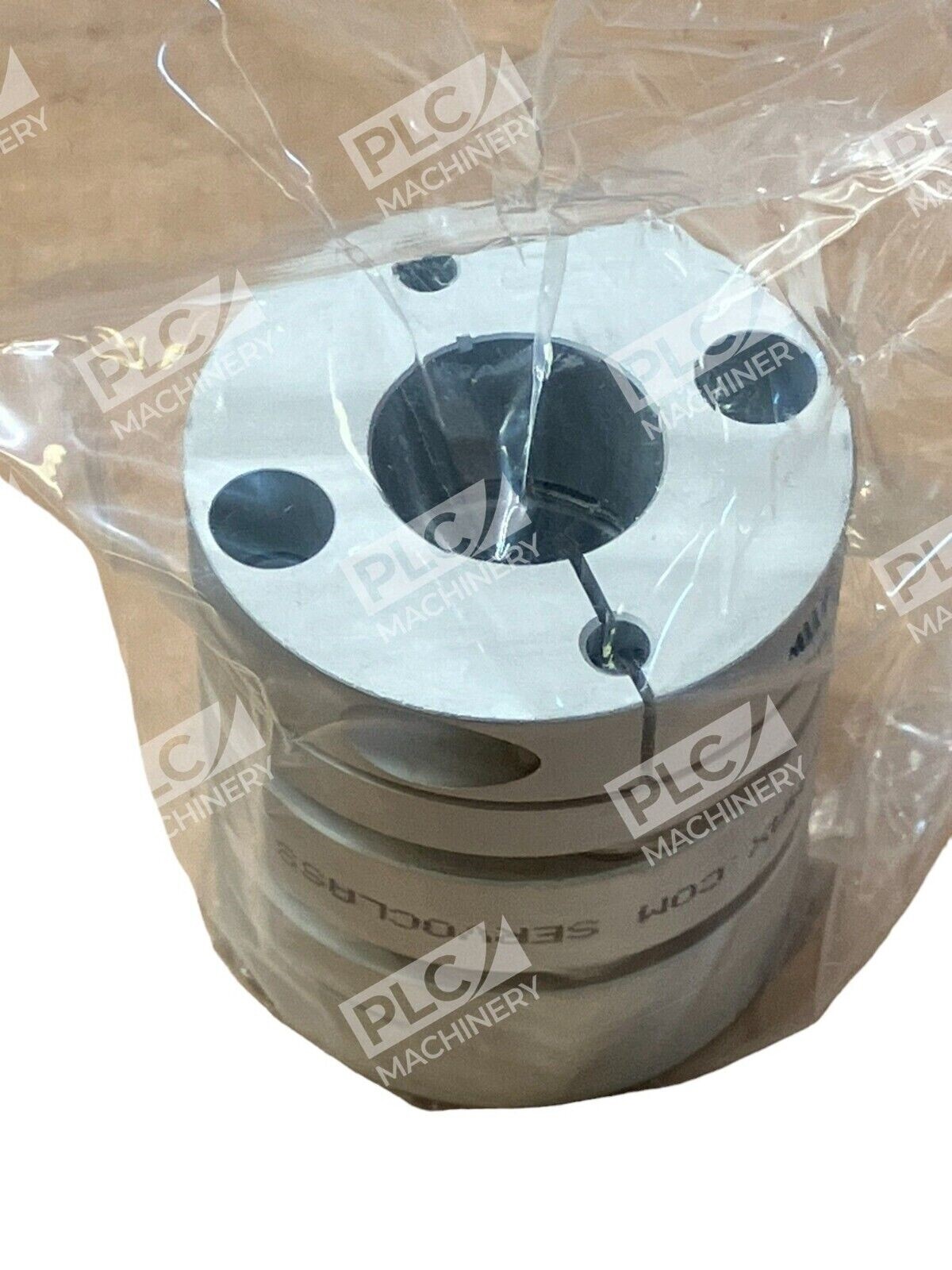

- Clamp-style assembly: M4.0 screw design for secure, repeatable assembly per Zero-Max installation standards
Technical Specifications
- Size designation: Size 40
- Operating torque: 89 in-lbs (10 Nm)
- Maximum speed: 10,000 RPM
- Axial stiffness: 228 lbs/inch
- Bore configuration: Mixed bore (041 and 019 designations)
- Clamp screw size: M4.0
- Flex element material: Stainless steel (corrosion-resistant)
- Series: ServoClass Double Flex (SC040R)
Typical Applications
- Servo motor couplings in robotic arms and articulated automation systems
- Precision positioning stages and XY table drives
- Machine tool spindle and feed drive connections
- Encoders and resolver mounting to servo feedback systems
- High-speed conveyor indexing systems
- Semiconductor and packaging equipment motion control
Compatibility & Replacements
Compatible With
- Servo motors rated 10,000 RPM or lower (brushless DC, AC servo)
- Stepper motor shafts (1.5 to 20 mm bore range)
- Encoder and resolver input shafts
- Planetary gearbox output shafts
- Industrial PLC and motion control systems with servo I/O modules
Replaces / Drop-In Replacement For
- Zero-Max SC040R Series with alternate bore configurations
- Other Size 40 double flex couplings with matching bore specifications
- Verify bore and torque requirements with system integrator before substitution
Works With
- Servo drive controllers (Rockwell CompactLogix, Siemens S7-1200/1500, Mitsubishi FX/iQ-R)
- EtherNet/IP, PROFINET, and Modbus servo networks
- Studio 5000 and TIA Portal motion control programming
- Closed-loop feedback systems (encoders, resolvers)
