Overview

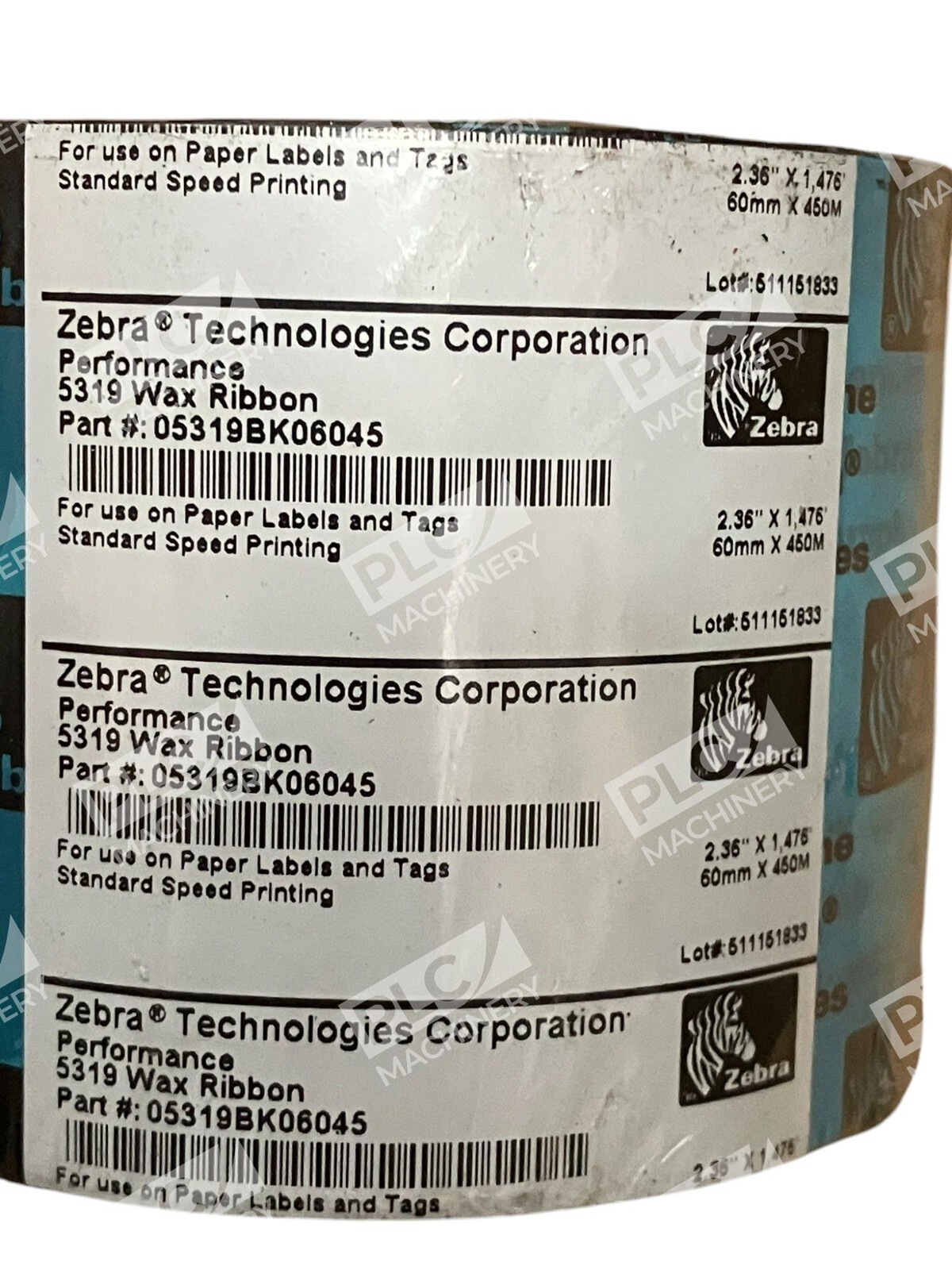

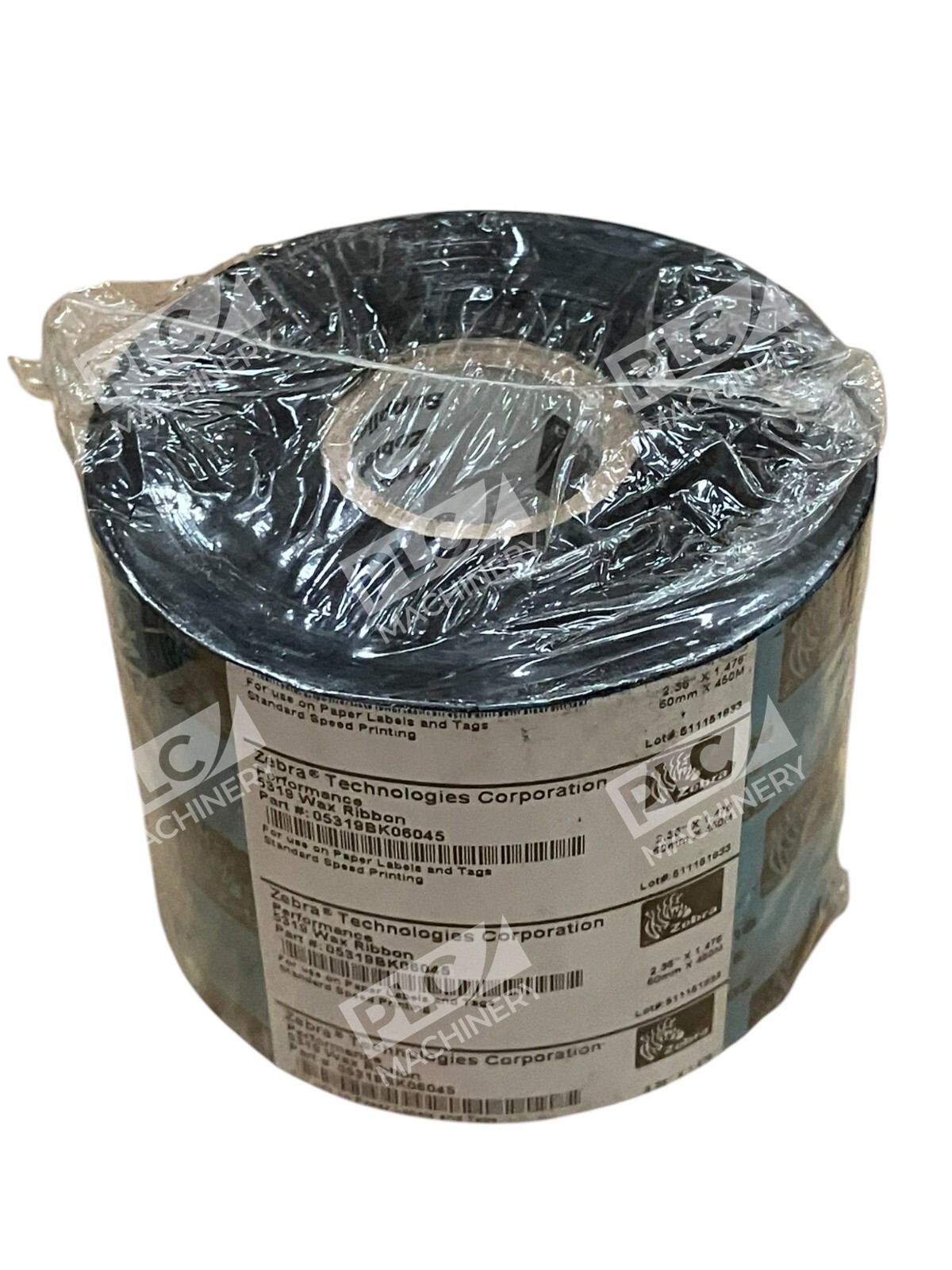

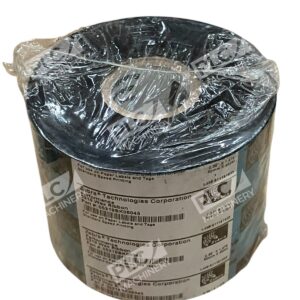

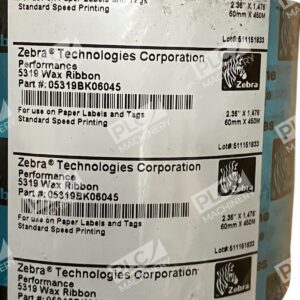

The Zebra 05319BK06045 is a best-in-class performance wax ribbon designed for industrial thermal transfer label printing. Measuring 2.36″ (60mm) wide by 1,476 feet long with a 1″ core, this case contains 6 rolls and is ideal for high-volume barcode and label production on Zebra-approved papers.
Key Features
- High-quality printing on both coated and uncoated paper facestocks
- Excellent performance on tough-to-print uncoated and uneven tag stocks, including Tyvek
- Unmatched printing for both visible light and infrared barcode scannability
- Print speeds up to 8 inches per second
- UL recognized and CSA component acceptable when used with Zebra-approved labels
- Reliable performance across Zebra industrial printer models
Technical Specifications
- Ribbon Width: 2.36″ (60mm)
- Ribbon Length: 1,476 feet per roll
- Core Size: 1″ inner diameter
- Color: Black
- Ribbon Type: Wax thermal transfer
- Coated Side: CSO (Coated Side Out)
- Rolls per Case: 6
- Maximum Print Speed: 8 inches per second
- Product Family: 5319 Performance Wax
Typical Applications
Zebra 5319 performance wax ribbons are used for printing durable, scannable barcodes in retail, manufacturing, logistics, and healthcare environments. They excel in applications requiring reliable barcode quality on standard paper labels and are particularly effective for:
- Product labeling and inventory management
- Shipping and package identification
- Asset tracking and warehouse operations
- Healthcare and pharmaceutical labeling
Compatibility & Replacements
Compatible With
- Zebra GX Series printers
- Zebra ZM400 / ZM600 thermal transfer printers
- Zebra 105SL / 105SL Plus industrial printers
- Zebra 220XiIII Plus
- Zebra Xi4 Series
- Zebra ZT200 Series printers
- All standard Zebra industrial thermal transfer printers using 1″ core ribbons
Replaces / Drop-In Replacement For
This is a genuine Zebra OEM ribbon with no direct alternative part numbers. For single-roll orders, Zebra part number 05319BK06045-R is available separately.
Works With
- Zebra coated paper label stock
- Zebra uncoated paper label stock
- Tyvek and specialty synthetic media
- Standard barcode labeling software and drivers
- All thermal transfer label design platforms
