Overview

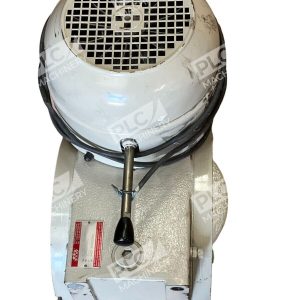

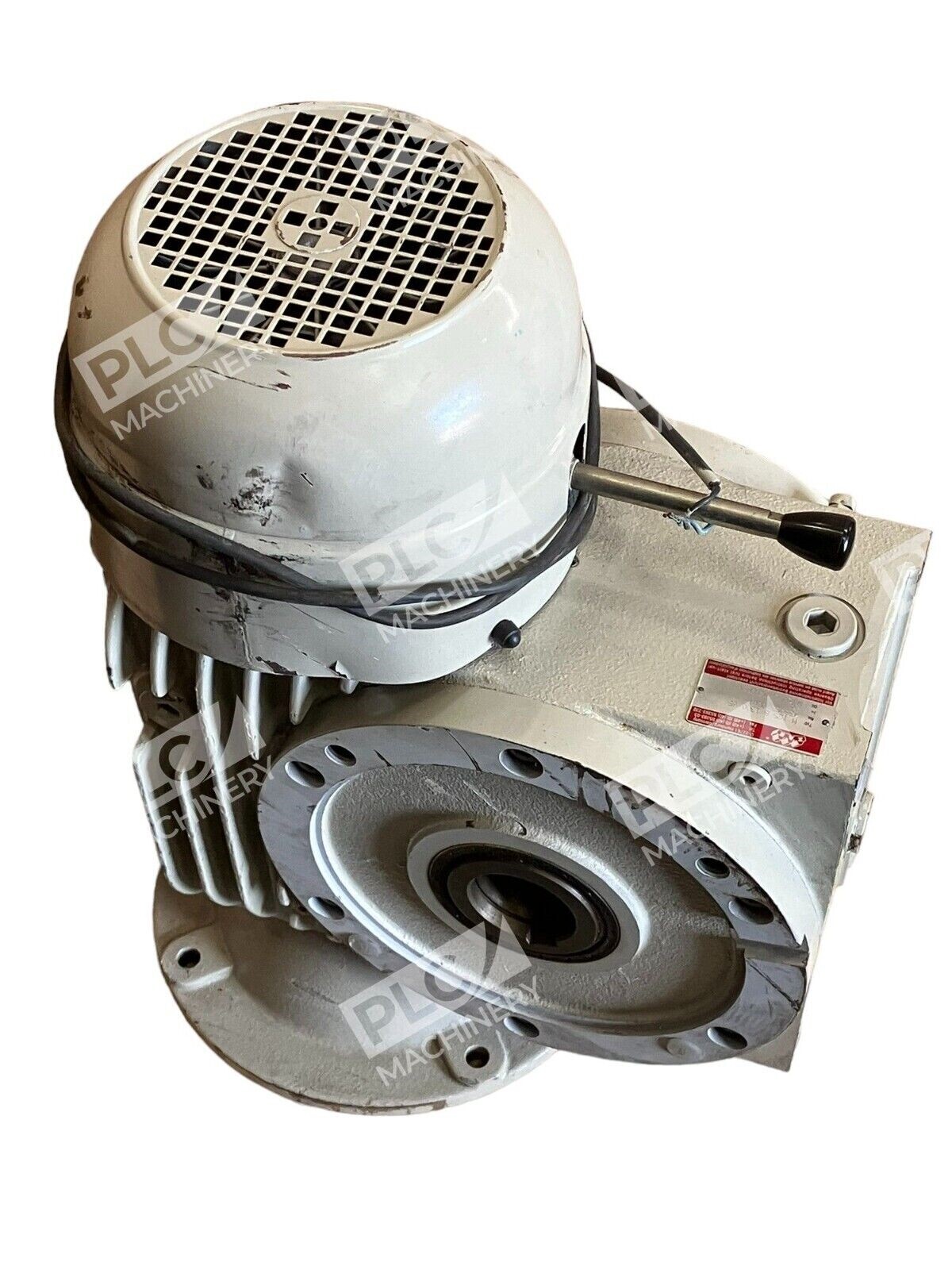

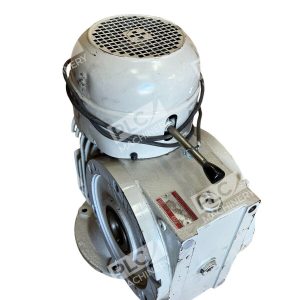

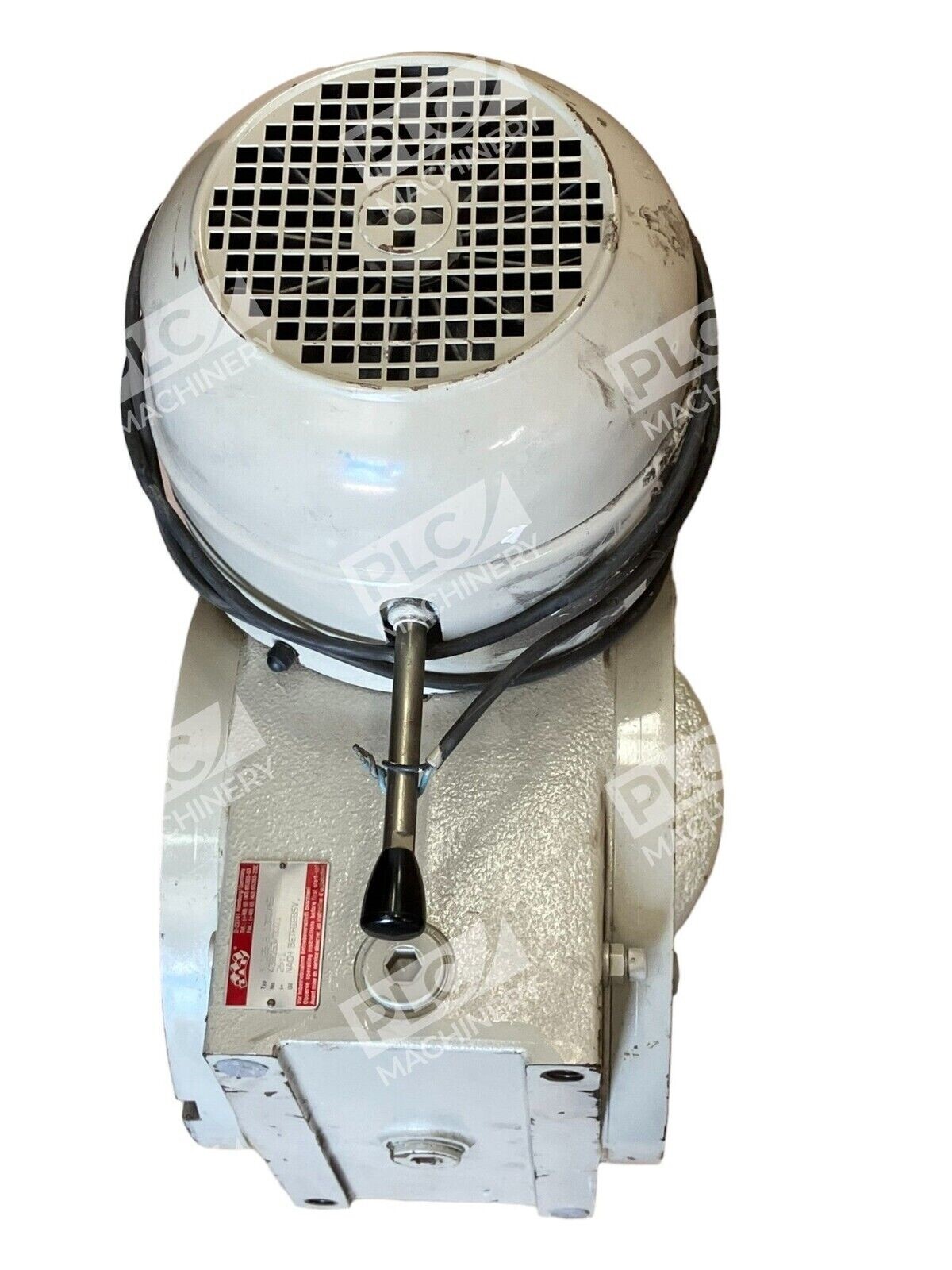

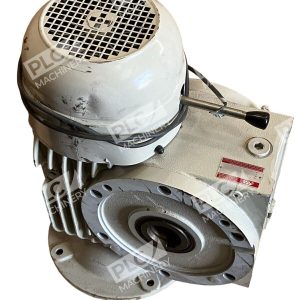

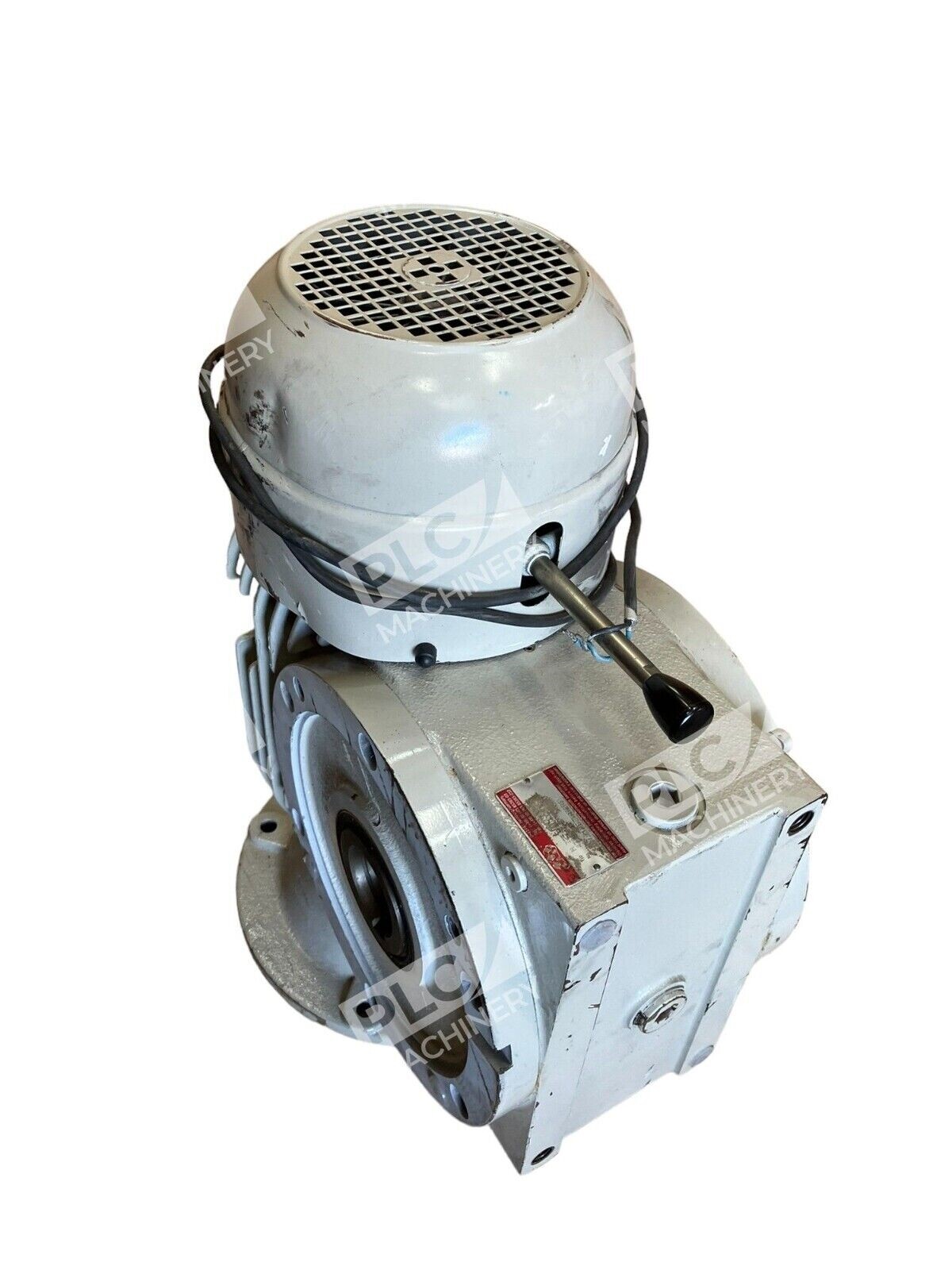

The ZAE M 125 B 1300/65 gearbox is a precision worm gear unit designed for reliable power transmission in industrial applications. Manufactured by ZAE-AntriebsSysteme (a German leader in gear unit design), this Model B basic-type reducer delivers a 26:1 gear reduction with a hollow shaft configuration. The 1300 designation indicates the hollow shaft arrangement, making it suitable for direct coupling or shaft mounting onto existing drive systems.
Key Features
- 26:1 reduction ratio for precise speed control and torque multiplication
- Hollow shaft (1300) design enables direct mounting on motor shafts or mechanical components
- Model B basic-type construction—durable, cost-effective, and field-proven
- High-quality grey cast iron housing (GG20) with ductile iron bosses for strength and durability
- Centrifugally cast bronze worm rims with nickel for smooth, quiet operation
- Suitable for beverage, food processing, plant construction, and general machinery applications
Technical Specifications
- Manufacturer: ZAE-AntriebsSysteme (Germany)

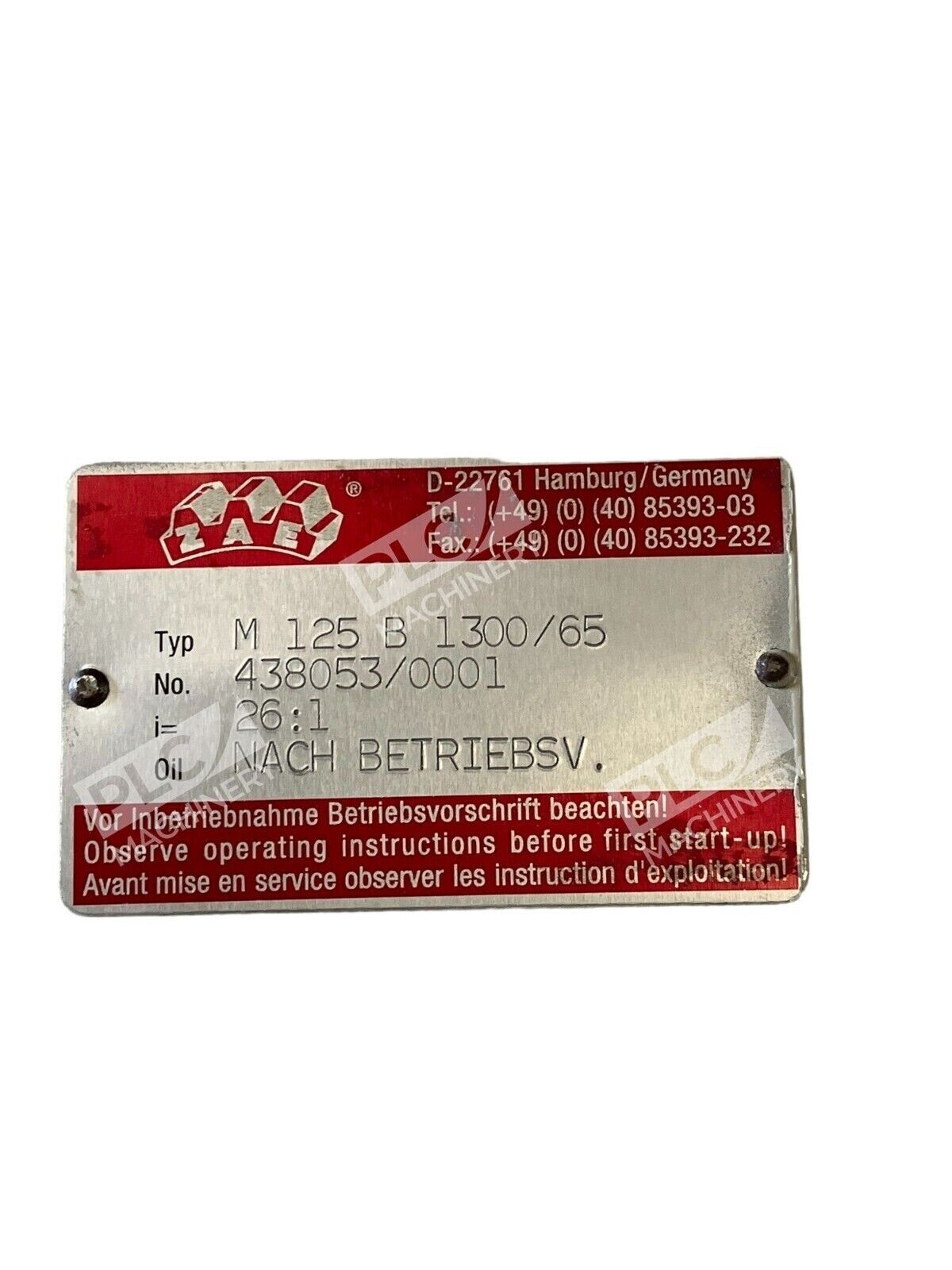

- Model: M 125 B 1300/65
- Size/Frame: 125
- Type: Model B (Basic)
- Shaft Configuration: 1300 Hollow Shaft
- Reduction Ratio: 26:1
- Input Speed: Up to 6000 min⁻¹ permissible
- Efficiency: Up to 97%
- Housing Material: Grey cast iron (GG20) with ductile iron (GG42) bosses
- Worm Rim Material: Centrifugally cast bronze (GzCuSn12Ni) with nickel additives
- Certifications: DIN ISO 9001
Typical Applications
The ZAE M 125 B 1300/65 is well-suited for:
- Beverage bottling and packaging machinery
- Food processing equipment
- Steel construction and industrial automation
- General plant engineering and power transmission
- Machinery requiring controlled torque and speed reduction
Compatibility & Replacements
Compatible With
- IEC standard electric motors with appropriate flange coupling or direct-mount capability
- Industrial machinery requiring 26:1 speed reduction
- Shaft-mounted applications with hollow shaft (1300) interface
- Systems requiring high-efficiency worm gear transmission (up to 97%)
Replaces / Drop-In Replacement For
The ZAE M 125 B 1300/65 is a direct replacement for other ZAE worm gear units with identical model designation (M 125 B 1300/65). For alternative ZAE models or competitive gearbox replacements, verify shaft diameter, coupling type, and reduction ratio with your system integrator or ZAE technical support before ordering.
Works With
- IEC electric motor flange couplings and adapters
- Industrial motor control systems and variable frequency drives (VFDs)
- Mechanical power transmission systems in manufacturing and processing plants
- Custom shaft adapters and coupling solutions (consult ZAE for compatibility)
