Overview

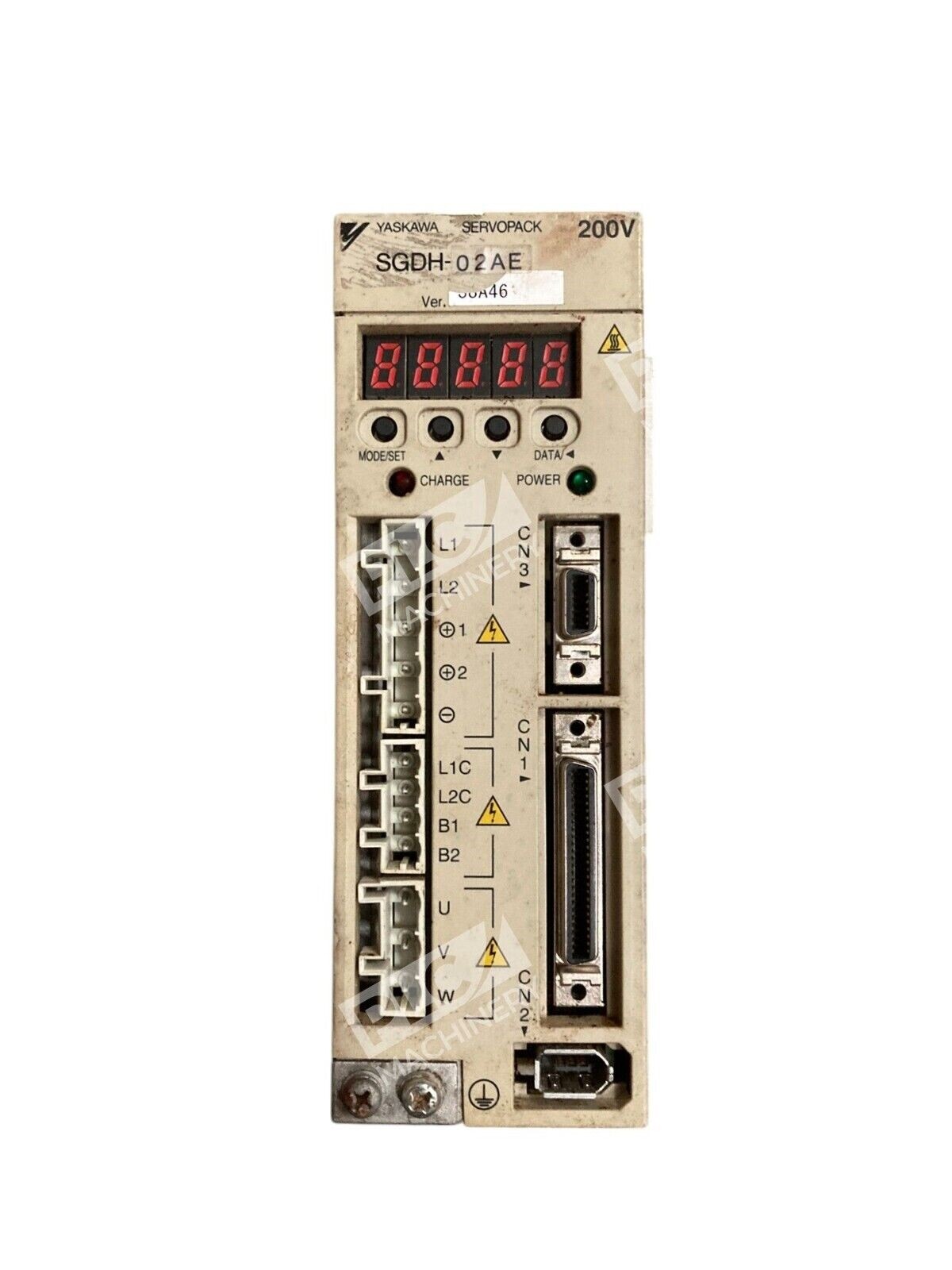

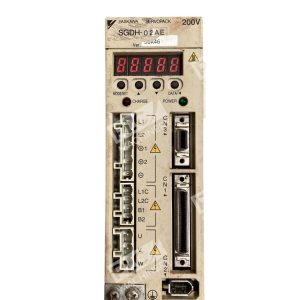

The Yaskawa SGDH-02AE is a Sigma II series servo amplifier designed for demanding motion control applications in industrial automation. This model offers precise control over servomotors with pulse and analog input capabilities, 3.4 A current rating, and a power rating of 0.2 kW. The SGDH-02AE is designed to operate with a single-phase 200-230 V AC power supply. This compact and robust SERVOPACK is specifically designed to seamlessly integrate with Yaskawa Sigma II series servo motors, forming a powerful and reliable motion system.
Key Features
- Supports both Pulse and Analog input signals, providing users with flexibility in choosing the most suitable control method for their specific application requirements.
- LED indicators for channel diagnostics, providing visual feedback on the status of each channel.
- Can be configured for different control modes through its configurable and predefined fallback modes; users can adapt the drive to specific operational requirements based on their application needs.
- Compact form factor ideal for space-constrained machine designs
- Single-phase input simplifies power connections in many installations
Technical Specifications
- Rated Power Output: 0.2 kW (0.26 HP)
- Input Voltage: 1 Phase 200-230V, 50/60Hz
- Input Current: 3.4A
- Output: 3 Phase 0-230V, 0-300 Hz, 2.1A
- Operating Temperature Range: 0 to 55 degrees Celsius
- Series: Sigma II (SGDH)
- Control Functions: Speed, Torque, and Position Control
- Encoder Type: 20 bit absolute value (standard)
- Weight: Approximately 760 grams
Typical Applications
The Yaskawa SGDH-02AE SERVOPACK is widely utilized for precise joint control in articulated robots, enabling accurate milling and turning operations in CNC machine tools, used in form-fill-seal and labeling systems for high-speed product handling, and driving conveyors and automated storage and retrieval systems. Additional applications include ensuring precise registration and tension control in printing presses, and providing ultra-precise motion for semiconductor manufacturing wafer handling.
Compatibility & Replacements
Compatible With
- Yaskawa SGM series servo motors
- Yaskawa Sigma II servo system architecture
- Pulse and Analog signal controllers
- Position, speed, and torque feedback control systems
- Industrial PLC and motion control platforms supporting standard servo inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SGDH-02AE is part of the Sigma II series; other models in the SGDH family (SGDH-01AE, SGDH-04AE, SGDH-05DE, SGDH-10DE) exist with different power and voltage ratings but are not direct drop-in replacements.
Works With
- Yaskawa Sigma II servo motor family
- Standard industrial pulse/direction and analog control signals
- AC 50/60 Hz power distribution systems (single-phase 200-230V)
- Absolute and incremental encoder feedback systems
- Motion control software supporting standard servo drive interfaces
