Overview

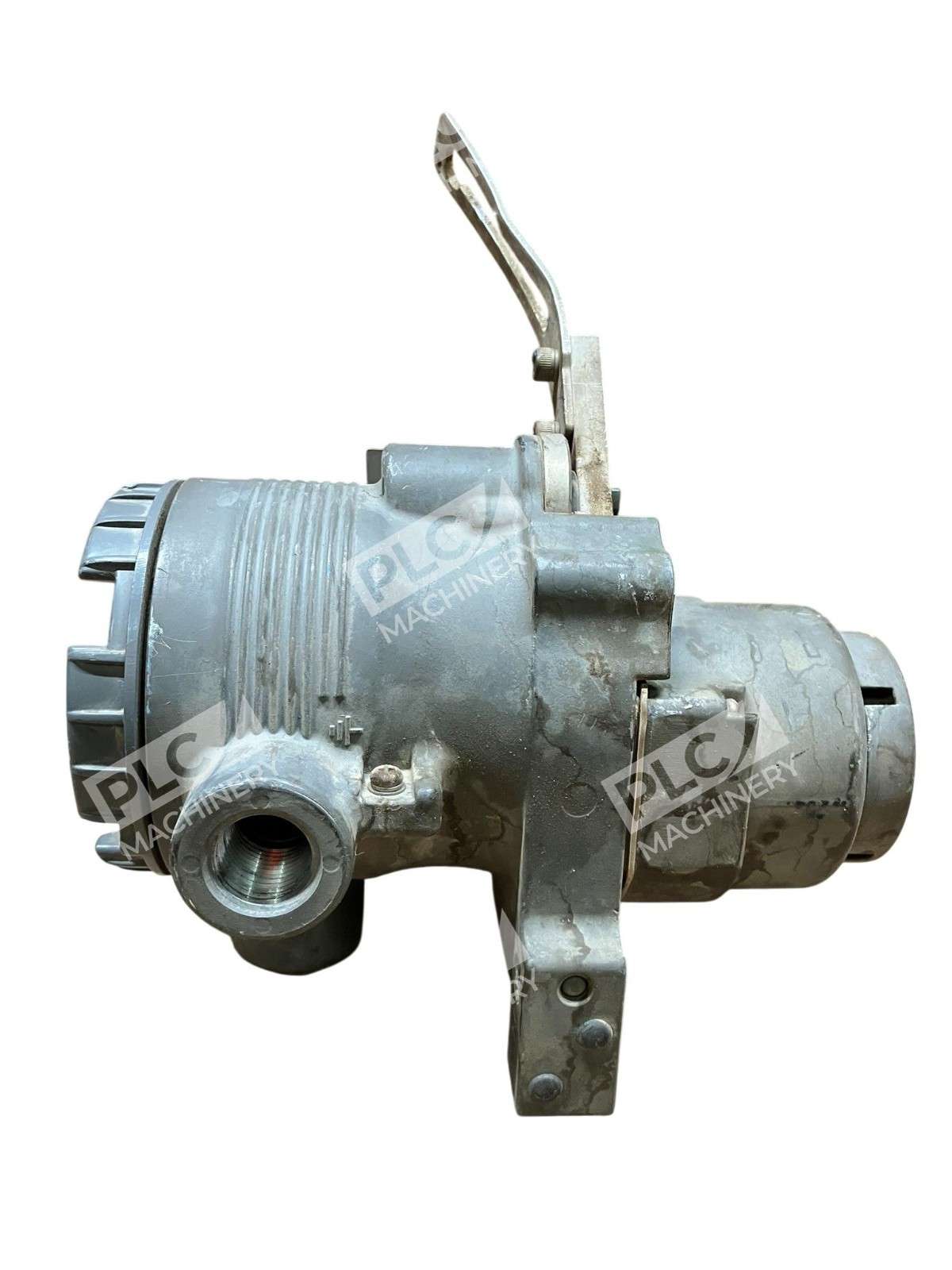

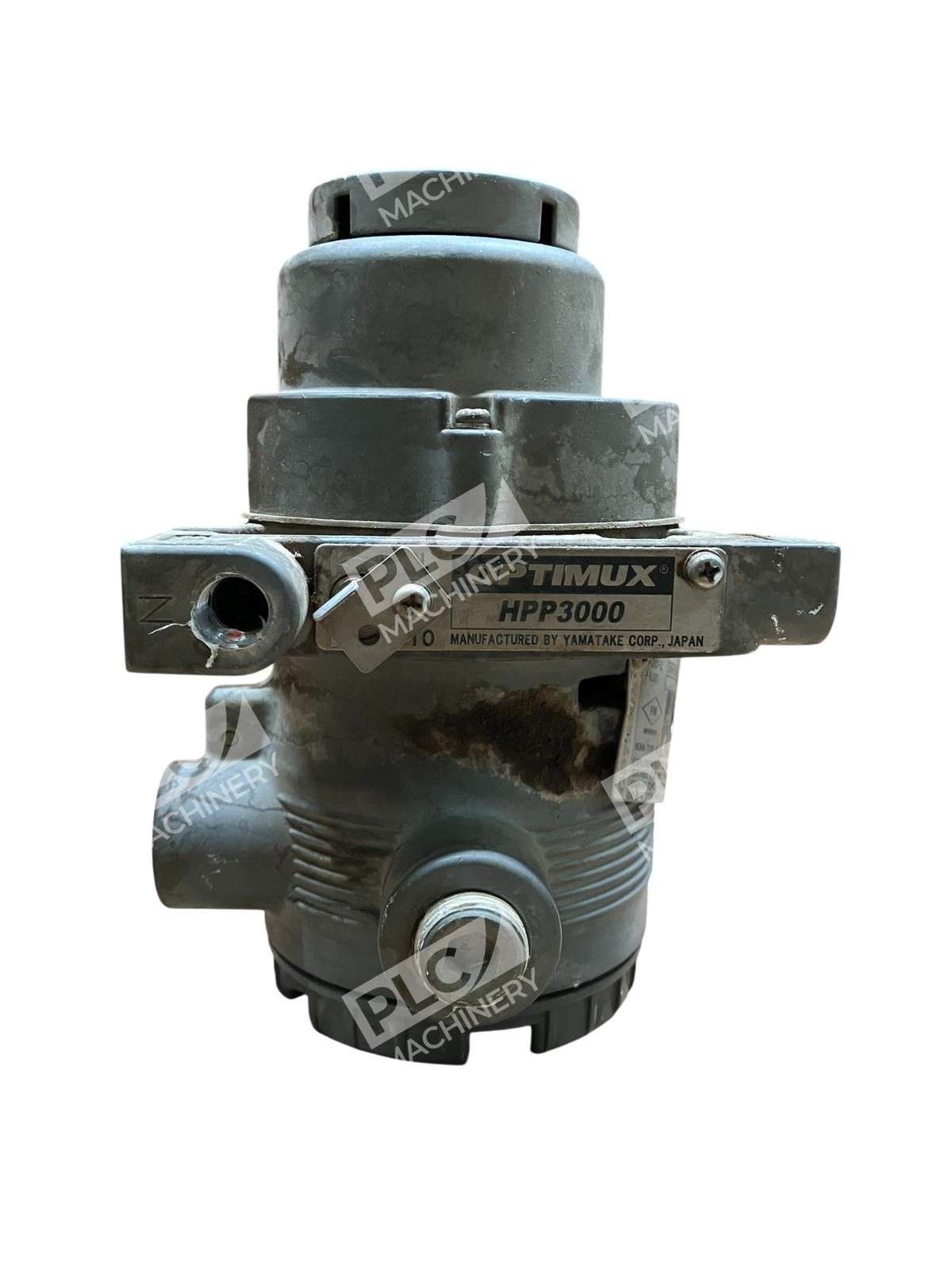

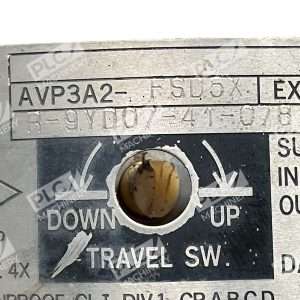

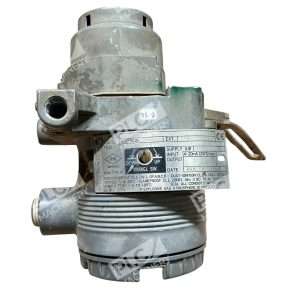

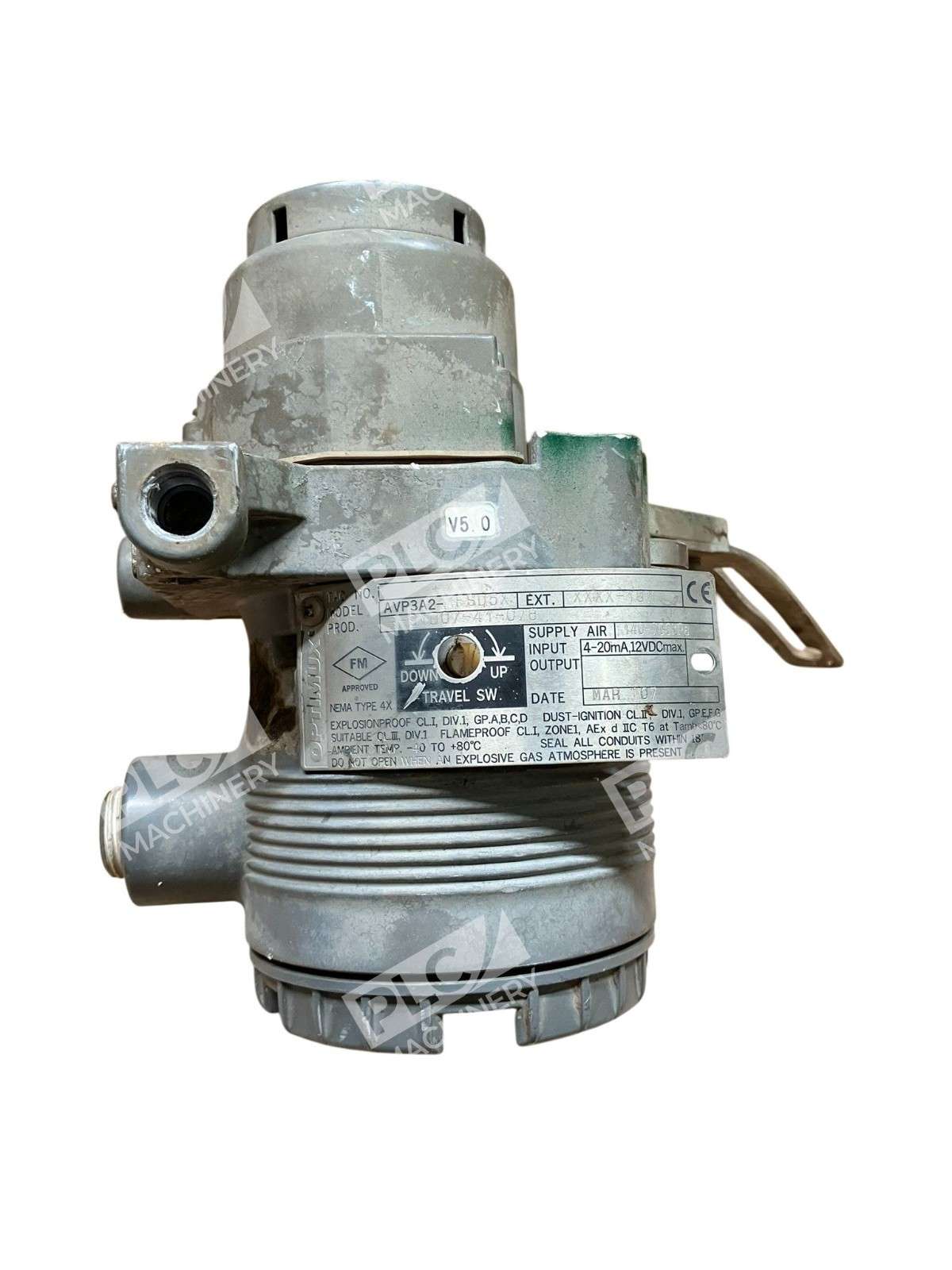

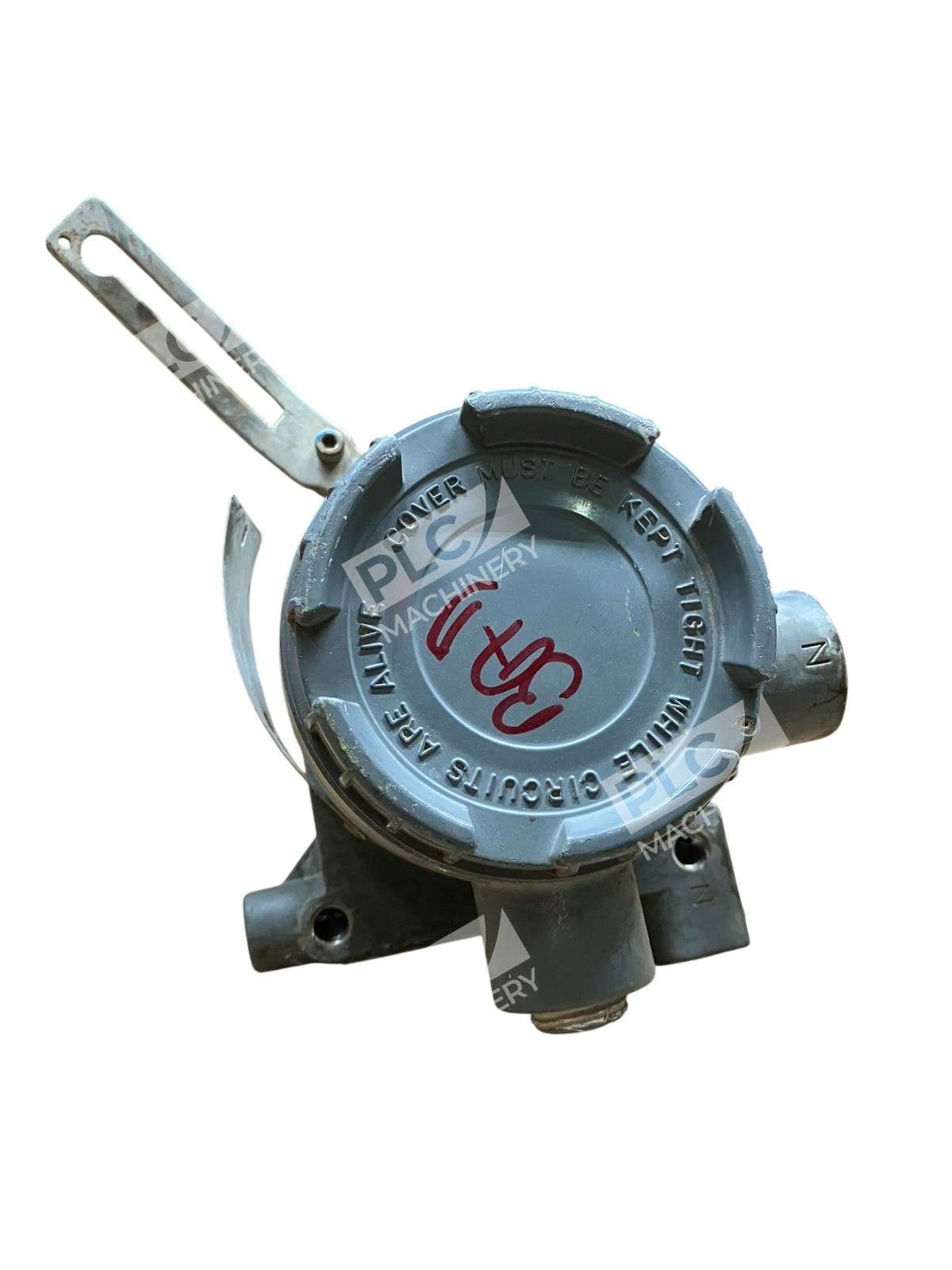

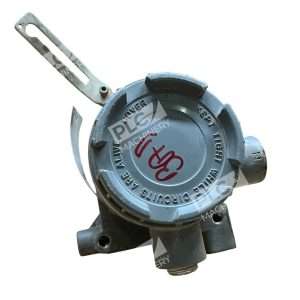

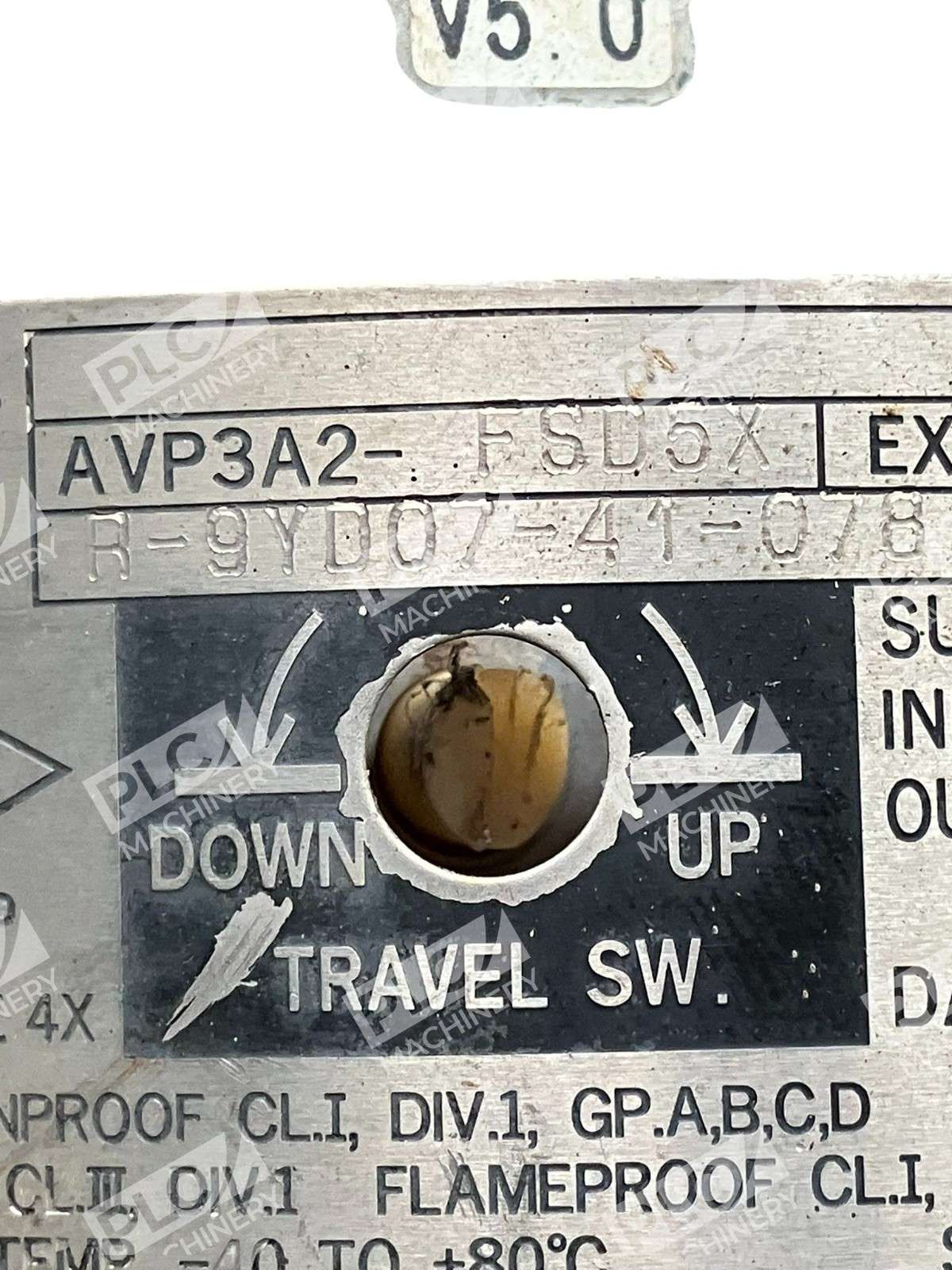

The Yamatake HPP3000 smart valve positioner is an electro-pneumatic control device engineered for accurate valve positioning in industrial automation systems. Model AVP3A2-FSD5X features intelligent feedback control technology, enabling consistent valve performance across varied process conditions. Yamatake (now part of Azbil Corporation) designs these positioners for demanding applications requiring precise, repeatable valve actuation and real-time diagnostics.
Key Features
- Electro-pneumatic design for accurate valve position feedback and control
- Smart valve positioner technology with digital intelligence
- 4–20 mA signal input compatible with standard PLC and control systems
- Integrated feedback mechanism for closed-loop position verification
- NEMA Type 4X / IP66 enclosure rating for industrial environments
- Intrinsically safe certifications available (Class I, II, III compliance)
Technical Specifications
- Supply Air Pressure: 140–700 kPa
- Input Signal: 4–20 mA, 6 V DC maximum
- Enclosure Rating: NEMA Type 4X, IP66
- Safety Certifications: Class I, II, and III compatible; Class I Zone 0 AEx Ia available
- Output: Pneumatic valve actuation (solenoid-controlled)
- Mounting: Field-mountable on standard actuator ports
Typical Applications
- Process control valve positioning in refining, chemical, and utility operations
- Steam / gas flow regulation systems
- Boiler feed-water and cooling-water applications
- Pressure and temperature control loops
- Hazardous-area industrial automation (Class I, II, III environments)
Compatibility & Replacements
Compatible With
- 4–20 mA analog control signals from PLCs and DCS systems
- Pneumatic valve systems rated for 140–700 kPa supply air
- Standard industrial solenoid valve interfaces
- Field control networks supporting analog instrumentation
Replaces / Drop-In Replacement For
- Yamatake AVP3000 series positioner models
- Other Yamatake smart valve positioner variants within the HPP3000 family
- Verify compatibility with your system integrator before ordering
Works With
- Industrial PLC control systems (Allen-Bradley, Siemens, Mitsubishi, Omron)
- Analog 4–20 mA instrumentation loops
- Pneumatic control circuits and air distribution systems
- Legacy and modern process automation platforms
