Overview

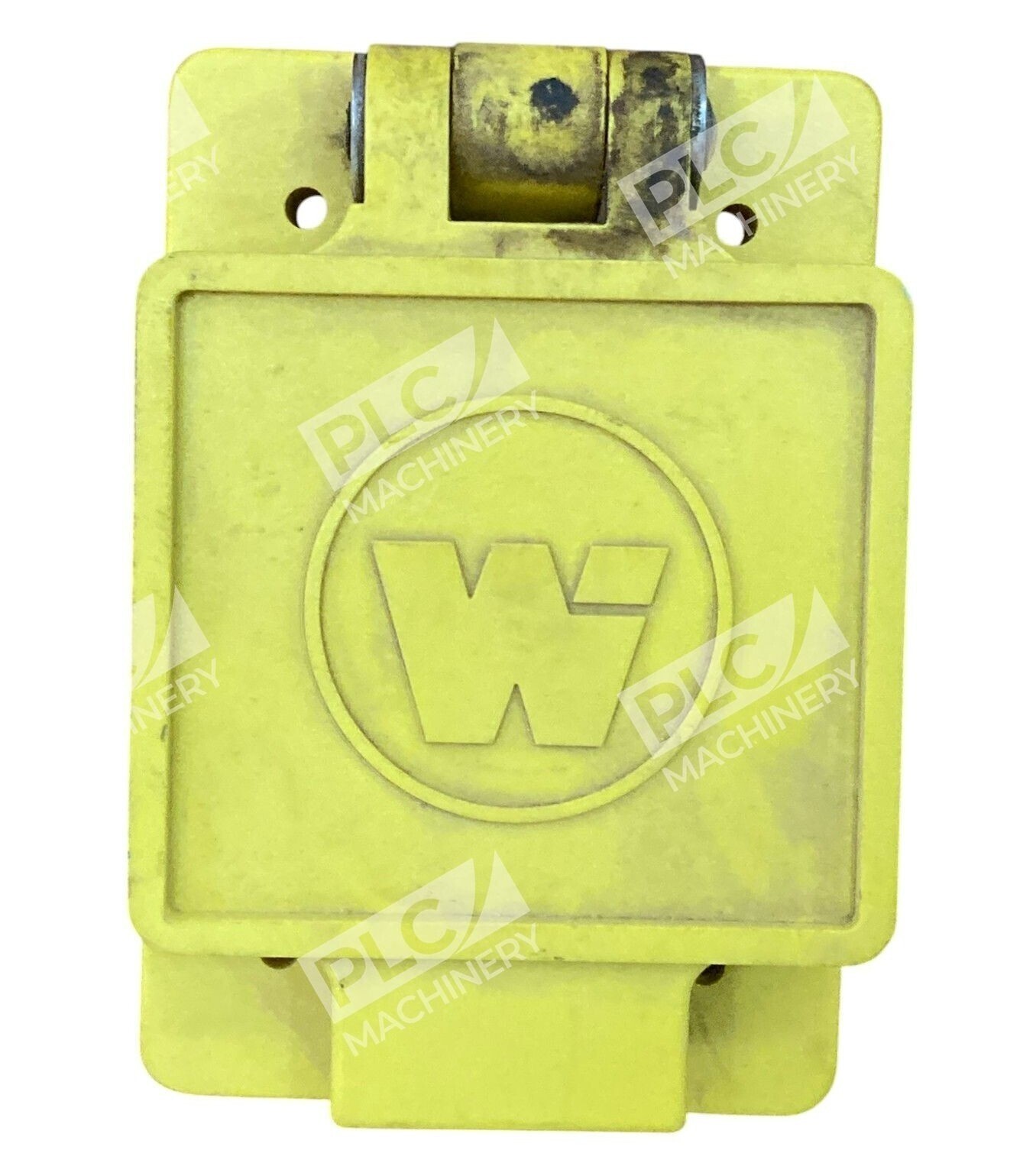

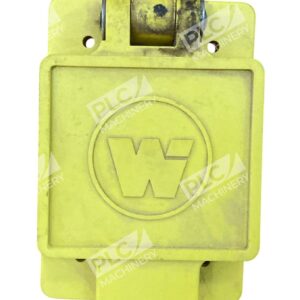

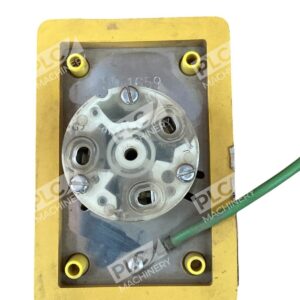

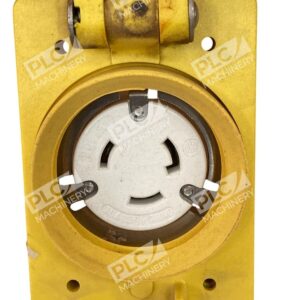

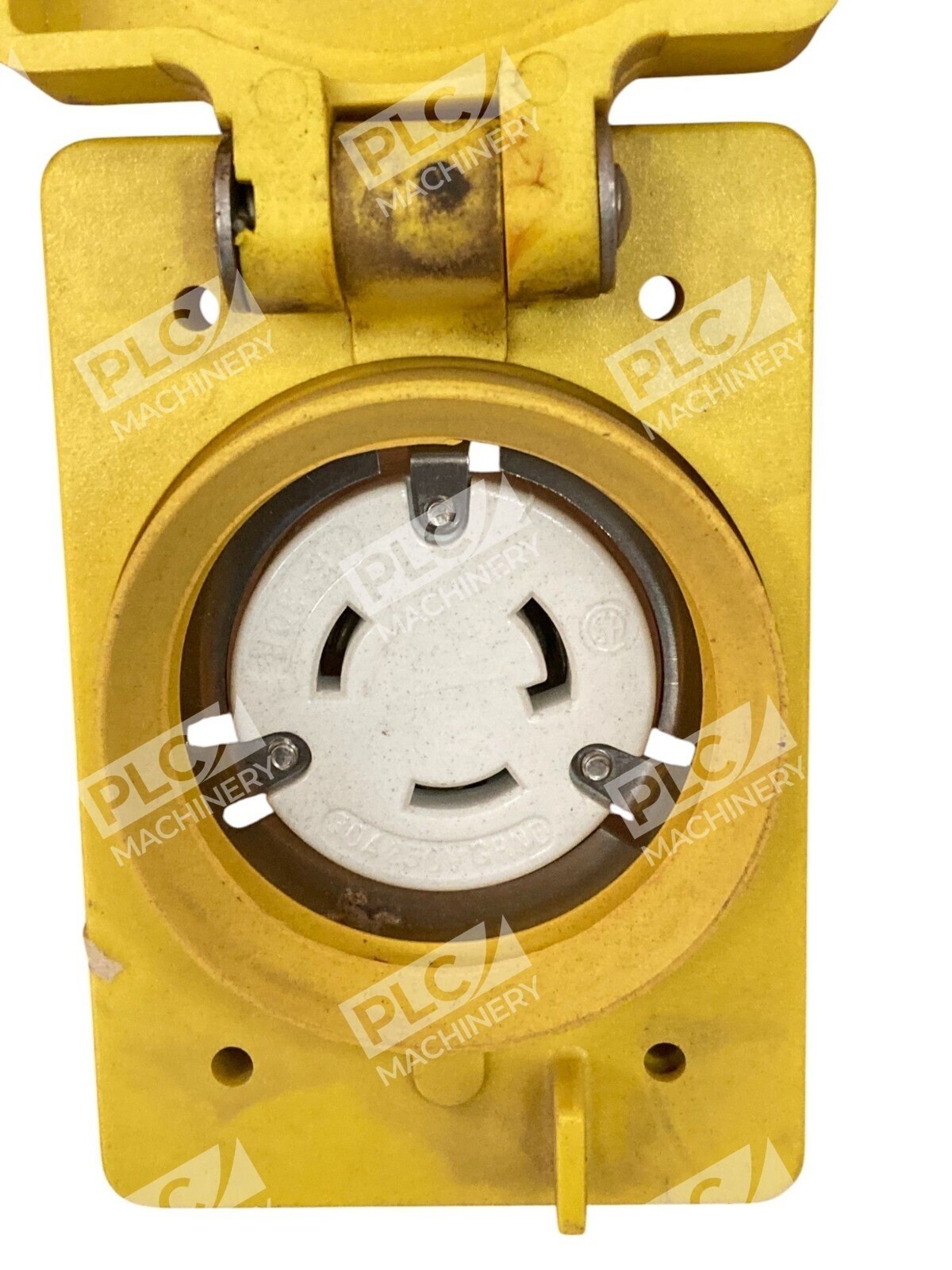

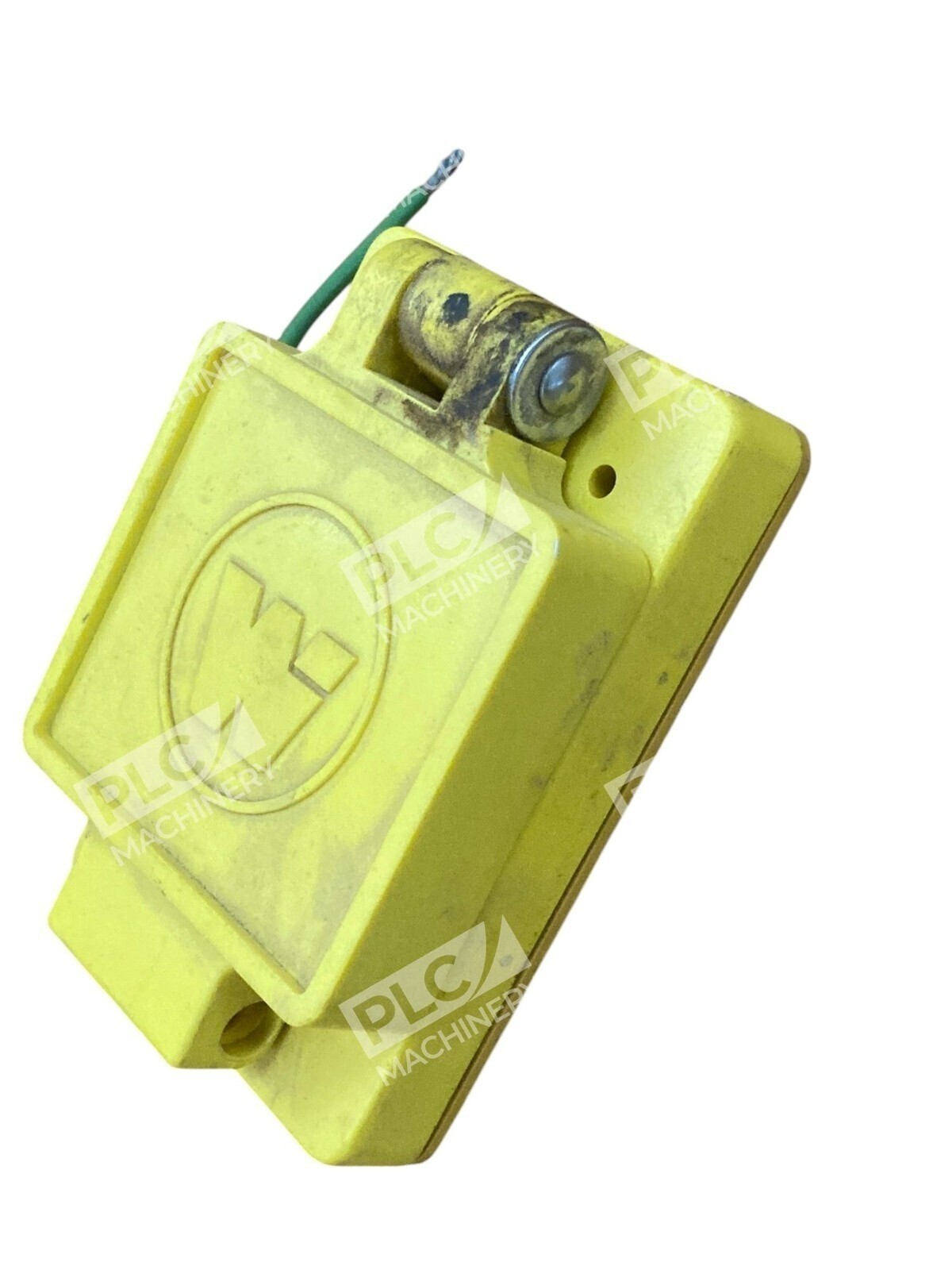

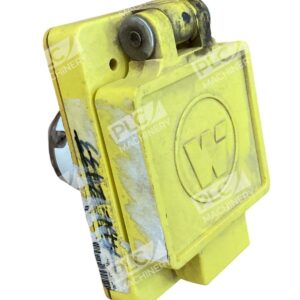

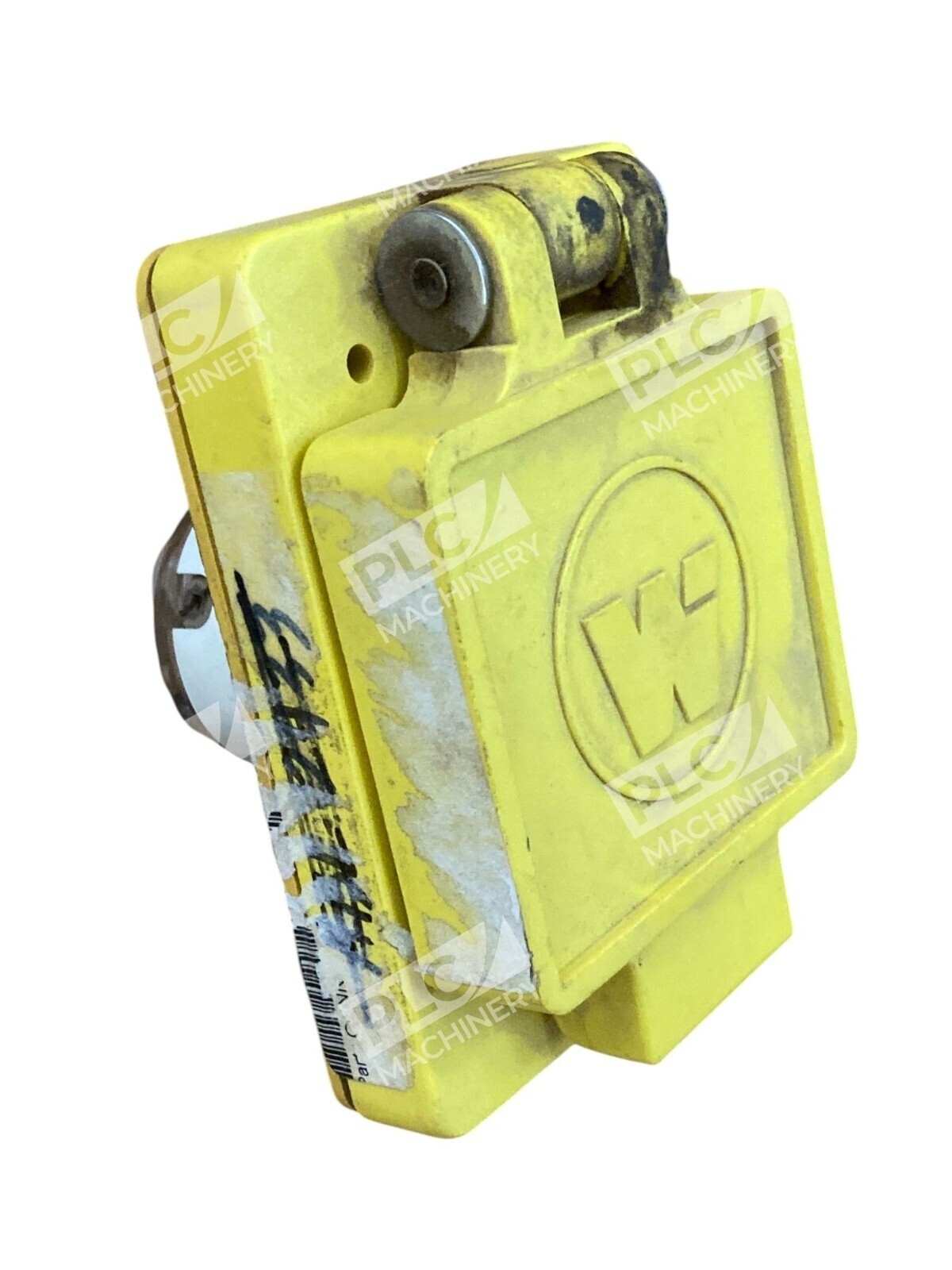

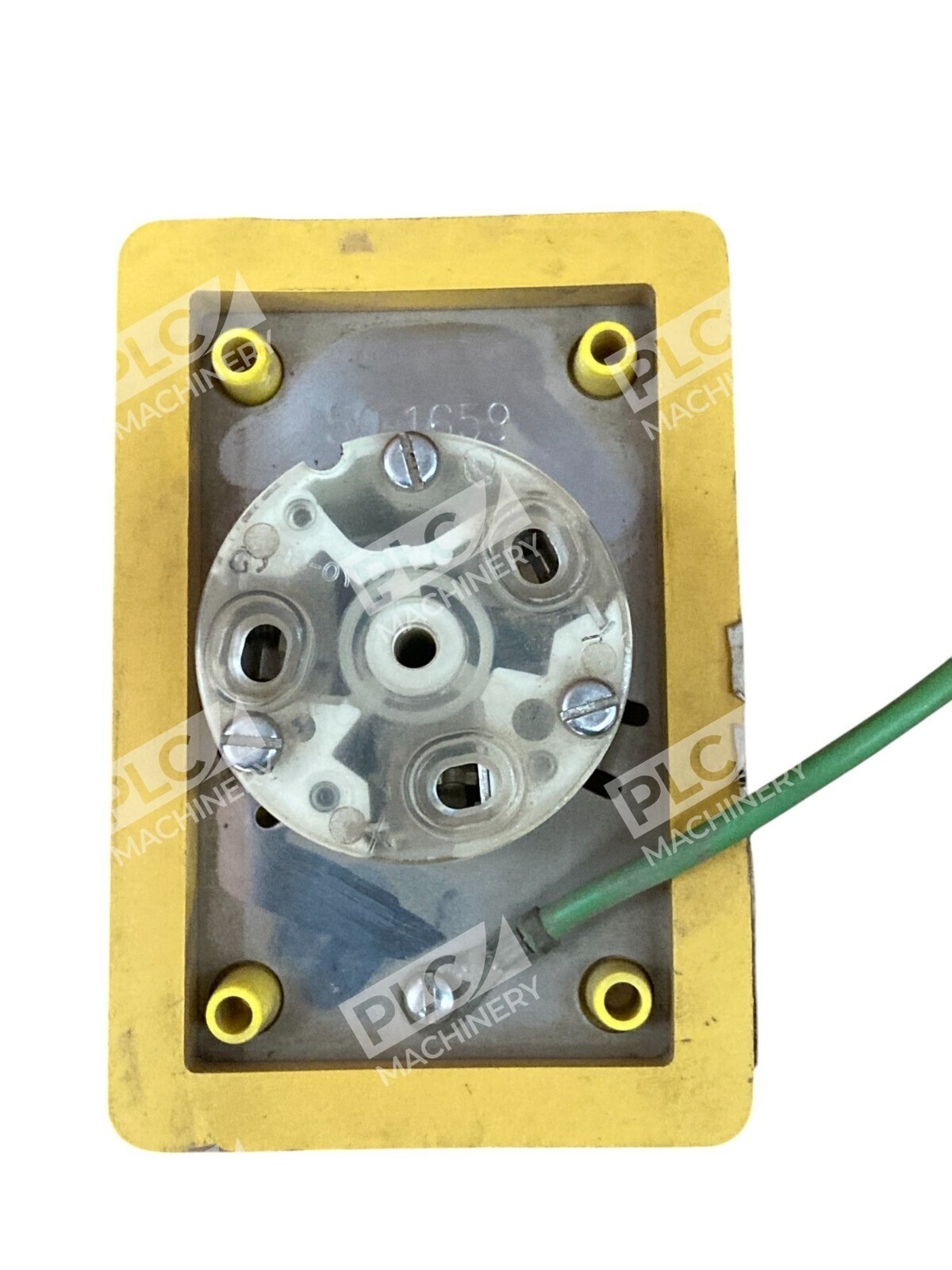

The Woodhead 50-1659 is a support plate component manufactured by Woodhead (a Molex subsidiary) for industrial electrical receptacle assemblies. Designed for use in control panels, electrical enclosures, and industrial mounting applications, this support plate provides structural support and alignment for receptacle connectors. The passivated finish ensures corrosion resistance in demanding industrial environments.
Key Features
- Passivated finish for corrosion resistance
- Designed for industrial receptacle mounting
- Provides stable alignment and structural support
- Compatible with Woodhead receptacle and connector systems
- Suitable for control panel and enclosure applications
Technical Specifications
- Manufacturer: Woodhead (Molex)
- Part Number: 50-1659
- Product Type: Support Plate
- Finish: Passivated
- Material: Metal (passivated)
- Application: Industrial receptacle mounting
- Series: Woodhead 50 Series
Typical Applications
- Control panel receptacle assembly and mounting
- Industrial electrical enclosure construction
- Receptacle connector alignment in harsh environments
- OEM equipment manufacturing and field replacements
- Power distribution and connectivity infrastructure
Compatibility & Replacements
Compatible With
- Woodhead receptacle and connector assemblies
- Control panel and enclosure mounting systems
- Industrial electrical connectivity applications
- Molex connector ecosystems
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or manufacturer documentation before ordering to ensure proper fit and application requirements.
Works With
- Woodhead receptacle connector lines
- Industrial control systems
- Standard mounting and panel hardware
- Molex connectivity solutions
