Overview

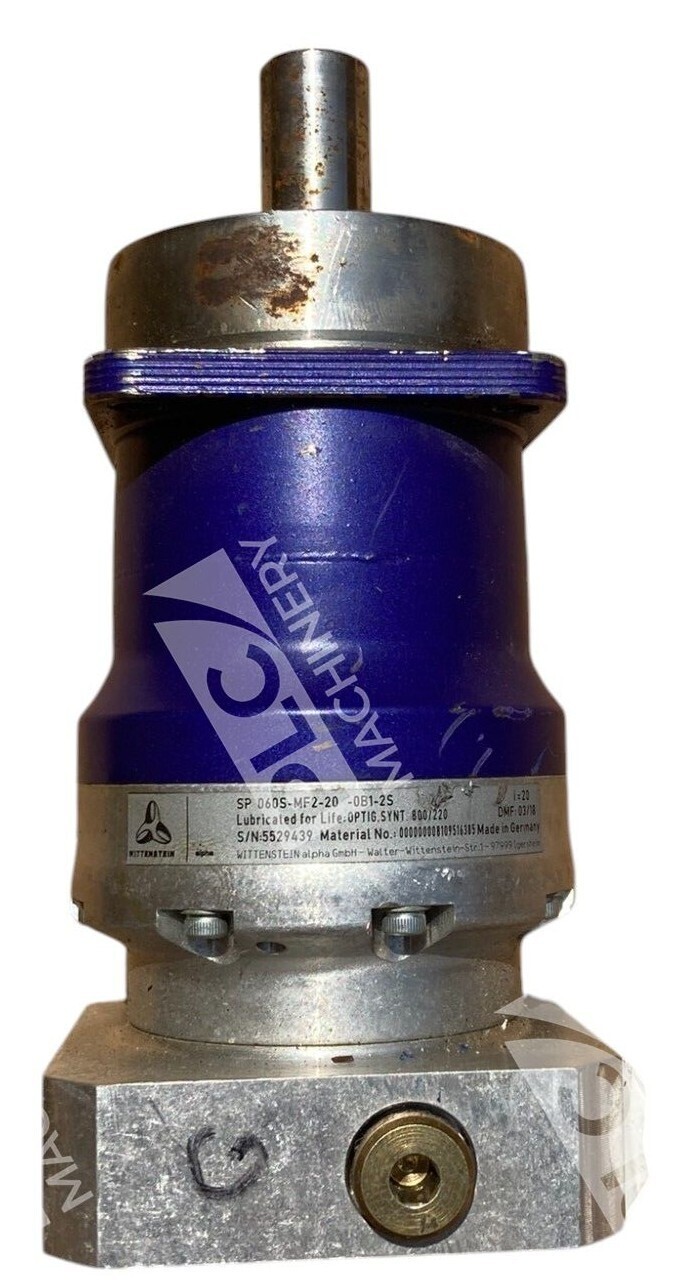

The Wittenstein alpha SP 060S-MF2-20-0B1-2S is a precision planetary gearbox designed for demanding motion control and servo applications. This unit features a 20:1 gear ratio and is built to the Wittenstein alpha standard for low-backlash performance, making it suitable for applications requiring high accuracy and repeatability. Compact and lightweight, the SP 060S series delivers reliable torque multiplication and positioning precision across industrial automation, robotics, and precision machinery.
Key Features
- 20:1 gear reduction ratio for precise torque multiplication
- Low-backlash planetary design for high positional accuracy
- Compact form factor—lightweight at 1.95 kg
- Keyed shaft interface (DIN 6885 standard)
- Industrial-grade construction for continuous-duty operation
- Compatible with standard servo and stepper motor couplings
Technical Specifications
- Model: SP 060S-MF2-20-0B1-2S
- Manufacturer: Wittenstein alpha GmbH
- Gear Ratio: 20:1
- Weight: 1.95 kg
- Shaft Type: Keyed shaft, DIN 6885 Form A
- Series: SP planetary gearbox
- Backlash: Low-backlash design (typical of SP series)
- Lubrication: Factory-sealed, oil-filled
- Operating Temp Range: Standard industrial range
Typical Applications
- Servo-driven positioning systems
- Precision robotic arms and joints
- Industrial motion control equipment
- Automated assembly machinery
- Laboratory and test equipment
- Packaging and handling systems
Compatibility & Replacements
Compatible With
- Standard servo motor shafts with DIN 6885 keyways
- Industrial stepper and brushless DC motor couplings
- Motion control systems requiring 20:1 speed reduction
- Rockwell/Allen-Bradley servo drives (via motor interface)
- Siemens, Mitsubishi, and other industrial automation controllers
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. Legacy or equivalent Wittenstein SP 060 series units may share mechanical interfaces; consult technical documentation for shaft and coupling compatibility.
Works With
- EtherCAT-enabled servo controllers
- PROFINET industrial networks
- Standard stepper and servo motor drivers
- Studio 5000 (via motion module configuration)
- TIA Portal (Siemens automation platforms)
