Overview

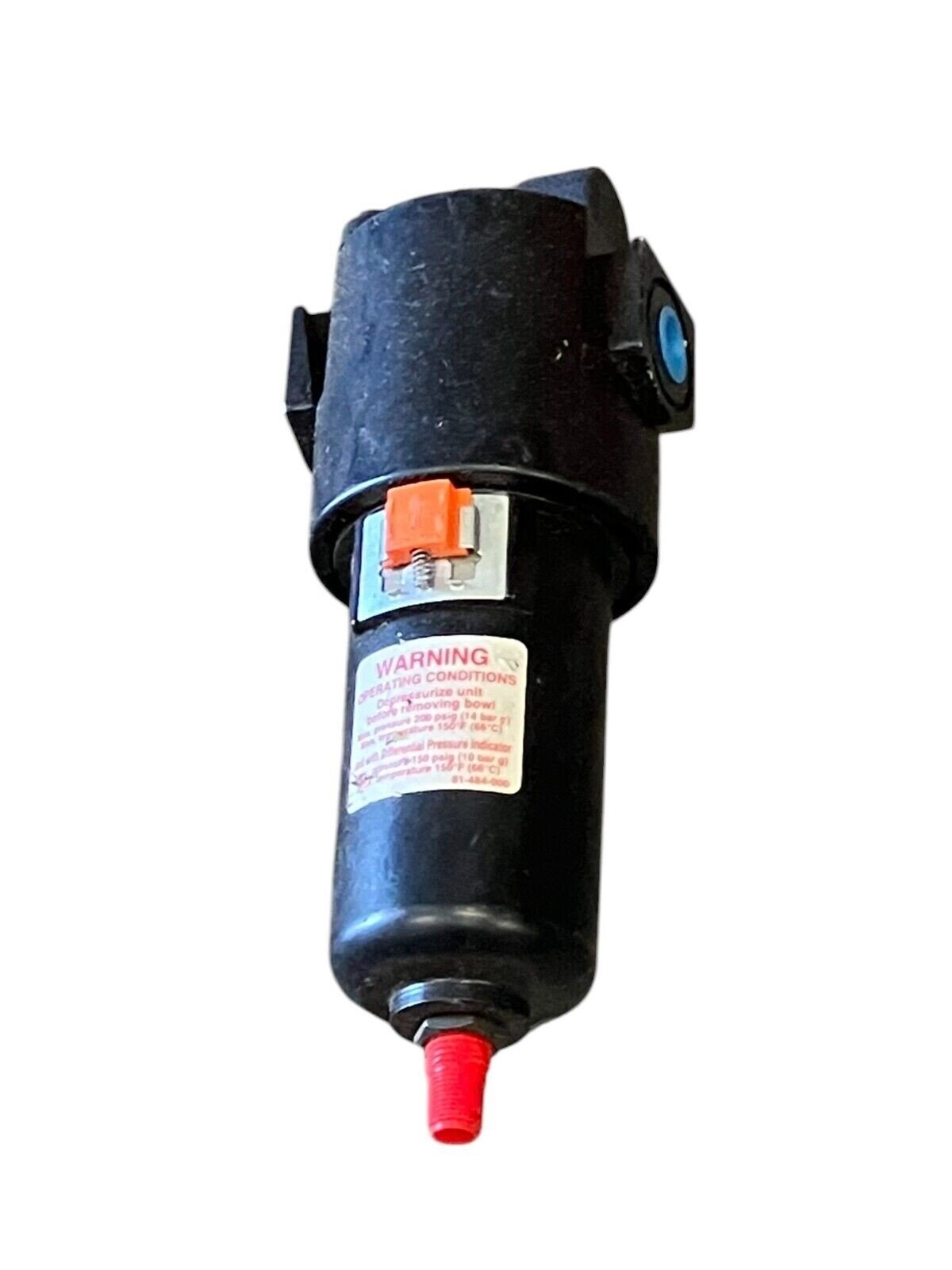

The Wilkerson M16-02-FM0B is a compact coalescing pneumatic filter from Wilkerson’s M16 series, engineered for removal of liquid aerosols and submicronic particles in compressed air applications. This filter features a manual drain and is rated for fine filtration in industrial and control applications.
Key Features
- Port Size: 1/4″ NPT inlet and outlet connections
- Manual Drain: Convenient piston-type manual drain valve for condensate removal
- Metal Bowl Construction: Durable metal bowl with sight gauge for visual inspection
- Compact Design: Space-efficient footprint suitable for inline mounting
- Grade B Filtration: Removes liquid aerosols and fine particles for general air quality protection
Technical Specifications
- Port Size: 1/4″ NPT
- Maximum Flow Rate: 37 SCFM
- Filtration Rating: 0.01 µm (micron)
- Bowl Capacity: 2.7 oz
- Bowl Material: Metal with sight gauge
- Drain Type: Manual (piston-type)

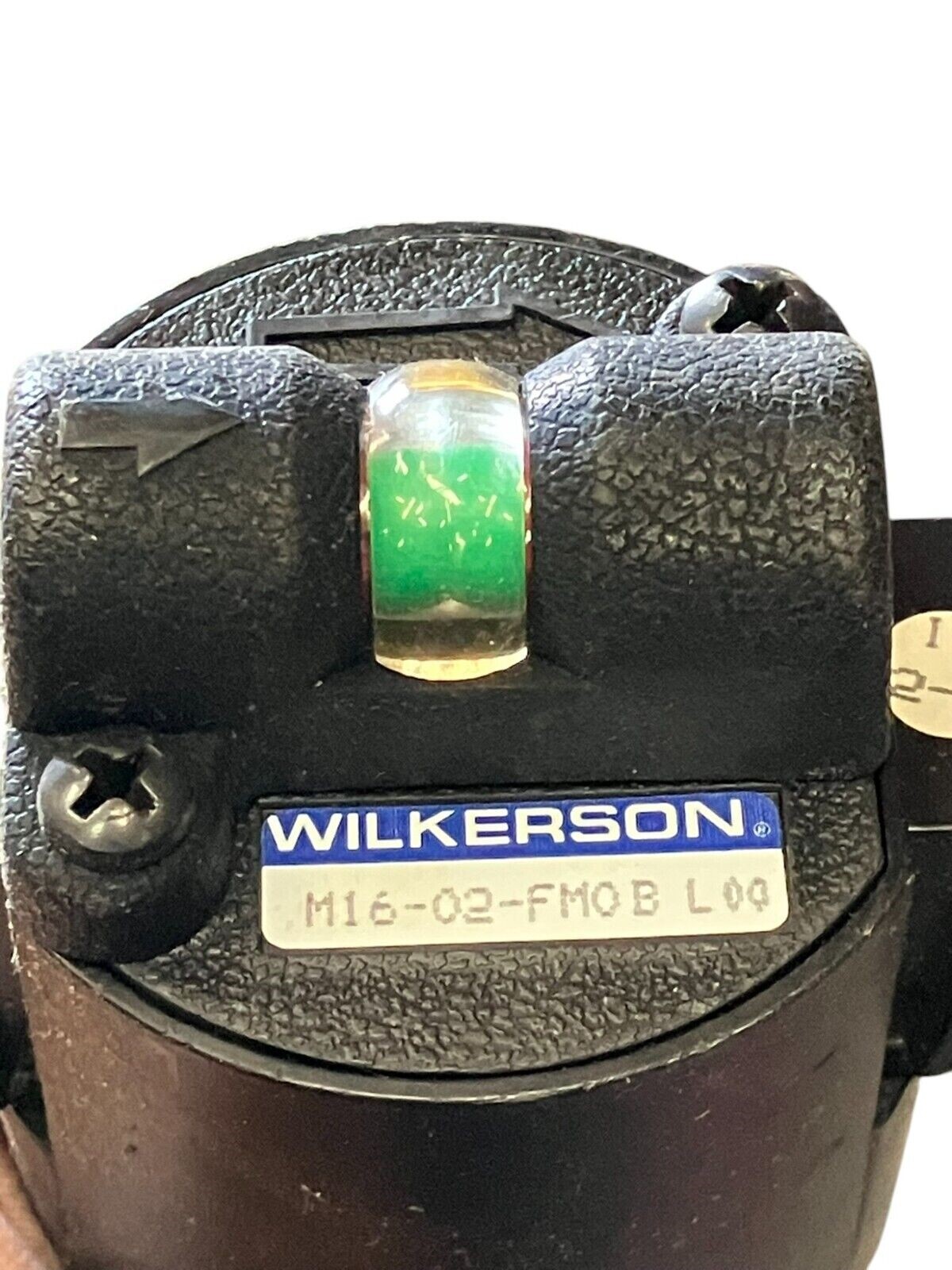

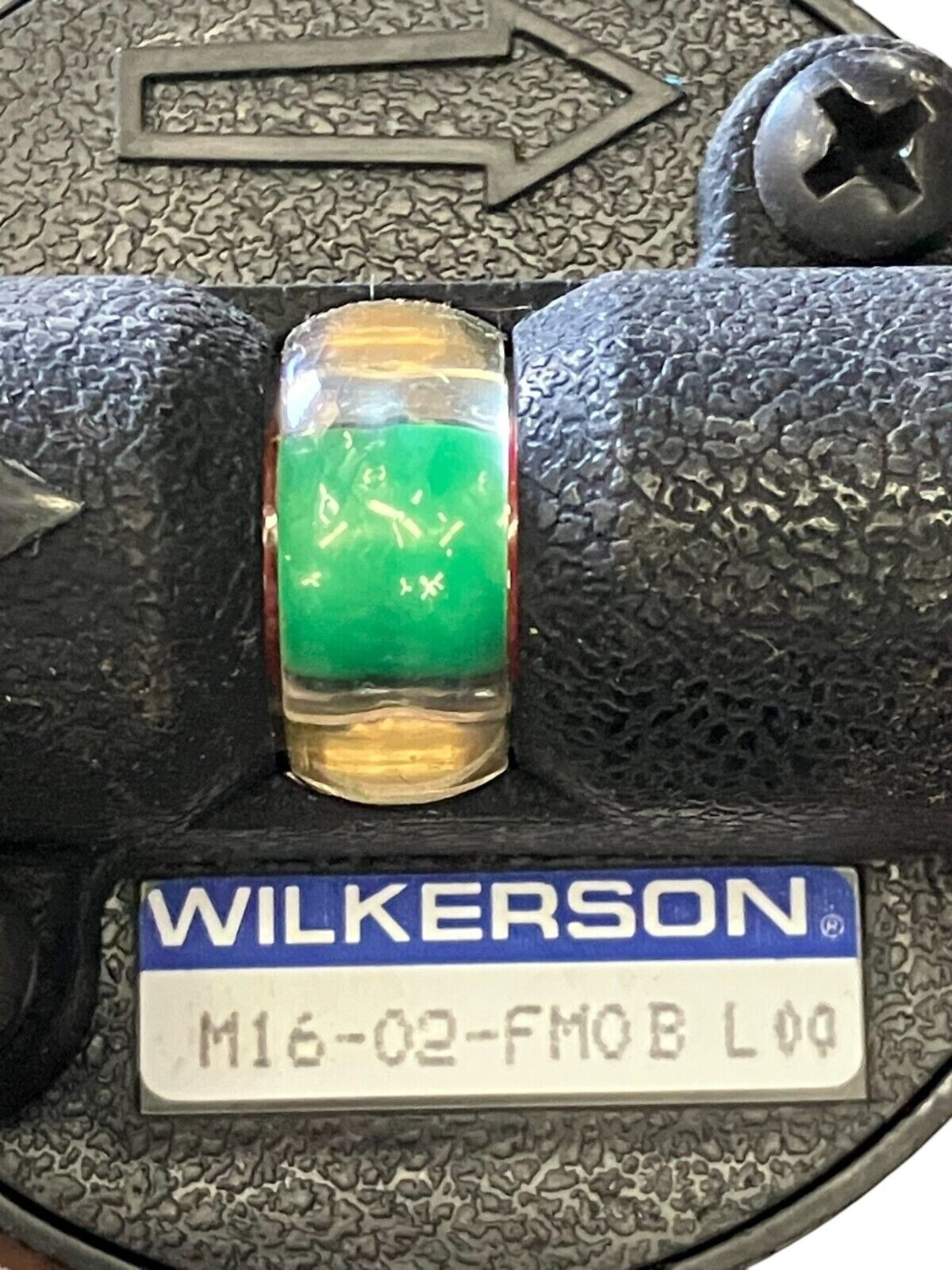

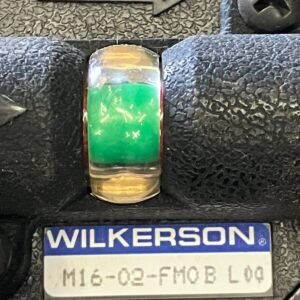

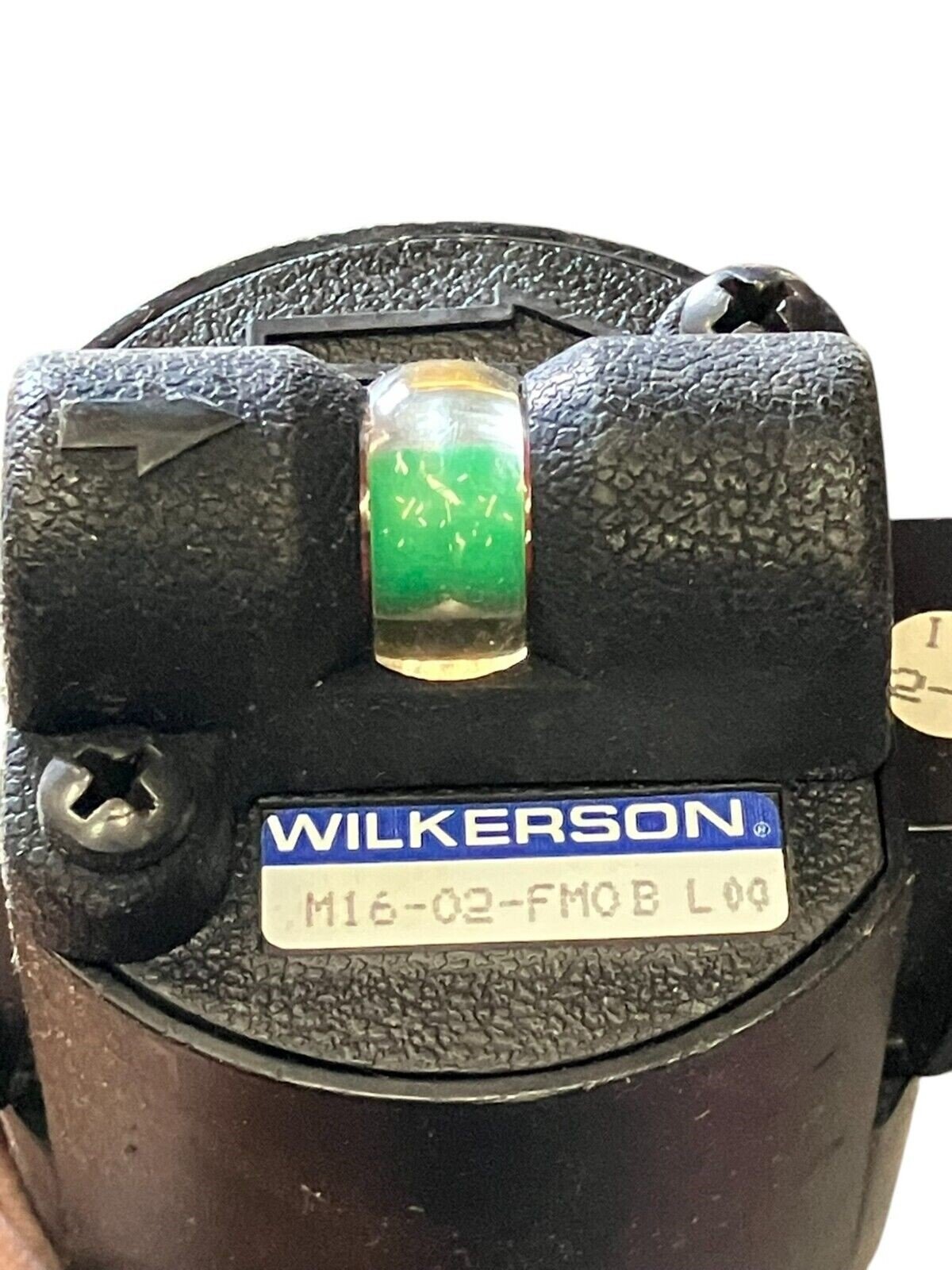

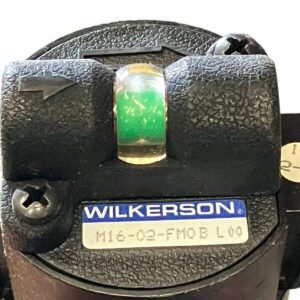

- Differential Pressure Indicator: Included
- Overall Height: Approximately 7.6″
- Overall Width: 3″
- Series: Wilkerson M16
- Fluid Type: Oil aerosol removal
Typical Applications
Grade B coalescing filters are used where removal of liquid aerosols and submicronic particles is required for general air quality. Typical applications include:
- Pneumatic air valves and cylinders protection
- Air conveyors and air gaging systems
- Air bearings and air control circuits
- Paint spraying equipment
- General industrial compressed air systems
This filter serves as an effective prefilter for downstream Grade C high-efficiency filters where extremely fine particulate removal is critical.
Compatibility & Replacements
Compatible With
- Standard 1/4″ NPT compressed air systems
- Inline mounting on compressed air piping
- Wilkerson M16 series accessory bowls and filter elements
- Standard pneumatic control circuits
Replaces / Drop-In Replacement For
- Wilkerson M16-02-000 (base model)
- Wilkerson M16-02-FU0 (related variant)
- Wilkerson M16-02-F00 (alternative configuration)
Works With
- All standard 1/4″ NPT compressed air components
- Manual or automatic drain systems
- Differential pressure indicator monitoring
- Wilkerson filter element replacements (Grade B and C options)
