Overview
The WIKA 50241451 pressure gauge (model 213.53) is a liquid-filled, analog pressure measuring instrument designed for commercial and industrial applications requiring precise pressure monitoring. The 213.53 series is liquid-filled, which ensures precise readability even with high dynamic pressure loads and vibrations. The 2.5-inch dial provides clear, easy-to-read pressure indication with 0-15 PSI range and 1/4″ NPT center back mount connection.
Key Features
- Liquid-filled case for enhanced durability and vibration resistance
- 0-15 PSI measuring range suitable for low-pressure applications
- 2.5-inch dial face for clear, visible gauge reading
- Center Back Mount (CBM) design for space-efficient installation
- 1/4″ NPT male connection for standard industrial piping
- Commercial-grade accuracy for reliable pressure indication
Technical Specifications
- Manufacturer: WIKA
- Model: 213.53

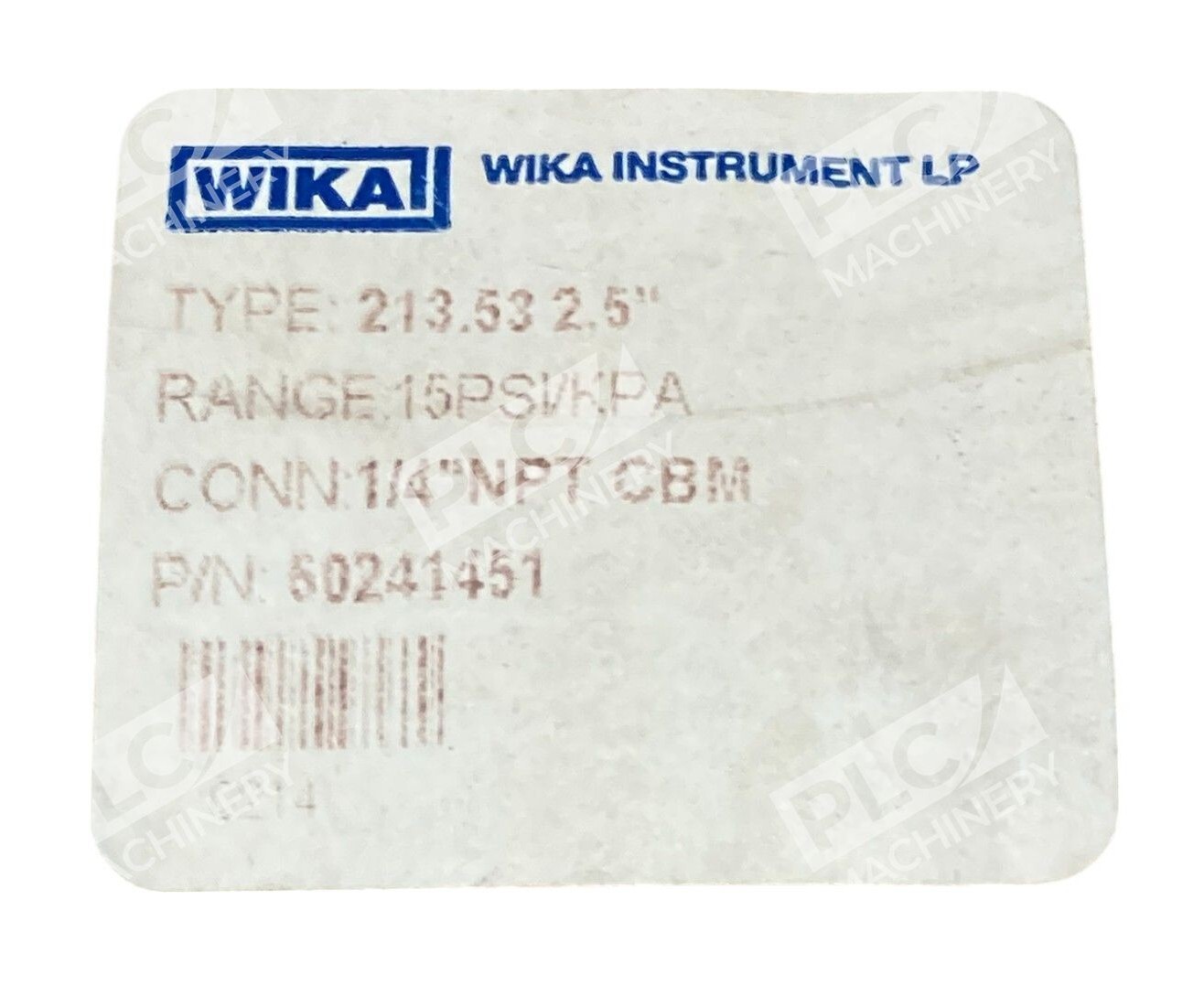

- Part Number: 50241451
- Pressure Range: 0–15 PSI (gauge)
- Dial Diameter: 2.5 inches
- Connection: 1/4″ NPT male (center back mount)
- Case Type: Liquid-filled (glycerine)
- Fill Medium: Glycerine
- Bourdon Tube Element: Copper alloy
- Temperature Range: –5°C to +50°C (typical commercial range)
- Display Type: Analog pointer dial
Typical Applications
This pressure gauge is ideal for monitoring low pressures in a variety of industrial and commercial applications including:
- Air compressor discharge and storage tank monitoring
- Pneumatic system pressure control and diagnostics
- Hydraulic system pressure indication
- Water supply system monitoring
- Medical and laboratory gas systems
- HVAC and refrigeration equipment
- Regulator and valve testing
Compatibility & Replacements
Compatible With
- Industrial pneumatic systems and compressors
- Hydraulic equipment and pump discharge lines
- Standard 1/4″ NPT male threaded ports
- Low-pressure gas and liquid media systems
- Water, air, and inert gas applications
Replaces / Drop-In Replacement For
- WIKA 213.53 series gauges with matching range and connection
- Compatible with other WIKA liquid-filled 0-15 PSI gauges using 1/4″ NPT
Works With
- Standard 1/4″ NPT male threaded connections (center back mount configuration)
- Pressure relief systems and regulators
- Manifold blocks and valve body ports
- Industrial piping and hose systems with NPT fittings
