Overview

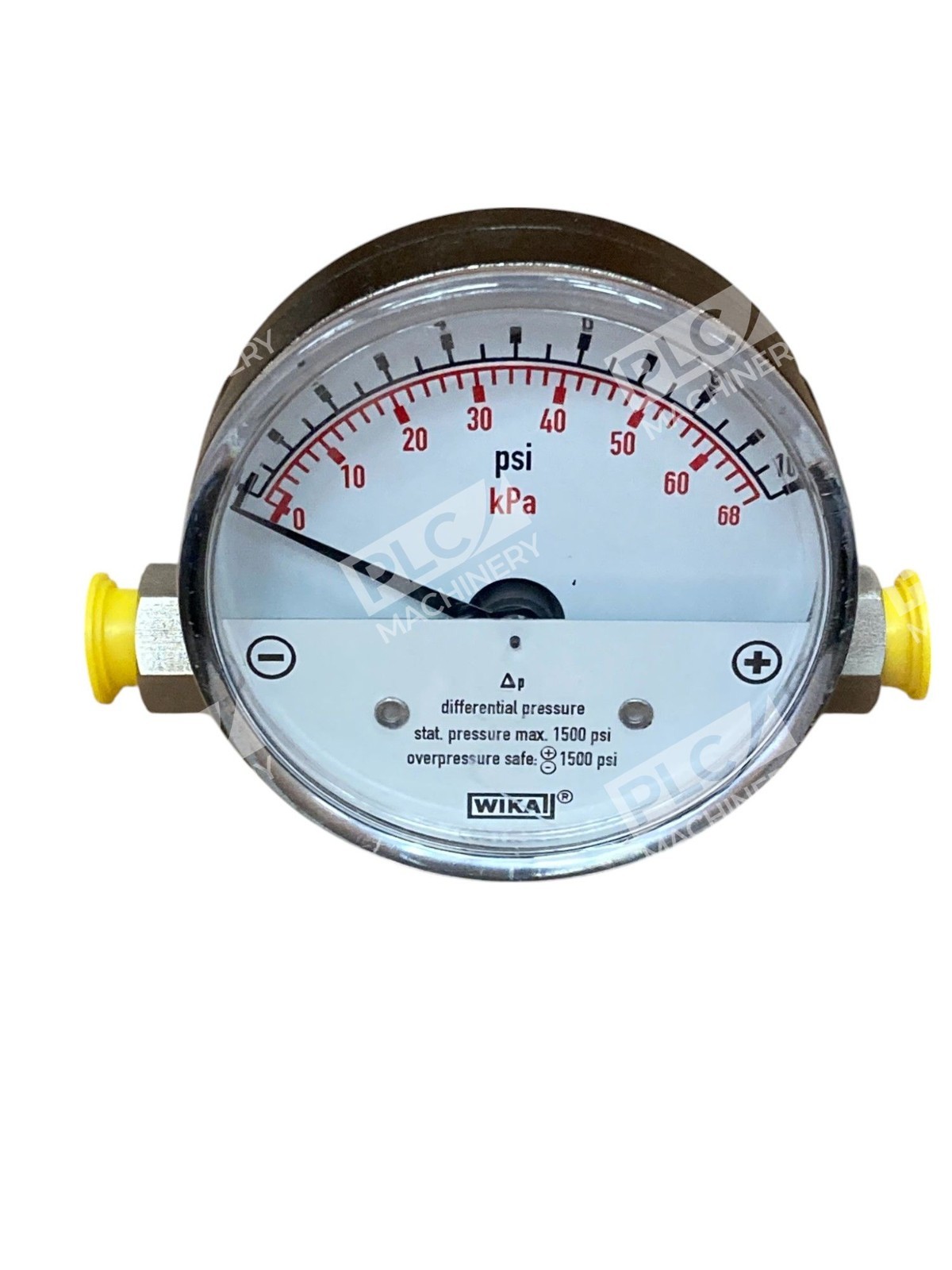

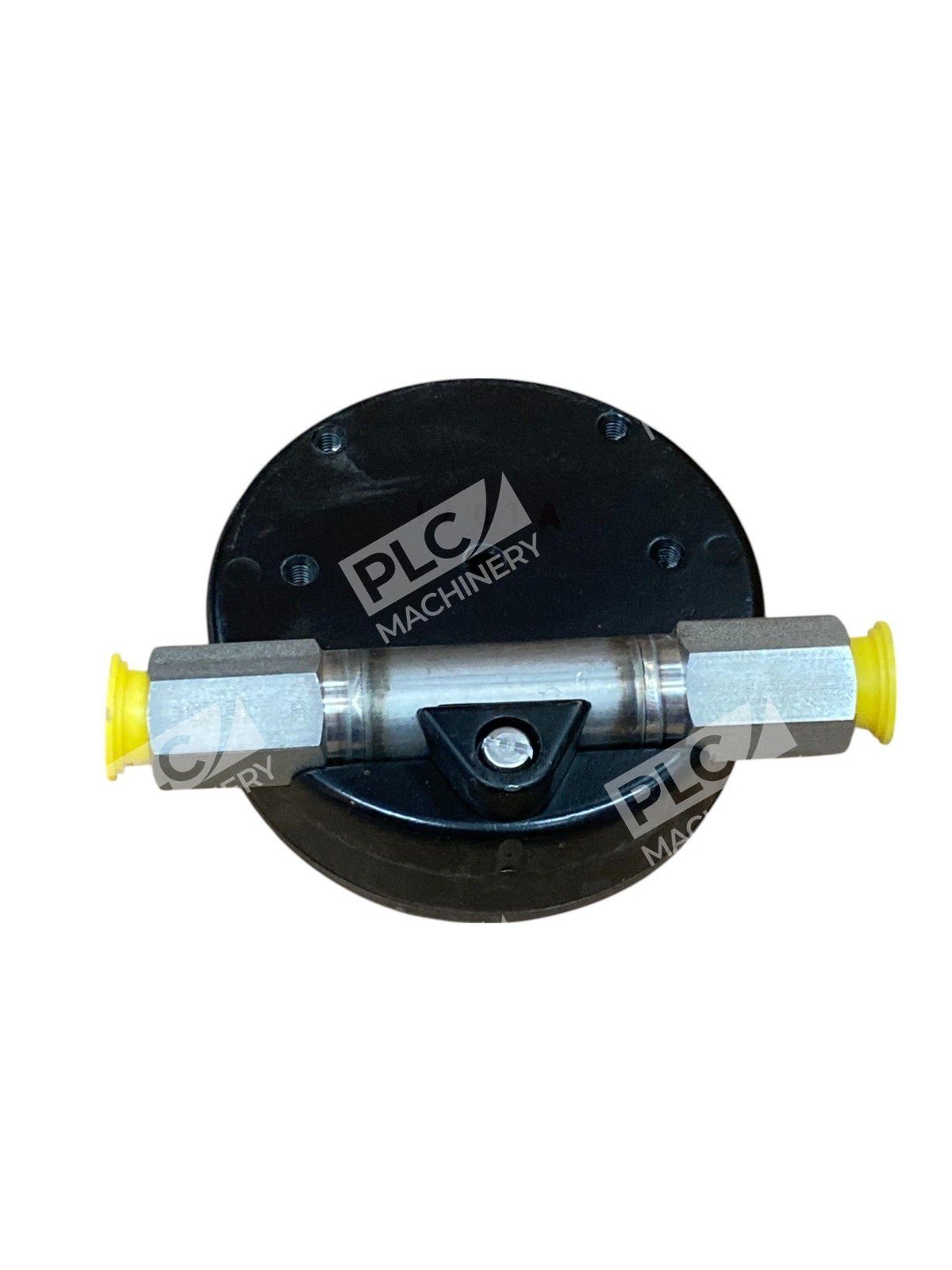

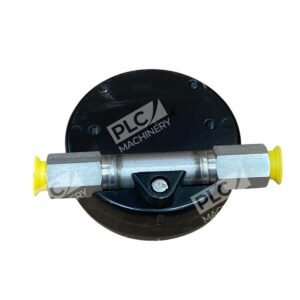

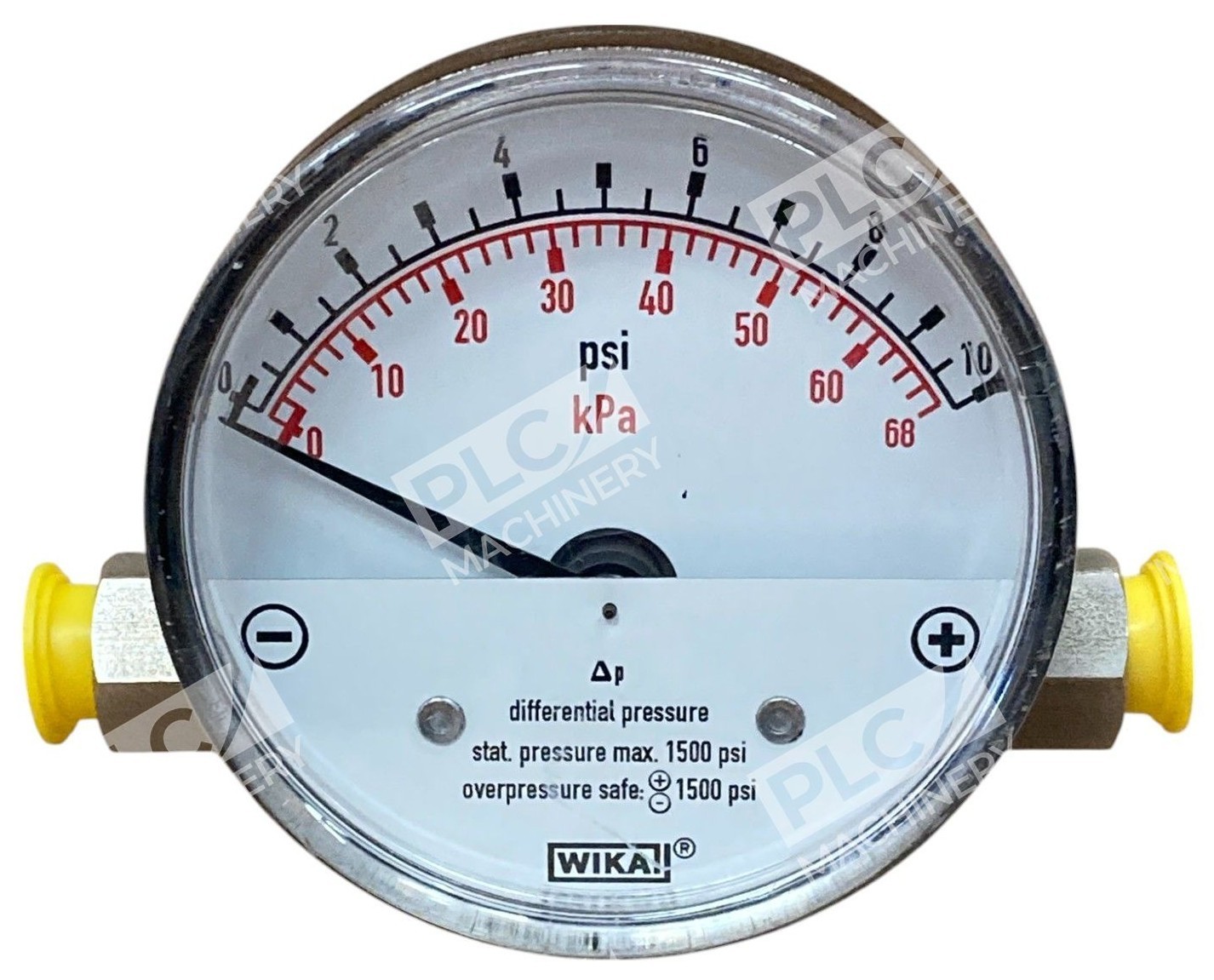

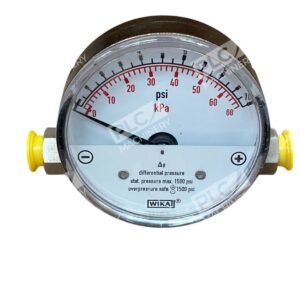

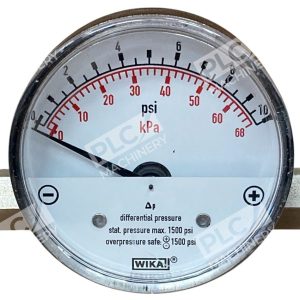

The Wika 1201A pressure gauge is a rugged analog instrument designed for precise pressure measurement in industrial, hydraulic, pneumatic, and plumbing applications. With a maximum measuring range of 0-10 PSI (0-68 kPa), this gauge features a 4-inch face diameter and a 1/4-inch NPT bottom-mount connection, making it suitable for direct installation into manifolds, tanks, and system components.
Key Features
- 0-10 PSI (0-68 kPa) measuring range for low-pressure applications
- 4-inch face diameter for clear, easy-to-read indication
- 1/4-inch NPT bottom-mount connection for versatile installation
- Analog dial readout with dependable pointer mechanism
- Proven Bourdon tube measurement technology
Technical Specifications
- Measuring Range: 0-10 PSI (0-68 kPa)
- Face Diameter: 4 inches
- Connection Type: 1/4-inch NPT bottom mount
- Display Type: Analog dial with pointer
- Measurement Technology: Bourdon tube
- Manufacturer: WIKA
- Part Number: 1201A
Typical Applications
- Hydraulic system pressure monitoring
- Pneumatic equipment pressure verification
- Water and plumbing system pressure measurement
- HVAC and refrigeration systems
- Compressed air line monitoring
- Industrial process pressure control and verification
Compatibility & Replacements
Compatible With
- Standard 1/4-inch NPT threaded ports on manifolds and tanks
- Hydraulic and pneumatic circuit pressure taps
- Plumbing systems with compatible connection sizes
- Any system requiring low-pressure monitoring (0-10 PSI range)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The Wika 1201A is a direct replacement for other 4-inch, 0-10 PSI gauges with 1/4-inch NPT bottom-mount connections from equivalent manufacturers.
Works With
- Hydraulic systems using low-pressure monitoring
- Pneumatic air supply circuits
- Water supply and distribution networks
- Standard pressure gauge isolation blocks and snubbers
- Any industrial process requiring analog pressure indication
