Overview

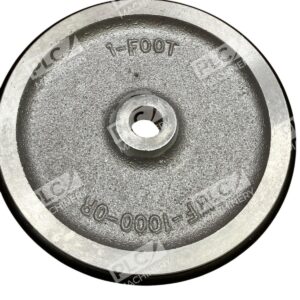

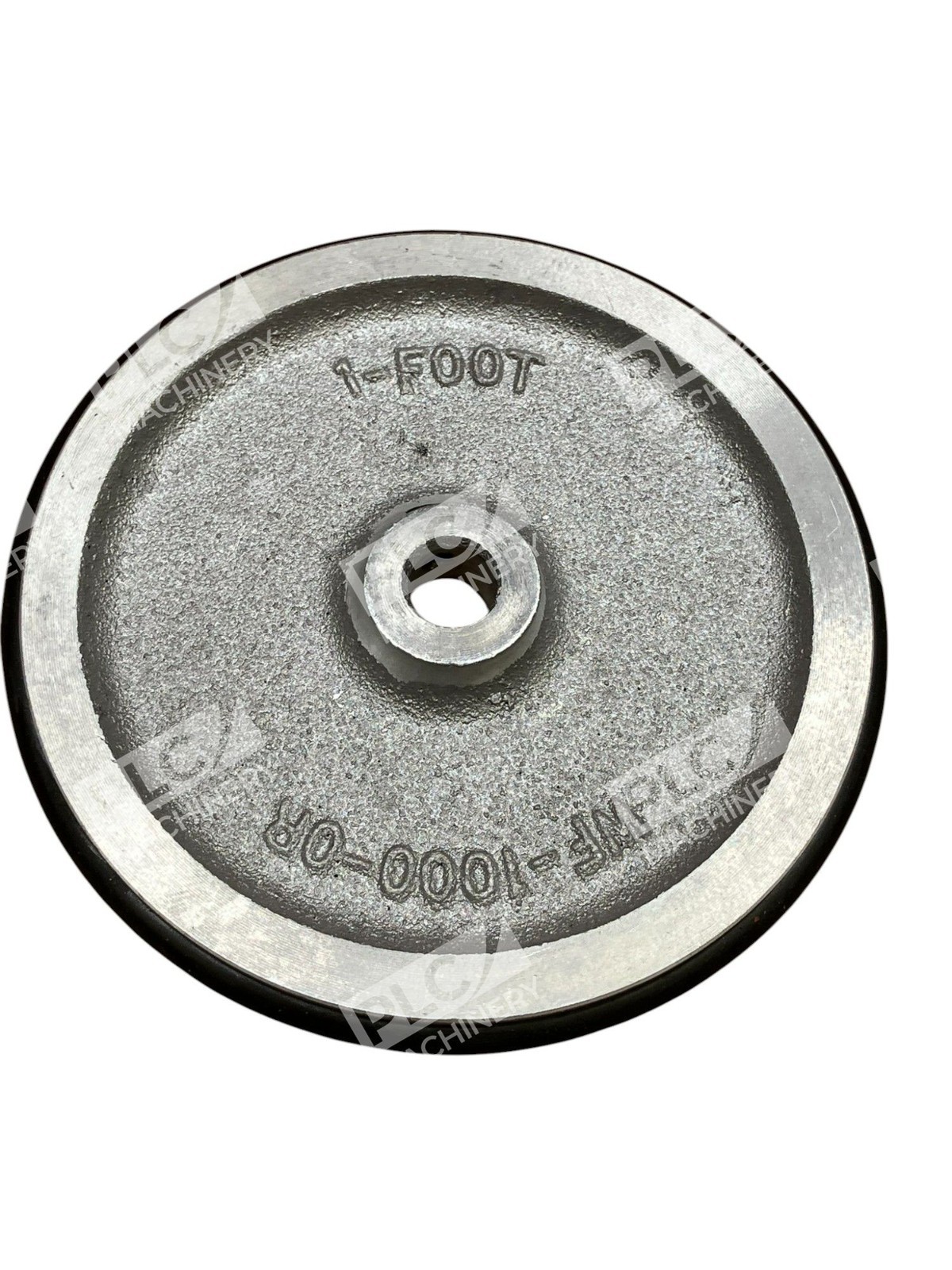

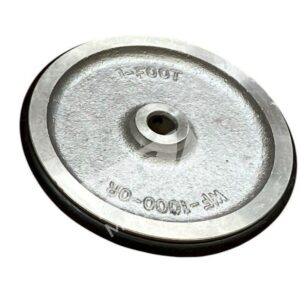

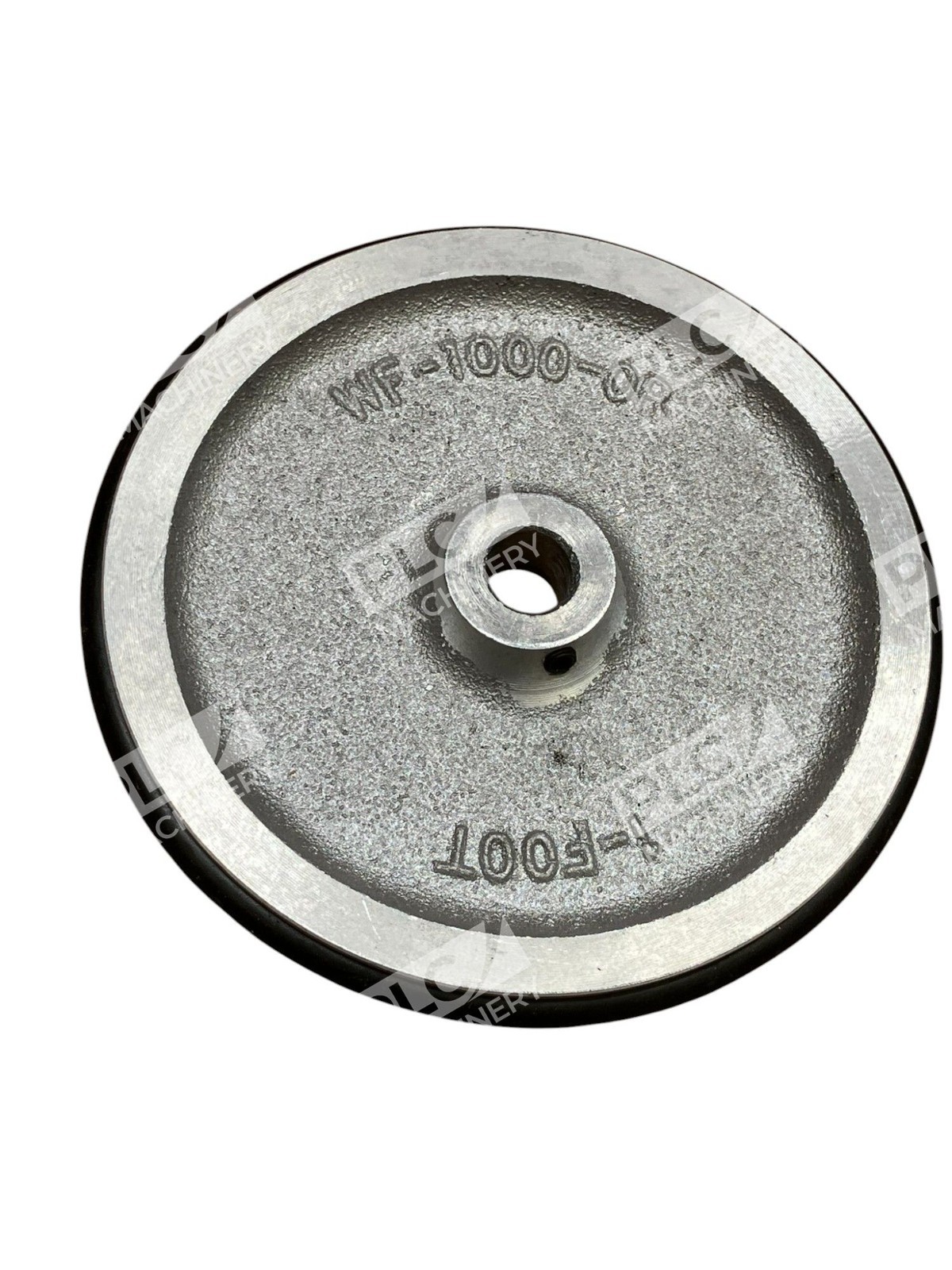

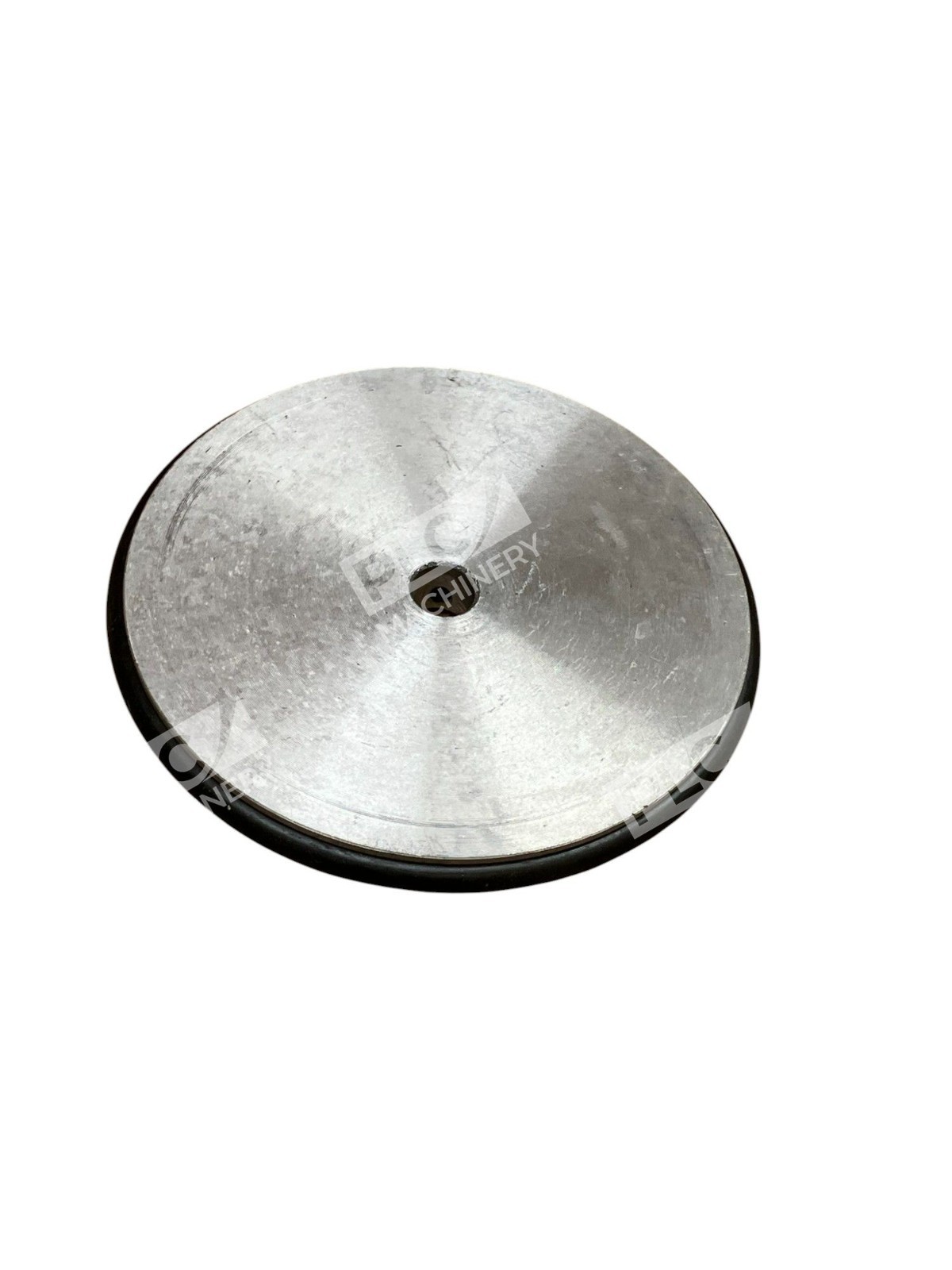

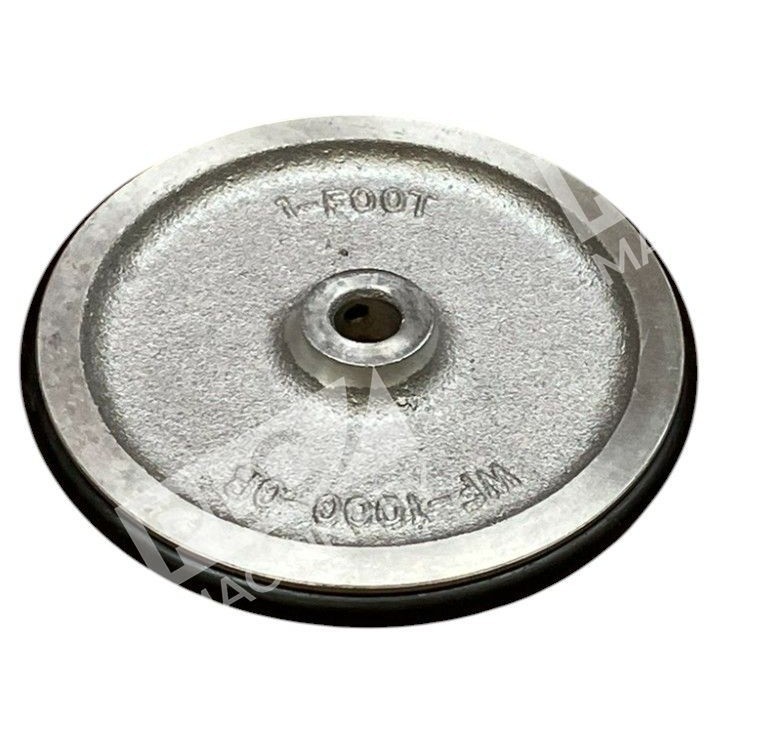

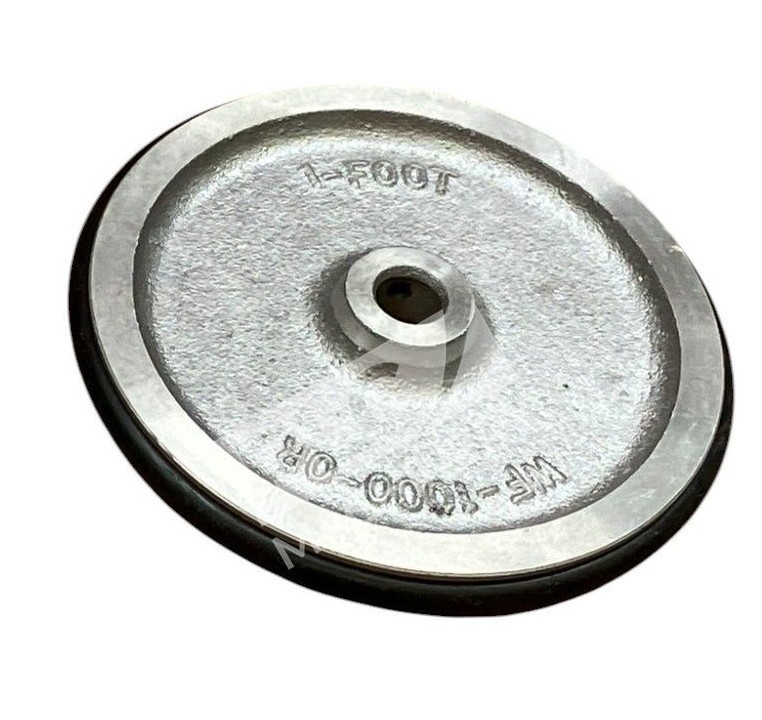

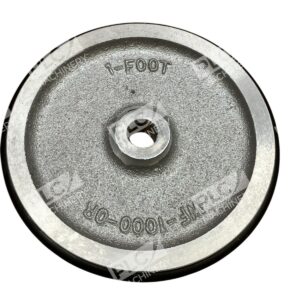

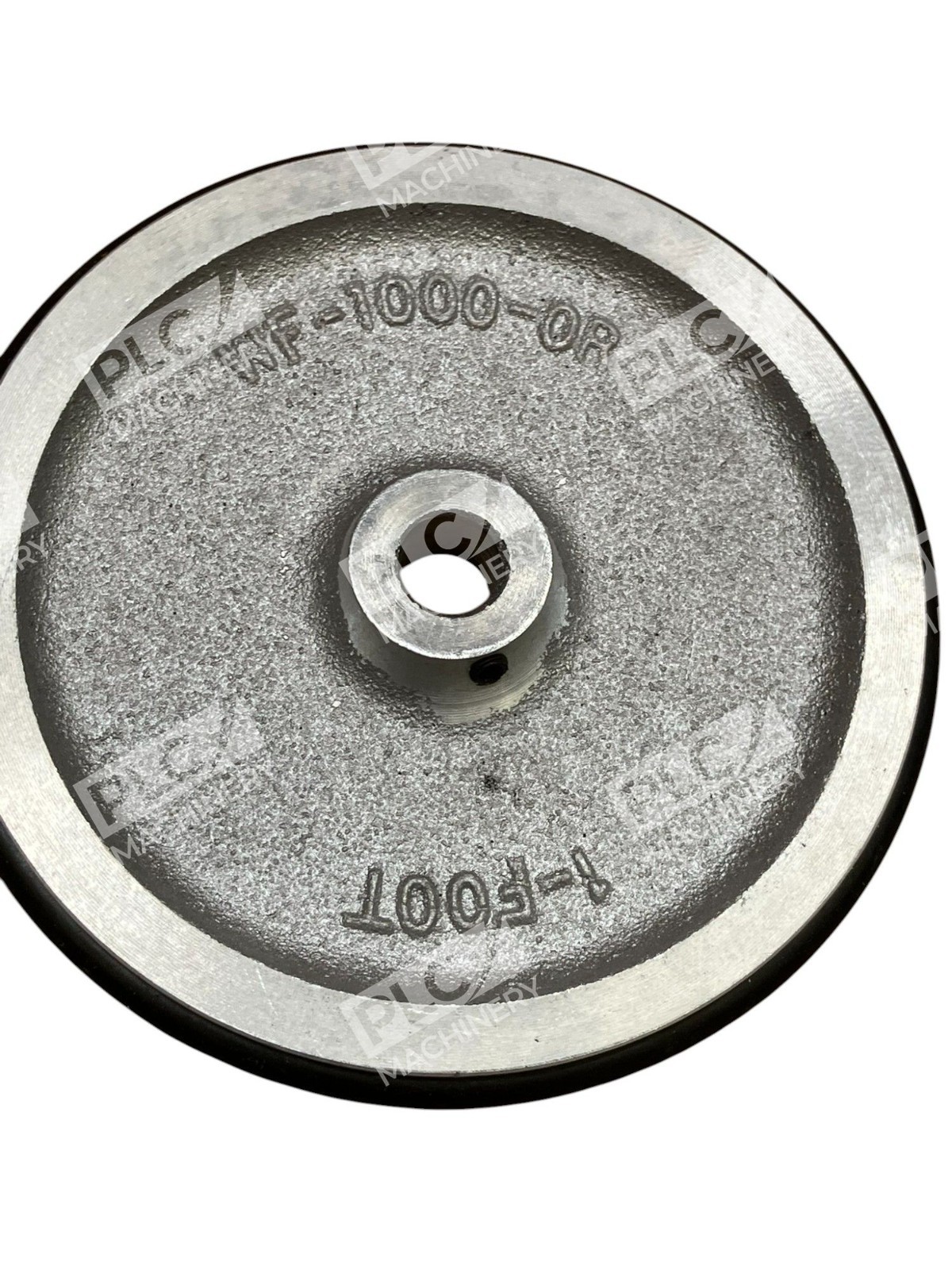

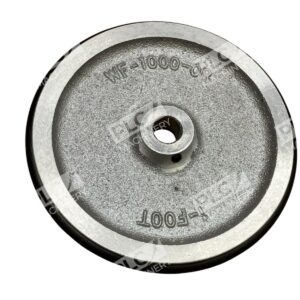

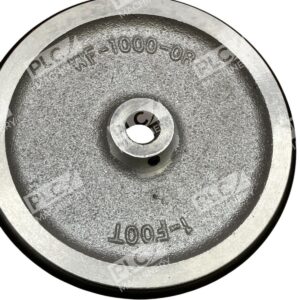

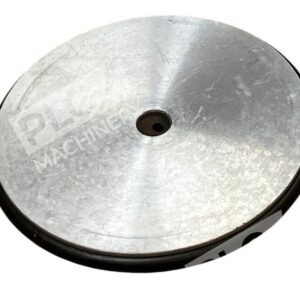

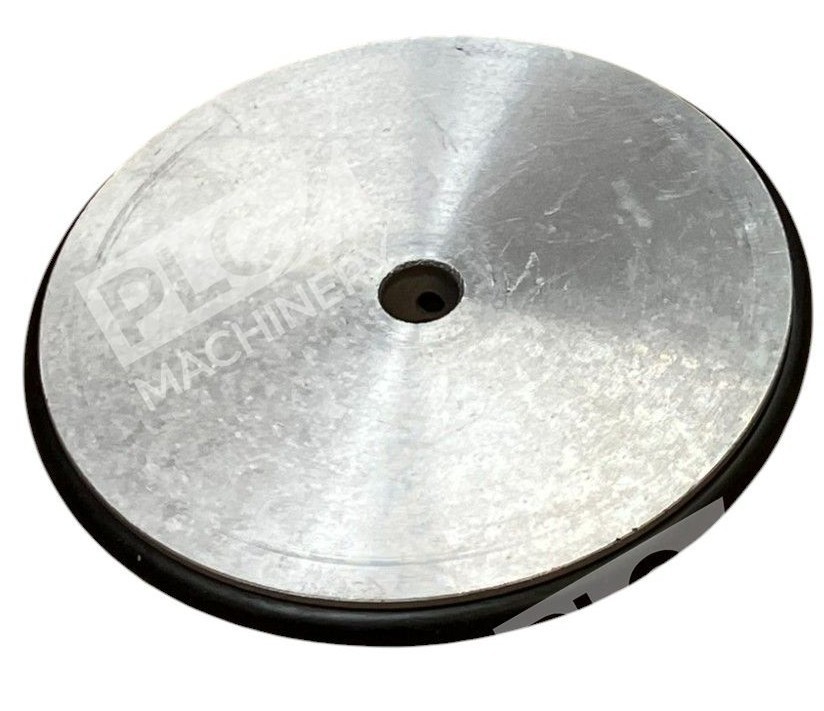

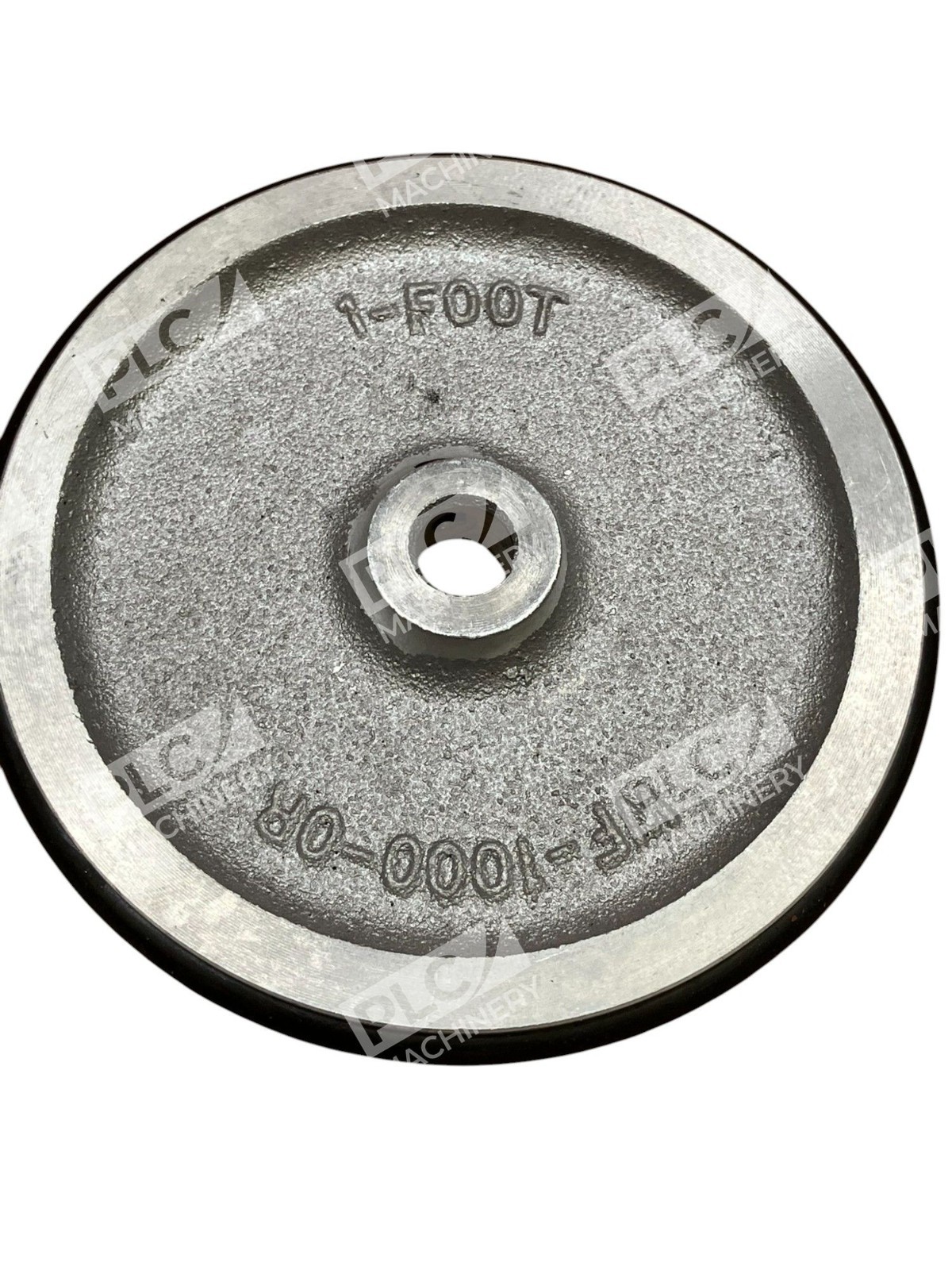

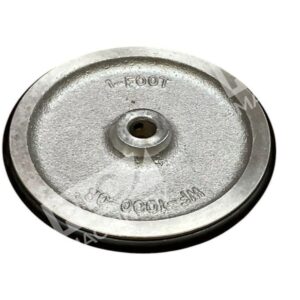

The Red Lion WF-1000-OR measuring wheel is a precision encoder component designed for distance and length measurement in industrial automation systems. This 1-foot circumference wheel features durable neoprene tread and is engineered for compatibility with Red Lion’s RPGC and LSC incremental encoders. It delivers accurate pulse output suitable for manufacturing equipment, packaging systems, and process control applications where reliable material tracking is essential.
Key Features
- 1-Foot Circumference: Generates one pulse per linear foot of material movement
- Neoprene Tread Material: Optimal grip on metal, paper, foil, film, and hard plastics without slipping
- 600 RPM Maximum Speed: Rated for continuous industrial duty up to 600 RPM
- 3/8″ Aluminum Shaft: Heavy-duty stainless steel construction with 8/32 set screw coupling for quick installation
- Precision Accuracy: ±0.40% tolerance ensures consistent measurement across production runs
Technical Specifications
- Wheel Circumference: 1 foot (1/3 yard)
- Tread Material: Neoprene, 0.210″ diameter
- Base Material: Aluminum hub
- Shaft Size: 3/8″ diameter with 8/32″ set screw
- Maximum Speed: 600 RPM
- Measurement Tolerance: ±0.40%
- Encoder Compatibility: RPGC and LSC incremental encoders
- Mounting: Set screw coupling to 3/8″ shaft
Typical Applications
- Packaging and labeling equipment measuring material feed length
- Wire and cable measurement systems
- Film and foil production line distance tracking
- Paper sheeting and roll measurement
- Material handling conveyors with length verification
- CNC router and waterjet cutting systems requiring cut length feedback
Compatibility & Replacements
Compatible With
- Red Lion RPGC incremental rotary encoders
- Red Lion LSC incremental rotary encoders
- Red Lion counters and rate indicators
- Red Lion process controllers accepting encoder pulse input
Replaces / Drop-In Replacement For
- Original Red Lion WF-1000-OR measuring wheels in operational equipment
- Worn or damaged neoprene-tread encoder wheels for RPGC/LSC systems
- Direct replacement for identical part numbers across RPGC and LSC encoder platforms
Works With
- Red Lion RPGC encoder systems (NEMA 13/IP54 rated)
- Red Lion LSC encoder systems (NEMA 13/IP54 rated)
- Systems requiring NPN open collector output and pulse train signals
- Applications using +8 to +35 VDC power supply encoders
