Overview

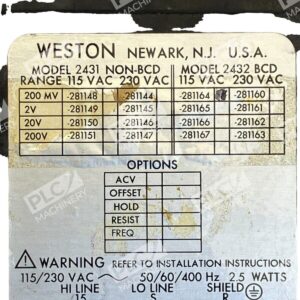

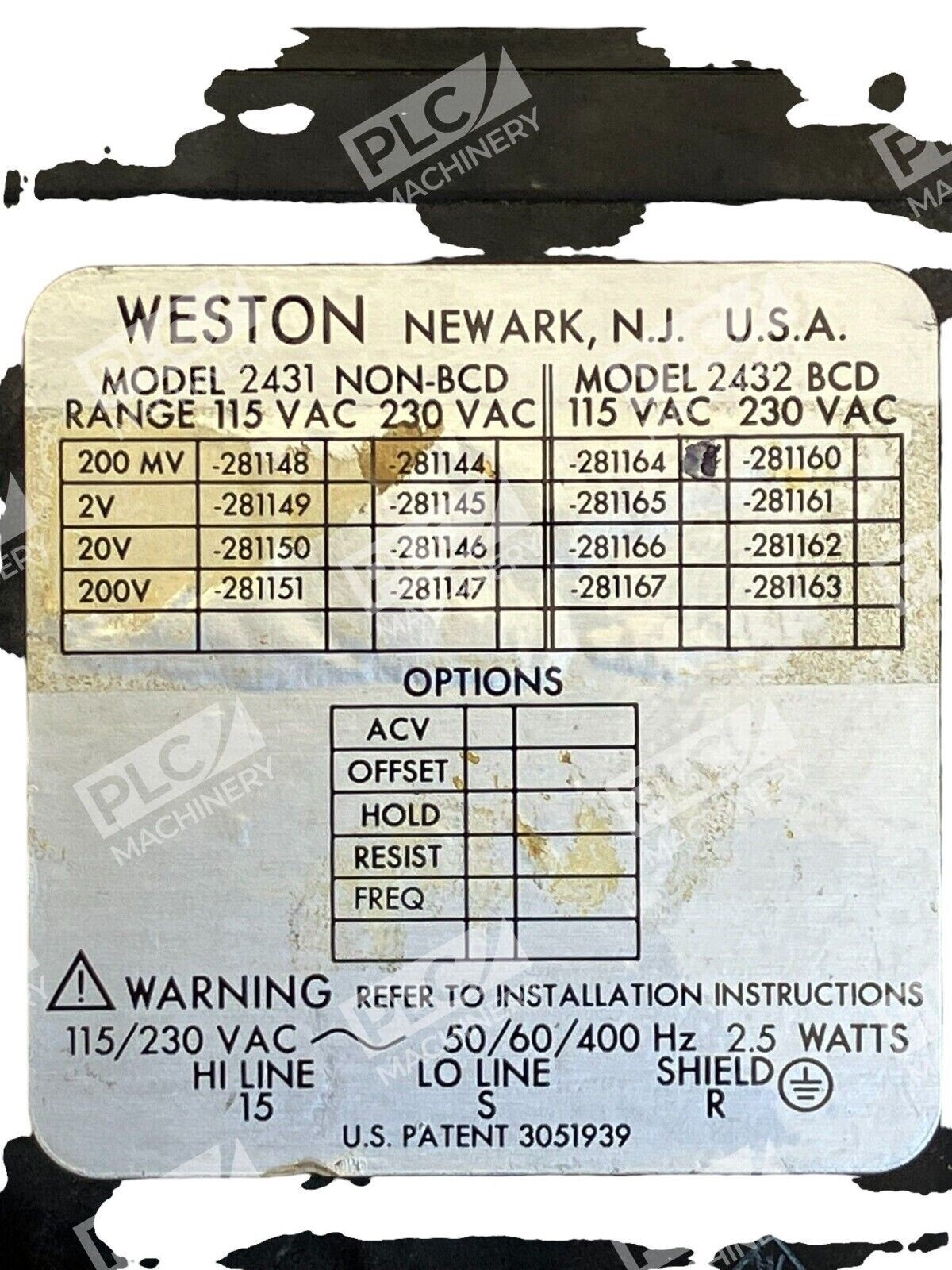

The Weston 2431 non-BCD and Weston 2432 BCD digital panel meters are legacy industrial instruments designed for cabinet-mount applications. Both models support dual input voltage options (115VAC or 230VAC) and accommodate multiple frequency standards including 50Hz, 60Hz, and 400Hz operation. These meters were commonly used in control systems, test equipment, and power distribution panels where real-time digital display of electrical parameters was required.
Key Features
- Dual voltage operation: 115VAC or 230VAC input selection
- Low power consumption: 2.5 watts typical
- Multi-frequency support: 50Hz, 60Hz, and 400Hz compatible
- Panel-mount configuration with standard cutout dimensions
- Non-BCD (2431) and BCD output (2432) variants available
Technical Specifications
- Input Voltage: 115VAC or 230VAC selectable
- Frequency: 50/60/400Hz
- Power Consumption: 2.5 watts
- Mounting: Panel mount
- Display Type: LED digital (2432 includes BCD output)
- Weight: 1.26 lbs (2432)
Typical Applications
- Industrial control panel instrumentation
- Power monitoring and metering in electrical cabinets
- Legacy test equipment and measurement systems
- OEM retrofit and system updates where digital indication is required
- Educational and training lab equipment
Compatibility & Replacements
Compatible With
- Standard industrial electrical cabinets with 115VAC or 230VAC control power supplies
- Systems requiring 50Hz, 60Hz, or 400Hz operation
- Legacy panel-mount instrumentation racks
- BCD-enabled controllers and data acquisition systems (Model 2432 variant)
Replaces / Drop-In Replacement For
- Original Weston Model 2431 (non-BCD variant)
- Original Weston Model 2432 (BCD variant)
- Verify mounting cutout dimensions and electrical connections with your system before installation
Works With
- Direct line-voltage operation (115VAC or 230VAC power supplies)
- Legacy industrial control systems and PLCs
- BCD logic circuits and data logging systems (2432 model)
- Standard 50Hz, 60Hz, and 400Hz AC power systems
