Weston 300A 100MV 150A 50MV Current Shunt Resistor 224

Weston 300A 100mV and 150A 50mV Current Shunt Resistor 224

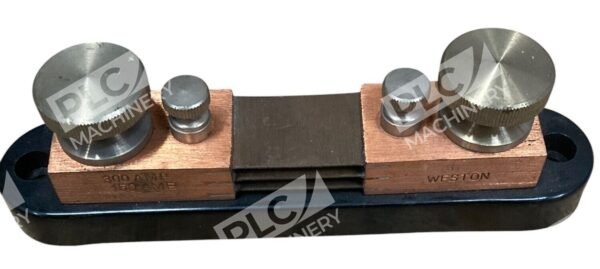

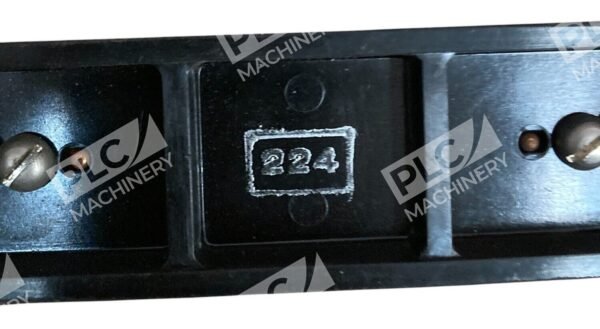

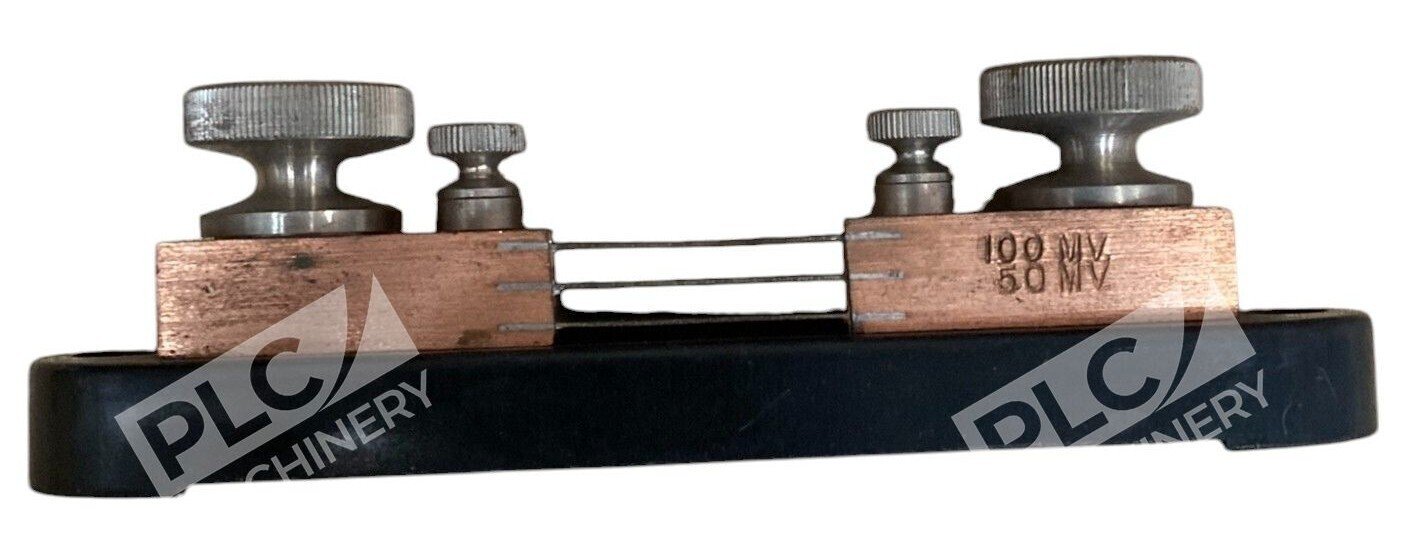

The Weston 300A 100mV and 150A 50mV Current Shunt Resistor 224 is a precision instrument designed for accurate current measurement in electrical systems. This dual-range shunt resistor allows for versatile applications, accommodating both 300-ampere and 150-ampere currents with corresponding voltage drops of 100 millivolts and 50 millivolts, respectively.

Key Features

• Dual Current Ratings: Supports measurements for 300A at 100mV and 150A at 50mV, providing flexibility for various electrical setups.
• High Accuracy: Engineered to deliver precise current readings, essential for monitoring and control in sensitive applications.
• Durable Construction: Built with high-quality materials to ensure longevity and consistent performance under continuous use.
• Standardized Output: Produces standardized millivolt outputs, facilitating easy integration with measuring instruments and monitoring systems.

Applications

This shunt resistor is ideal for use in:

• Industrial power systems
• Laboratory testing equipment
• Battery monitoring systems
• Renewable energy installations

Installation and Usage

For optimal performance, ensure the shunt is installed in a well-ventilated area to allow for adequate heat dissipation. Proper connection to the measuring instruments is crucial to maintain accuracy and safety.

The Weston 300A 100mV and 150A 50mV Current Shunt Resistor 224 stands as a reliable component for precise current measurement, catering to a wide range of electrical monitoring needs.
