Overview

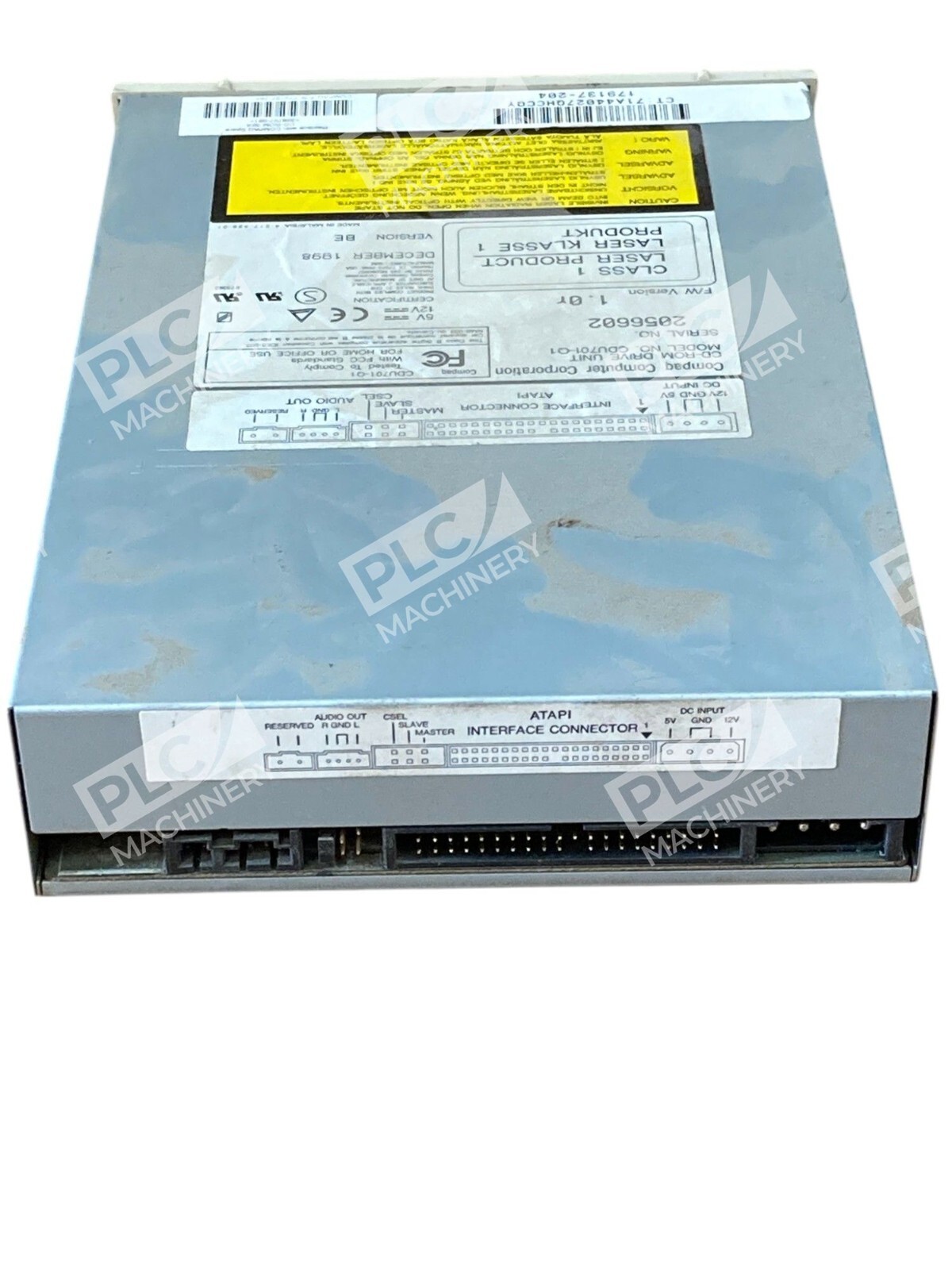

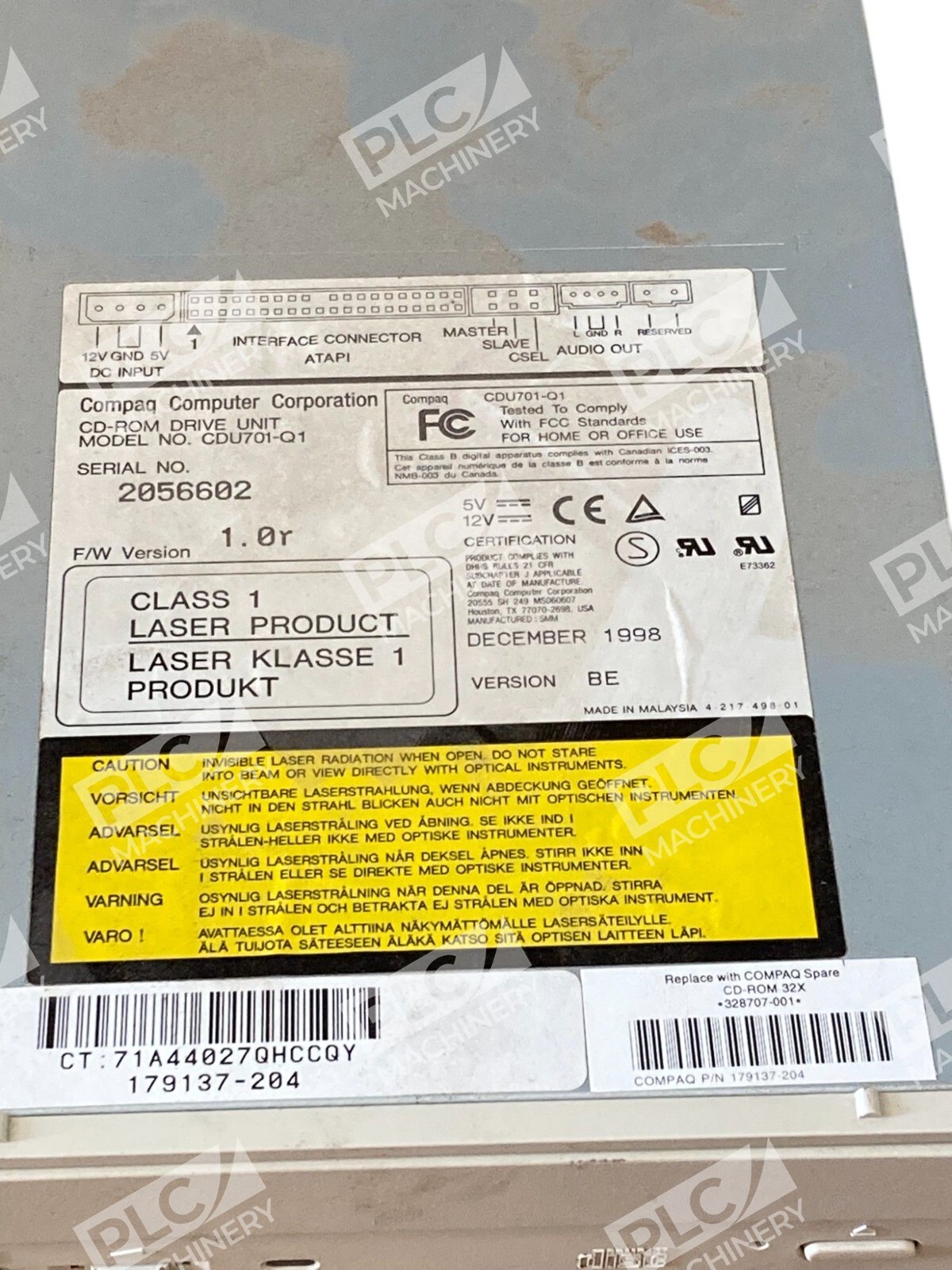

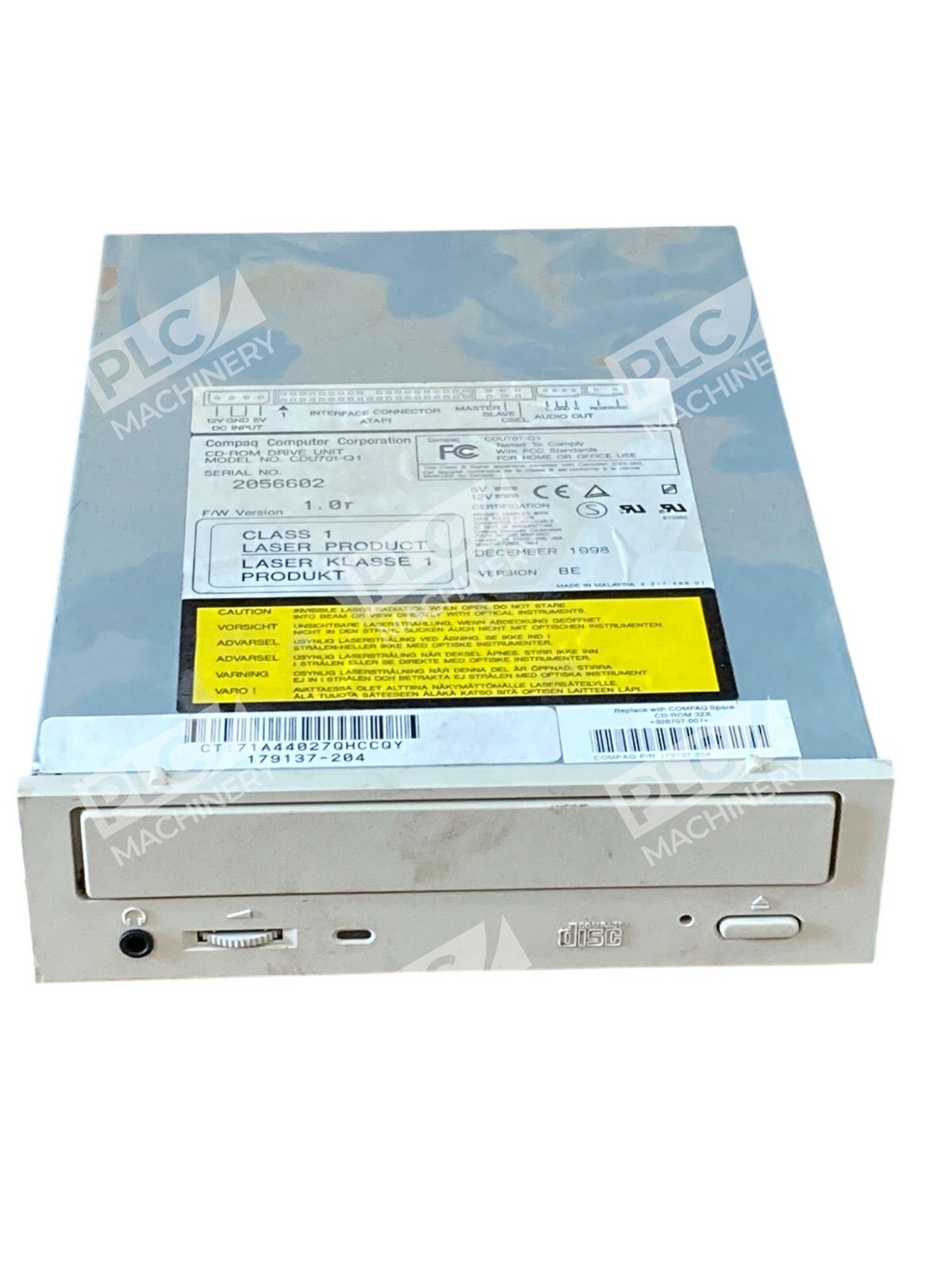

The Compaq CDU701-Q1 is a 32X speed internal CD-ROM drive utilizing the IDE/ATAPI interface standard. Originally designed for Compaq desktop computers, this drive delivers reliable CD media reading capabilities for legacy system restoration and archival projects. The CDU701-Q1 features a standard 5.25-inch form factor and connects directly to a standard IDE/ATAPI channel on any compatible motherboard.
Key Features
- 32X maximum CD read speed for efficient media access
- IDE/ATAPI interface compatible with standard ATA controllers
- Supports CD-ROM, CD-R, and CD-RW media formats
- Internal desktop drive form factor, 5.25-inch bay mounting
- Designed for Compaq desktop systems; compatible with other systems using IDE/ATAPI
Technical Specifications
| Drive Model | Compaq CDU701-Q1 |
| Interface | IDE/ATAPI |
| Drive Type | Internal Desktop CD-ROM |
| Form Factor | 5.25-inch Internal |
| Maximum Read Speed | 32X CD |
| Media Supported | CD-ROM, CD-R, CD-RW |
| Data Transfer Rate | Up to 4.8 MB/s |
| Buffer Memory | Typical for 32X drives: 256–512 KB |
| Mounting | Standard 5.25-inch bay |
Typical Applications
- Legacy System Restoration: Retrofit older Compaq or compatible desktop computers that require optical drive functionality
- Archival Media Access: Read CD-ROM archives, software distributions, and historical data stored on CD media
- Retro Computing: Support classic PC builds and museum-grade computer preservation projects
- System Migration: Install software from CD media during legacy system setup or recovery
Compatibility & Replacements
Compatible With
- Compaq desktop computers with IDE/ATAPI channel support
- Any system with standard IDE/ATAPI motherboard interface
- Windows 95, 98, ME, NT 4.0, 2000, XP operating systems
- DOS and early Linux systems with ATAPI driver support
Replaces / Drop-In Replacement For
- Other Compaq 32X CD-ROM models with equivalent ATAPI interface (model variations may exist)
- Compatible IDE/ATAPI CD-ROM drives in 5.25-inch bays with matching pinouts
- Note: Verify mechanical fit and connector compatibility before installation
Works With
- IDE/ATAPI controllers on Intel and compatible chipsets
- Both primary and secondary IDE channels
- Master/Slave configuration on shared IDE cables
- BIOS-level CD-ROM drive detection and boot support (on compatible systems)
