Overview

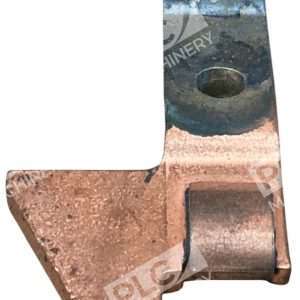

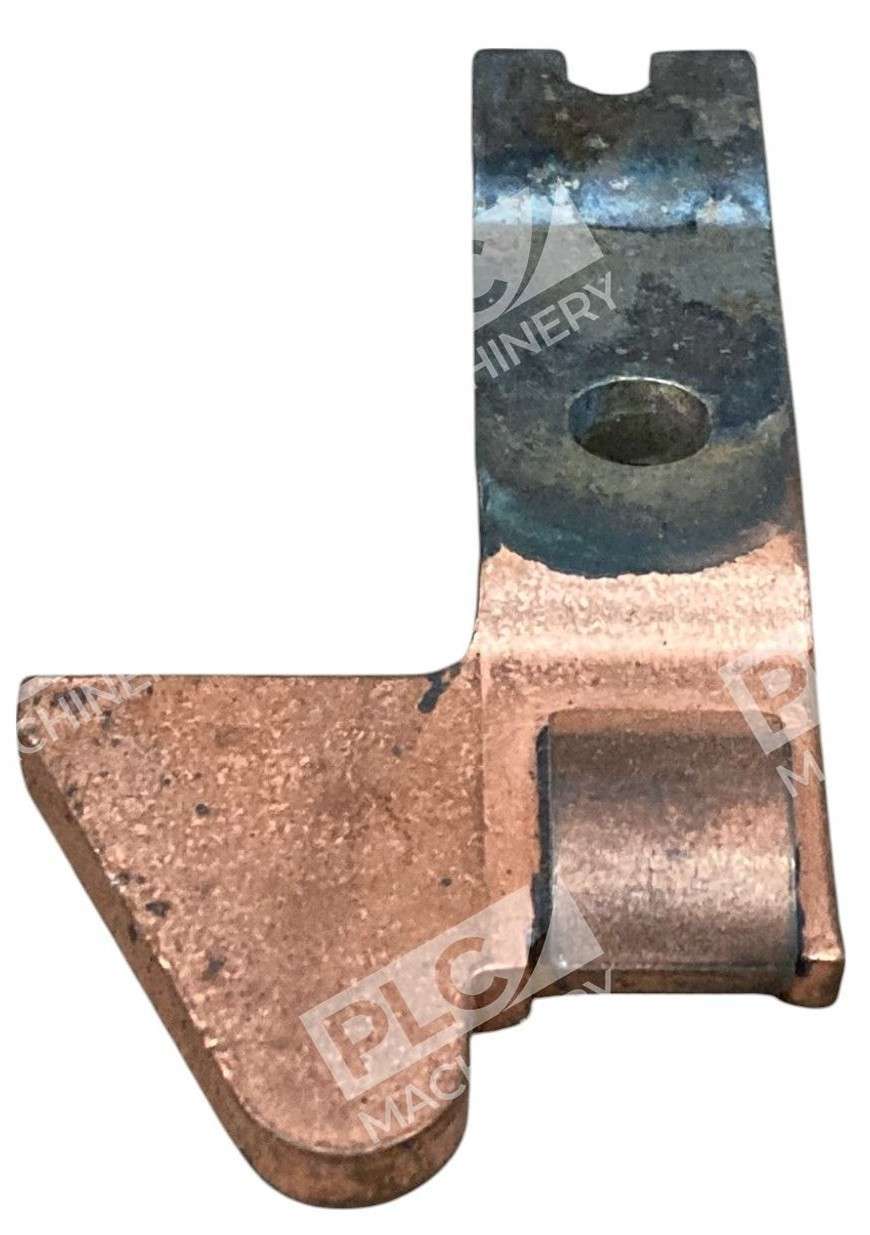

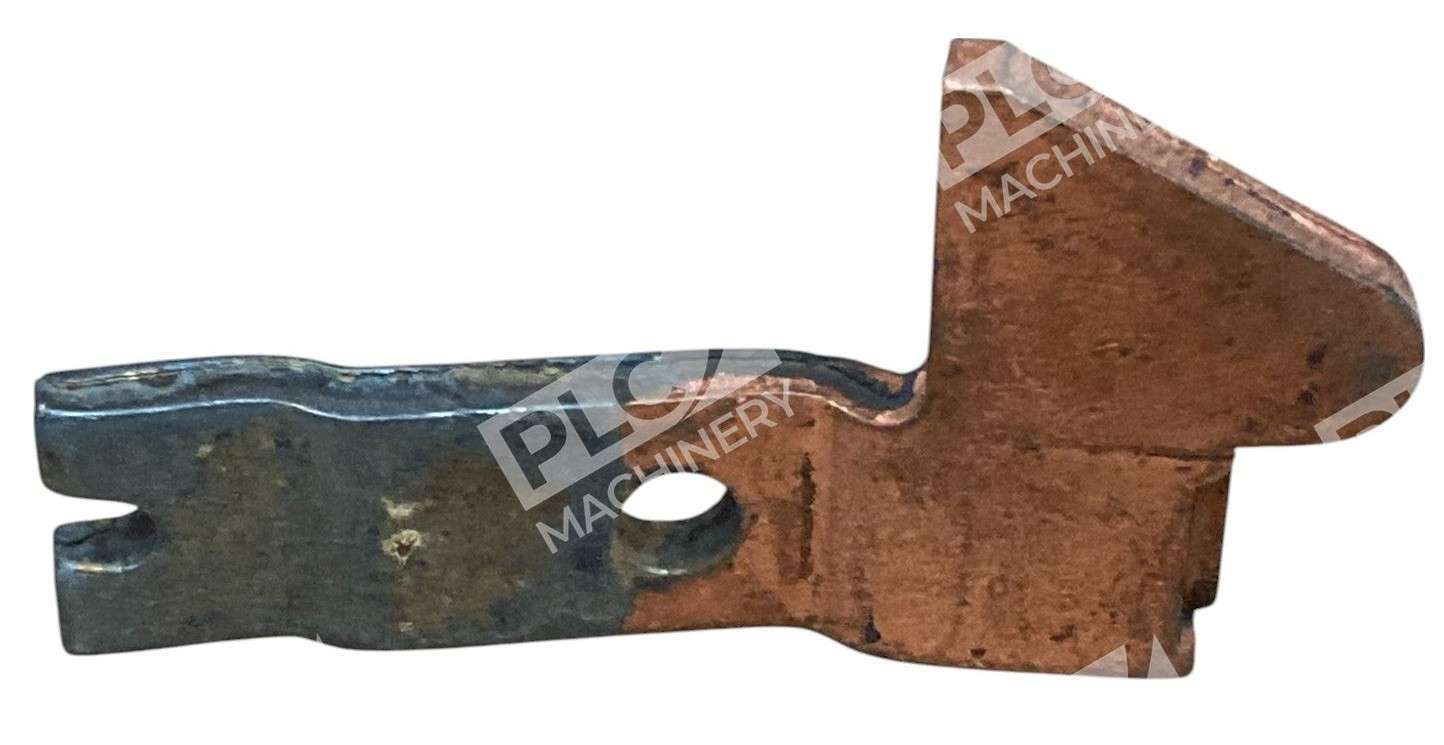

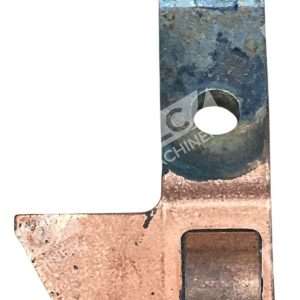

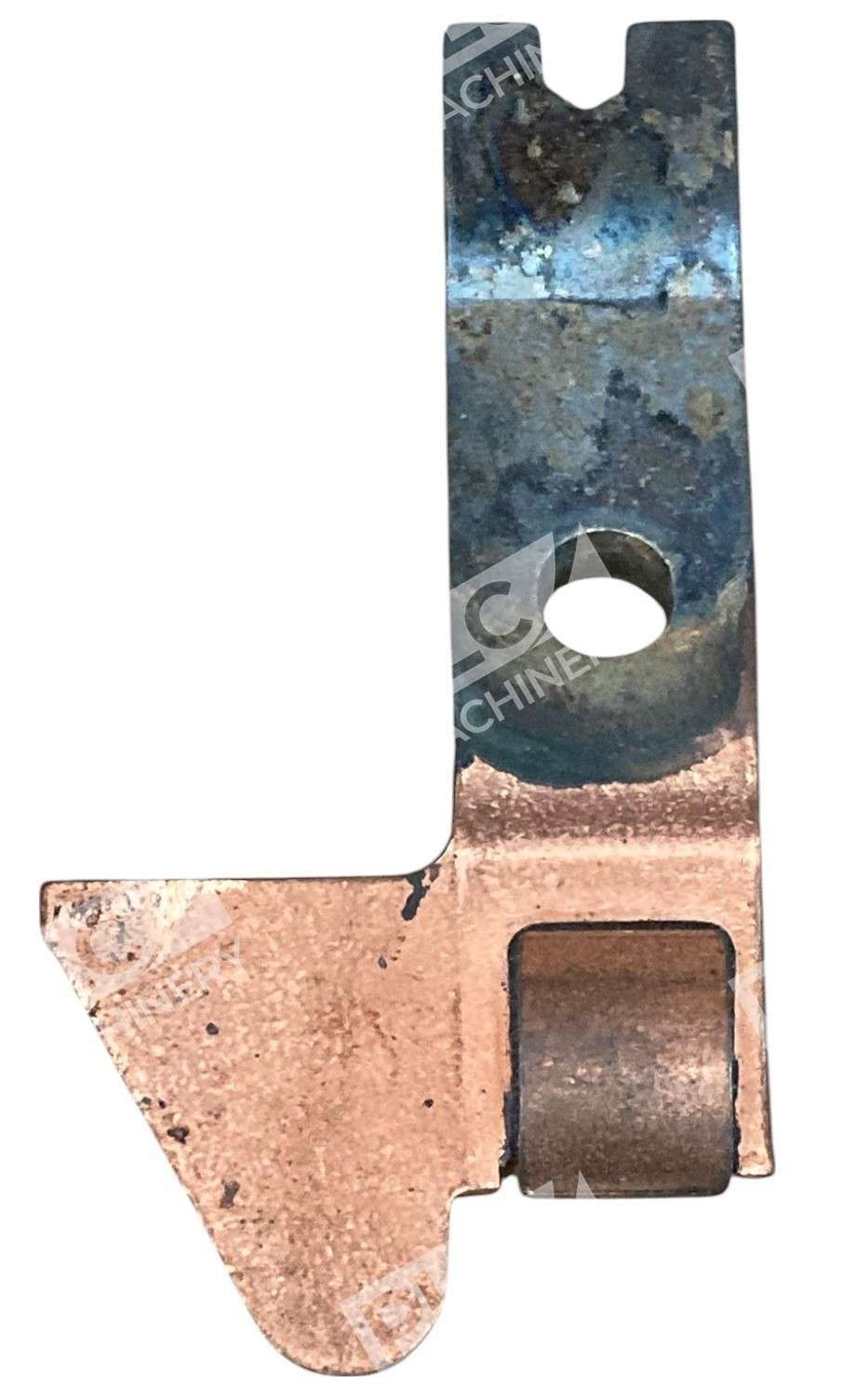

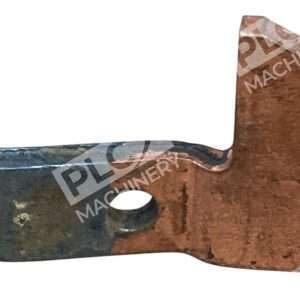

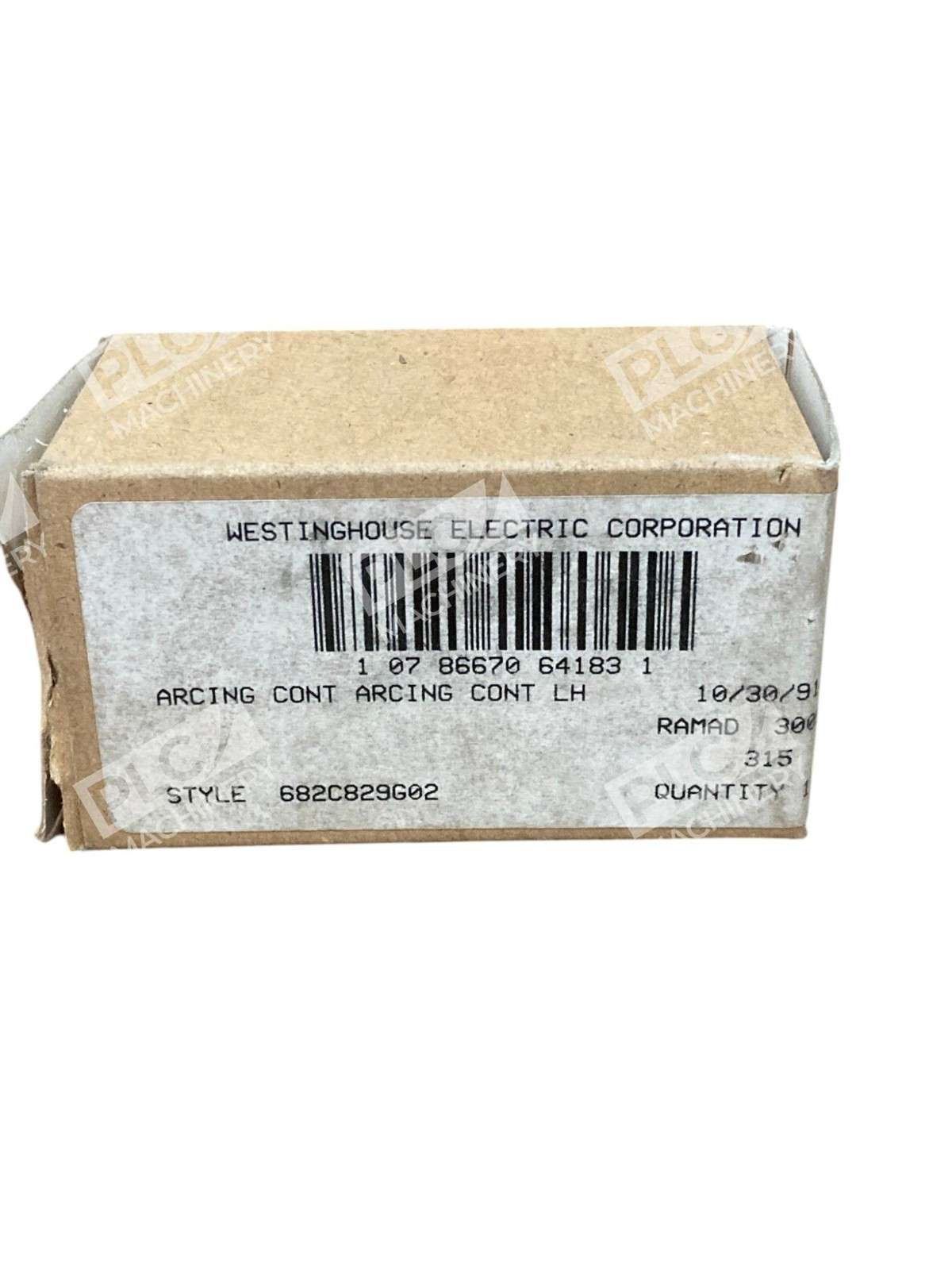

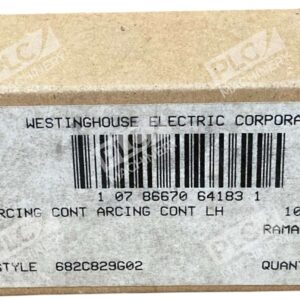

The Westinghouse 682C829G02 is a genuine OEM left-hand (LHS) stationary arcing contact for use in Westinghouse DS and DSL series low-voltage power circuit breakers. This component plays a critical role in arc suppression during normal and fault switching operations, extending equipment life and improving system reliability. The 682C829G02 is precision-manufactured by Westinghouse / Cutler Hammer to exact specifications and is essential for proper operation of compatible breakers.
Key Features
- Genuine OEM Westinghouse / Cutler Hammer part
- Left-hand (LHS) configuration for proper arc suppression
- Designed for DS and DSL series circuit breaker frames
- Reliable arc contact material for extended switching cycles
- Direct replacement for worn or damaged stationary contacts
Technical Specifications
- Manufacturer: Westinghouse / Cutler Hammer
- Part Number: 682C829G02
- Contact Type: Stationary Arcing Contact
- Configuration: Left-Hand Side (LHS)
- Application: DS and DSL series circuit breakers

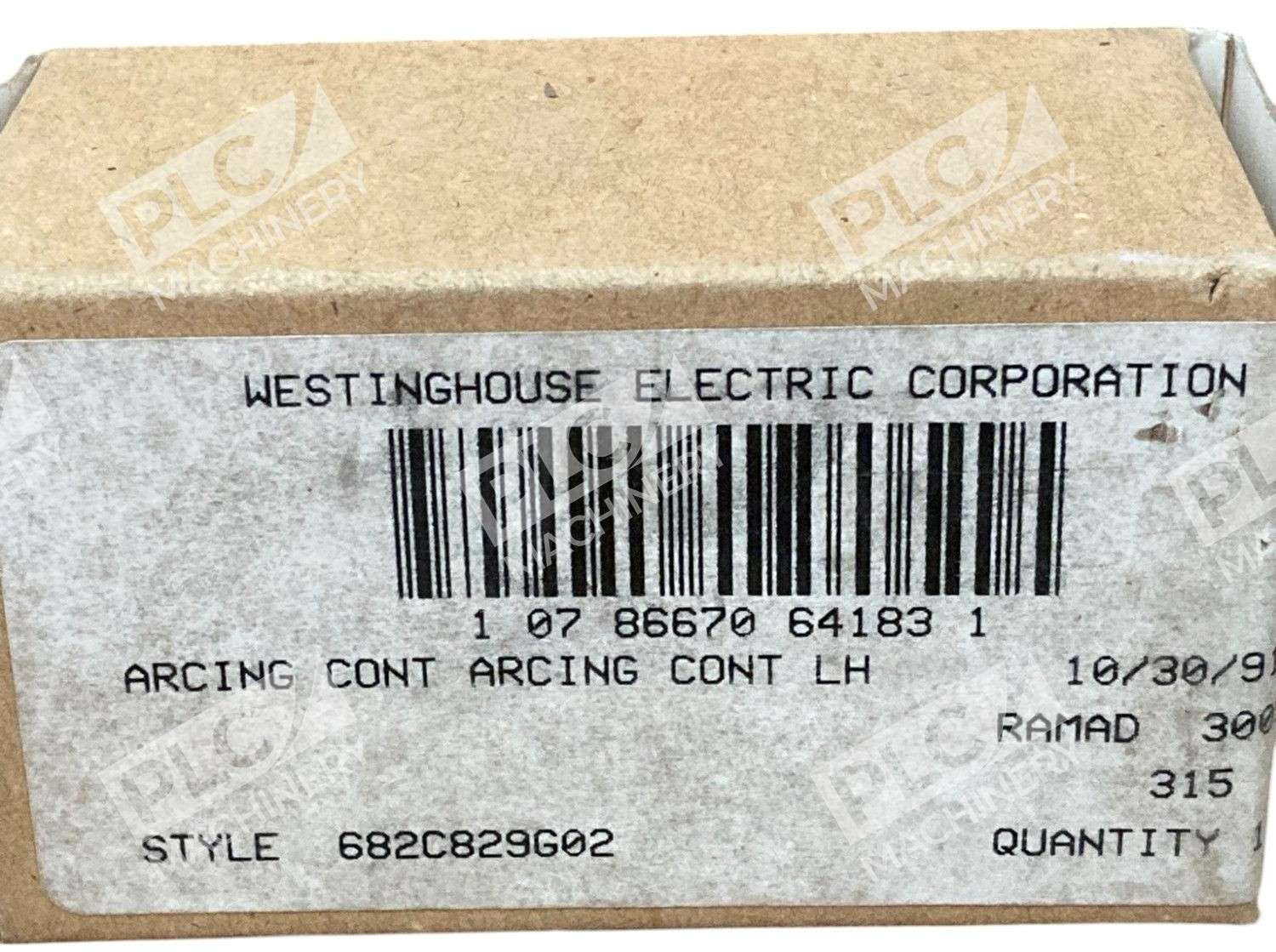

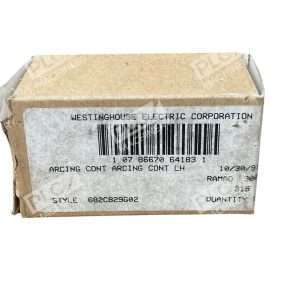

- Condition: New in Box
Typical Applications
The Westinghouse 682C829G02 is used in industrial and commercial electrical distribution systems requiring reliable medium-voltage circuit breaker performance. Common applications include:
- Power distribution switchgear
- Industrial load centers
- Manufacturing facility main distribution panels
- Utility switching stations
- Planned maintenance and breaker refurbishment
Compatibility & Replacements
Compatible With
- Westinghouse DS-206 circuit breaker
- Westinghouse DSL-206 circuit breaker
- Westinghouse DS-416 circuit breaker
- Westinghouse DSL-416 circuit breaker
- Westinghouse DS-420 circuit breaker
- Westinghouse DS-632 circuit breaker
- Westinghouse DS-840 circuit breaker
Replaces / Drop-In Replacement For
The Westinghouse 682C829G02 directly replaces the left-hand stationary arcing contact in any of the compatible circuit breaker models listed above. It is a direct OEM part with no modifications required for installation.
Works With
- Westinghouse DS and DSL series frames
- Standard arc chute assemblies for compatible breakers
- Moving contact assemblies in DS series breakers
