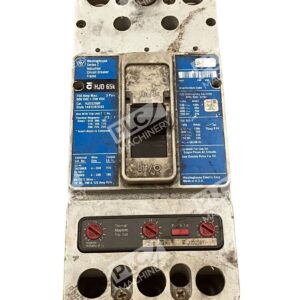

Westinghouse HJD3250F Industrial Circuit Breaker Series C 250A 3 Pole 1491D82G03

Westinghouse HJD3250F Industrial Circuit Breaker Series C 250A 3 Pole 1491D82G03

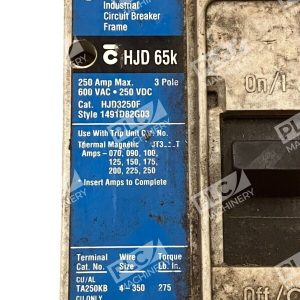

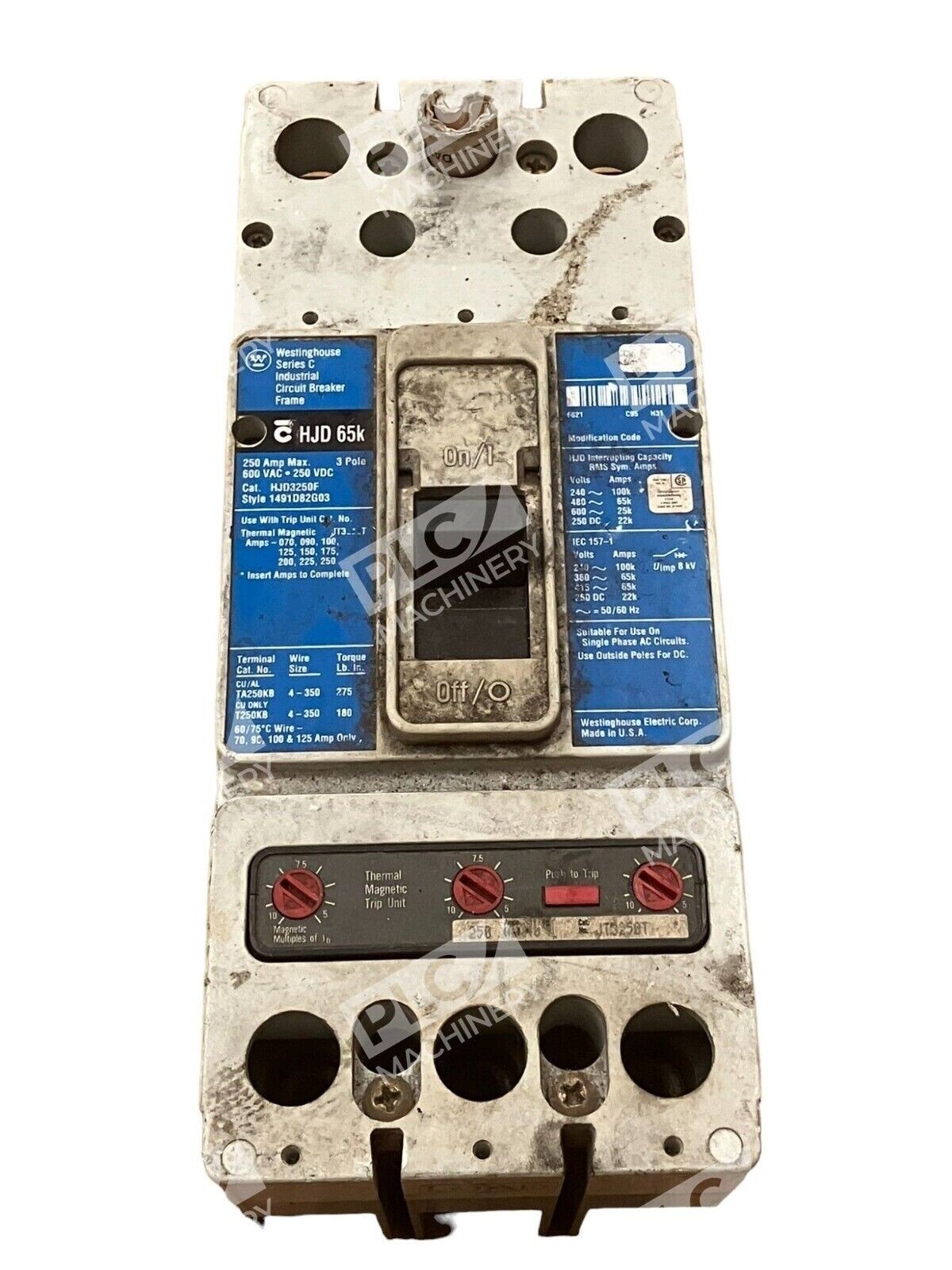

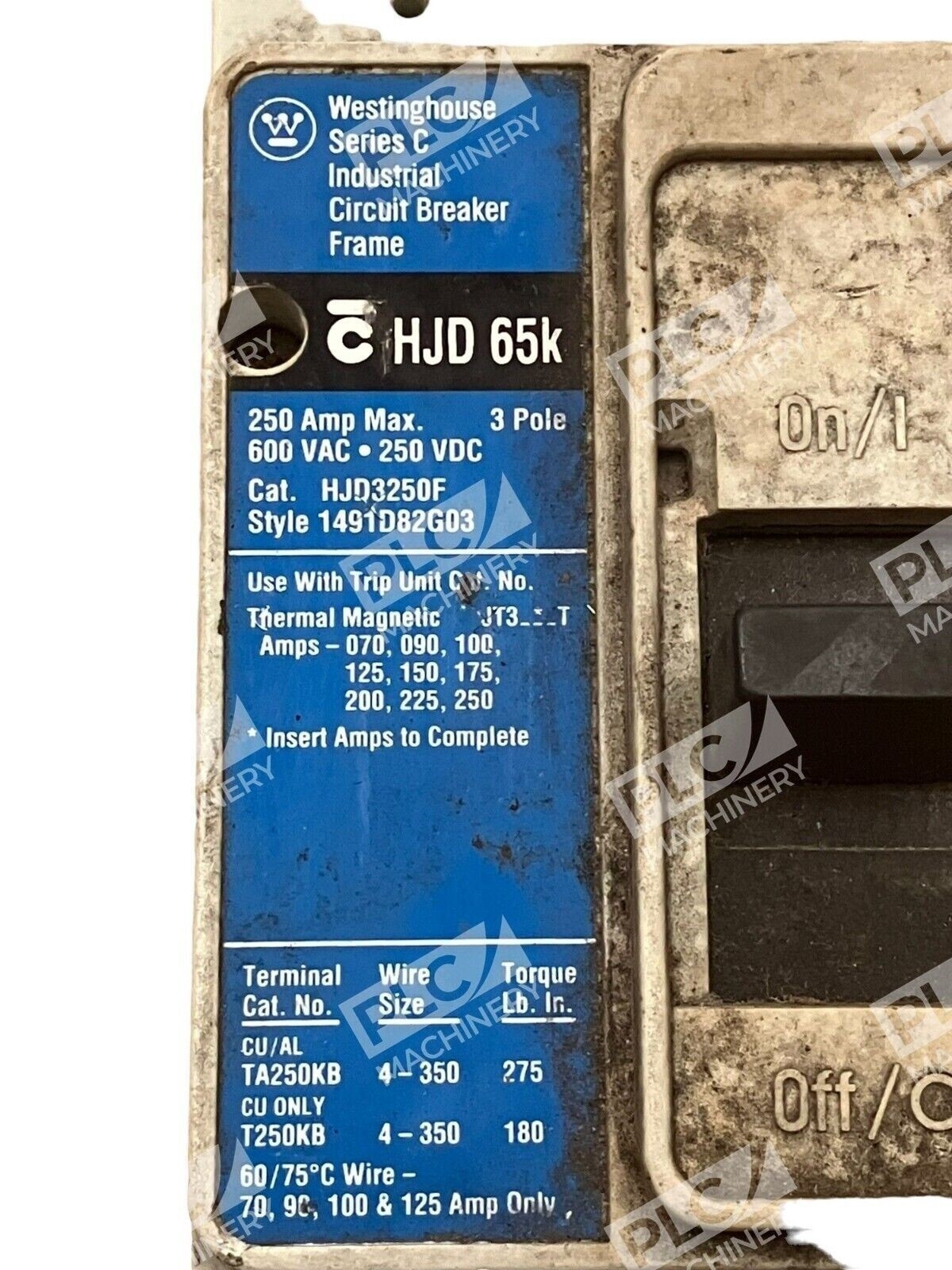

The Westinghouse HJD3250F is a robust industrial circuit breaker from the Series C lineup, engineered to deliver reliable protection for electrical systems in commercial and industrial environments. This three-pole breaker is rated for 250 amperes and supports a maximum voltage of 600 VAC, making it suitable for a wide range of applications.

Key Features

• Amperage Rating: 250 A
• Voltage Rating: 600 VAC
• Number of Poles: 3

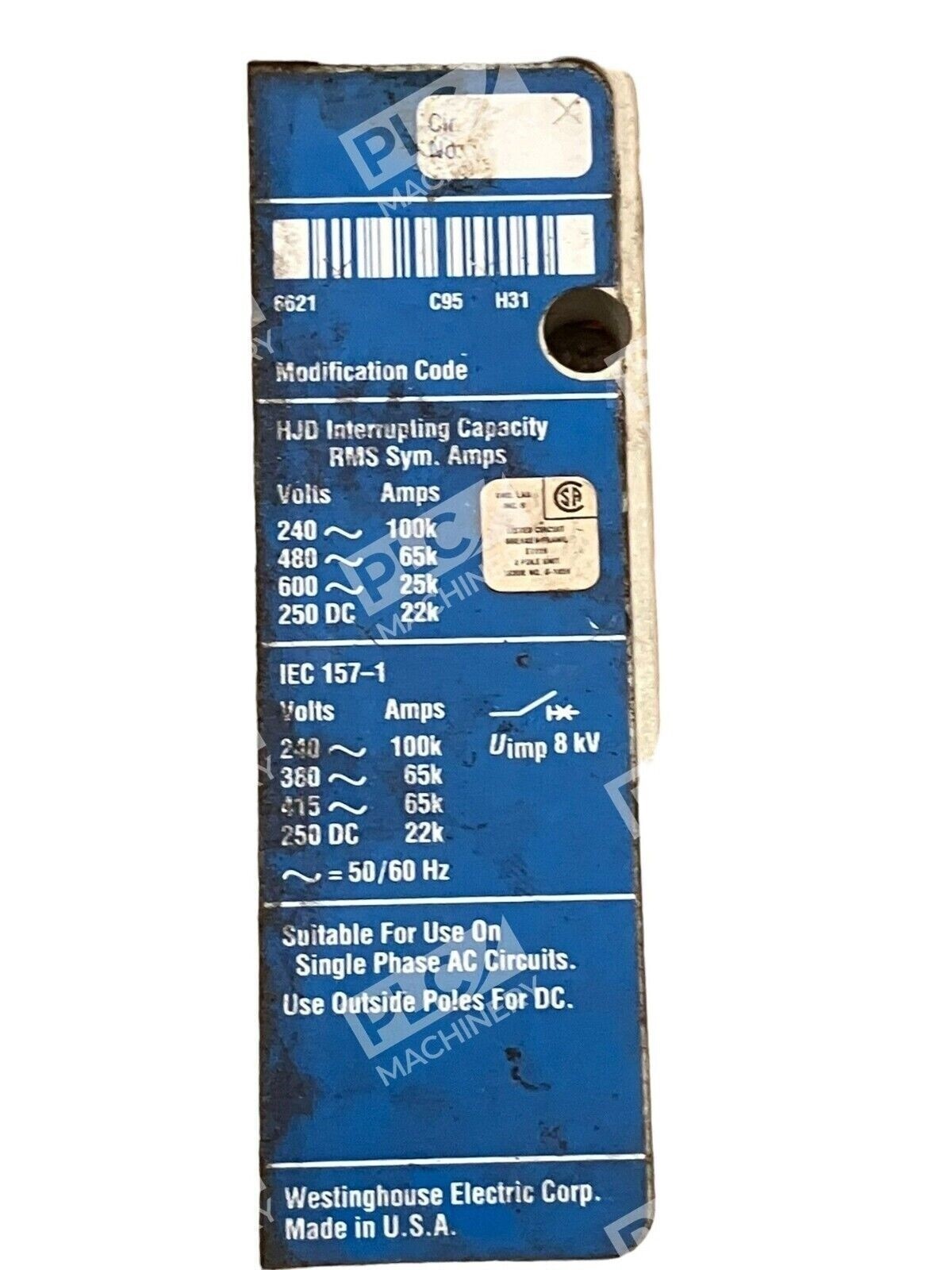

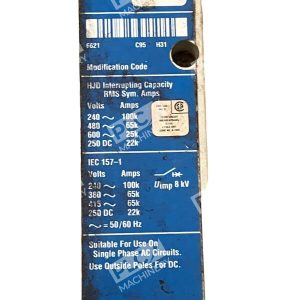

• Interrupting Capacity:
  • 100,000 AIC at 240 VAC
  • 65,000 AIC at 480 VAC
  • 25,000 AIC at 600 VAC
• Frame Type: J-Frame

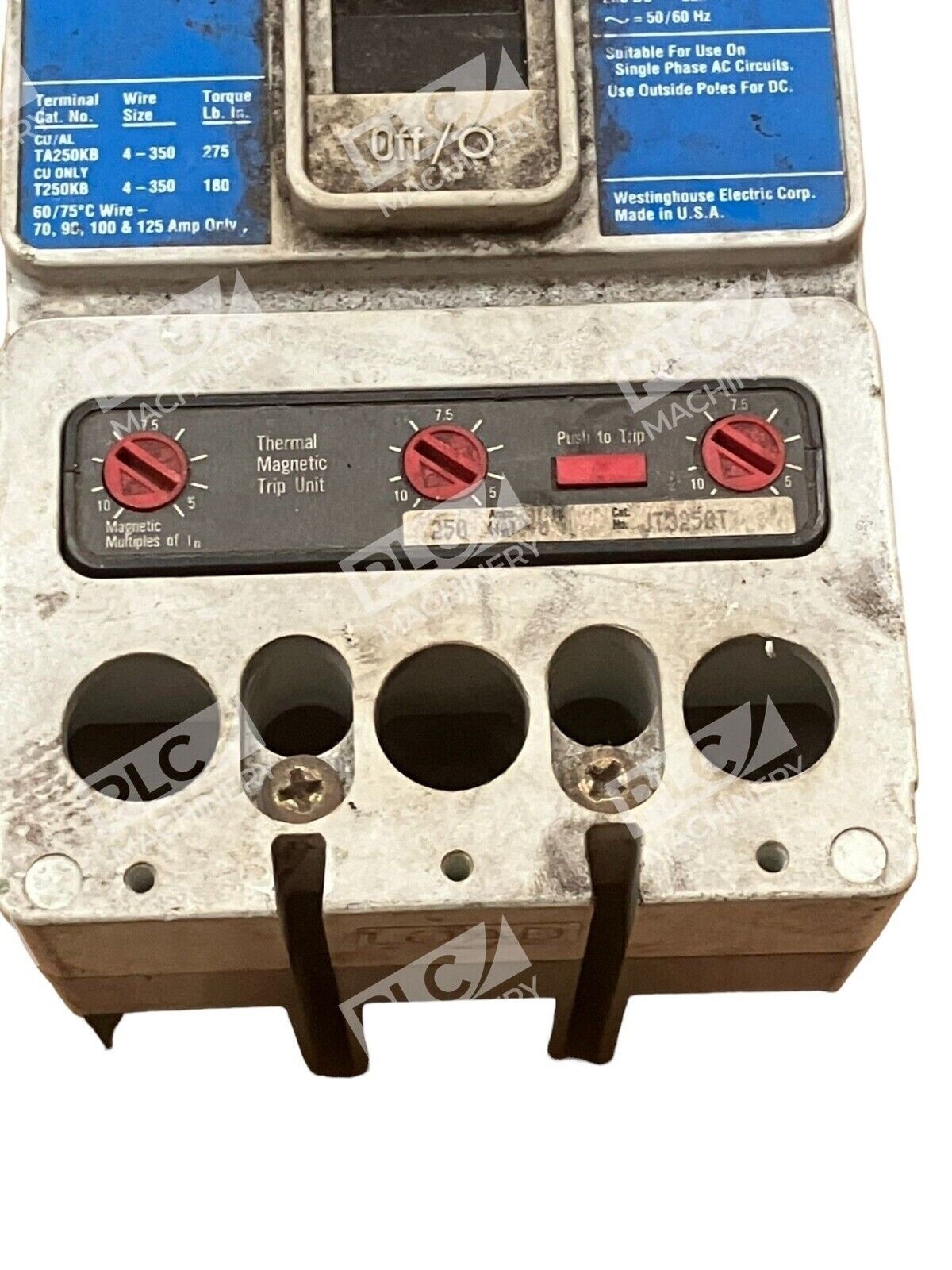

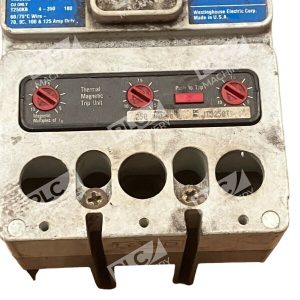

• Trip Unit: Interchangeable thermal magnetic trip
• Certifications: UL Listed

Design and Construction

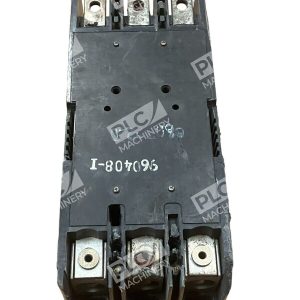

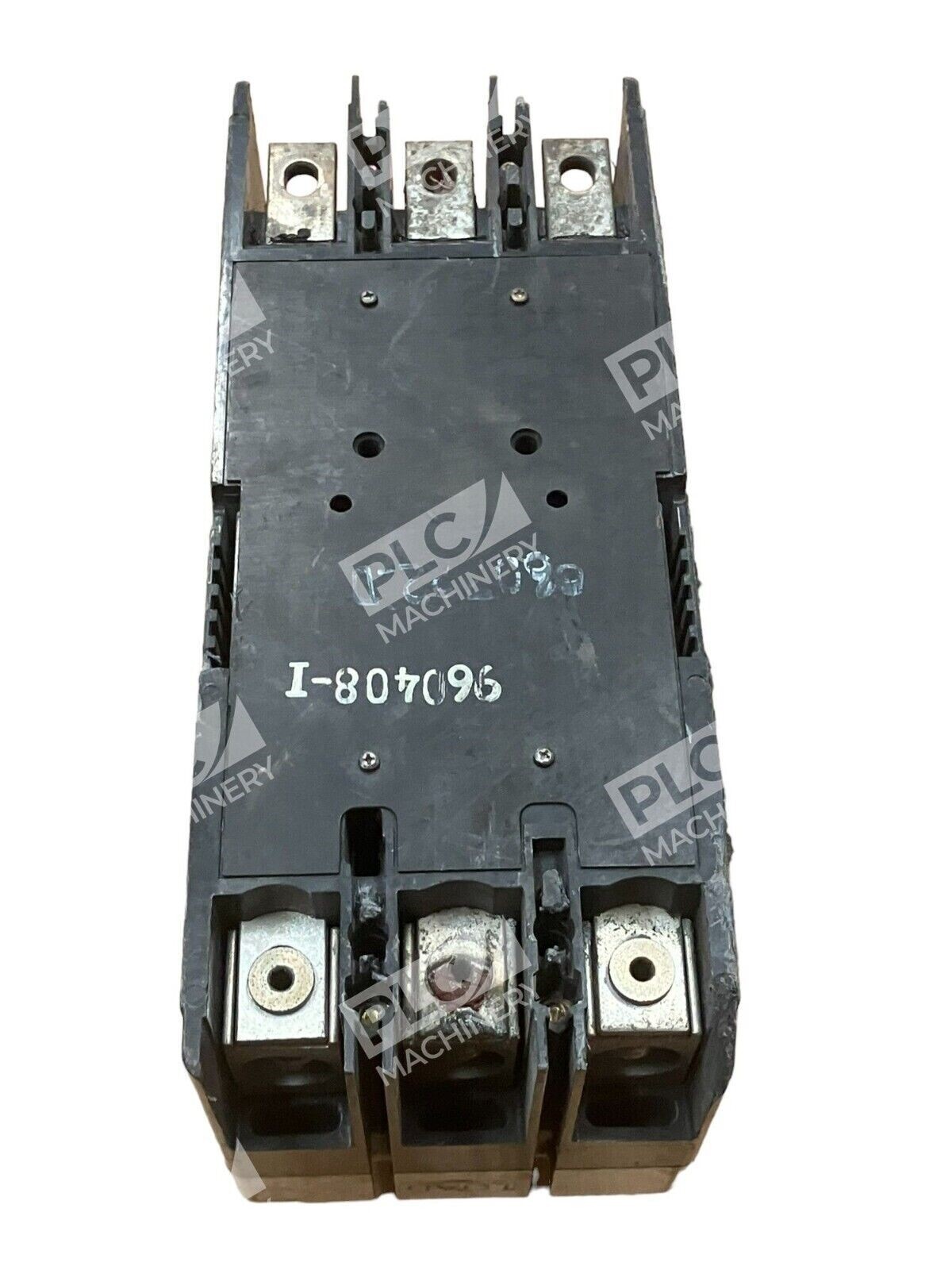

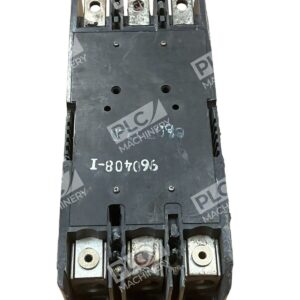

The HJD3250F features a durable molded case design, ensuring longevity and consistent performance. Its J-Frame construction allows for versatile mounting options, accommodating various installation requirements. The breaker is equipped with line and load terminals made of aluminum, facilitating secure and efficient connections.

Applications

This circuit breaker is ideal for use in panelboards, switchboards, motor control centers, and busway systems. Its high interrupting capacity makes it suitable for environments where robust fault current interruption is essential.

Dimensions and Weight

• Length: 4.06 inches
• Width: 4.13 inches
• Height: 4.13 inches
• Weight: 12.5 lbs

In summary, the Westinghouse HJD3250F Industrial Circuit Breaker offers a combination of high performance, reliability, and adaptability, making it a valuable component for safeguarding electrical systems in demanding industrial settings.
