Overview

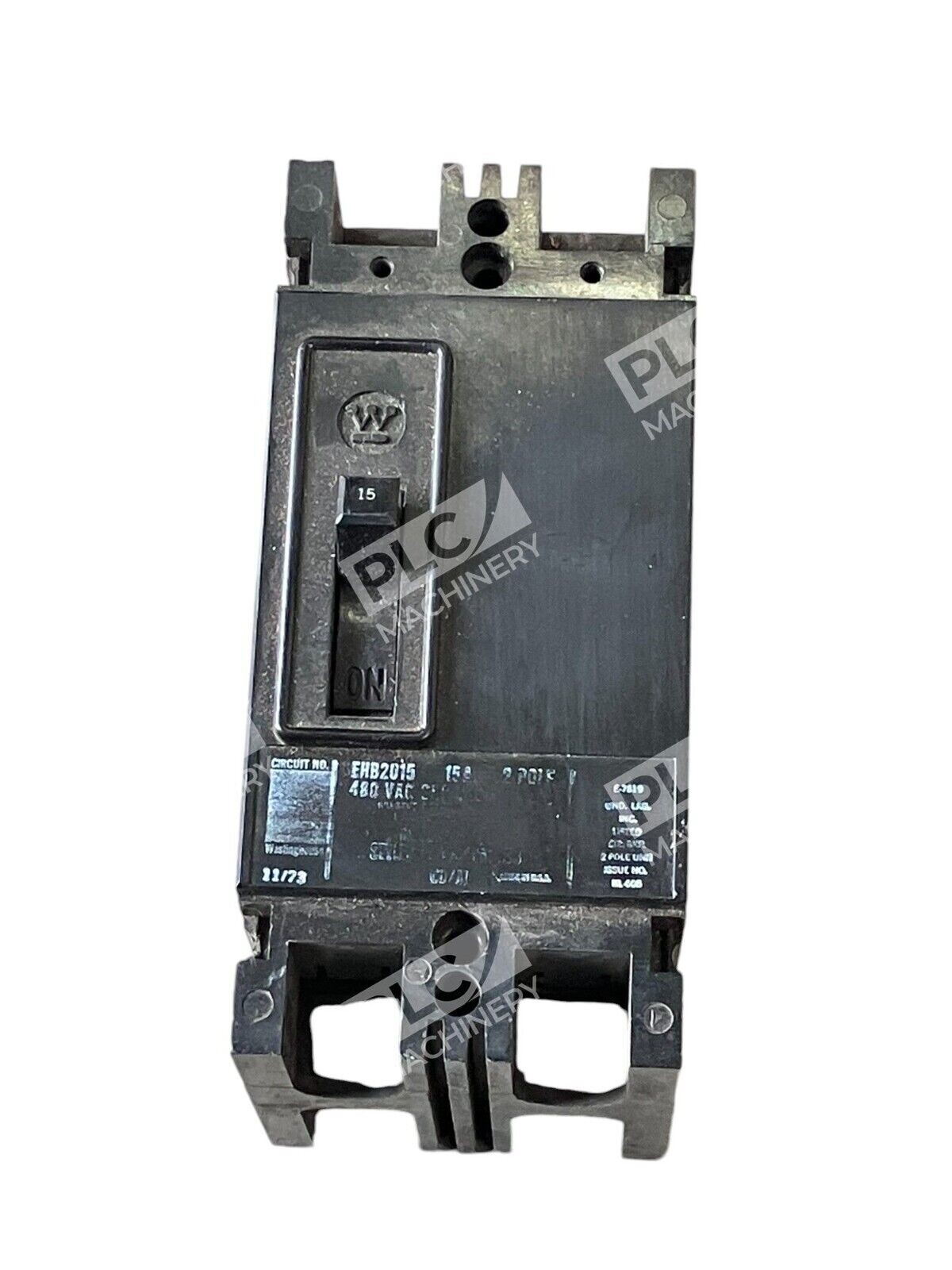

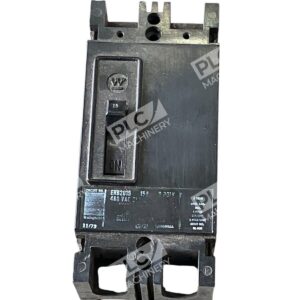

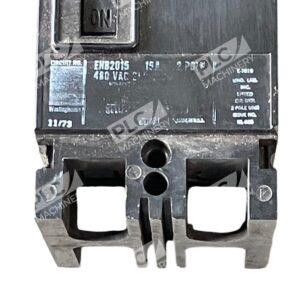

The Westinghouse EHB2015 is a thermal magnetic molded case circuit breaker designed for branch circuit protection in industrial and commercial electrical systems. Rated 15 amps, 2-pole, 240/480VAC, it delivers standard interrupting capacity of 14kA at 480V. This legacy breaker features bolt-on connection and long-time and instantaneous trip functions for reliable overcurrent and short-circuit protection.
Key Features
- Thermal Magnetic Protection: Long-time and instantaneous trip functions provide precise overcurrent and short-circuit protection.
- Molded Case Design: Durable, compact construction suitable for panel mounting in confined spaces.
- Bolt-On Connection: Fast, secure mounting to bus bar assemblies without additional hardware.
- 14kA Interrupting Rating: Meets standard capacity requirements for most industrial loads at 480V operation.
- Dual Voltage Rated: Operates at both 240V and 480VAC for flexible installation.
Technical Specifications
- Current Rating: 15 Amps
- Poles: 2
- Voltage Rating: 240/480VAC
- Interrupting Capacity: 14kA @ 480V
- Trip Type: Thermal Magnetic (Long-Time and Instantaneous)
- Connection Type: Bolt-On
- Operating Temperature: -40°C to +40°C
- Manufacturer: Westinghouse (Cutler Hammer / Eaton)

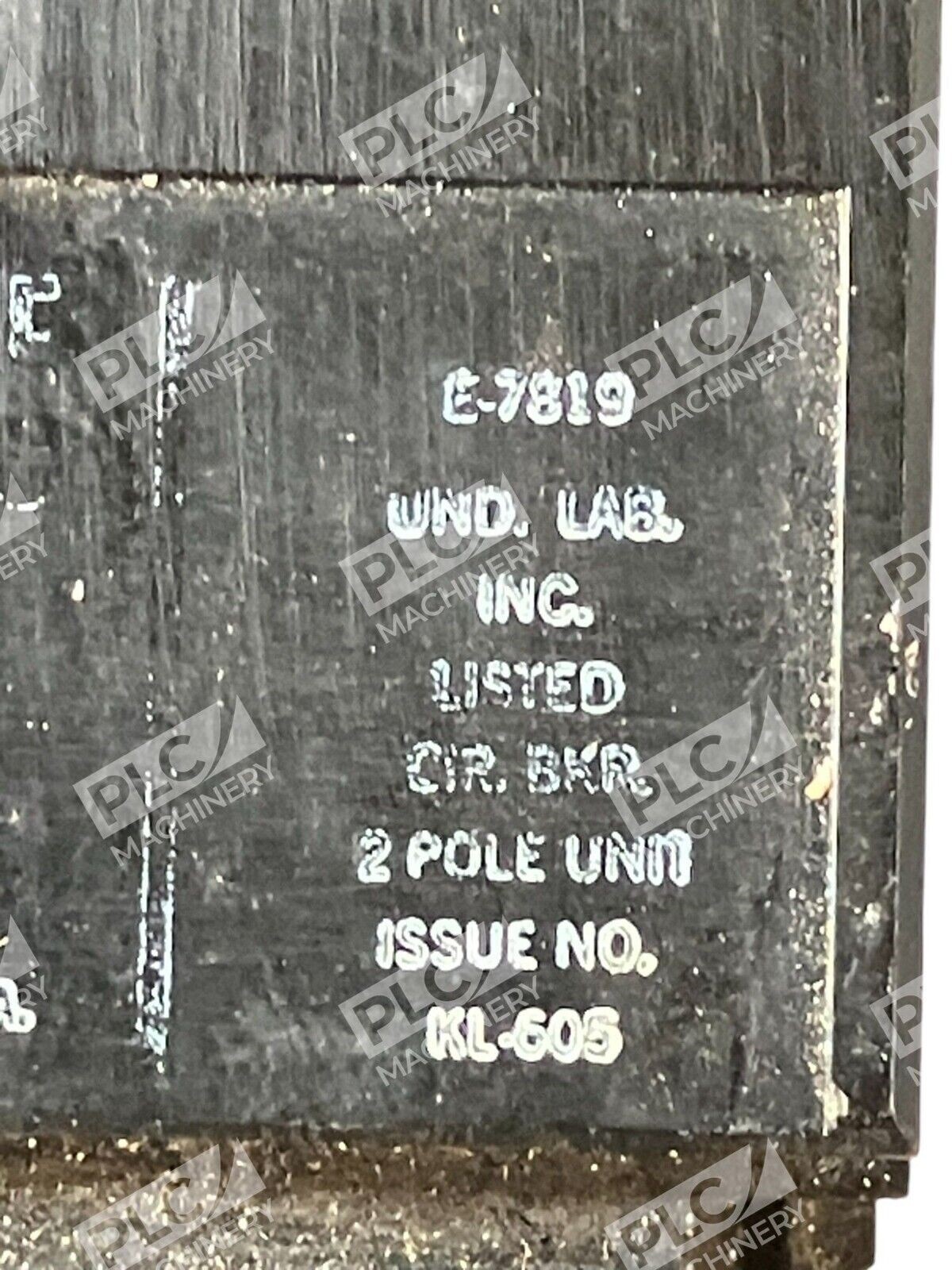

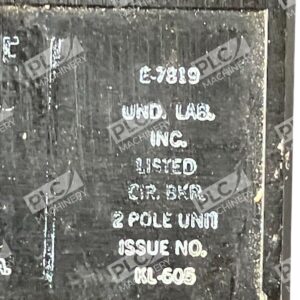

- Standards Compliance: UL489 (Branch Circuit Protection)
Typical Applications
- Branch circuit protection in industrial motor control centers
- Commercial facility electrical panels and sub-panels
- Machinery and process equipment protection
- OEM equipment retrofits and legacy system replacements
- Facilities maintenance and emergency breaker replacement
Compatibility & Replacements
Compatible With
- Westinghouse EHB molded case circuit breaker panels
- Cutler Hammer compatible panel mount configurations
- Standard 2-pole 480V bus bar assemblies
- Industrial and commercial electrical distribution systems rated 240/480VAC
Replaces / Drop-In Replacement For
- Westinghouse EHB series legacy breakers
- Cutler Hammer EHB2015 equivalents
- Eaton EHB2015 bolt-on breakers
Works With
- Standard 2-pole mounting frame electrical panels
- Molded case circuit breaker bus bar configurations
- 240V single-phase and 480V three-phase electrical systems
- Industrial UPS and backup power systems
