Overview

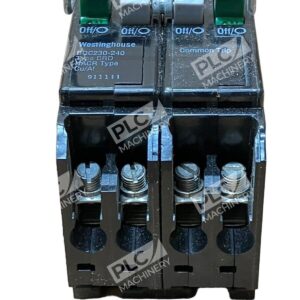

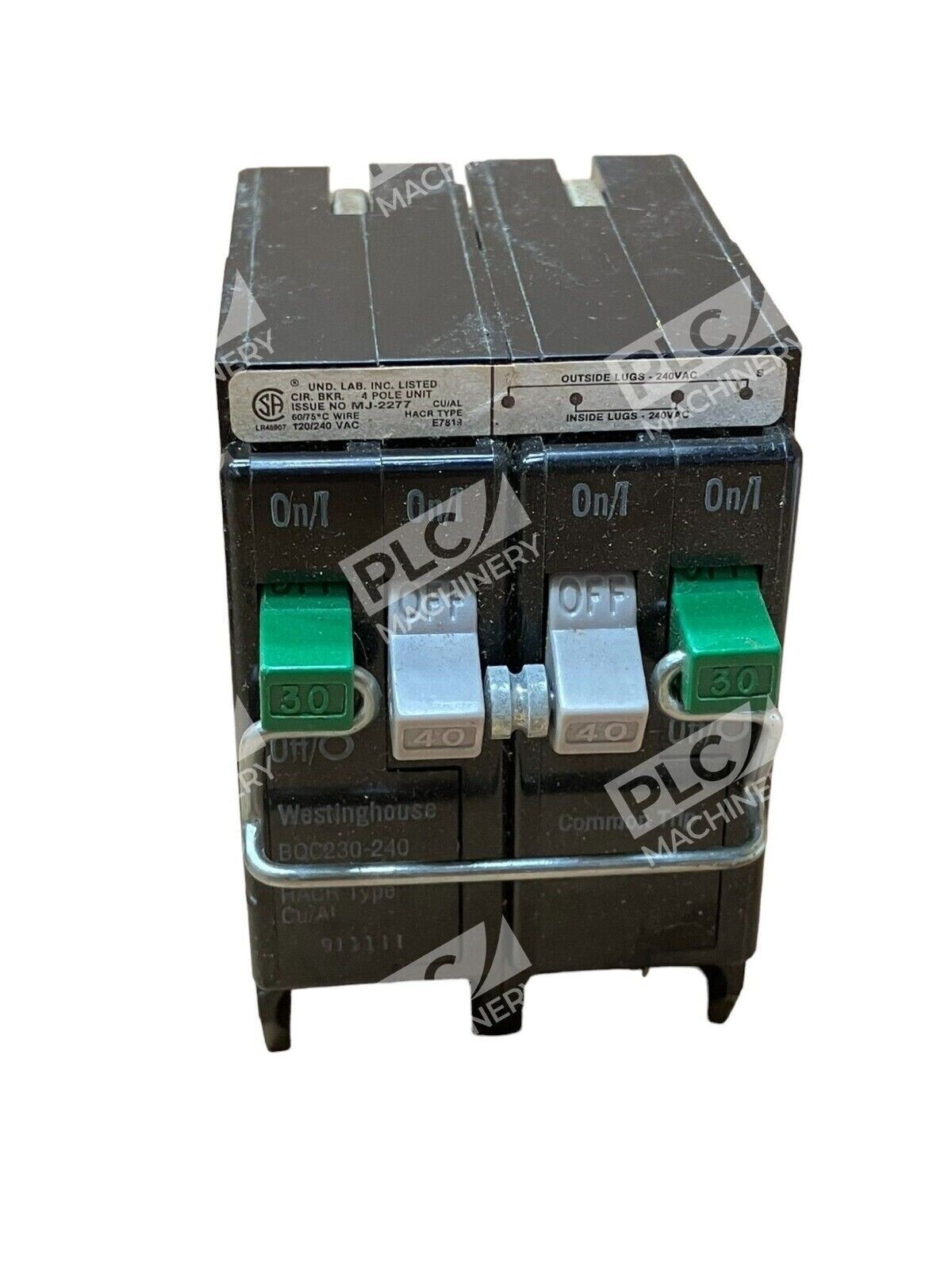

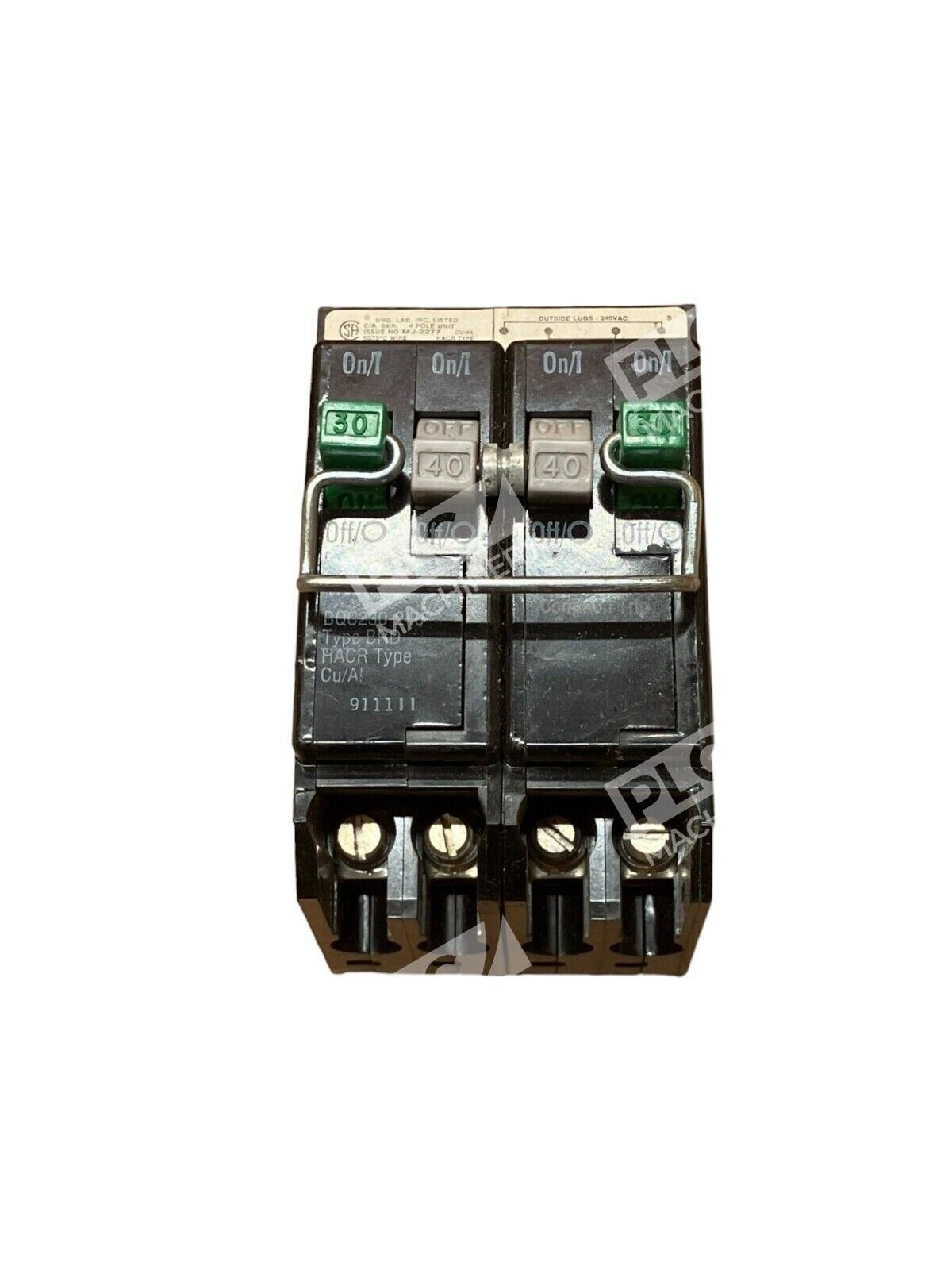

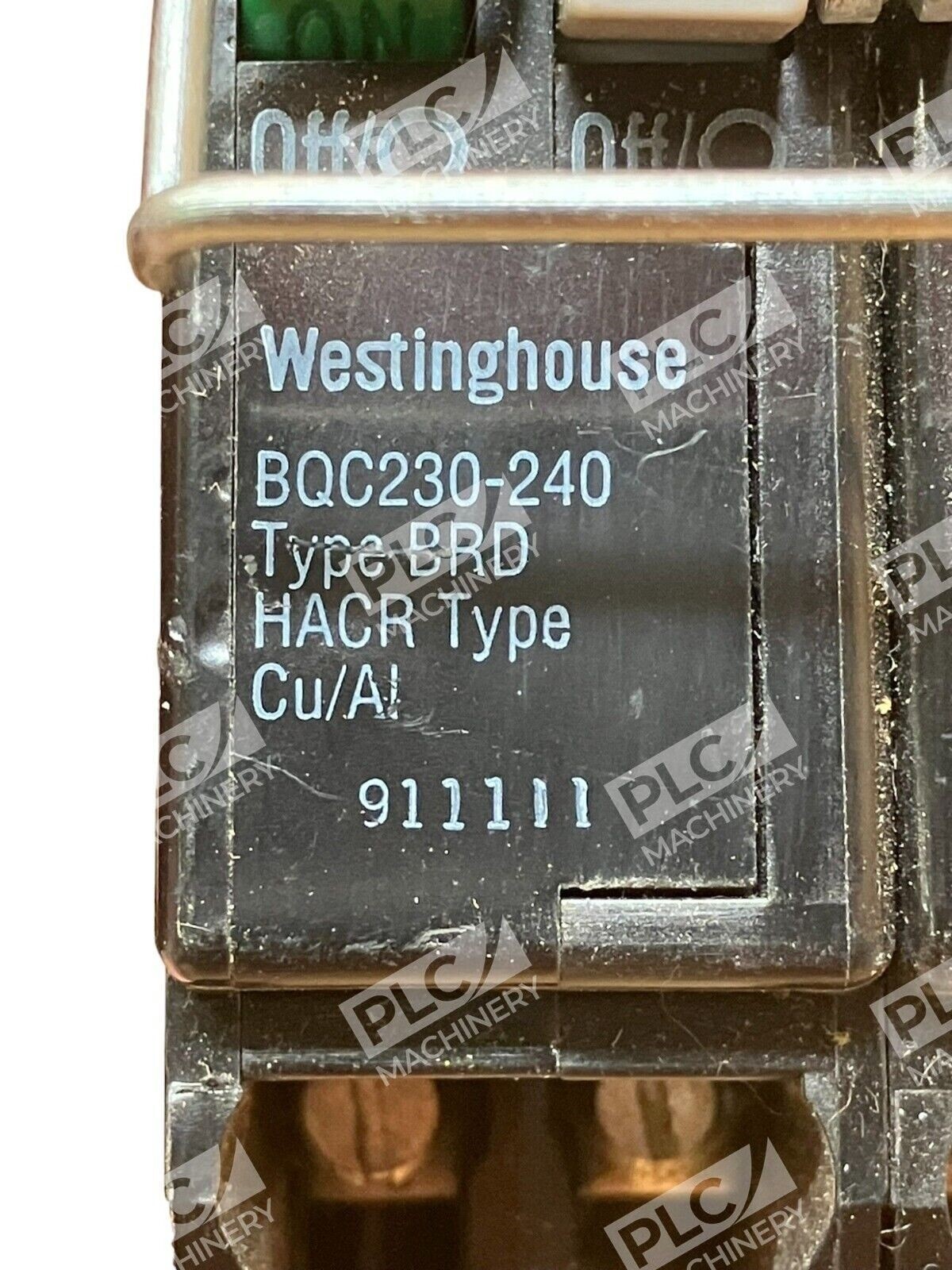

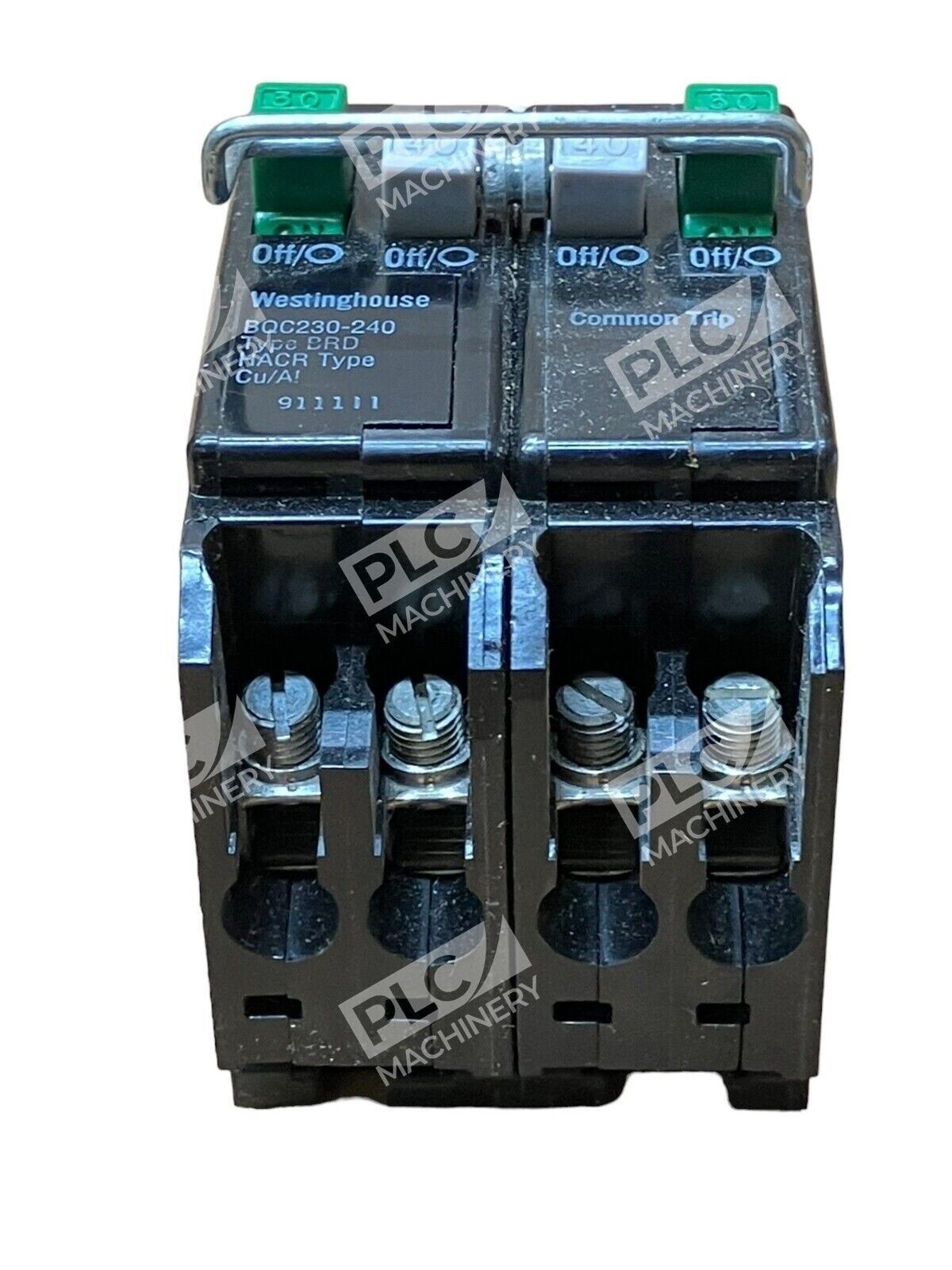

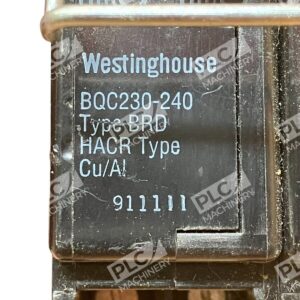

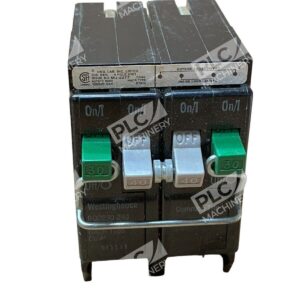

The Westinghouse BQC230-240 is a 4-pole (quad) molded case circuit breaker in the BQ series, engineered for 240V AC electrical systems. This Type BRD HACR-rated breaker provides dual 30A and dual 40A poles, making it ideal for multi-circuit branch protection in commercial and industrial applications where space and cost efficiency are critical. The breaker offers thermal-magnetic trip protection with feed-thru connections for straightforward panel integration.
Key Features
- 4-pole (quad) configuration: dual 30A and dual 40A poles
- Type BRD HACR rating for air-conditioning and heat-pump applications
- 10kA AIC (Ampere Interrupting Capacity) at 240V
- Thermal-magnetic trip mechanism for coordinated protection
- Copper and aluminum wire compatible terminals
- Feed-thru connections for standard panel mounting
- UL 489 listed; meets NEC standards
Technical Specifications
- Model: BQC230-240
- Voltage Rating: 240V AC, 50/60 Hz
- Amperage: 30A/30A-40A/40A (quad poles)
- Poles: 4
- AIC (Interrupting Capacity): 10kA @ 240V
- Trip Type: Thermal-Magnetic
- Wire Compatibility: Cu/Al (Copper/Aluminum), 14 AWG min.
- Connection: Feed-Thru
- Type Rating: BRD HACR
- Certifications: UL 489, NEC compliant
- Weight: ~0.9 lbs
- Dimensions: Approximately 3" L x 2" W x 3" H
Typical Applications
- Multi-circuit branch protection in commercial electrical panels
- Industrial motor and equipment protection circuits
- HVAC/heat pump system isolation and overcurrent protection
- Building service entrance retrofit or expansion
- Standard 240V three-phase or single-phase distribution systems
Compatibility & Replacements
Compatible With
- Type BR and Type BRD electrical panels and loadcenters
- Westinghouse/Eaton BQ series breaker slots (standard 1-inch width)
- 240V AC single-phase and three-phase service equipment
- Feed-thru style panel mounting systems
Replaces / Drop-In Replacement For
- Westinghouse BQC230-240 (direct equivalent)
- Eaton/Cutler-Hammer BQC230-240 (Eaton acquired Westinghouse breaker operations)
- Bryant BQC230-240 (same OEM platform)
Works With
- Type BRD and Type BR Loadcenters
- Standard NEC-compliant 240V electrical systems
- UL 489 certified breaker-and-panel combinations
- Retrofit installations with existing Westinghouse/Eaton infrastructure
