Overview

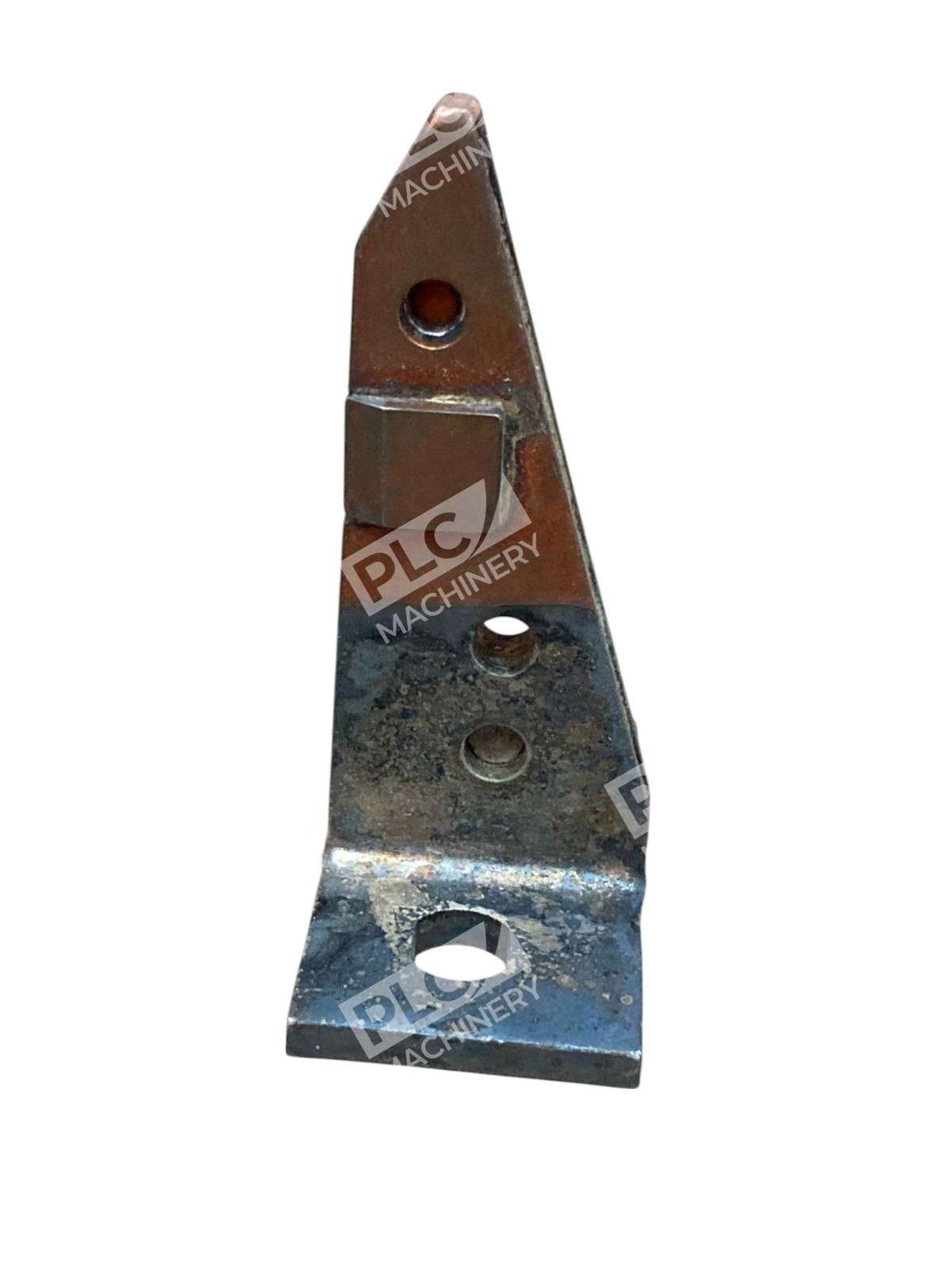

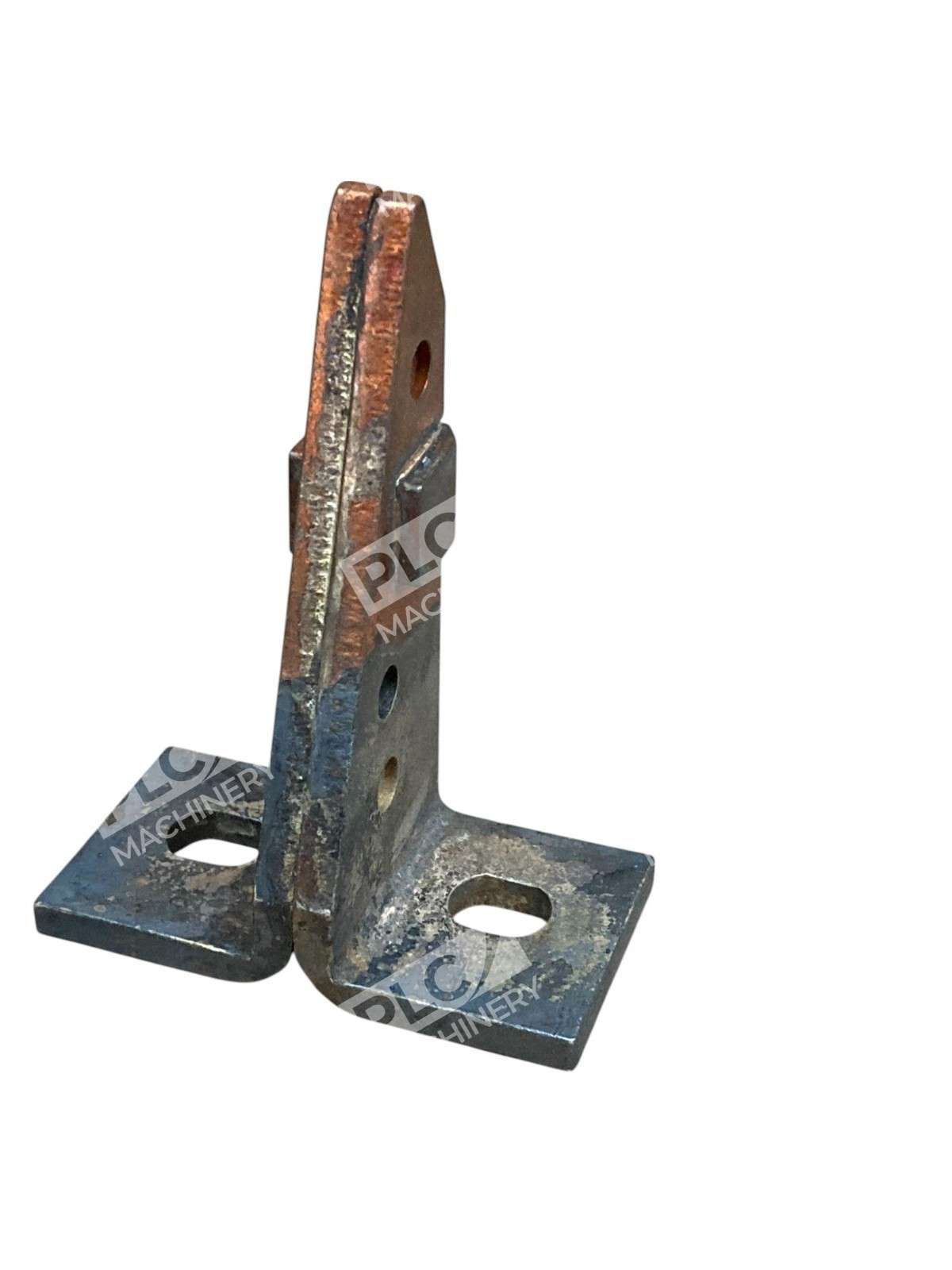

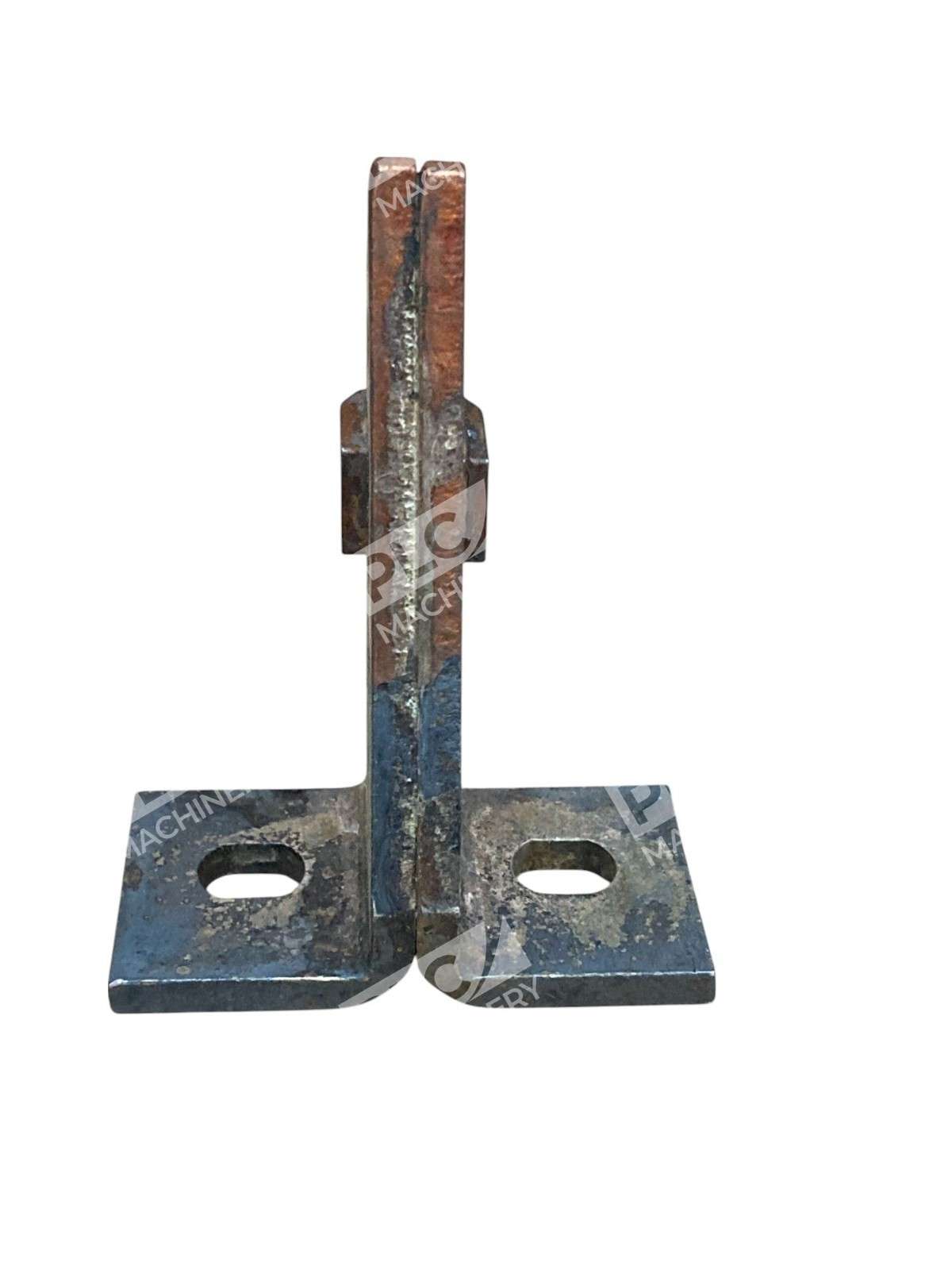

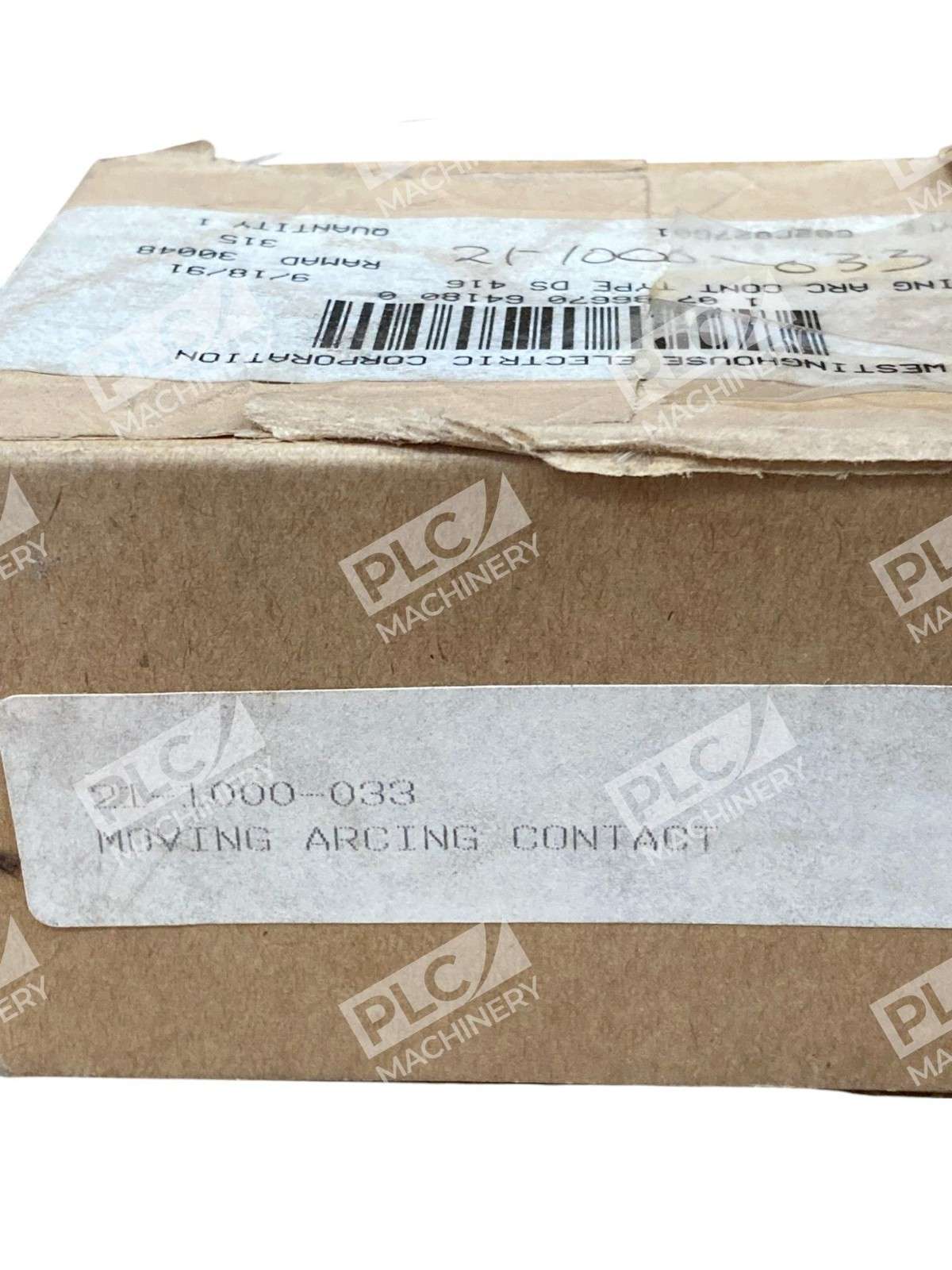

The Westinghouse 682C827G01 is an original equipment manufacturer (OEM) moving arcing contact designed for Westinghouse Type DS-416 low-voltage power circuit breakers. This critical component is part of the arc extinguishing system that safely interrupts electrical current during fault conditions. As a precision-engineered replacement part, the 682C827G01 maintains the integrity and performance characteristics of the DS-416 breaker family.
Key Features
- OEM genuine part for Westinghouse Type DS-416 circuit breakers
- Moving arcing contact for reliable arc suppression and current interruption
- Engineered for 1600 Amp frame breakers operating at 600 volts
- Maintains breaker’s electrical safety ratings and trip characteristics
- Compatible with 3-pole, drawout-style DS-416 assemblies
- Direct replacement part reduces downtime during maintenance and repairs
Technical Specifications
The 682C827G01 arcing contact is a consumable component that experiences wear during normal circuit breaker operation, particularly during high-current fault clearing events. Periodic inspection and replacement as part of scheduled preventative maintenance help ensure continued reliable operation and compliance with electrical codes.
Typical Applications
- Industrial power distribution and switchgear systems
- Commercial facility electrical protection
- Maintenance and retrofit of existing DS-416 circuit breakers
- Scheduled preventative maintenance programs
- Electrical equipment refurbishment and reconditioning
Compatibility & Replacements
Compatible With
- Westinghouse Type DS-416 low-voltage circuit breakers
- 1600 Amp frame circuit breaker assemblies
- 600 volt AC electrical systems
- 3-pole breaker configurations
Replaces / Drop-In Replacement For
The Westinghouse 682C827G01 is the OEM moving arcing contact for DS-416 pole units. Verify compatibility with your specific breaker serial number and configuration before ordering. Contact your system integrator or refer to Westinghouse renewal parts documentation to confirm the correct component for your application.
Works With
- Westinghouse DS-416 breaker family and variant models
- Standard 60 Hz electrical distribution systems
- Manual and electrically-operated DS-416 control schemes
