Overview

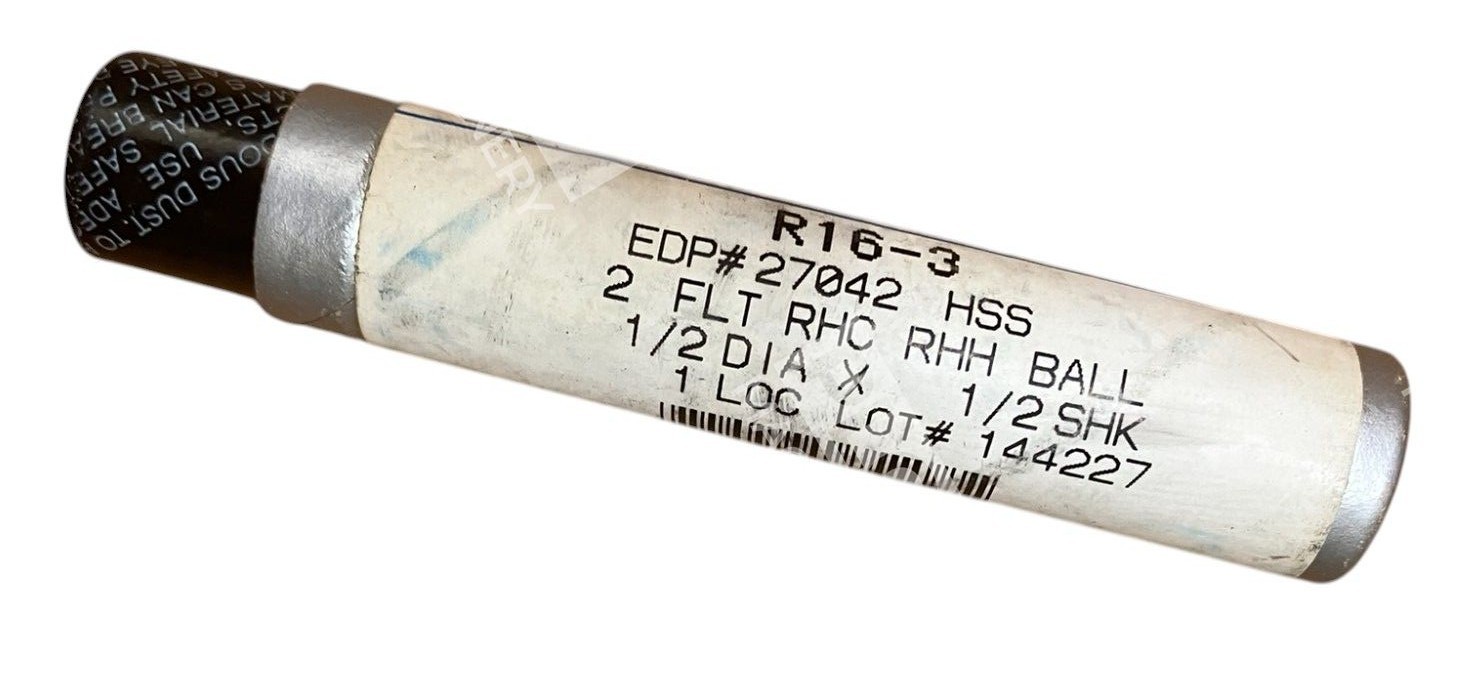

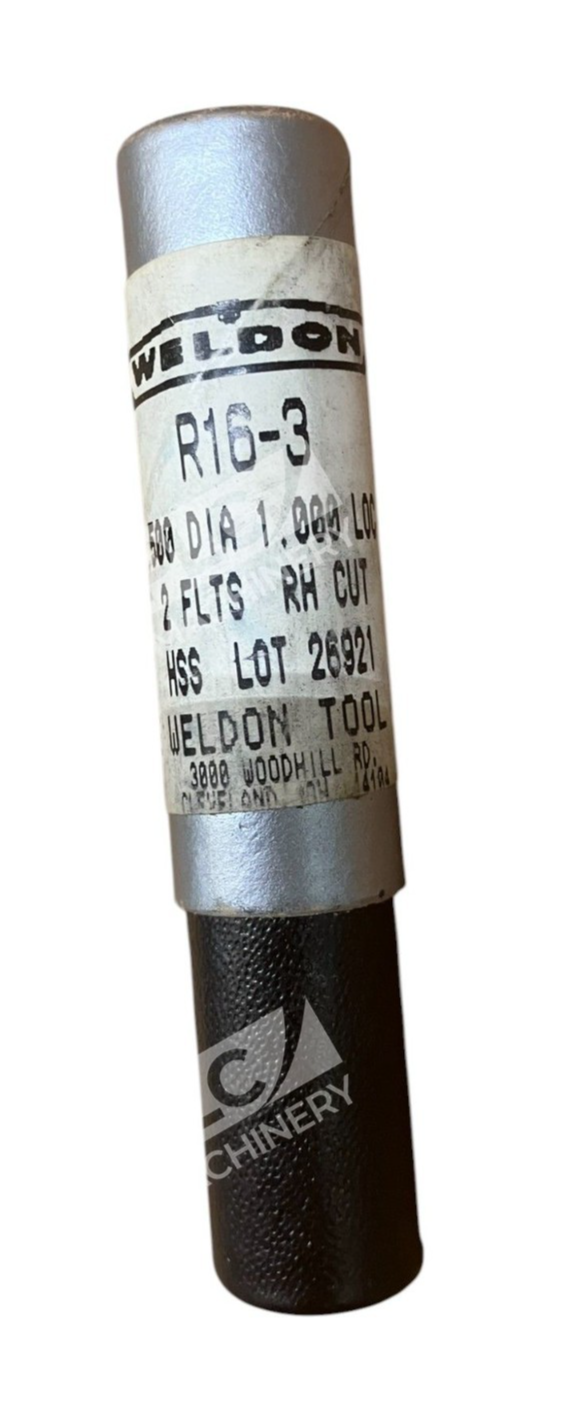

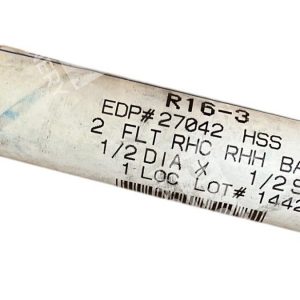

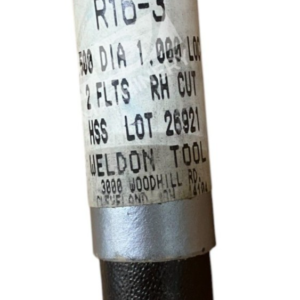

The Weldon EDP 27042 HSS ball end mill is a high-speed steel cutting tool engineered for precision CNC and manual milling operations. This double-end, 2-flute ball-nose end mill combines proven Weldon EDP 27042 specifications with a reliable Weldon flat shank to prevent slippage in modern machining centers. The ball-nose geometry makes it ideal for 3D contouring, radius work, and curved-surface finishing on ferrous and non-ferrous materials.
Key Features
- 2-flute design for efficient chip evacuation and consistent surface finish
- 1/2″ cutting diameter with 1/2″ Weldon shank for secure, positive tool holding
- Right-hand cutting and right-hand helix for optimal performance
- HSS material offers superior wear resistance at lower cost than carbide
- Ball-nose profile cuts curved surfaces and contoured features
- Double-end construction maximizes tool utilization
Technical Specifications
- Material: High-Speed Steel (HSS)
- Cutting Diameter: 1/2″
- Shank Diameter: 1/2″ Weldon
- Flute Count: 2
- Profile: Ball-Nose (Ball End)
- Helix: 30° right-hand helix
- Hand: Right-hand cutting
- End Configuration: Double-End
- EDP Number: 27042
- Coating: Uncoated
Typical Applications
The Weldon EDP 27042 ball end mill is widely used in:
- 3D contour milling and complex surface finishing
- Radius and corner radiusing in manual and CNC machines
- Aluminum alloy parts, brass, and copper machining
- Steel and stainless steel finishing operations
- Prototype and production milling where tool cost is critical
- General-purpose milling shops and tool rooms
Compatibility & Replacements
Compatible With
- CNC machining centers with Weldon-shank tool holders
- Manual milling machines with equivalent tool holding
- Collet chucks and end-mill holders rated for 1/2″ shanks
- Standard spindle systems in most legacy and modern mills
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering for direct replacement confirmation.
Works With
- HSS-compatible spindle speeds (consult Weldon speed-and-feed charts)
- Flood and mist coolant systems
- CNC control software with G-code capability
- Standard CAM packages (Mastercam, Fusion 360, etc.)
