Overview

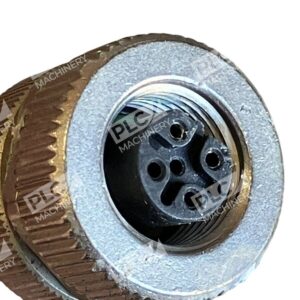

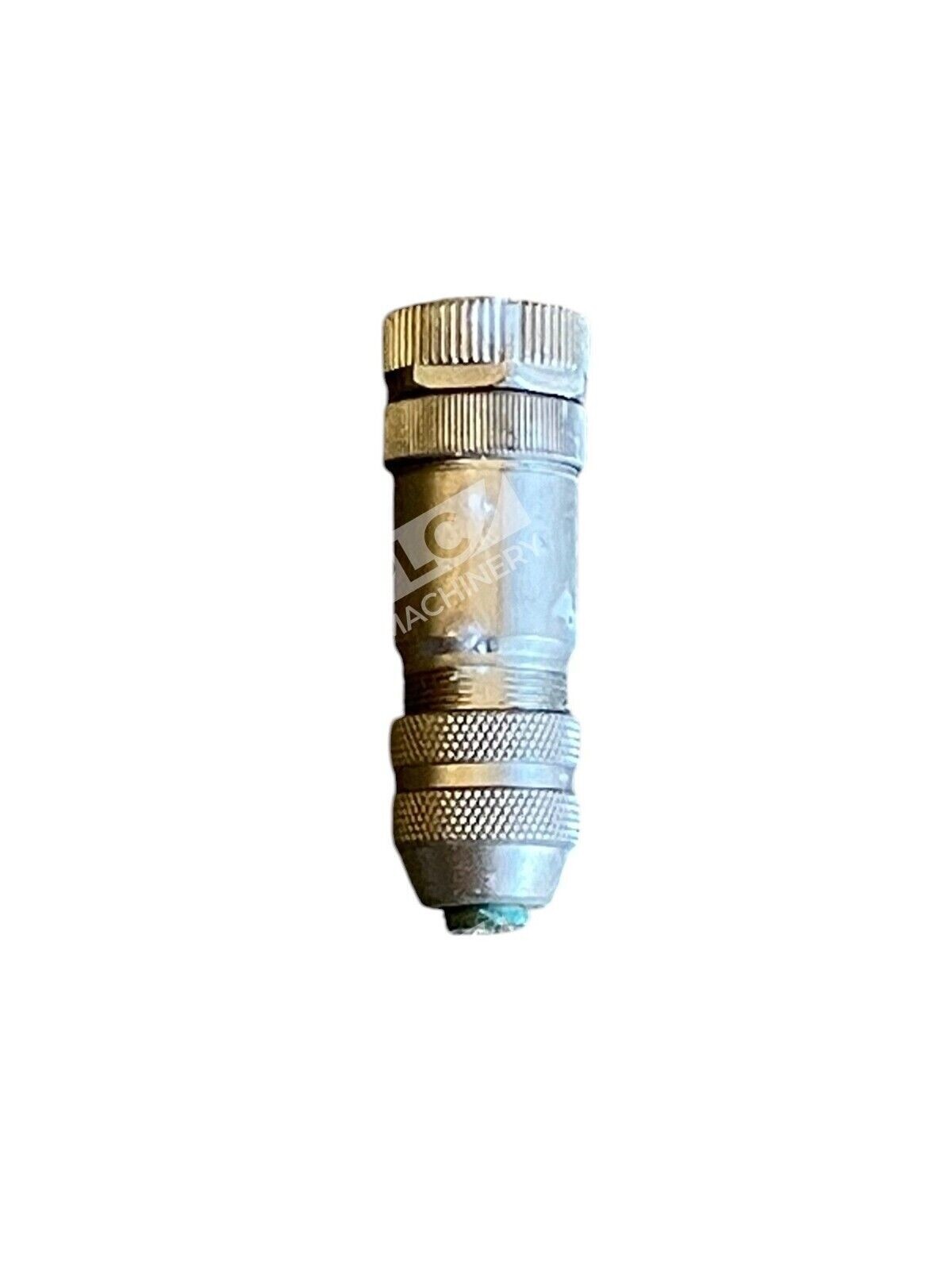

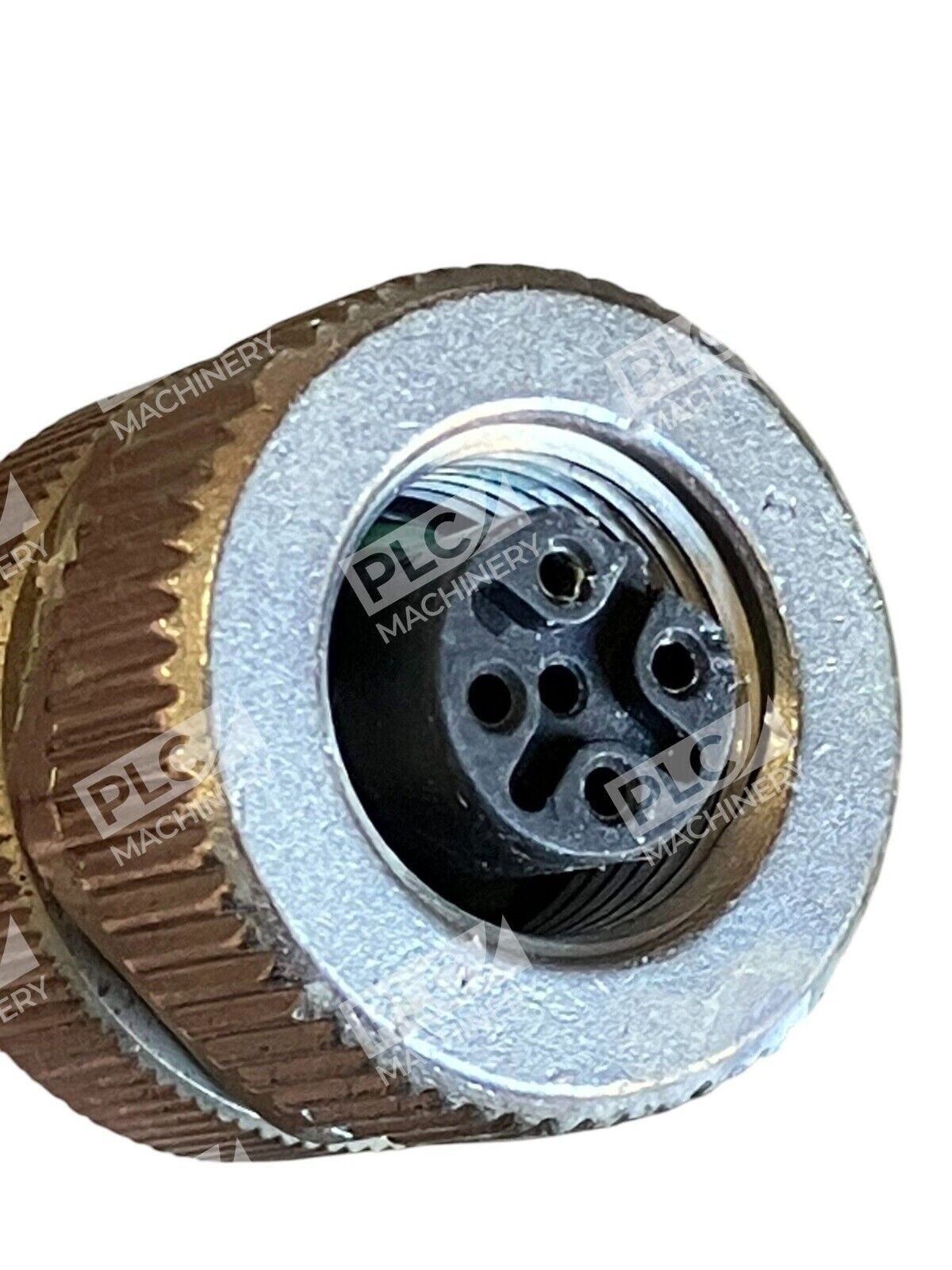

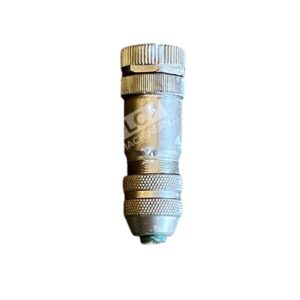

The Weidmüller 8426220000 FBCON M12 4P FM EMC is a robust M12 4-pin female connector designed for industrial automation and control system installations. This M12 connector features 4 pins configured for A-code DeviceNet and CANopen applications, making it suitable for fieldbus networking in distributed control architectures. The connector incorporates a screw terminal configuration for secure, field-installable connections without specialized tools.
Key Features
- M12 A-Code Interface: Supports A-code DeviceNet and CANopen protocols for standardized industrial networks
- Screw Terminal Design: Straight screw terminal configuration enables fast, field-level wiring without crimping
- IP67 Protection: IP67-rated for sealed, washdown-resistant environments
- EMC Compliant: FBCON EMC variant includes electromagnetic compatibility shielding for noise-sensitive applications
- Compact Design: Standard M12 form factor fits tight panel and enclosure configurations
Technical Specifications
- Connector Type: M12 Circular Connector
- Configuration: 4-pin female plug
- Coding: A-code (DeviceNet / CANopen)
- Mounting: Straight orientation
- Terminal Type: Screw (M3.5)
- IP Rating: IP67
- Housing Material: Plastic body with metal shell
- Gross Weight: 47.2 g
- Series: FBCON
- Manufacturing Standard: IEC 61076-2-101
- RoHS Status: Exempt
- Country of Origin: Germany (DE)
Typical Applications
- Industrial process automation and control systems
- DeviceNet fieldbus networks in manufacturing environments
- CANopen-based distributed I/O and sensor networks
- Washdown and wet-environment installations with IP67 sealing
- Panel-mount and field-installable connector solutions
- Machinery safety interlocks and sensor signal transmission
Compatibility & Replacements
Compatible With
- Weidmüller FBCON series M12 connector ecosystem
- A-code DeviceNet fieldbus systems
- CANopen protocol-based networks
- Industrial automation controllers using M12 A-code inputs
- Allen-Bradley, Siemens, Omron, and similar PLC/drives with M12 fieldbus support
Replaces / Drop-In Replacement For
Verify exact compatibility with your system integrator before ordering, as M12 connector configurations vary by coding (A, D, X, etc.) and application. This 4-pin A-code female plug is application-specific and may not be directly interchangeable with other M12 variants.
Works With
- DeviceNet fieldbus protocol
- CANopen (CiA 301/302) industrial networks
- Weidmüller SAIB, SAISM, and FBCON series matching connectors (male plugs and sockets)
- Standard IEC 61076-2-101 M12 connector systems
- Field-level industrial communication infrastructure (Factory Automation, Machinery Control)
[
{
“label”: “Connector Type”,
“value”: “M12 Circular Connector”
},
{
“label”: “Configuration”,
“value”: “4-pin female plug”
},
{
“label”: “Coding”,
“value”: “A-code (DeviceNet / CANopen)”
},
{
“label”: “Orientation”,
“value”: “Straight”
},
{
“label”: “Terminal Type”,
“value”: “Screw (M3.5)”
},
{
“label”: “IP Rating”,
“value”: “IP67”
},
{
“label”: “Series”,
“value”: “FBCON”
},
{
“label”: “Weight”,
“value”: “47.2 g”
},
{
“label”: “Manufacturing Standard”,
“value”: “IEC 61076-2-101”
},
{
“label”: “Country of Origin”,
“value”: “Germany”
},
{
“label”: “RoHS Status”,
“value”: “Exempt”
}
]
