Overview

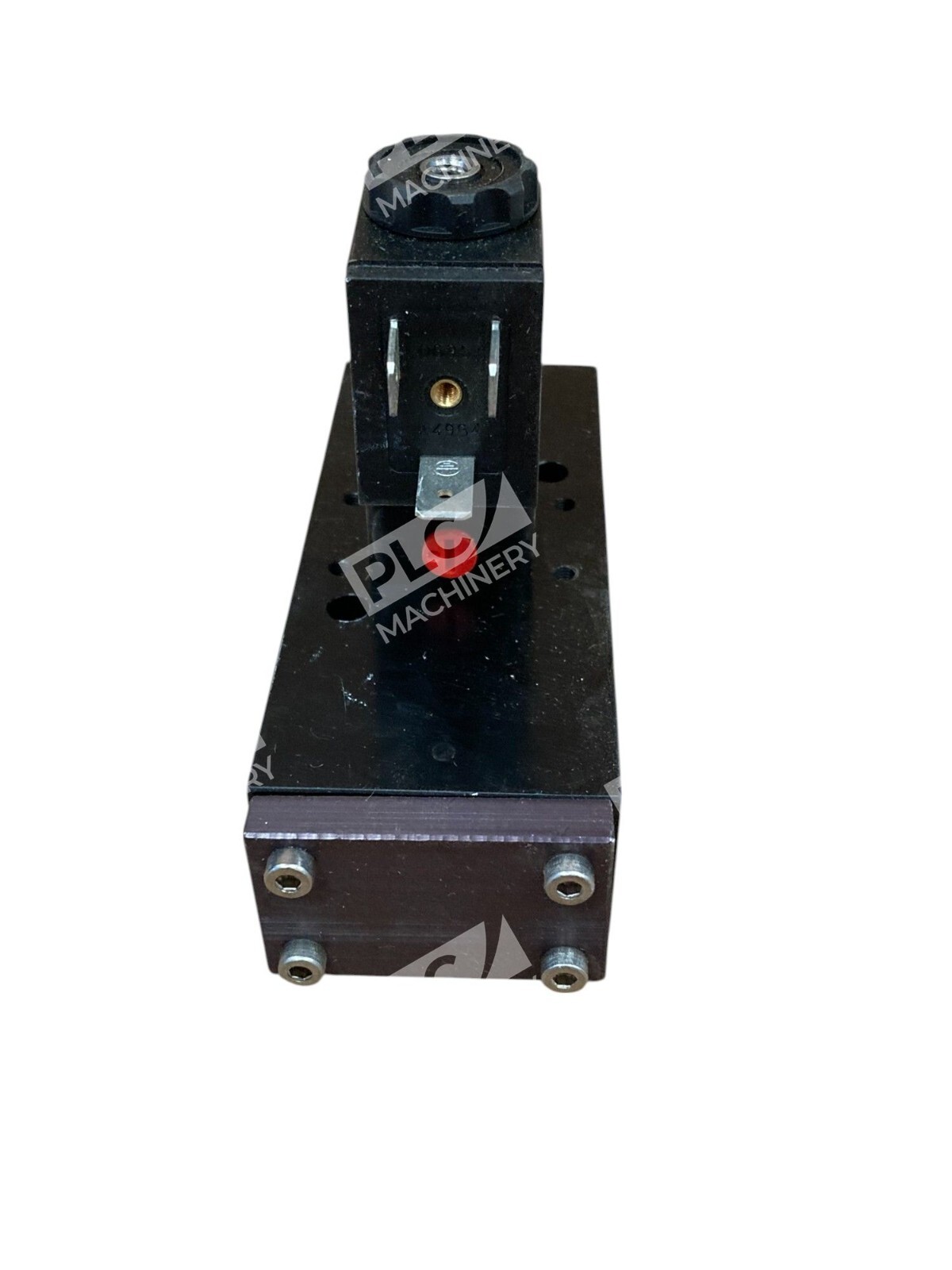

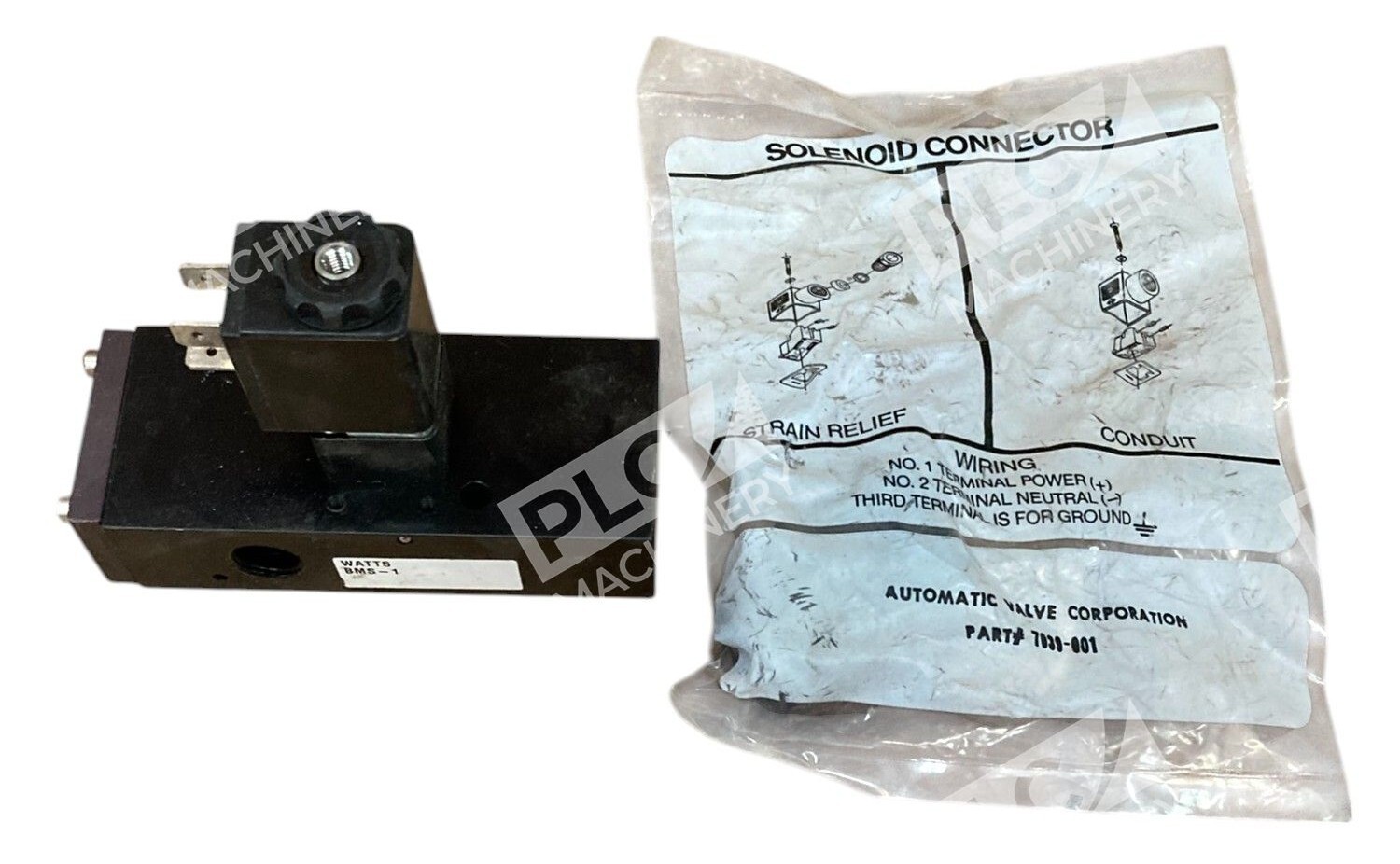

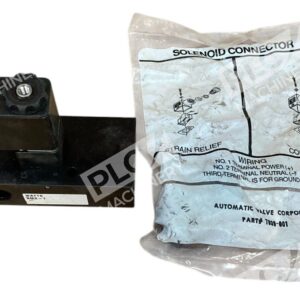

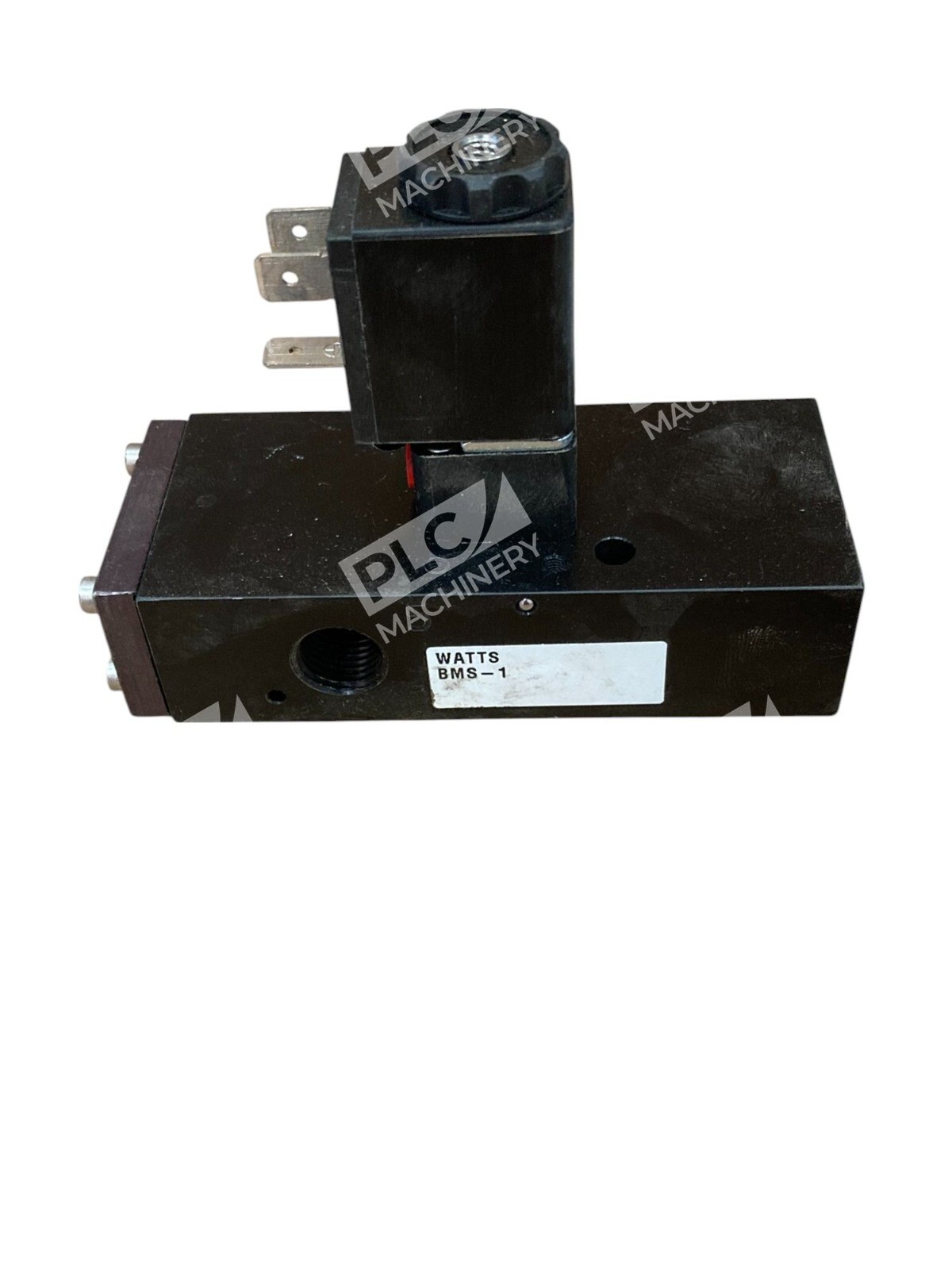

The Automatic Valve 7019-9AA is a direct-mount solenoid coil engineered for 7019 and 7144 series valve systems. This connector coil provides stable 120VAC operation with low power consumption and is housed in a NEMA 4X enclosure for reliable field performance. It is commonly used in industrial process control, fluid power automation, and valve actuation applications.
Key Features
- 120VAC input voltage, 50/60 Hz operation

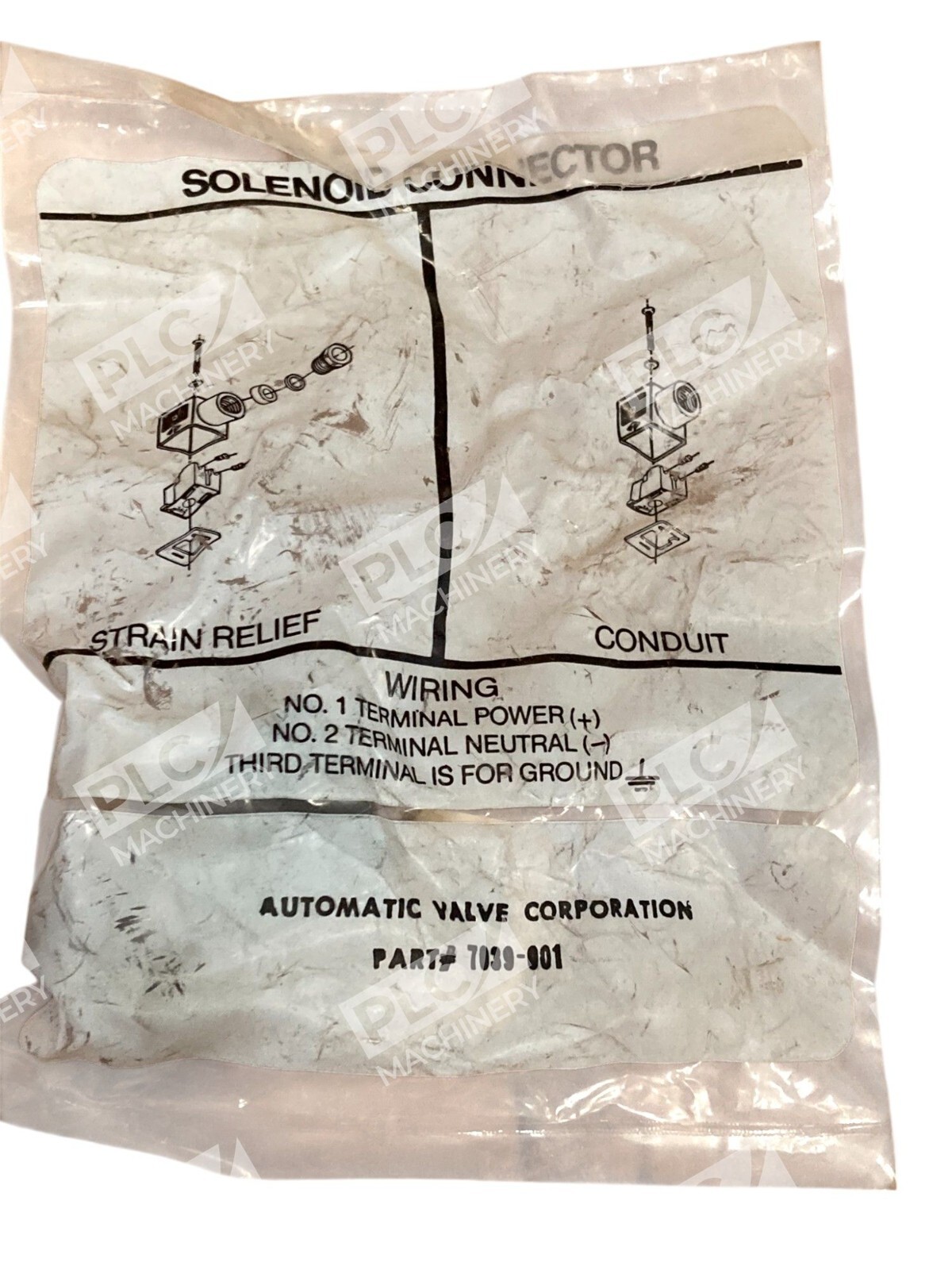

- DIN 43650 Form B electrical connector for standard industrial mounting
- NEMA 4X weather-resistant rating for outdoor and washdown environments
- Low power consumption: 4.8 watts nominal
- 150 PSI maximum pressure rating
- 3-blade connector configuration for secure connection

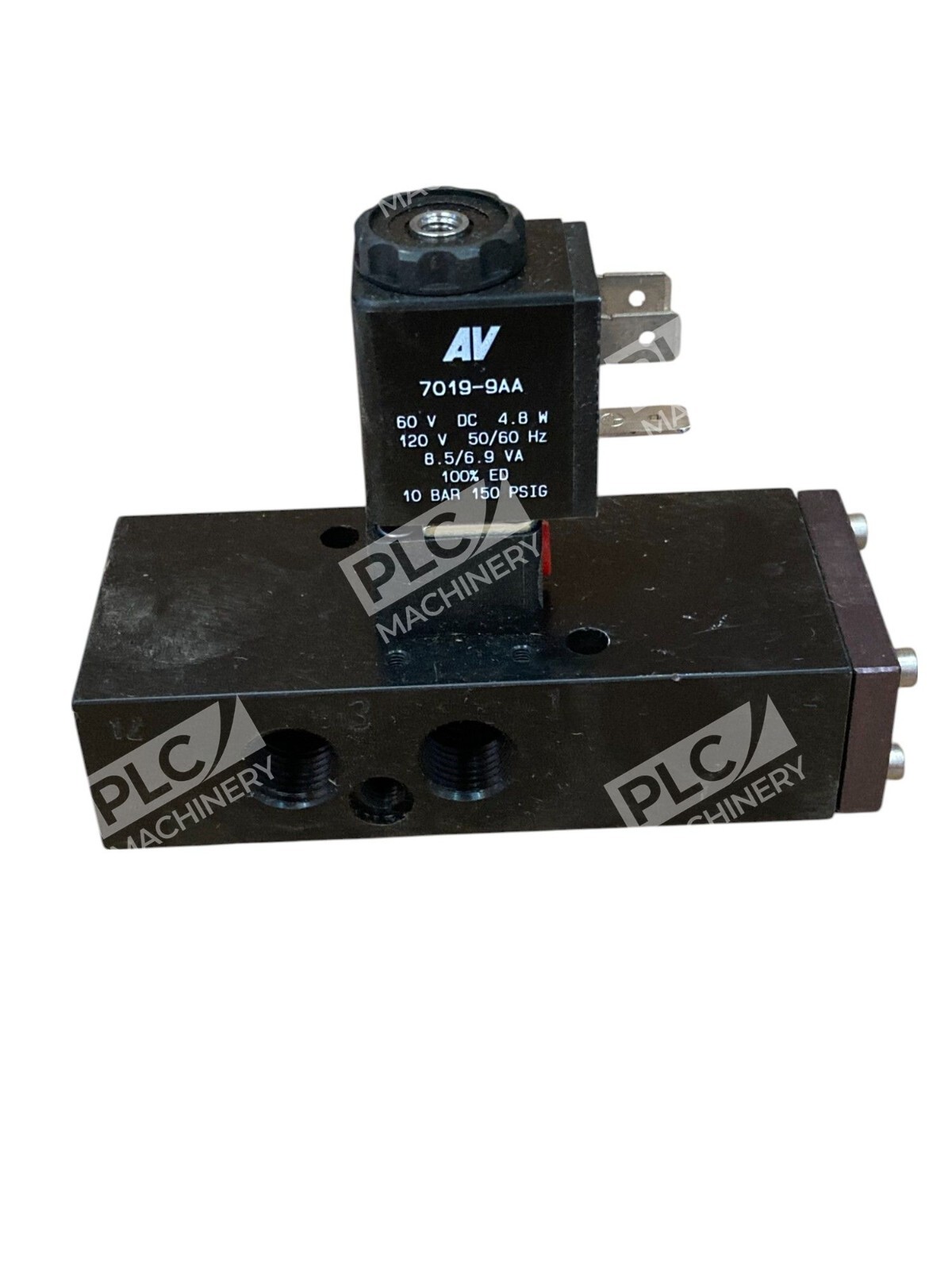

Technical Specifications
Precise electrical and mechanical parameters for system integration:
- Input Voltage: 120 VAC
- Frequency: 50/60 Hz
- Power Output: 4.8 Watts
- Apparent Power: 8.5/6.9 VA
- DC Coil Voltage: 60 VDC
- Connector Type: DIN 43650 Form B (3-blade)
- Maximum Pressure: 150 PSI (10 bar)
- Duty Cycle: 100% ED (continuous)
- Series: 7019 & 7144
- Weight: 0.10 lbs
Typical Applications
The Automatic Valve 7019-9AA is ideal for:
- Directional valve solenoid replacement in fluid power circuits
- Industrial process control and automation systems
- Compressed air and hydraulic valve actuation
- Factory automation and machinery control
- OEM and retrofit valve coil installations
- HVAC and building automation valve control
Compatibility & Replacements
Compatible With
- Automatic Valve 7019 series solenoid valves
- Automatic Valve 7144 series solenoid valves
- DIN 43650 Form B connector equipped valve bodies
- 120VAC, 50/60 Hz industrial control systems
- Fluid power automation and process control networks
Replaces / Drop-In Replacement For
- Automatic Valve 7019-9AA (direct replacement)
- OEM solenoid coils for 7019 and 7144 series valve actuation
- Legacy industrial solenoid connectors with DIN 43650 Form B specifications
Works With
- DIN 43650 Form B industrial connector ecosystems
- 120VAC single-phase control circuits
- Pneumatic and hydraulic valve systems
- Industrial PLC and automation controller outputs
- Standard solenoid valve mounting manifolds
