Overview

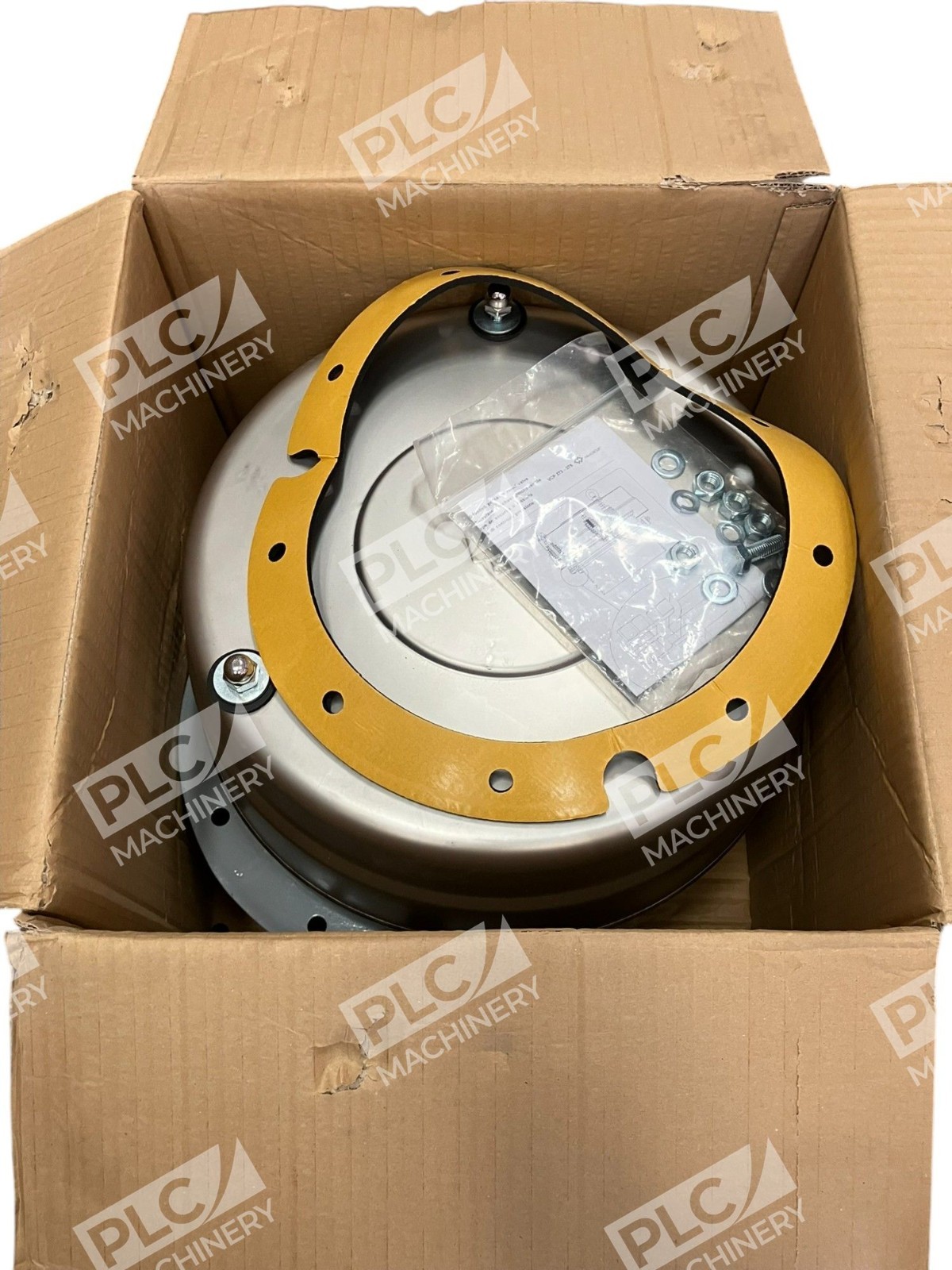

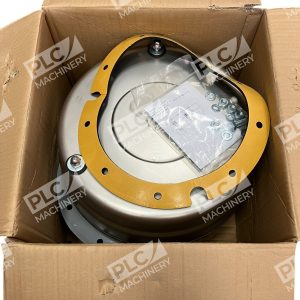

The WAM VCP2731C is a heavy-duty spring-loaded pressure relief valve engineered for silo top safety applications in concrete mixing plants and bulk material handling. It consists of a cylindrical casing with clamped weld-on spigot, a disc-shaped inner steel lid for negative pressure operation held by a central spring rod, and an outside steel ring for excess pressure kept in position by three spring rods. This valve is the last resort when abnormal pressure conditions endanger the silo structure, and sudden excess or suction pressure inside the silo must be dealt with instantaneously.
Key Features
- Dual-function design: Handles both positive and negative pressure relief with maximum preset negative pressure of −0.005 bar (−0.07 psi) and maximum positive pressure of +0.05 bar (+0.72 psi)
- High-capacity airflow: 10-inch body rated for 5,300 cfm (7,000 m³/h)
- Spring-loaded operation: Automatic pressure sensing without external power or controls
- Corrosion protection: Stainless steel corrosion guard and weather protection cover included
- Lightweight construction: Weighs 9.5 kg (21 lbs) for the 273 mm body
Technical Specifications
Body Material & Construction: Carbon steel body (VCP2731B) with RAL 7001 paint or 304 stainless steel option (VCP2732C); stainless steel weather cover
Positive Pressure Range: +0.03 bar to +0.08 bar (+0.4 to +1.16 psi)
Negative Pressure Range: −0.001 bar minimum (−0.014 psi)
Connection Type: Flange-mounted
Certifications: ISO and CCC compliant
Typical Applications
- Concrete mixing plant silos (ready-mix plants)
- Bulk material storage bins and hoppers
- Cement, fly ash, and powder storage vessels
- Food processing and chemical industry bulk containers
- Pneumatic conveying system pressure protection
Compatibility & Replacements
Compatible With
- Concrete plant silo systems with flange-mounted top connections
- Bulk material handling equipment using pneumatic or gravity feed
- Industrial vacuum and pressure relief systems
- Ready-mix concrete production facilities
Replaces / Drop-In Replacement For
- Earlier versions of VCP2731B (carbon steel variant)
- Compatible with other 273 mm (10″) silo relief valve installations
Works With

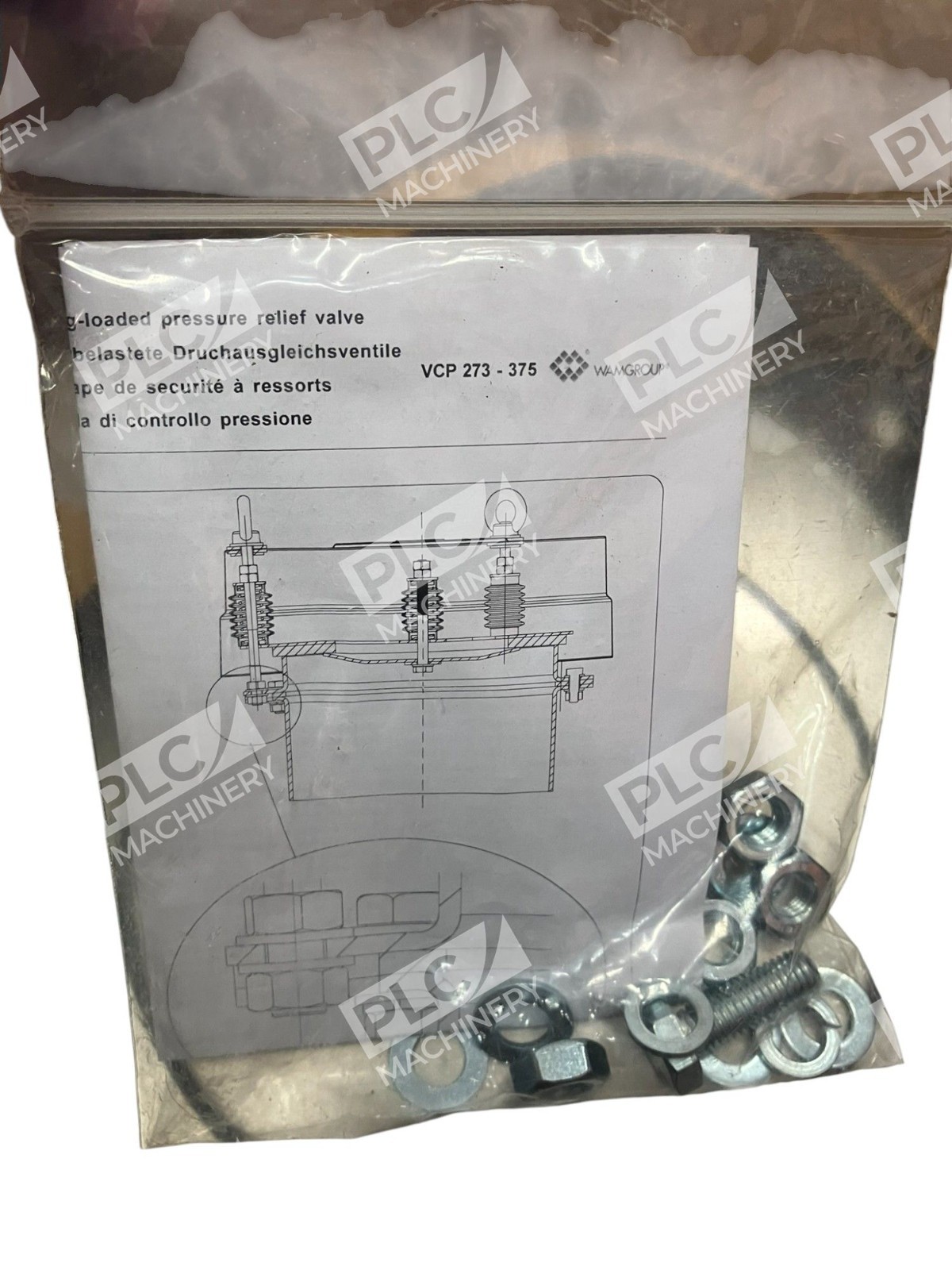

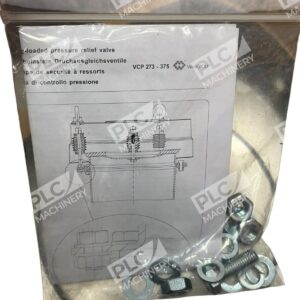

- WAM repair kit: KSVCP2731C001 (for maintenance and sealing upgrades)
- Standard silo top flange adapters and mounting brackets
- Inductive signal-sensing equipment for remote pressure monitoring
- Manual and automated silo pressure management systems
