Overview

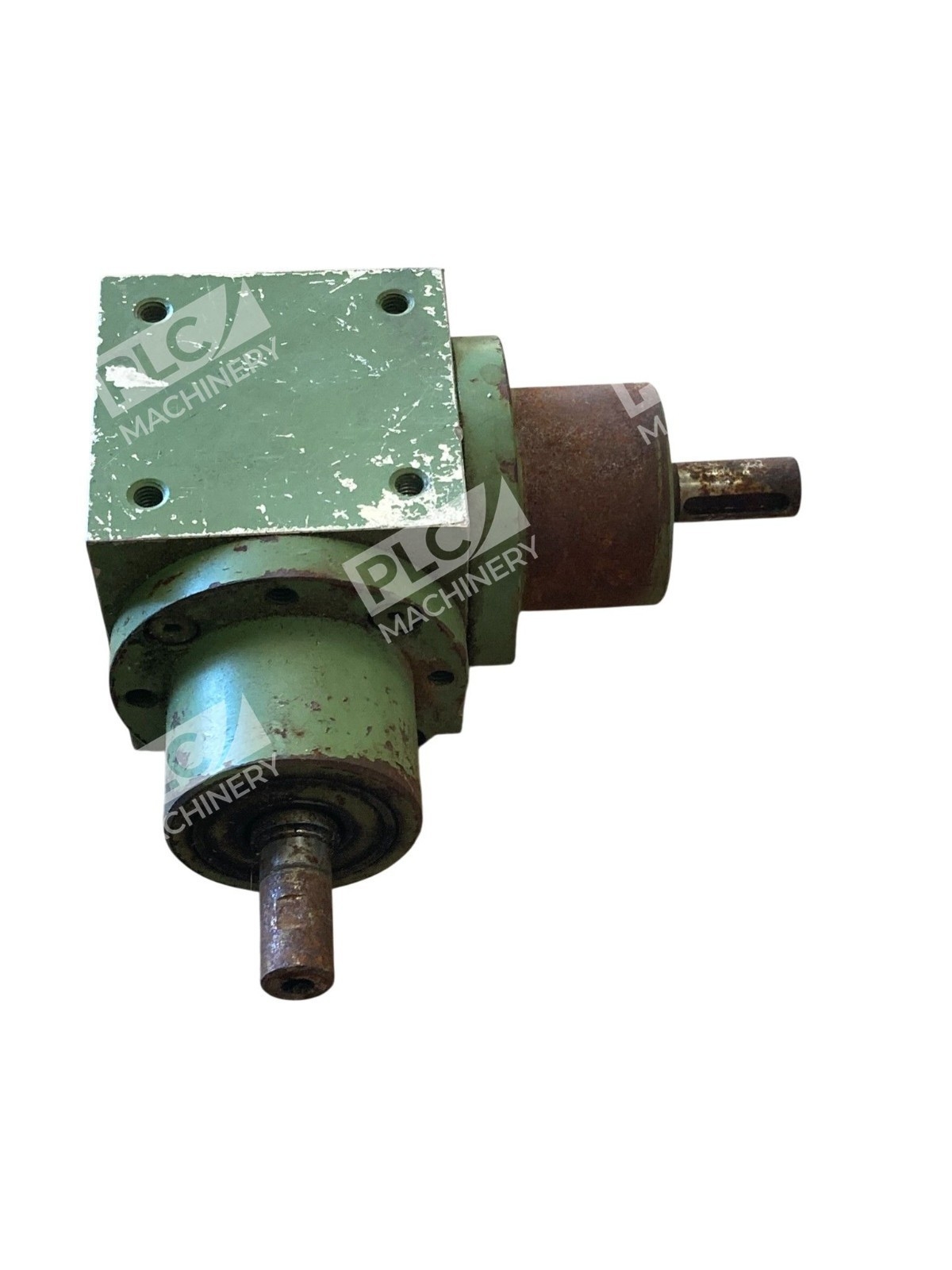

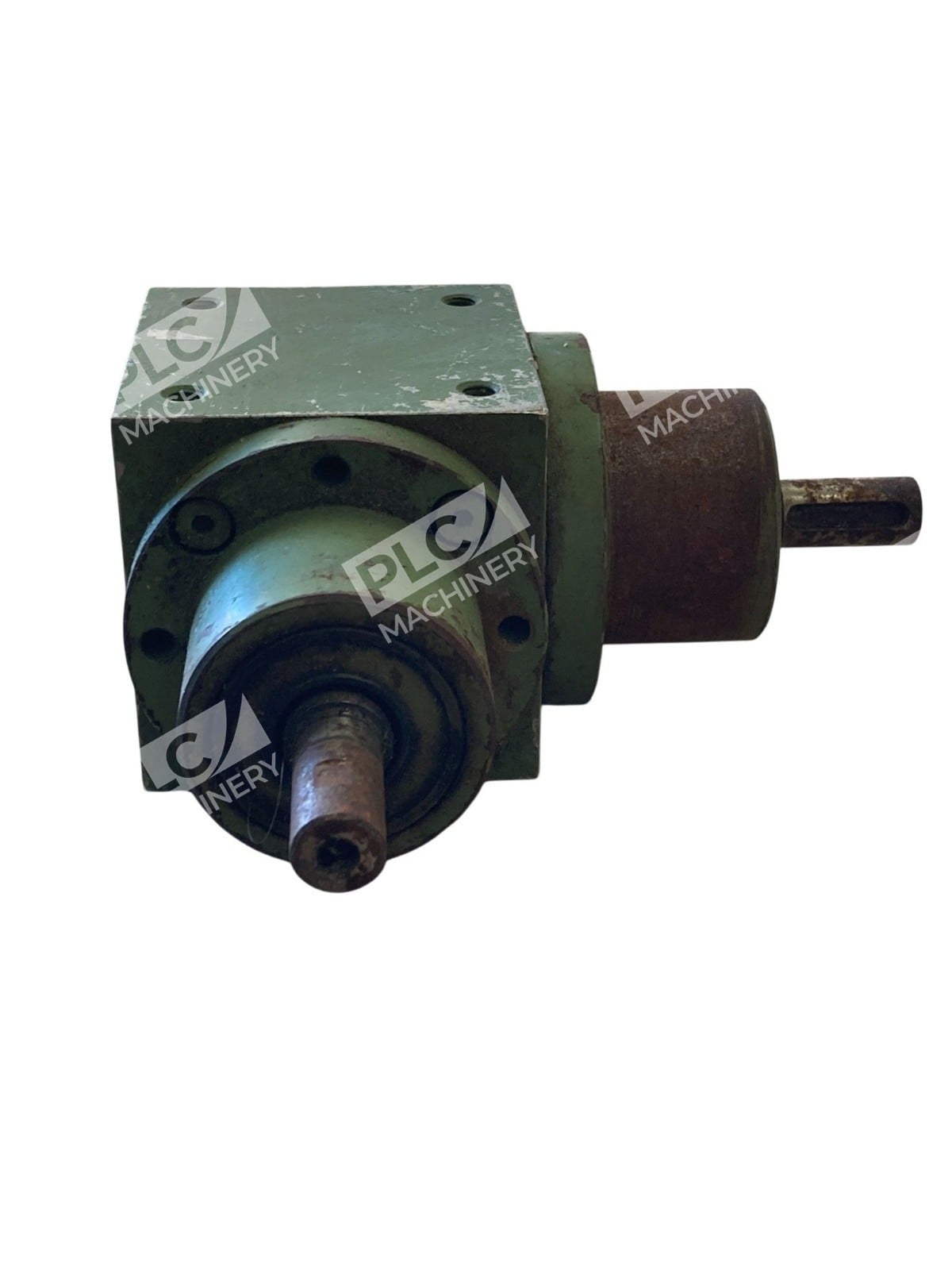

The Vogel K0 85397 93 004 spiral bevel gearbox delivers precise angular torque transmission with a nominal gear ratio of 1.5:1. Vogel spiral bevel gearboxes are suitable for universal use thanks to their machine-friendly construction and adaptability. Vogel spiral bevel gearboxes are manufactured using the modern production method of ground circular arc teeth according to Klingelnberg. This K0 series unit is engineered for industrial automation, robotics, and machinery control applications requiring dependable mechanical power reduction.
Key Features
- 1.5:1 gear ratio for precise speed reduction and torque multiplication
- Manufactured using ground circular arc teeth according to Klingelnberg for superior toothing quality
- Machine-friendly construction suitable for various mounting orientations
- Compact angular gearbox design with solid shaft configuration
- German precision engineering and manufacturing quality
- Ideal for industrial automation, motion control, and drive applications
Technical Specifications
The following specifications are based on Vogel K0 series standard parameters. Verify exact dimensions and performance data with your application requirements.
Typical Applications
- Industrial automation and control systems
- Robotic arm and articulating machinery drives
- Machine tool positioning and motion control
- Angular torque transmission in compact spaces
- Material handling and conveyor system drives
- Precision machinery requiring reliable gear reduction
Compatibility & Replacements
Compatible With
- Electric motor inputs with standardized coupling interfaces
- Industrial servo and stepper motor systems
- AC and DC motor-driven applications
- Machinery with angular (bevel gear) transmission requirements
- Flexible shaft and coupling mounting arrangements
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Original Vogel K0 series gearbox units with identical ratio and shaft configuration specifications may be interchangeable.
Works With
- Standard industrial motor couplings and adapters
- Flexible coupling systems
- Bearing and mounting bracket assemblies
- Industrial control systems requiring angular drive transmission
