Overview

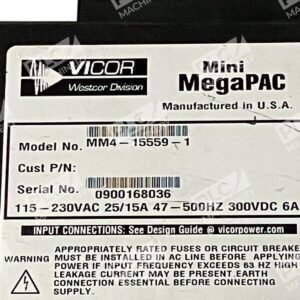

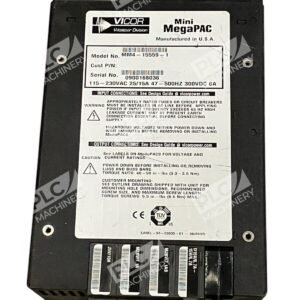

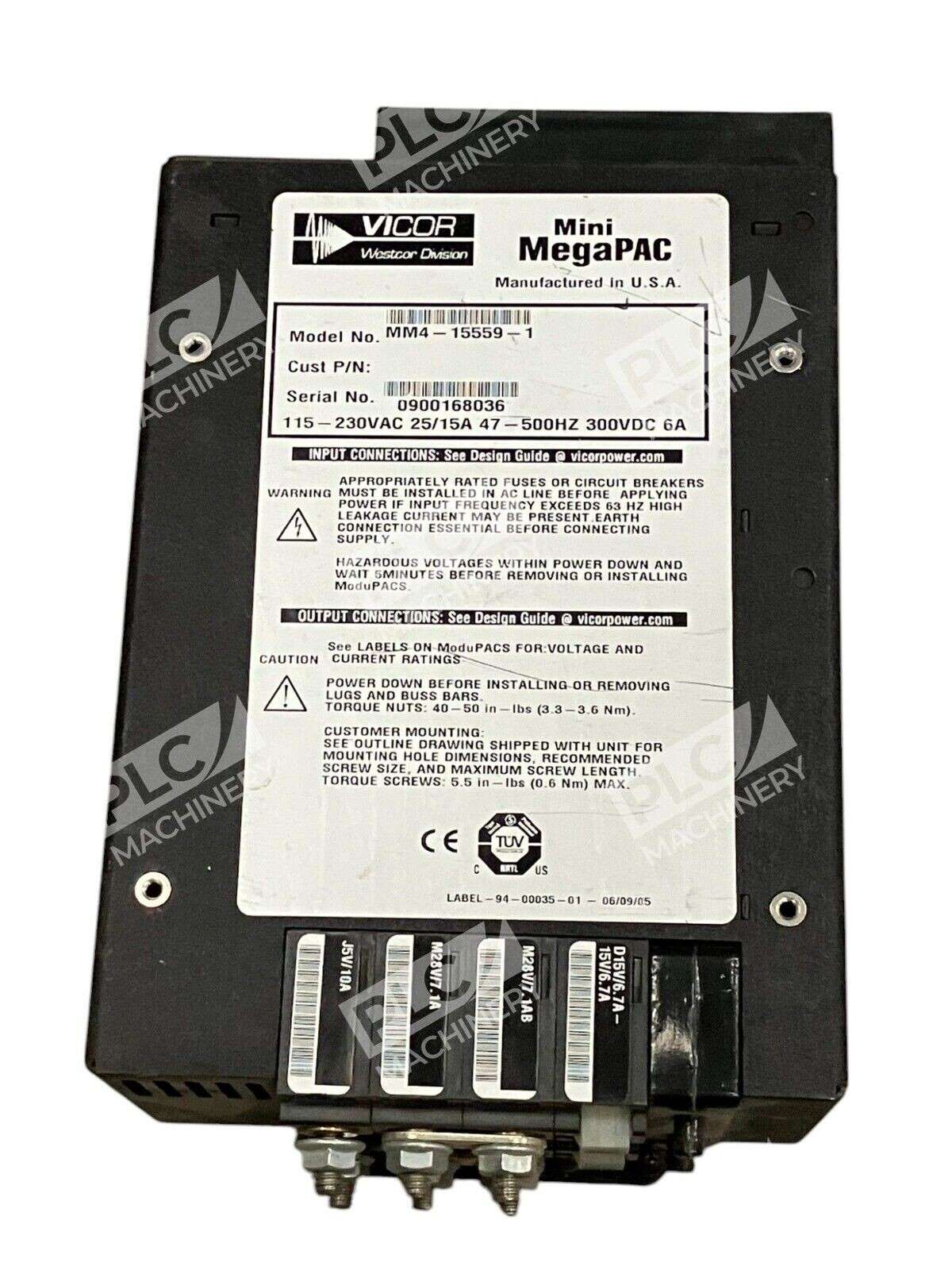

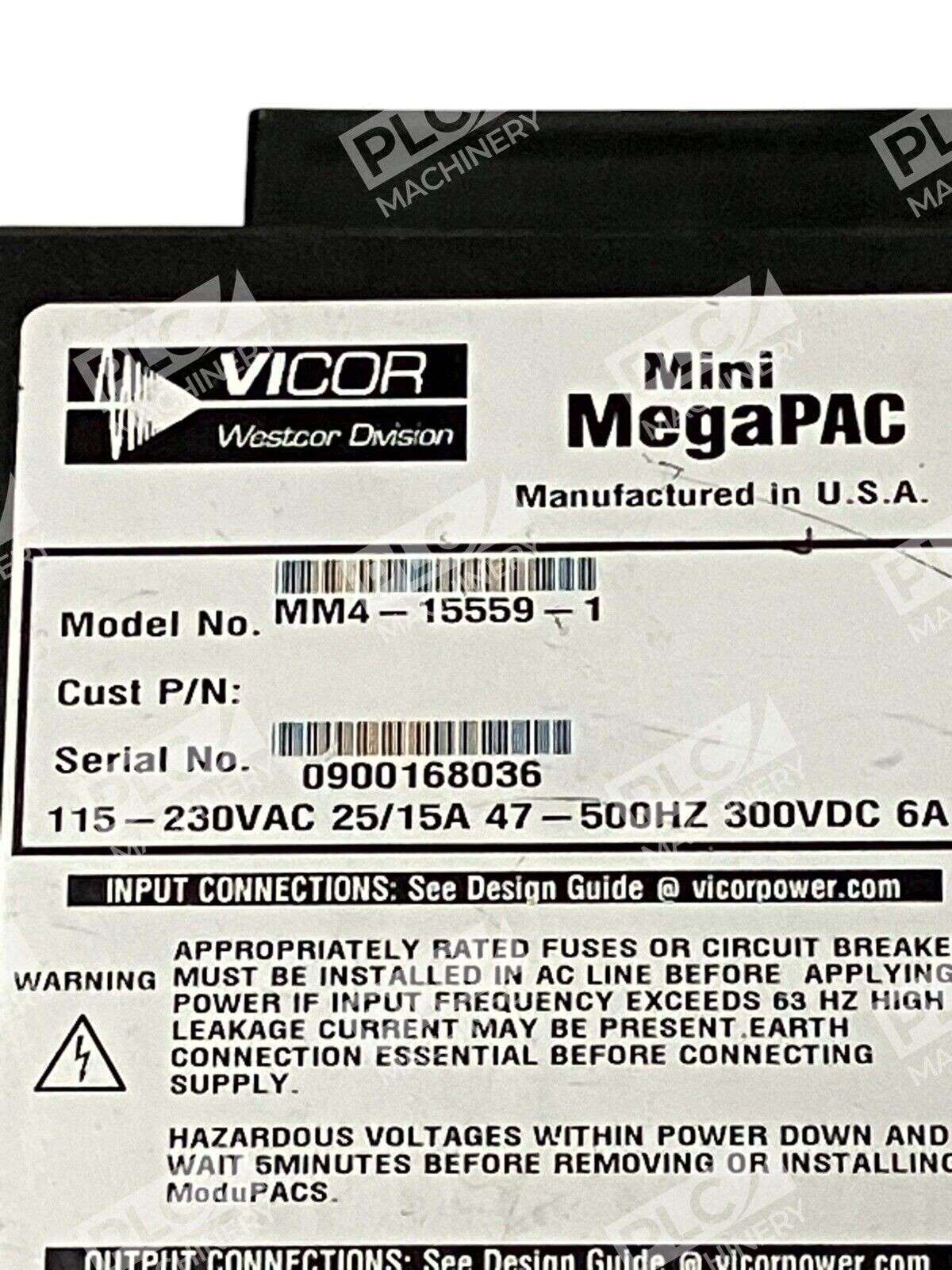

The Vicor MM4-15559-1 Mini MegaPAC is a modular switching power supply platform designed for industrial automation, motion control, and PLC/HMI applications. This unit is configured by selecting and inserting up to eight slide-in output assemblies called ConverterPACs, which incorporate one or two Vicor DC-DC converters and are available in a wide array of outputs and power levels. The modular architecture allows field-upgradeable power configurations without requiring a complete unit replacement.
Key Features
- Modular Design: Upgrading is easy: simply unlock a single screw and replace the slide-in ModuPAC assembly with one that has the desired rating
- Multiple Isolated Outputs: Supports up to 16 isolated outputs via stacked ConverterPACs for diverse system power needs
- Compact Form Factor: Small in size (6.0 x 11.7 x 3.4 inches), suitable for space-constrained panel installations
- Current Sharing Capability: Load sharing allows the ability to divide the output current evenly across all active power supplies, greatly reducing stresses on each power supply and allowing them to run cooler, resulting in higher reliability
- Industrial Operating Temperature: Mini MegaPAC operating temperature is 45°C using any combination of modules and output voltages as long as the front-end rating is not exceeded
Technical Specifications
- Series: Mini MegaPAC (Modular AC-DC)
- Maximum Output Power: Up to 1600W (dependent on module configuration)
- Maximum Isolated Outputs: 16 (with full module configuration)
- Dimensions: 6.0 x 11.7 x 3.4 inches (152.4 x 296.7 x 86.4 mm)
- Operating Temperature Range: 45°C maximum ambient
- Output Assembly Type: Slide-in ConverterPACs (field replaceable)
- Technology: Zero-Current Switching (ZCS) DC-DC converters
Typical Applications
The Vicor MM4-15559-1 Mini MegaPAC is ideal for:
- Industrial PLC and motion control systems requiring multiple isolated power rails
- Factory automation cabinets with space constraints and modular power requirements
- Semiconductor manufacturing and test equipment power distribution
- Parallel redundancy configurations for high-availability control systems
- System integrations requiring field-upgradeable power module configurations
Compatibility & Replacements
Compatible With
- Vicor ConverterPAC DC-DC converter modules
- ModuPAC slide-in output assemblies (8 slots)
- Current Share Board (CSB) for paralleled supply configurations
- Industrial automation racks and enclosures
- PLC and HMI control systems requiring multiple isolated outputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The MM4-15559-1 module configuration may differ from legacy units; consult Vicor documentation or contact technical support to confirm drop-in compatibility with your existing system.
Works With
- Vicor Zero-Current Switching (ZCS) converter modules
- ConverterPAC output assembly family (multiple voltage/power options)
- Industrial automation software (EtherNet/IP, PROFINET compatible systems)
- Parallel Current Sharing Board configurations
- Standard industrial 24 VDC and isolated power rails
