Overview

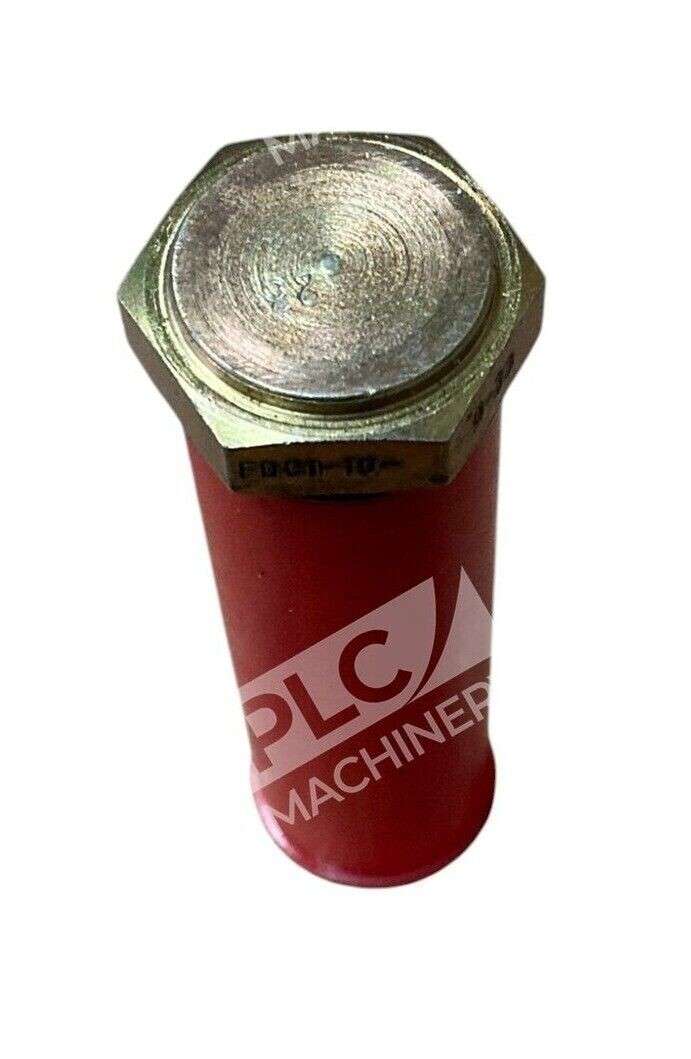

The Vickers Eaton 565596 cartridge valve (FDC1-10-0-33) is a screw-in flow control cartridge valve designed for hydraulic systems requiring precise flow regulation and load control. Part of Vickers’ proven line of industrial cartridge valves, this unit delivers reliable performance in mobile and stationary hydraulic applications up to 350 bar system pressures.
Key Features
- Screw-in cartridge design for compact, modular integration
- Precision flow control rated for 210 bar (3000 psi) maximum operating pressure
- Flow capacity range of 6–61 L/min (1.5–16 gpm)
- Industrial-grade construction for demanding hydraulic applications
- Compact form factor reduces manifold space requirements
Technical Specifications
- Manufacturer: Vickers (Eaton)
- Model Number: FDC1-10-0-33
- Part Number: 565596
- Valve Type: Screw-in Cartridge Flow Control
- Maximum Pressure: 210 bar (3000 psi)
- Flow Range: 6–61 L/min (1.5–16 gpm)
- Mounting: Screw-in cavity
- Application: Industrial hydraulic systems
Typical Applications
Vickers cartridge valves are widely used in:
- Industrial injection molding machinery
- Mobile equipment (excavators, loaders, cranes)
- Hydraulic power units and manifold assemblies
- Flow divider/combiner circuits
- Precision load control systems
Compatibility & Replacements
Compatible With
- Vickers hydraulic manifold cavities designed for FDC1-10 series
- Standard SAE cavity configurations for screw-in cartridge valves
- Hydraulic systems rated 210 bar (3000 psi) and below
- Industrial pumps and actuator control circuits
Replaces / Drop-In Replacement For
- FDC1-10-0-33 (direct OEM replacement)
- Verify compatibility with your system integrator before ordering for other potential cross-references
Works With
- Vickers hydraulic pump and motor control systems
- ISO 4401 NG10 and NG16 manifold designs
- Mobile and industrial hydraulic circuits
- Load-sensing and proportional valve systems
