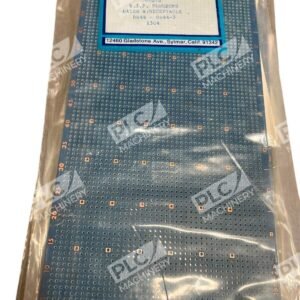

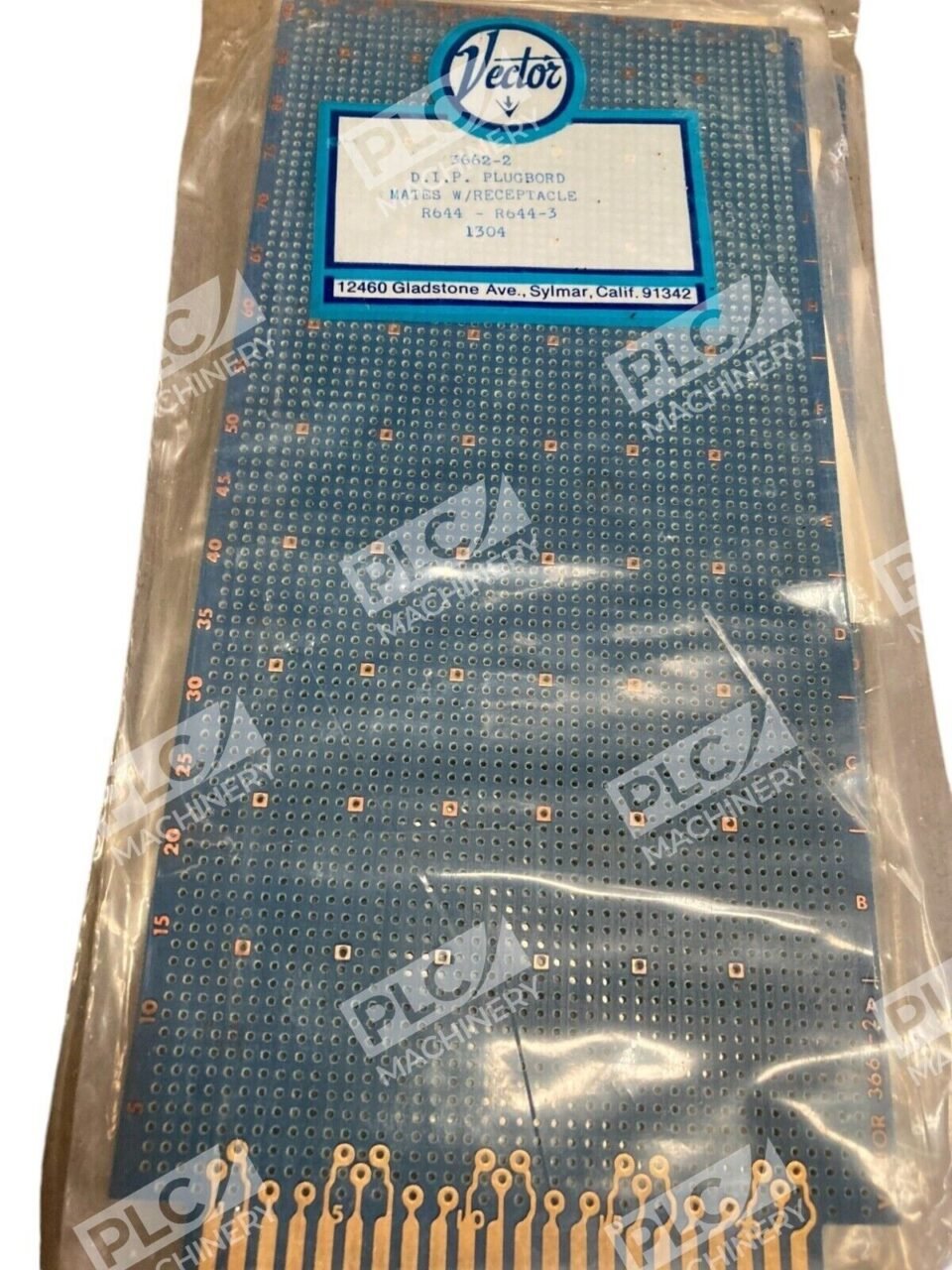

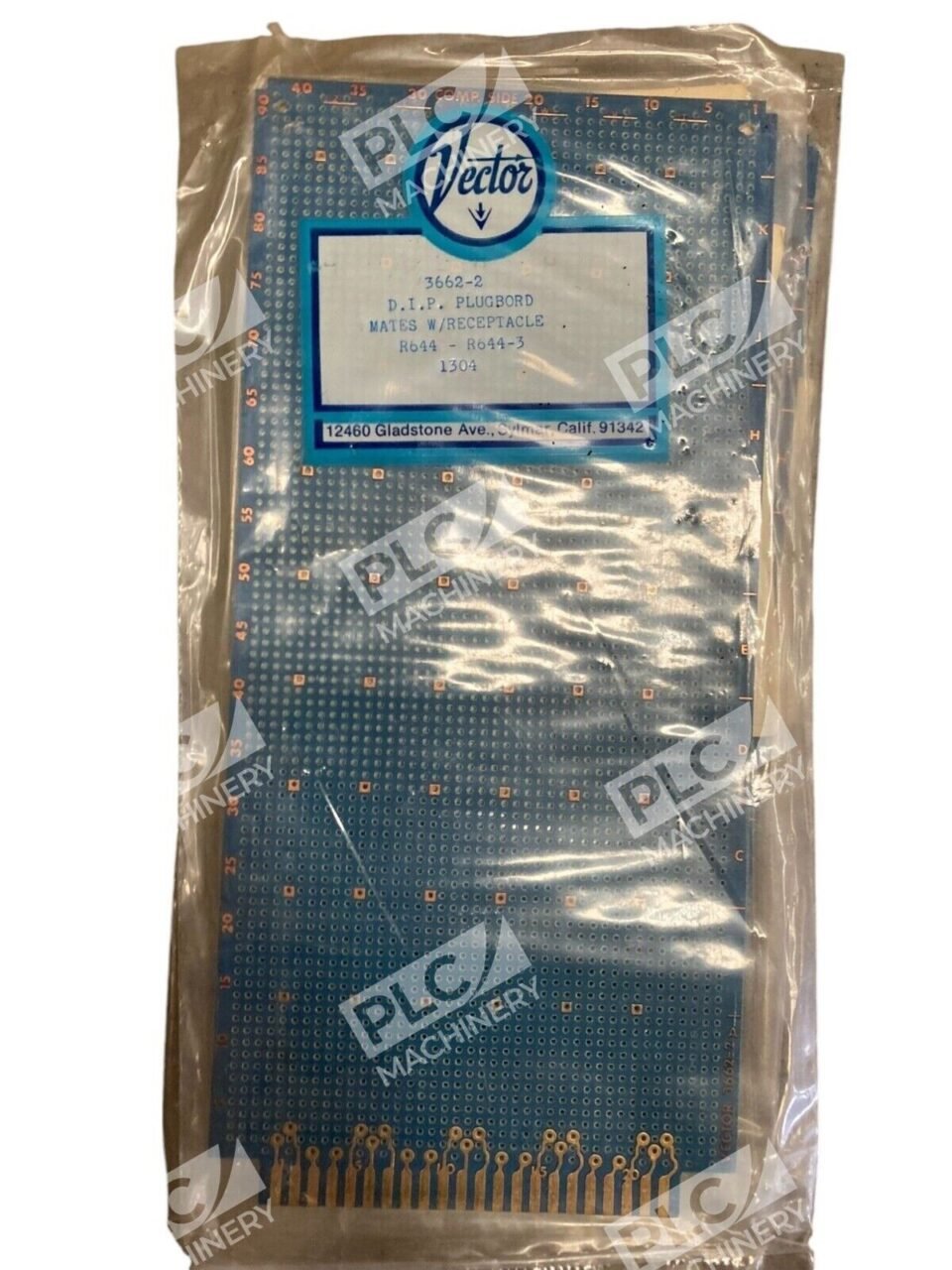

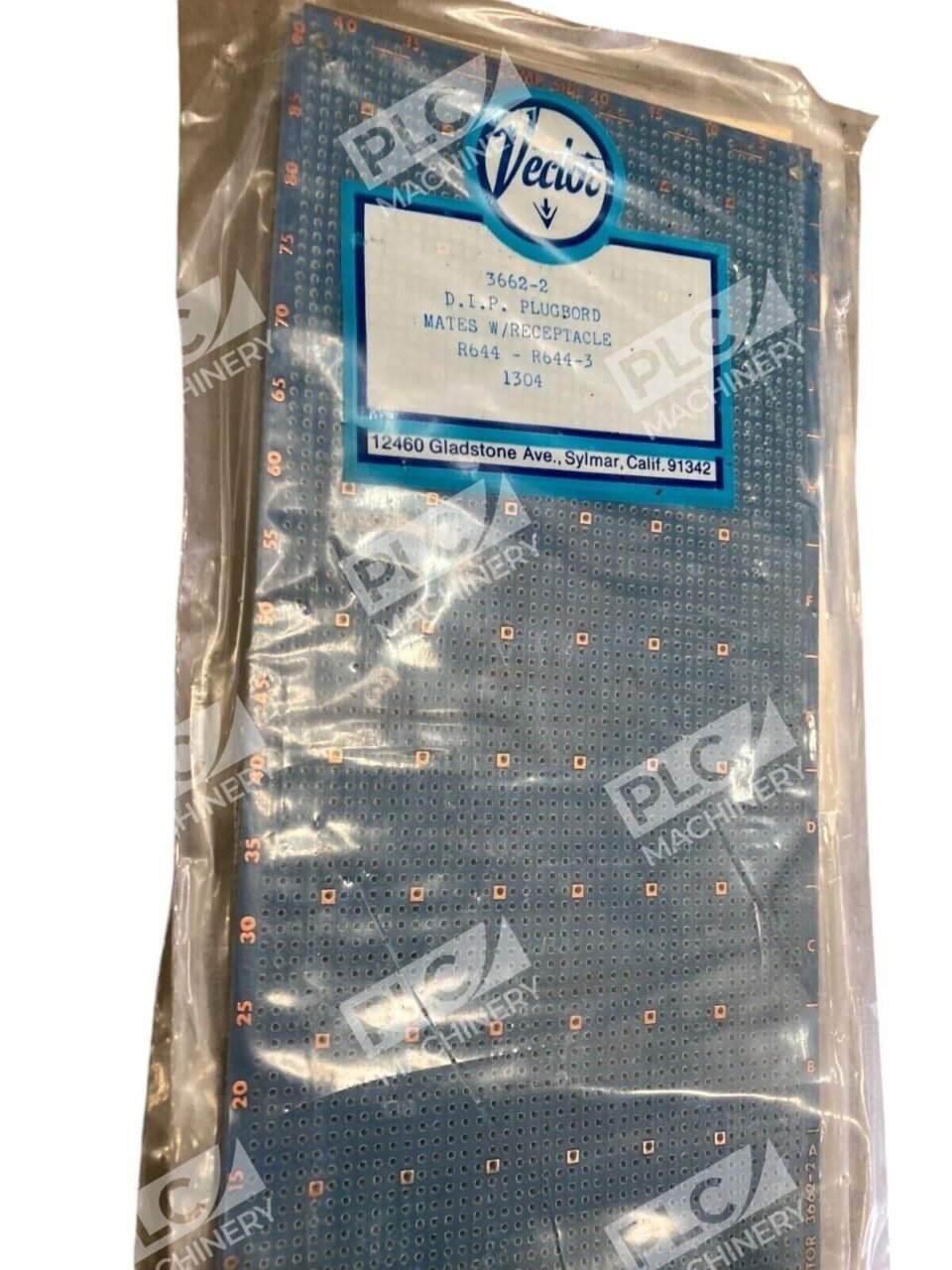

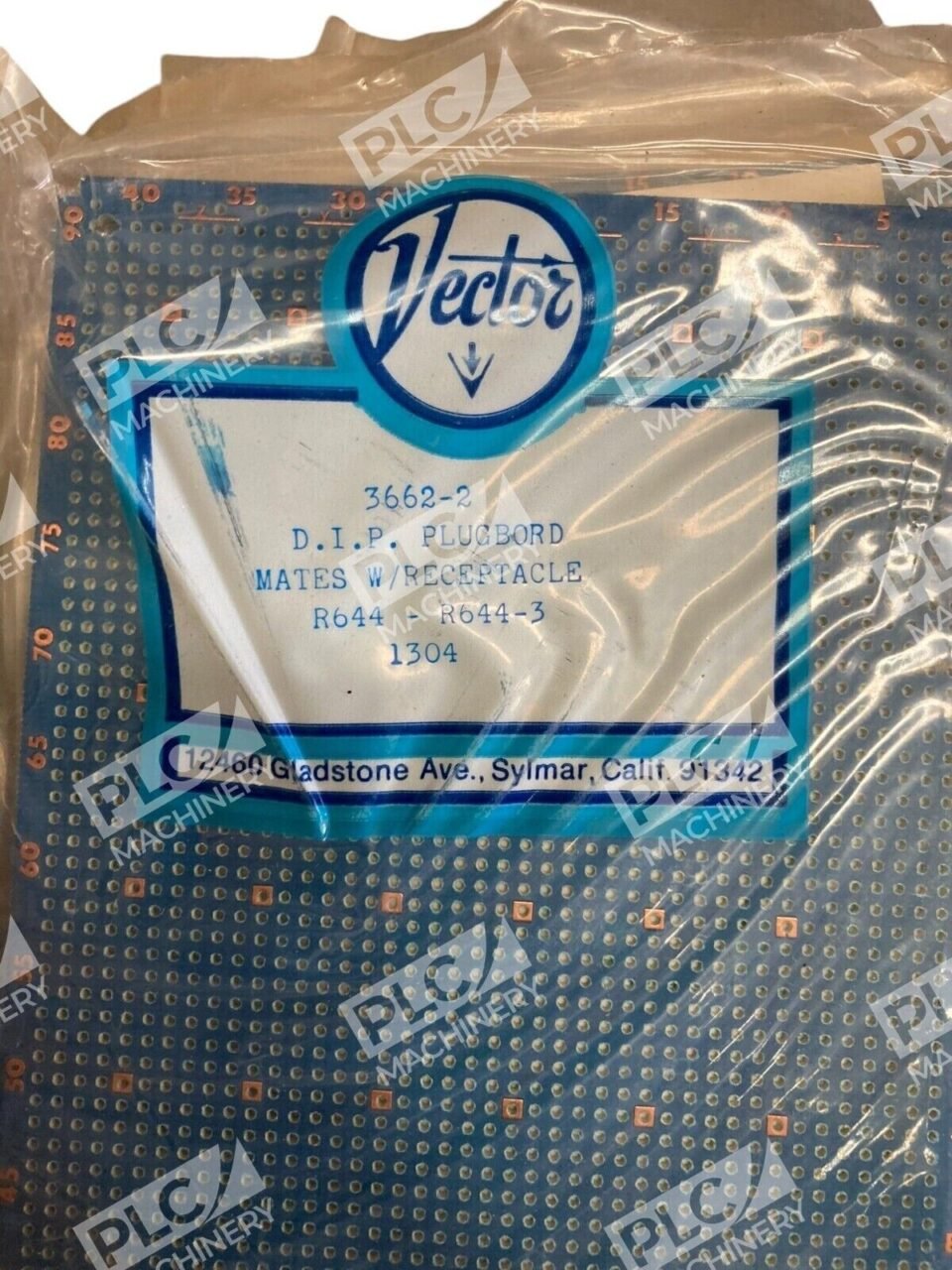

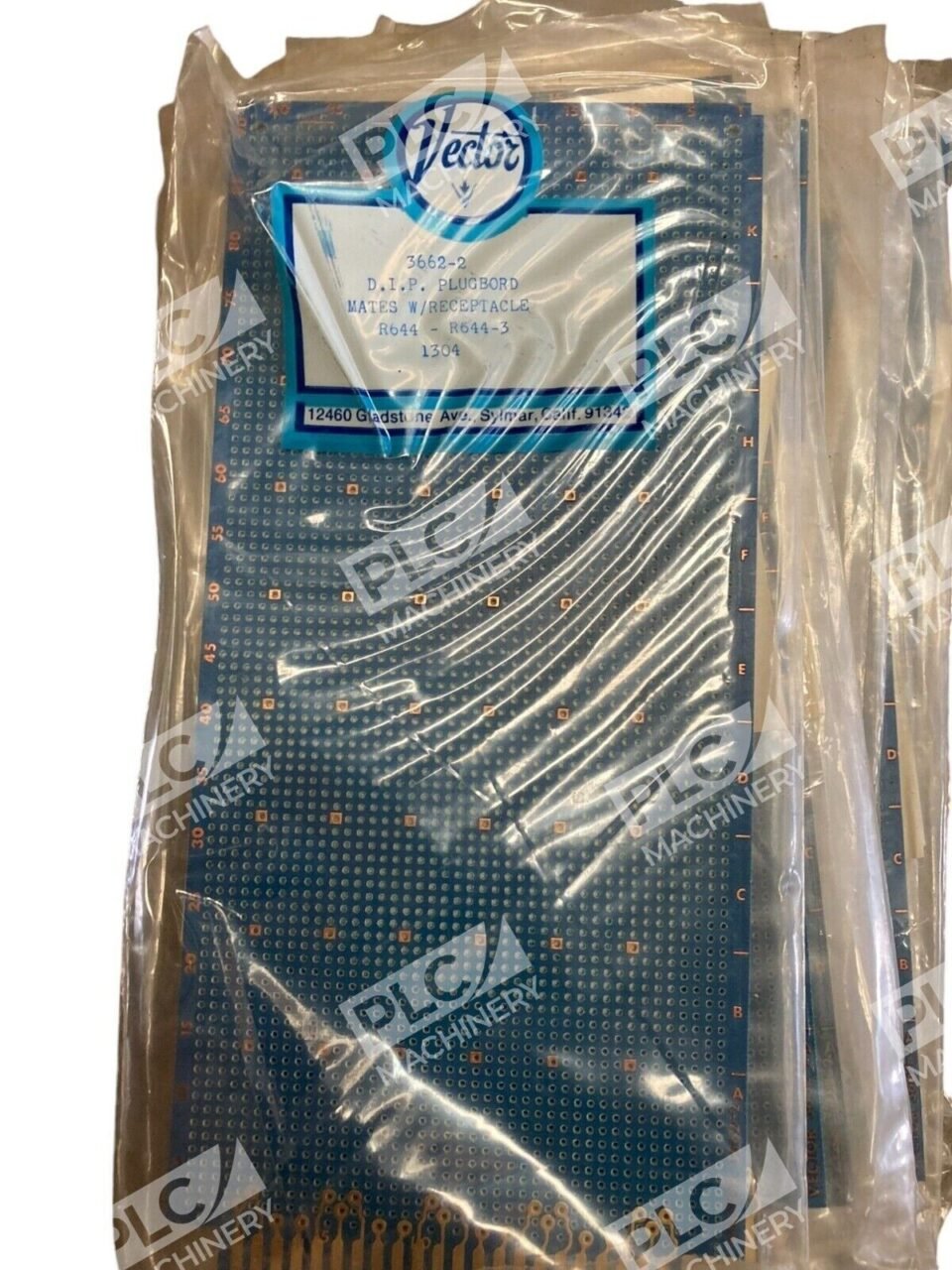

Vector DIP Plugboard Mates with Receptacle R644 or R644-3
The Vector DIP Plugboard is a high-quality prototyping board designed for versatile electronic applications. It features a robust construction and precise specifications to accommodate various components and configurations.
Key Features
- Dimensions: 4.50″ x 6.50″ x 0.062″ (114.3mm x 165.1mm x 1.57mm)
- Hole Diameter: 0.042″ (1.067mm) plated through
- Grid Spacing: 0.100″ x 0.100″ (2.54mm x 2.54mm)
- Circuit Pattern: No pattern, edge contacts only
- Material: FR4 with UL Flammability Class 94V-0
- 16-Pin DIP Capacity: 50
- Edge Contacts: 44 gold-plated contacts (22 on each side) on 0.156″ (3.96mm) centers
Compatible Accessories
- Solder Connector: R644
- Wire-Wrap Connector: R644-3C or R644-3F
- Wire-Wrap Terminals: T44, T46, T49, T68
- Wire-Wrap Socket Pins: R32
This plugboard is ideal for unrestricted component placement over the entire board surface, making it suitable for a wide range of prototyping needs. The inclusion of gold-plated edge contacts ensures reliable connections and durability.
