Overview

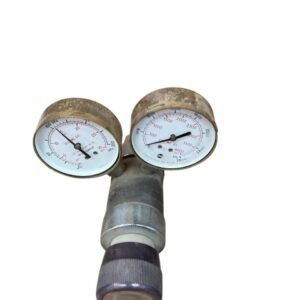

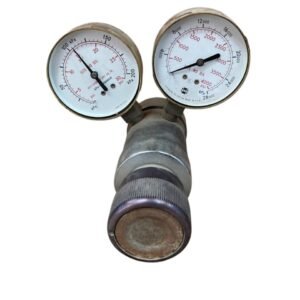

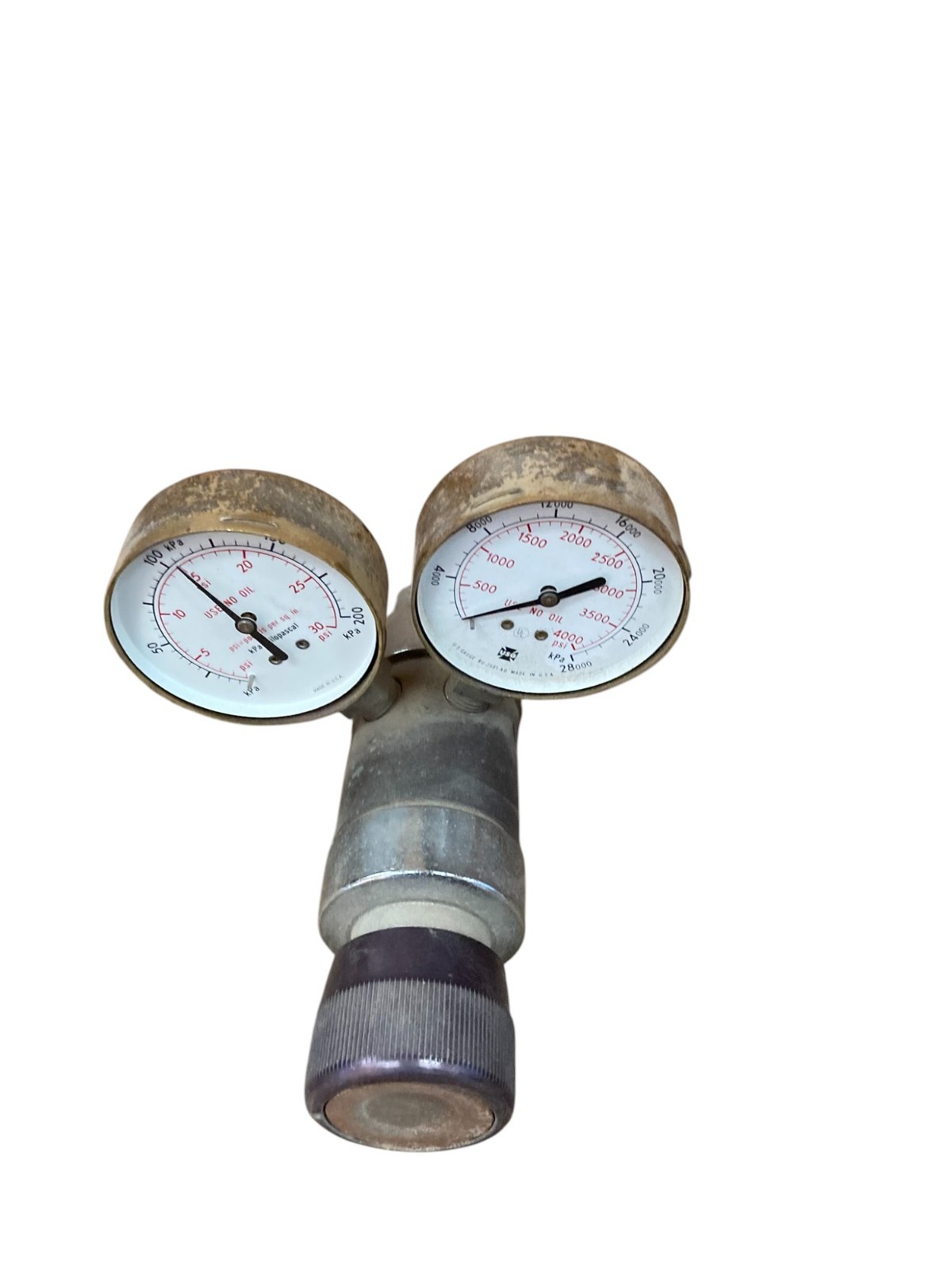

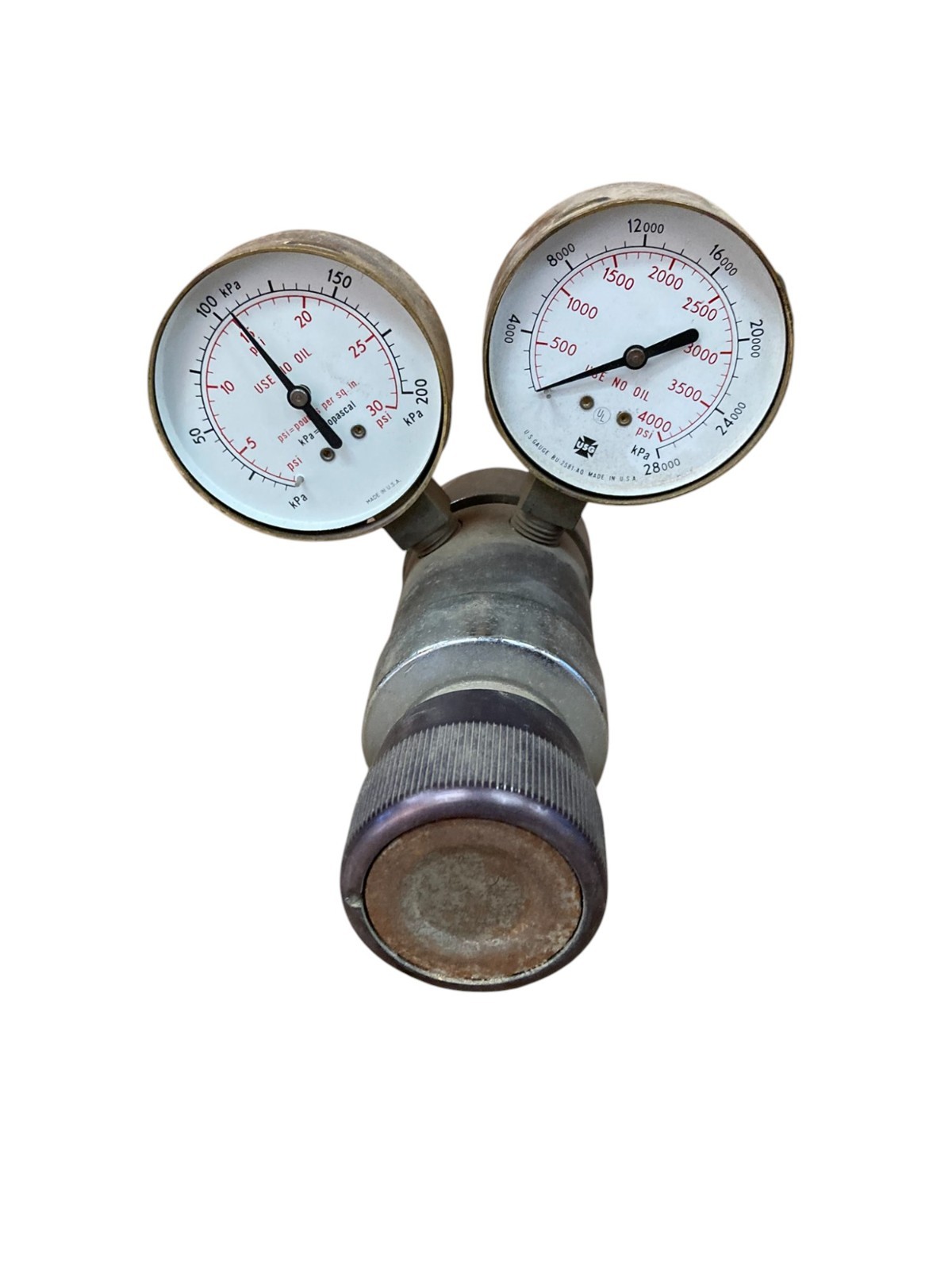

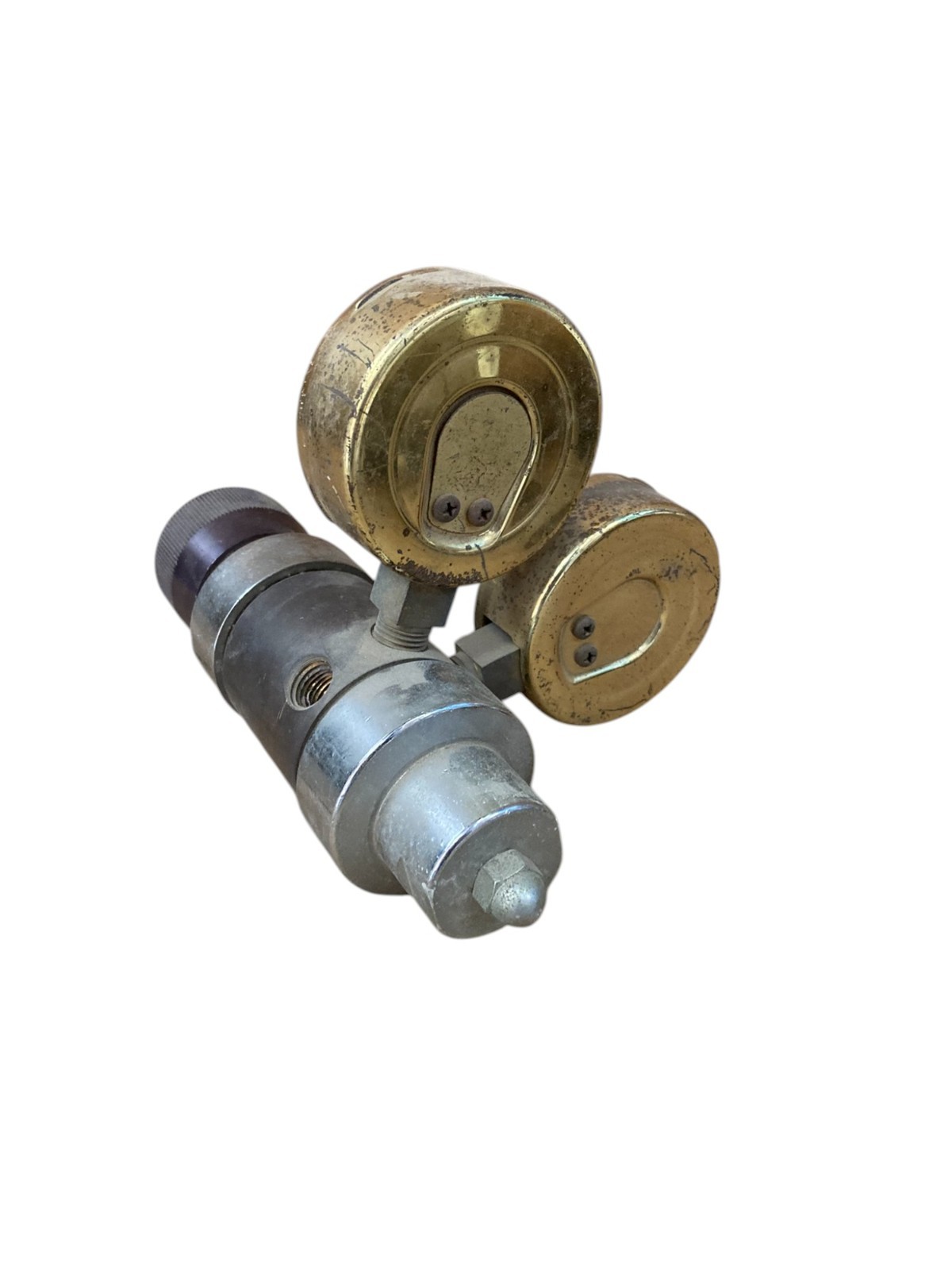

The Unbranded 85-12XUI-580 dual gauge regulator is a precision pressure control device engineered for professional welding and gas delivery systems. This CGA-580 inlet regulator features dual independent gauges for simultaneous monitoring of cylinder pressure and working output pressure, making it essential for TIG, MIG, and plasma cutting applications. The unit delivers stable, regulated gas flow across a wide range of inert gases including argon, nitrogen, and helium mixtures.
Key Features
- Dual independent pressure gauges for cylinder and output pressure monitoring
- CGA-580 inlet connection—industry standard for inert gas cylinders
- Output pressure range: 0–25 PSI for precise regulation
- Inlet gauge range: 0–4000 PSI for safe cylinder status verification
- Brass body with durable internal seating for long service life
- Tamper-proof, self-reseating relief valve for safety
- Compact design suitable for bench-top and mobile welding setups
Technical Specifications
| Specification | Value |

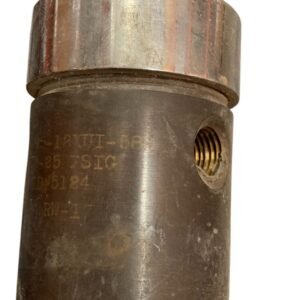

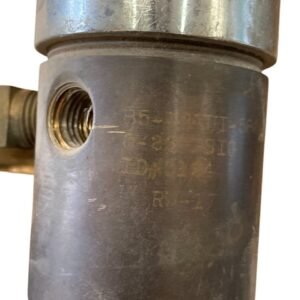

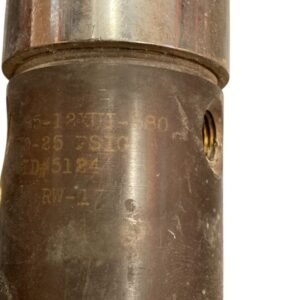

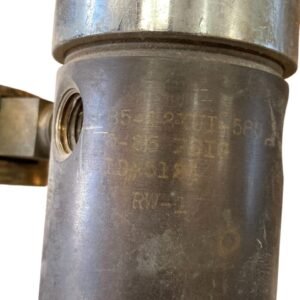

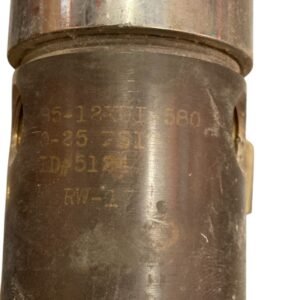

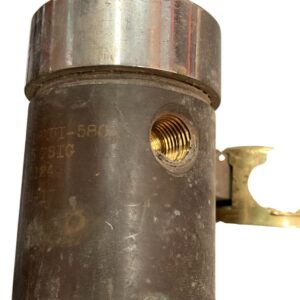

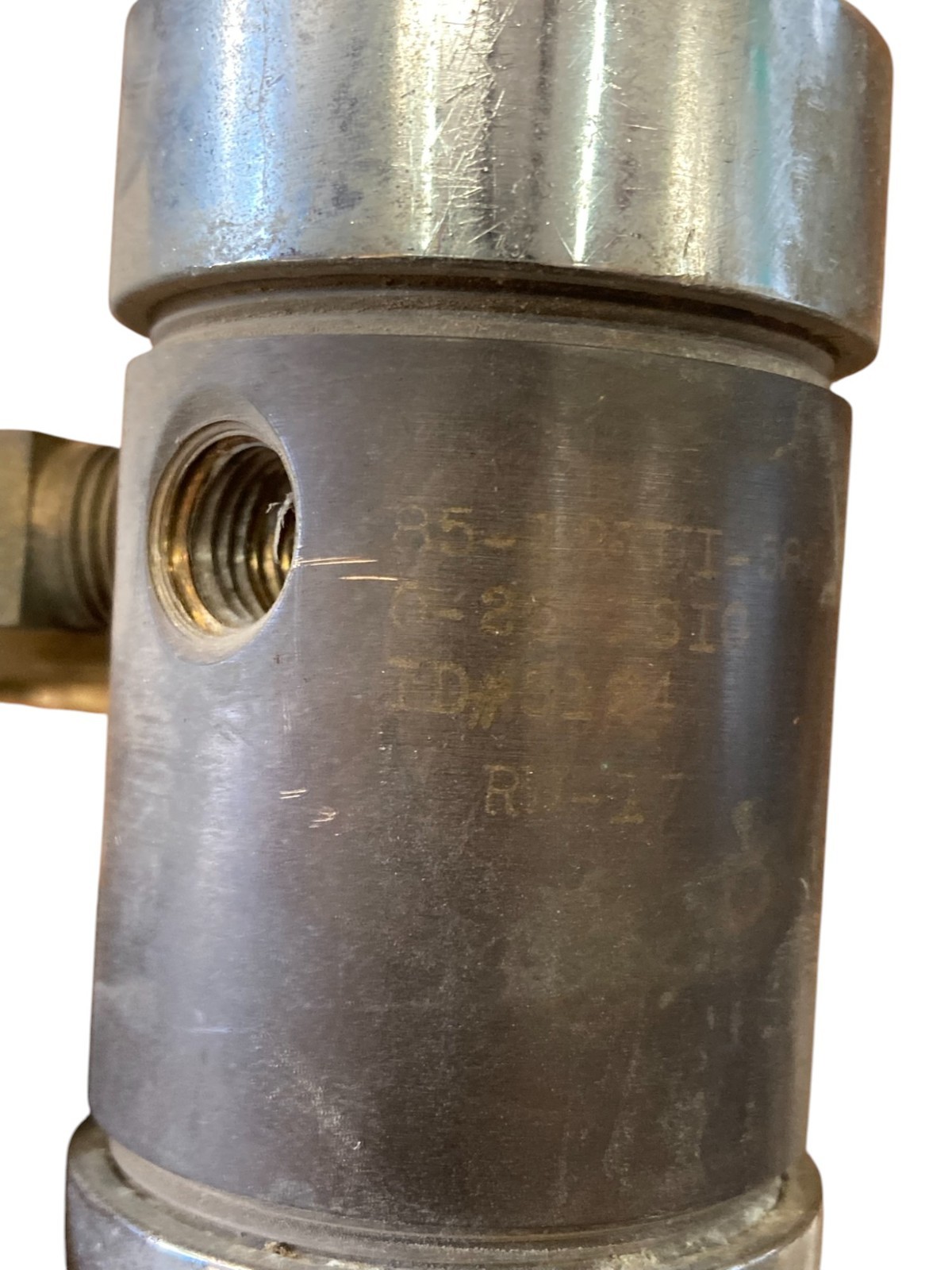

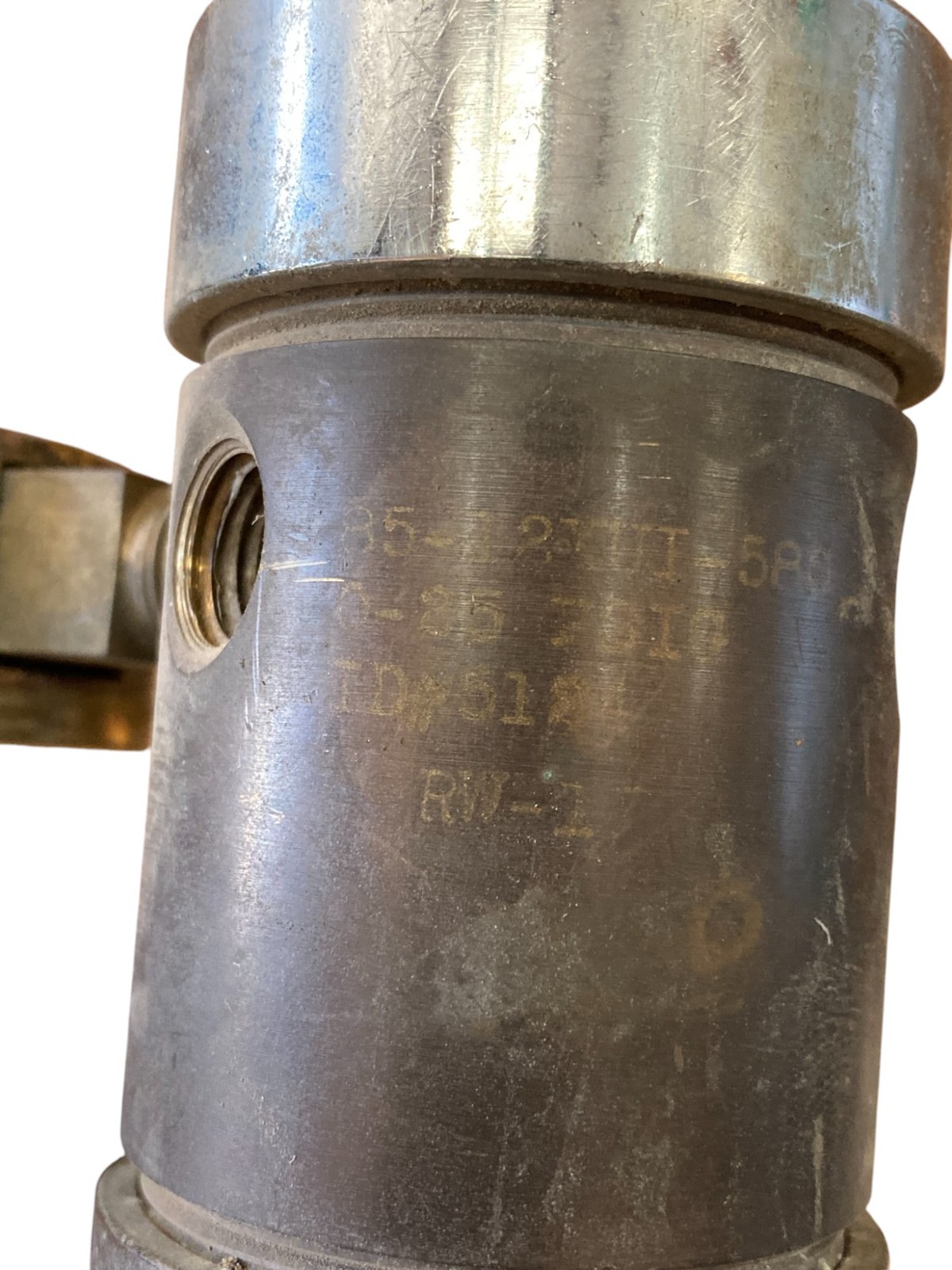

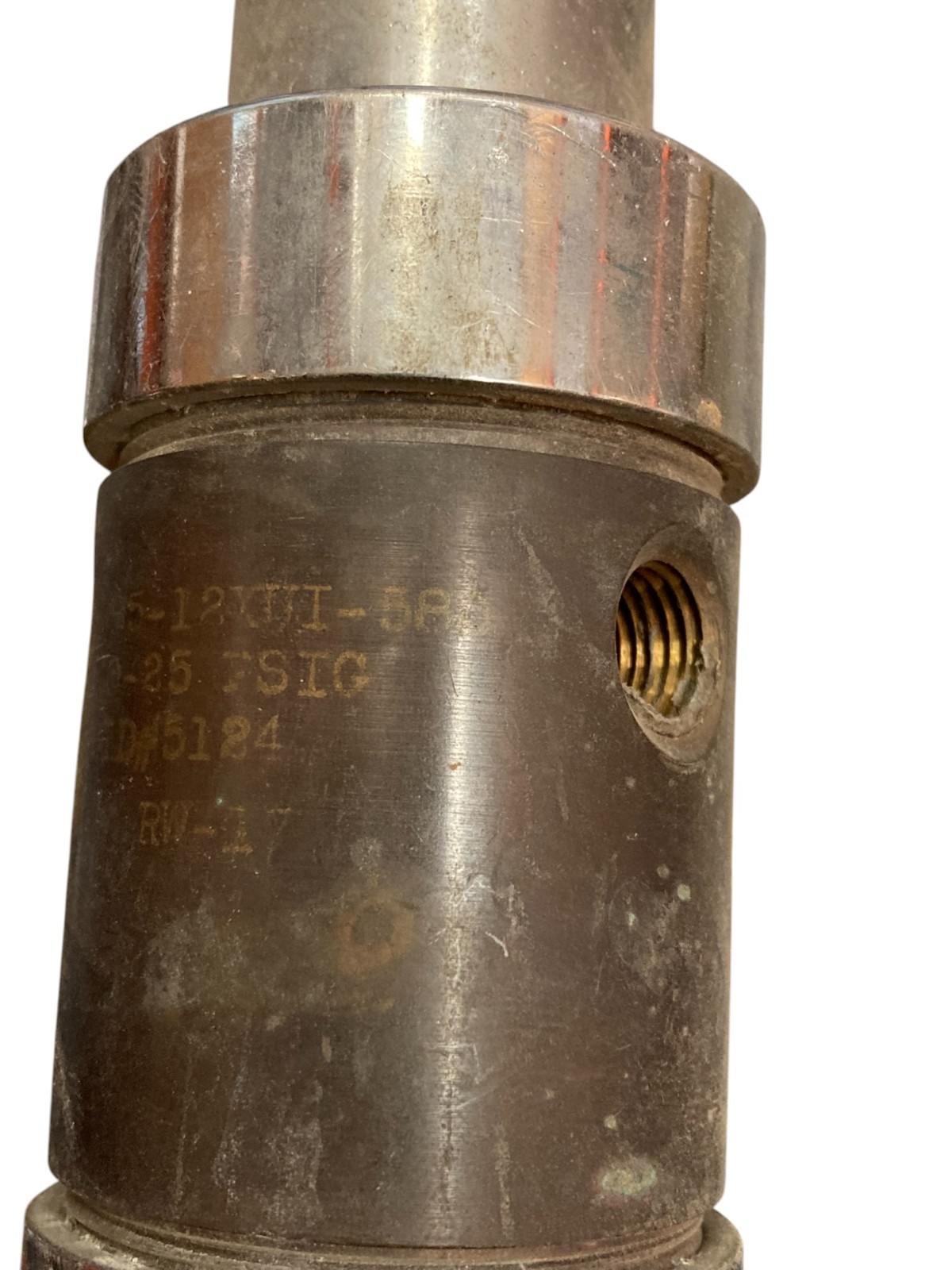

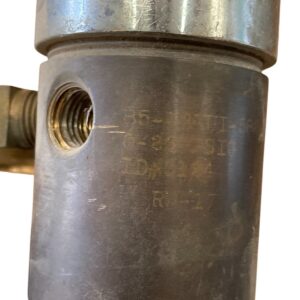

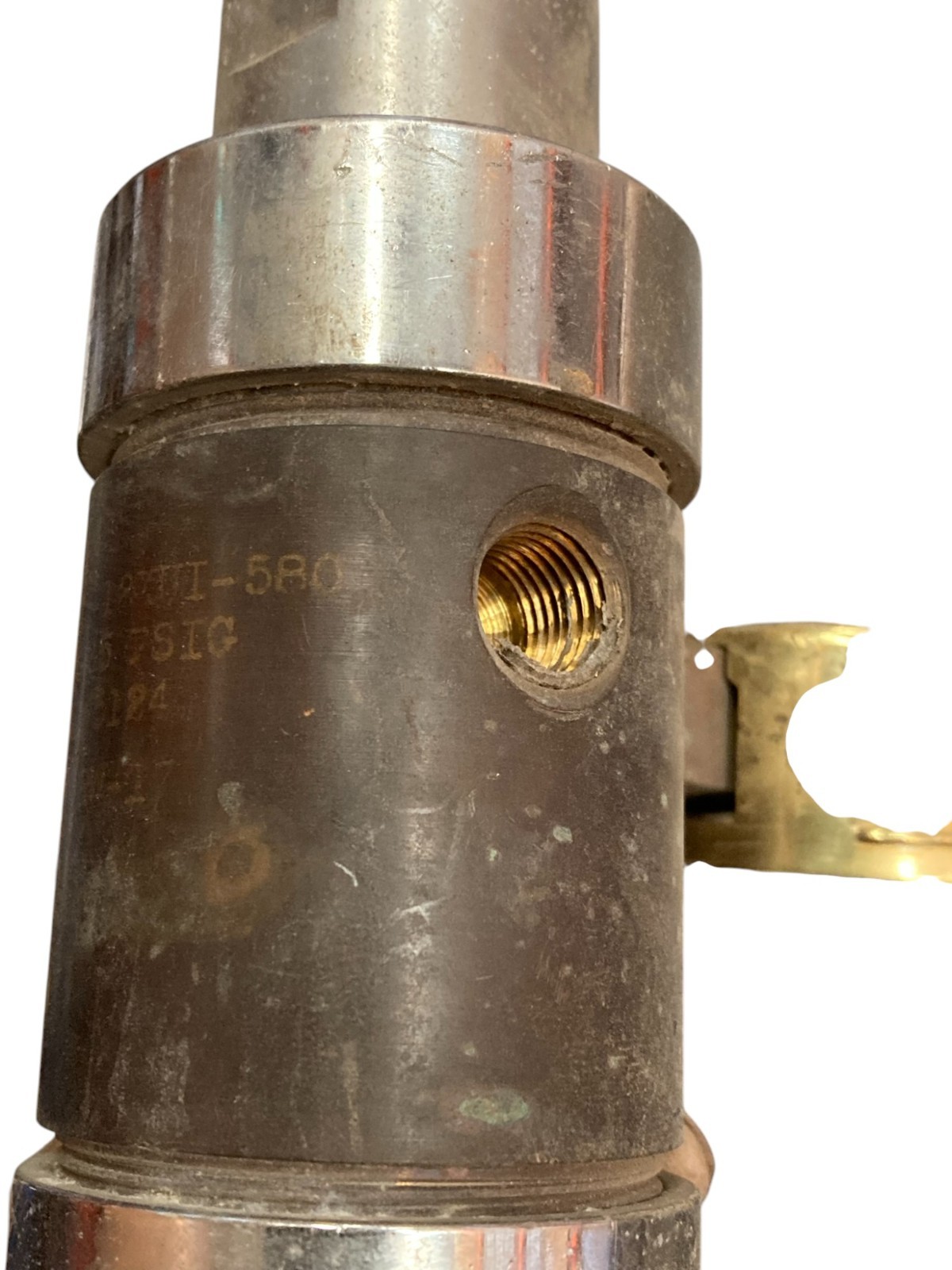

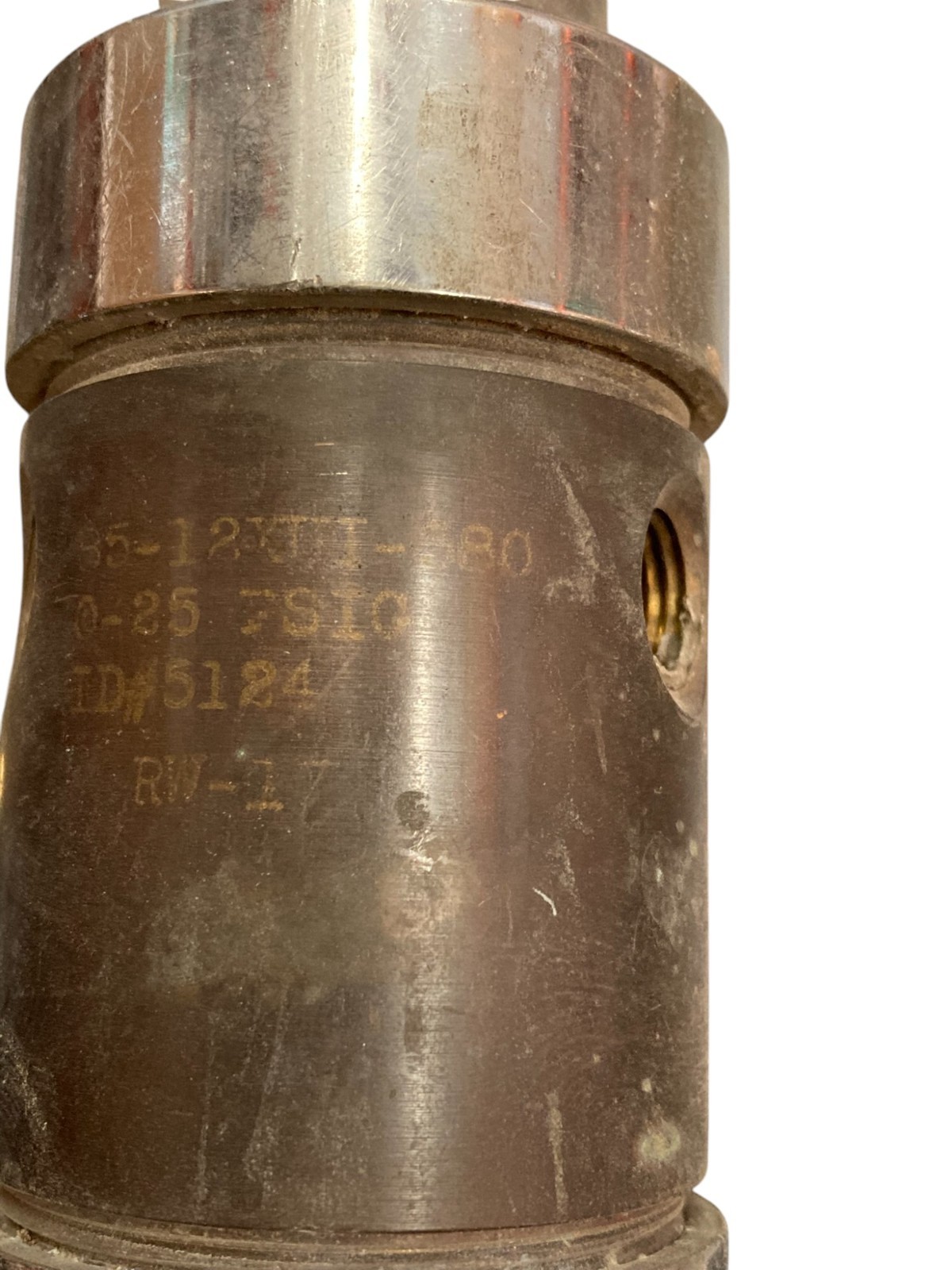

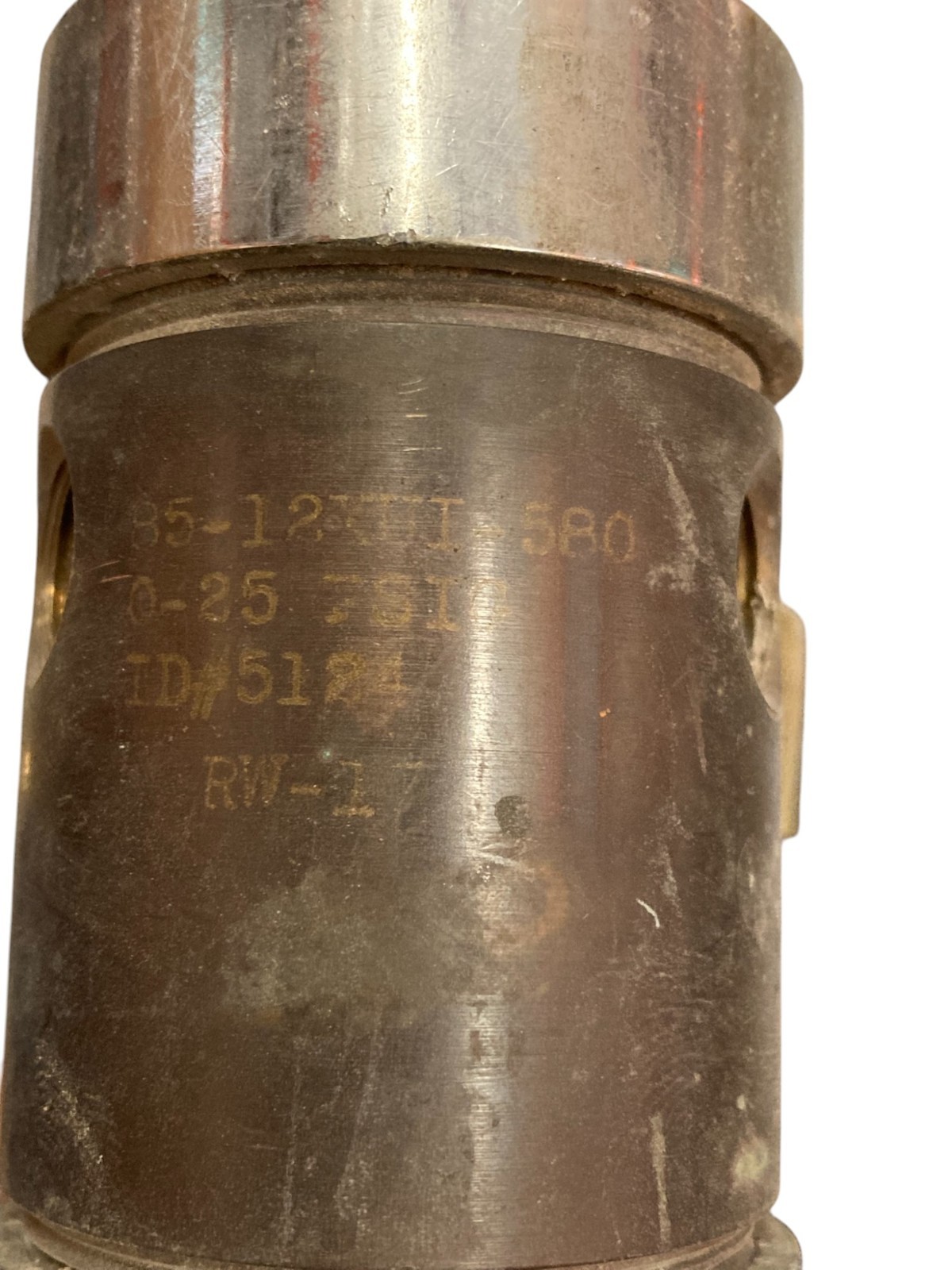

| Manufacturer Part Number | 85-12XUI-580 |
| Inlet Connection | CGA-580 |
| Inlet Gauge Range | 0–4000 PSI |
| Output Pressure Range | 0–25 PSI |
| Outlet Connection Thread | 5/8–18 NPT (F) |
| Body Material | Brass |
| Gauge Type | Dual 2-inch scale |
| Relief Valve | Self-reseating, tamper-proof |
| Applications | Argon, nitrogen, helium, mixed inert gases |
| Condition | Used, tested, fully functional |
Typical Applications
- TIG/GTAW Welding: Reliable pressure control for tungsten inert gas welding on stainless steel and aluminum
- MIG/GMAW Welding: Argon/COâ‚‚ or pure argon gas regulation for semi-automatic metal inert gas processes
- Plasma Cutting: Precise gas flow for CNC and manual plasma arc cutting systems
- Brazing & Soldering: Shielding gas delivery for high-precision brazed joints
- Industrial Gas Distribution: General-purpose inert gas regulation in fabrication shops and manufacturing facilities
Compatibility & Replacements
Compatible With
- Standard inert gas cylinders with CGA-580 valve (argon, nitrogen, helium, argon/COâ‚‚ mixtures)
- MIG welding equipment with 5/8″ NPT gas inlet
- TIG welding machines requiring regulated gas supply
- Plasma cutting systems and CNC torch heads
- Gas flow meters and secondary regulators in dual-stage setups
Replaces / Drop-In Replacement For
Verify compatibility with your specific welding equipment or gas delivery system before ordering. This unit is compatible with most industrial-grade dual-gauge CGA-580 regulator applications where 0–25 PSI output pressure is required.
Works With
- Standard laboratory and industrial gas flow measurement equipment
- Shielding gas hoses (standard 5/8″ NPT barbed or flared connections)
- Pressure relief manifolds and secondary regulation stages
- Welding machines from major manufacturers (Lincoln, Miller, ESAB, Hobart, Hypertherm)
