Overview

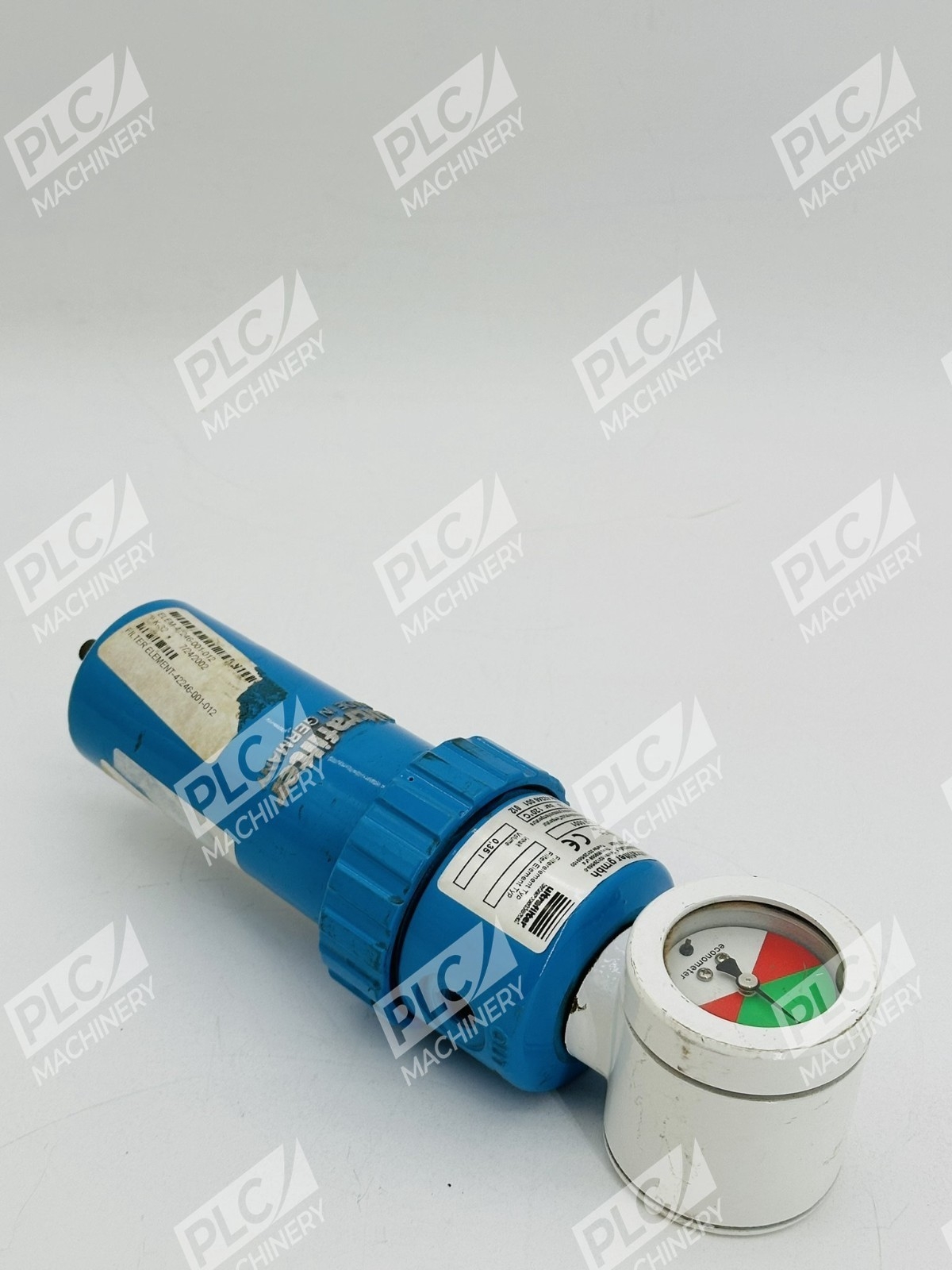

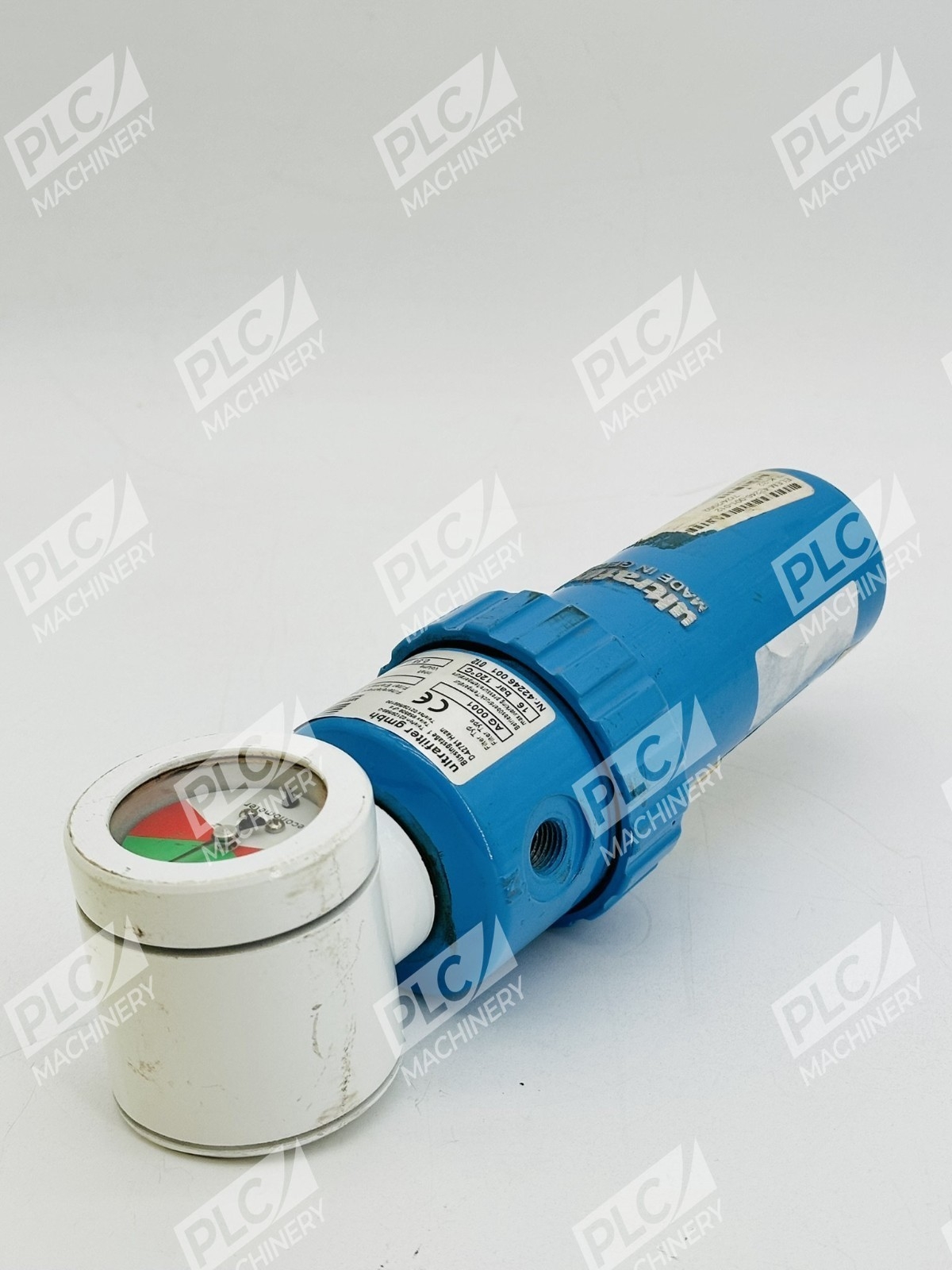

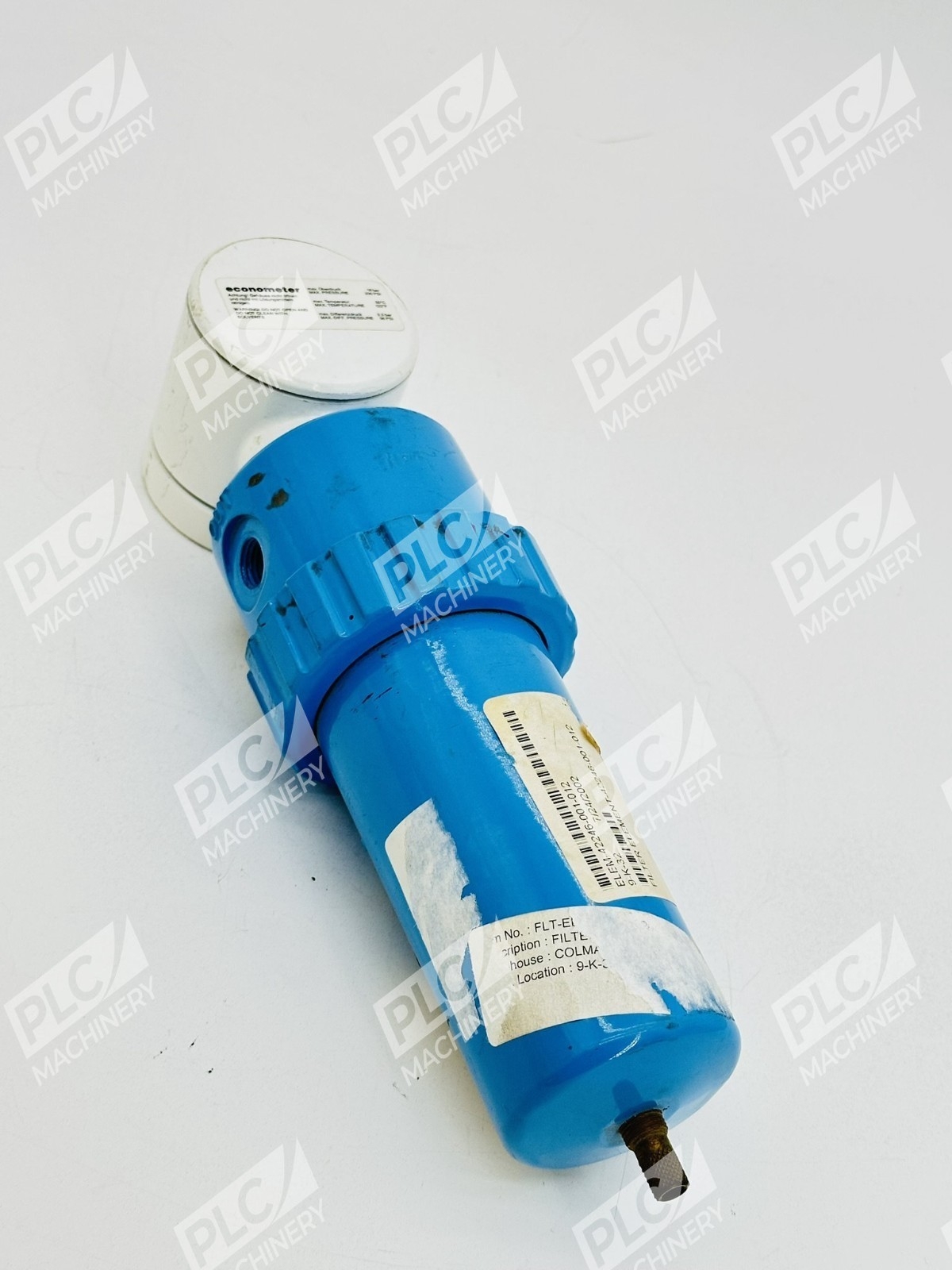

The Ultrafilter AG 0001 is a compact, aluminum three-part filter housing designed for compressed air purification in industrial applications. Rated to 16 bar maximum operating pressure, the AG 0001 provides efficient filtration with a modular construction that allows easy disassembly and element changeout. This standard AG series housing is equipped with a manometer for pressure monitoring and a float-type condensate drain valve, making it suitable for a wide range of compressed air flow requirements.
Key Features
- Three-part aluminum housing construction for easy maintenance and element replacement
- Maximum operating pressure rating: 16 bar (230 psi)

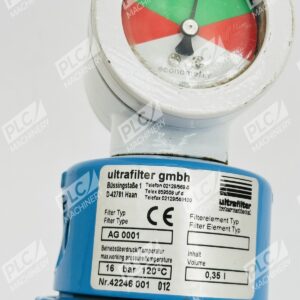

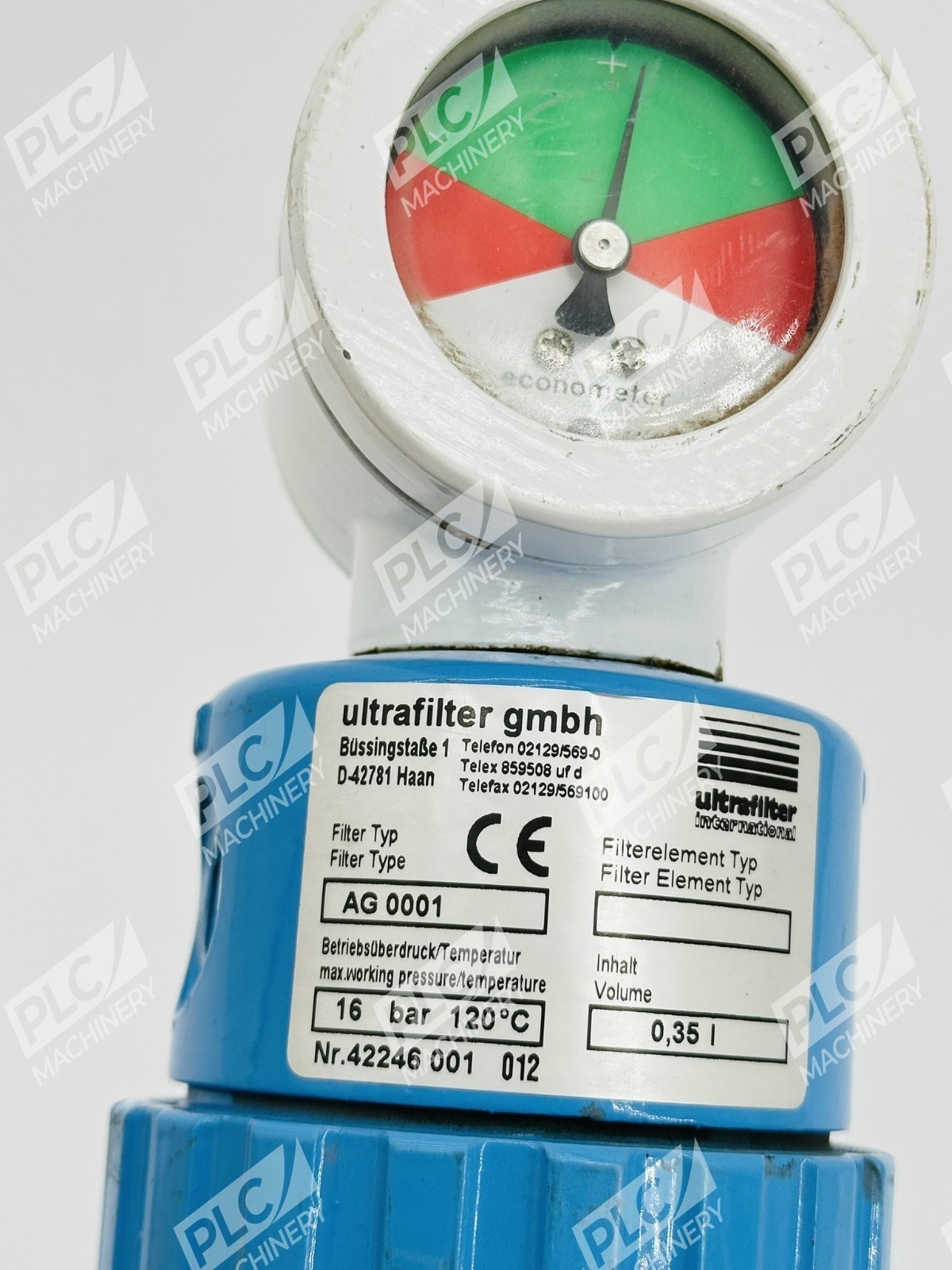

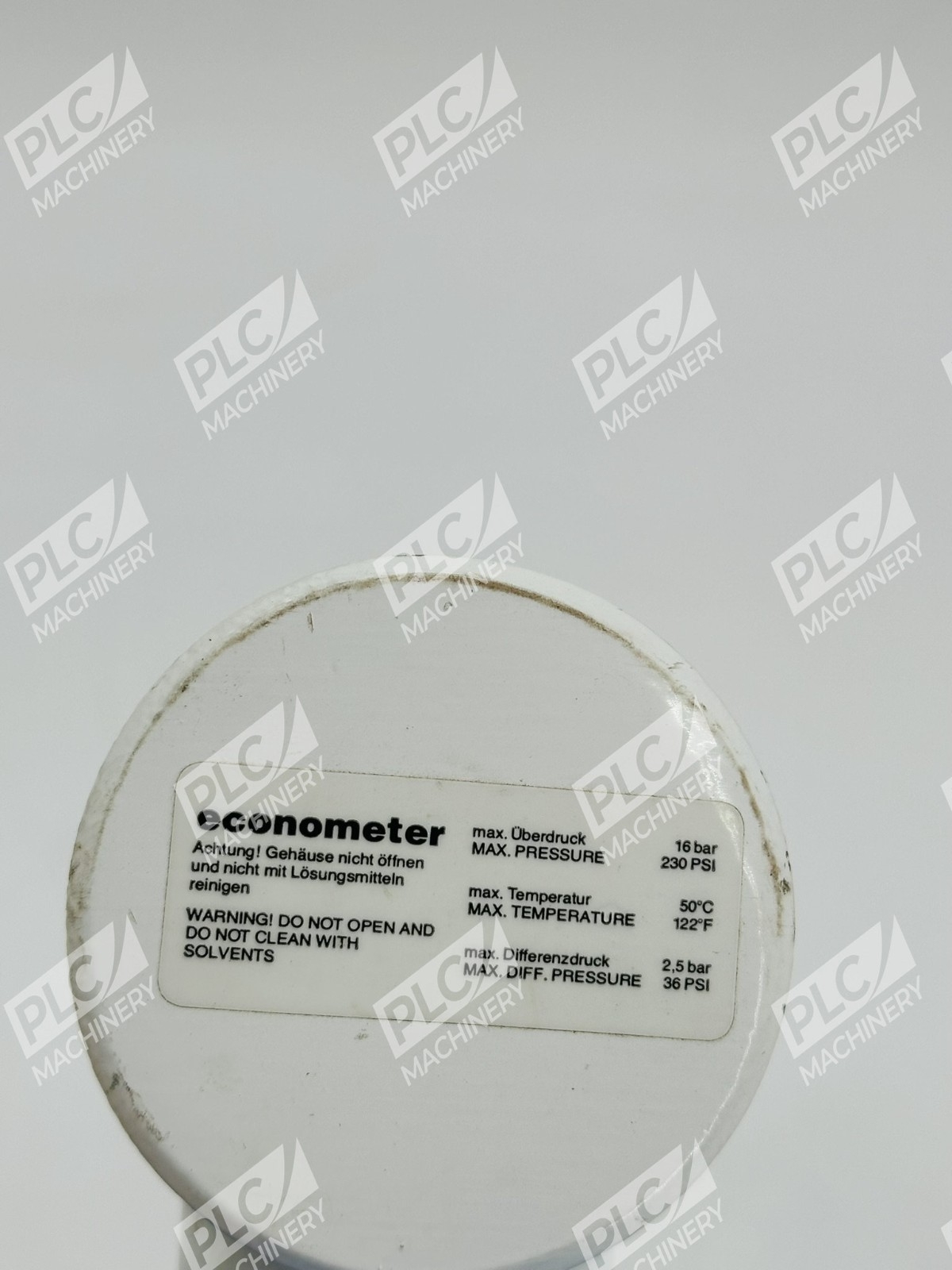

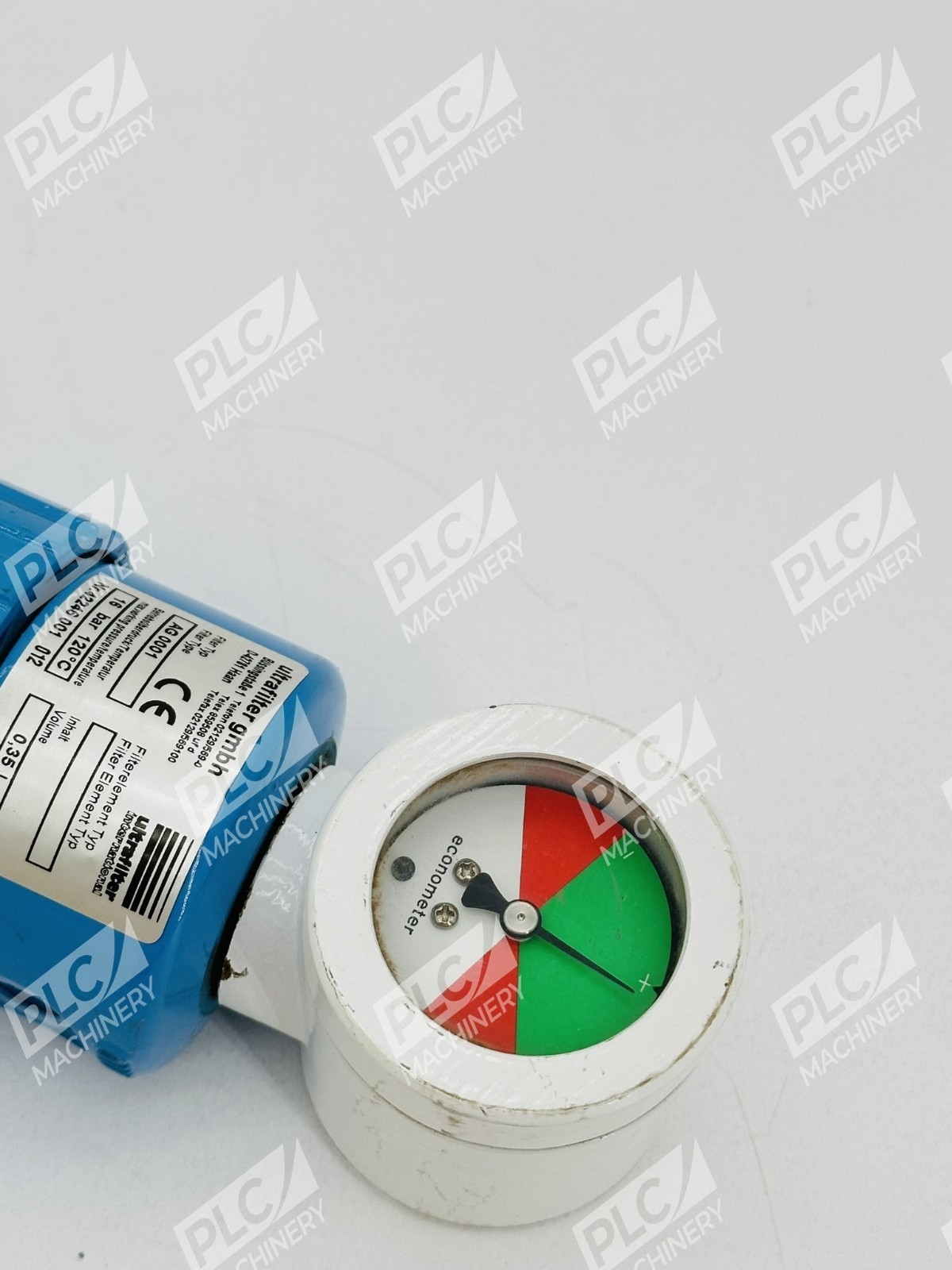

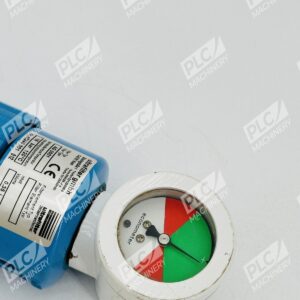

- Standard manometer for differential pressure monitoring
- Float-type automatic condensate drain valve
- Optimized flow-path design delivers low pressure drop at high flow rates
- Compatible with all Ultrafilter compressed air filter elements
- Tapered bowl design prevents condensate re-entrainment
Technical Specifications
The AG 0001 delivers robust performance across industrial compressed air systems. The three-part construction minimizes assembly complexity while the optimized internal geometry ensures consistent flow distribution and minimal pressure loss. Standard features include pressure monitoring capability and automatic condensate removal to protect downstream equipment.
Typical Applications
- General industrial compressed air filtration
- Manufacturing and production facilities
- Pneumatic tool and equipment air supply
- Process air purification
- On-site compressor station filtration
Compatibility & Replacements
Compatible With
- All Ultrafilter compressed air filter elements (FF, MF, SMF series)
- Standard G and NPT port connections
- Industrial compressed air systems rated up to 16 bar
- Pneumatic control systems and equipment
Replaces / Drop-In Replacement For
The Ultrafilter AG 0001 is part of the AG standard series housing line and may replace other AG series housings in comparable flow classifications. Verify part compatibility with your system integrator before ordering to ensure correct flow rating for your application.
Works With
- Ultrafilter filter elements and cartridges
- Float drain condensate management systems
- Pressure gauges and differential pressure monitors
- Standard industrial compressed air piping (NPT and G threads)
