Overview

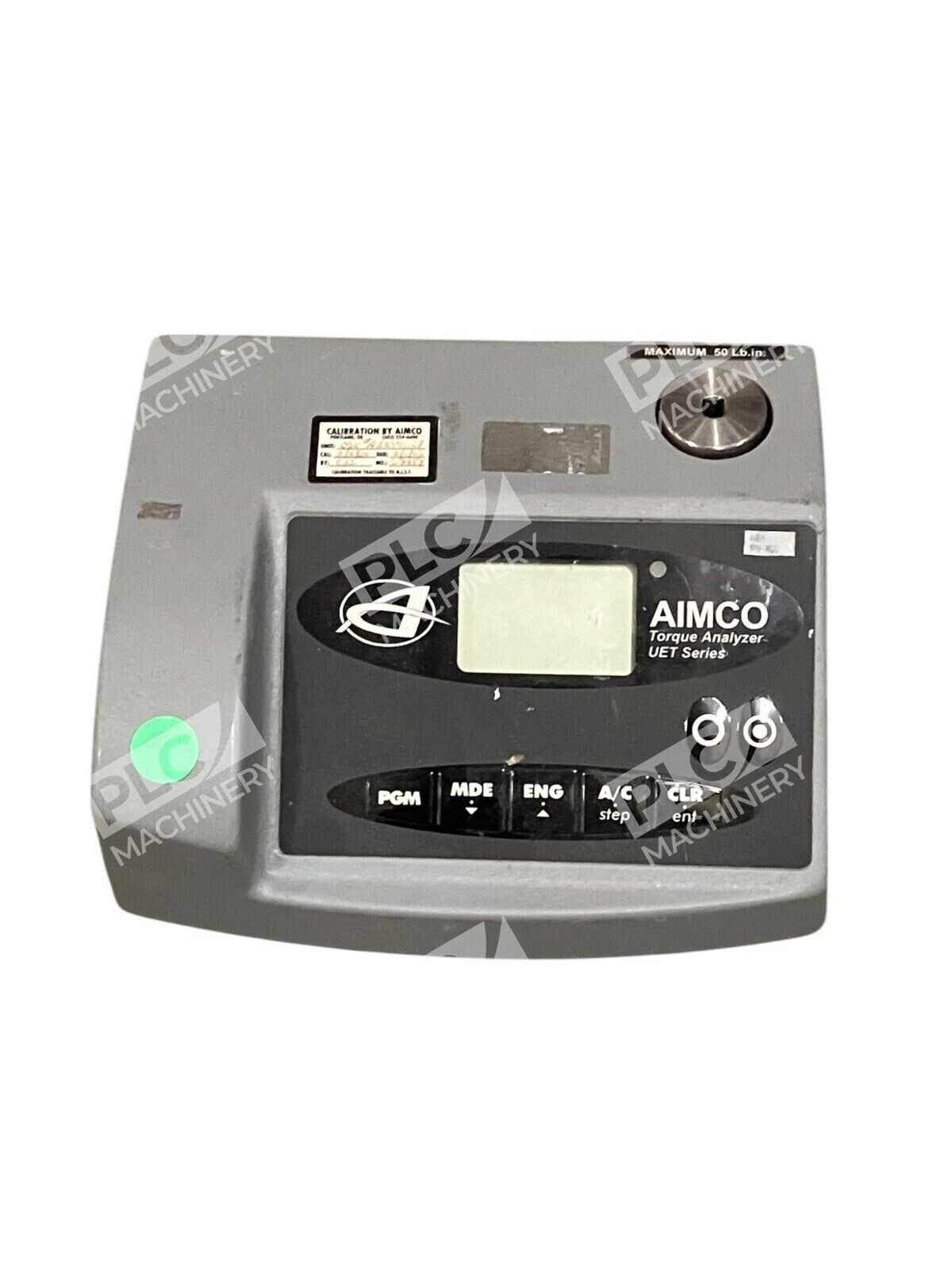

The Aimco UET-050 torque analyzer is a precision instrument designed for measuring and verifying torque in manufacturing, assembly, and quality control environments. Equipped with the UBP PIN 895 transducer, this unit delivers accurate 50 lb/in torque measurement capability. The UET Series combines digital display technology with reliable mechanical construction for repeatability and durability in demanding production settings.
Key Features
- High-resolution digital display for precise torque readings
- 50 lb/in measurement capacity with the integrated UBP PIN 895 transducer
- Data logging capabilities and programmable settings to accommodate different torque requirements
- Push-button zero function for quick instrument re-zeroing
- Multiple signal processing modes: Peak, First Peak, Track, and Pulse modes
- AC power and battery operation options
- Keylock security to prevent unauthorized programming changes
Technical Specifications
- Model: UET-050
- Manufacturer: Aimco (URYU Corporation)

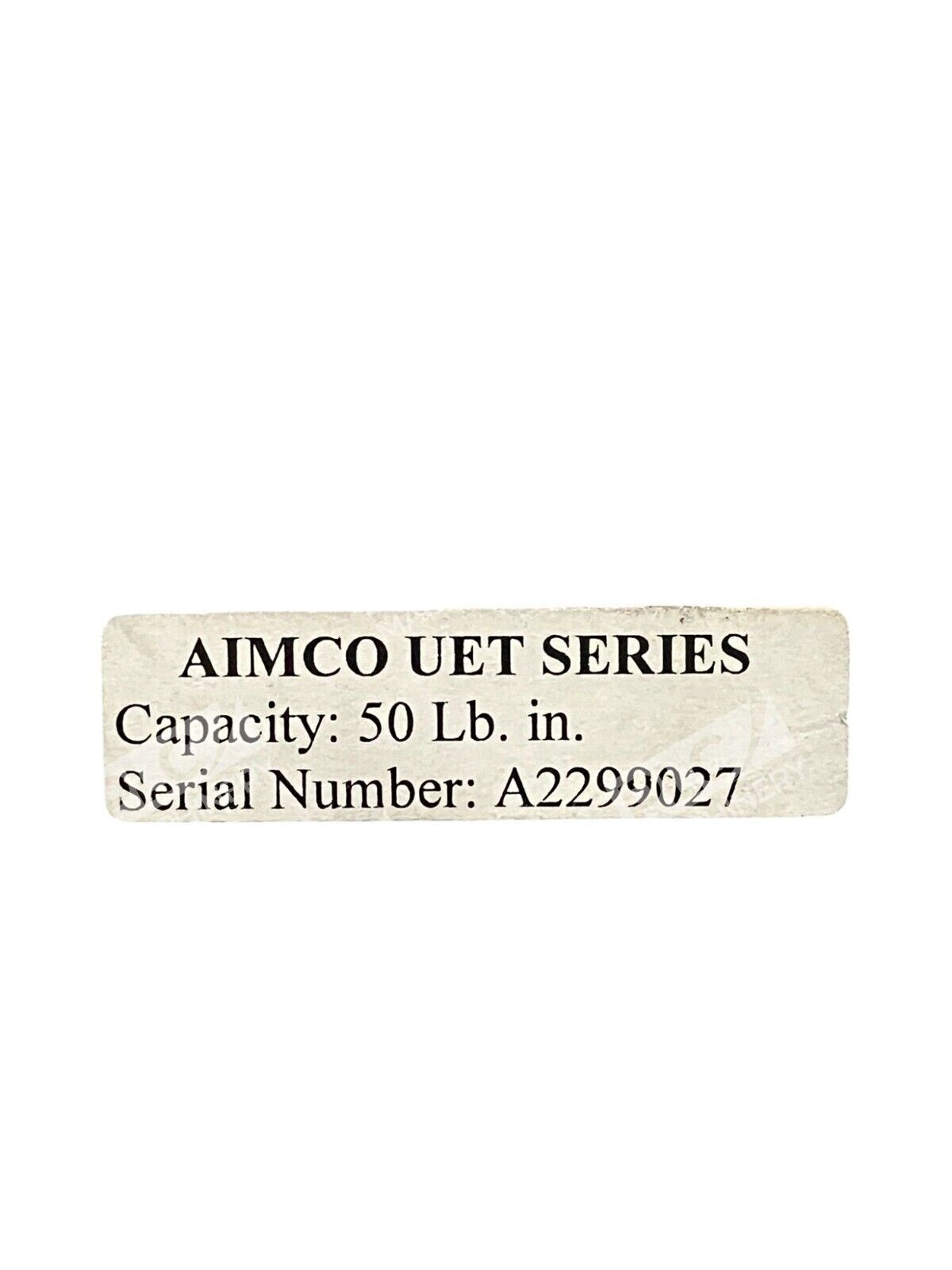

- Measurement Range: 50 lb/in (primary transducer capacity)

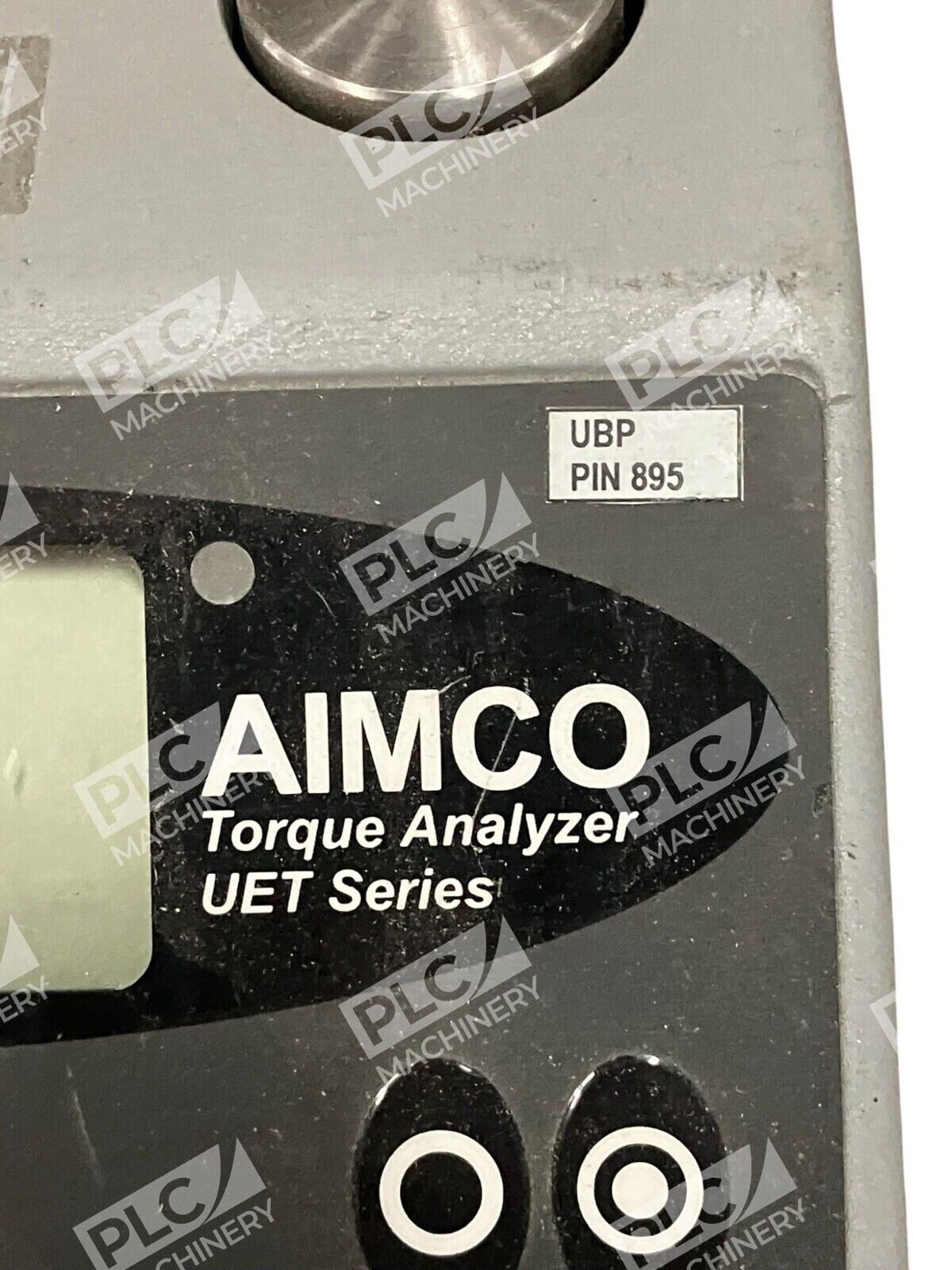

- Transducer Type: UBP PIN 895

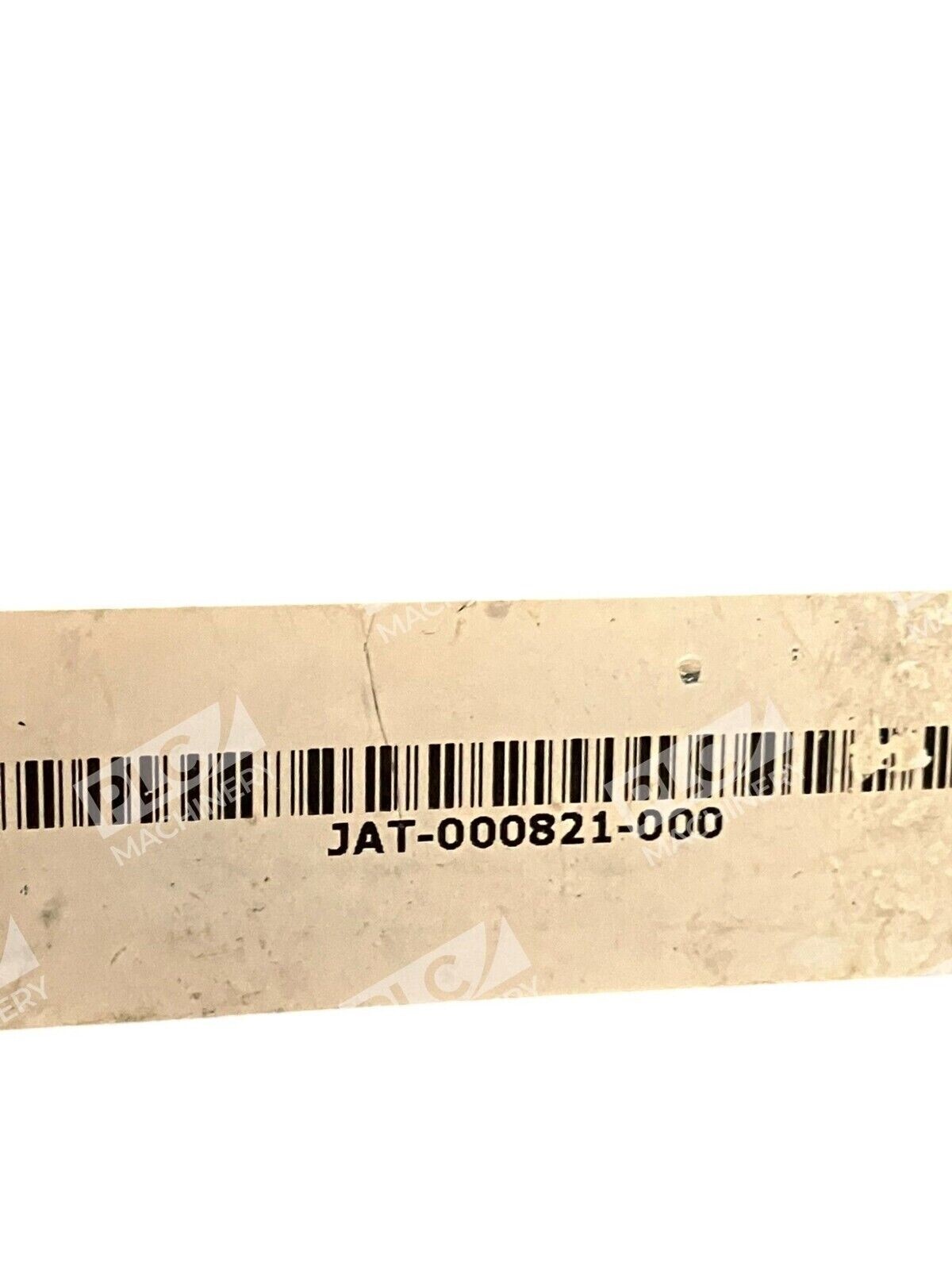

- Part Number (Reference): JAT-000821-000
- Display Type: Digital LCD readout
- Power Source: AC power or NiMh rechargeable batteries
- Data Output: Serial communication to computers or printers
- Signal Modes: Peak, First Peak, Track, Pulse
- Engineering Units: Multiple selectable scales (lb-in, lb-ft, N-m, kg-cm, oz-in)
- Zero Function: Push-button zero calibration
Typical Applications
The Aimco UET-050 is commonly used for:
- Tool Setup and Calibration: Verify torque settings and repeatability before assembly; tool cribs use torque measurement equipment for tool setup and capability studies
- Quality Control: Maintains consistent torque in quality control and production environments
- Hand tool, power tool, and pulse tool verification
- Assembly line torque verification and repeatability studies
- Production floor torque compliance testing
Compatibility & Replacements
Compatible With
- Standard AC power 110-120V installations
- NiMh rechargeable battery systems for portable use
- Serial communications interfaces for data logging to legacy systems and printers
- Manufacturing and assembly line workflows
- Quality management and SPC (Statistical Process Control) systems
Replaces / Drop-In Replacement For
The UET-050 with UBP PIN 895 transducer is a direct replacement for other UET Series 50 lb/in configurations. Verify compatibility with your specific assembly fixtures and transducer mounting requirements before installation. Contact your system integrator to confirm interchangeability with legacy torque verification equipment.
Works With
- Repeatable joint simulators for consistent test conditions
- External data acquisition and SPC software via serial RS-232 interface
- Multiple transducer mounting interfaces (standard Aimco/URYU mounts)
- Hand tool, pneumatic tool, and electric tool assemblies
- Production reporting and quality compliance documentation systems
